32 Setup Center 4.2 Setup Center 4.2
1.1 Recommendation
For a temporary operation (e. g. during an upgrade) it is possible to use different Setup Center GUI ver-
sions.
NOTICE
New functions
However, the new functions are not available in the old Setup Center GUIs.
System Overview
Setup Center 4.2 Setup Center 4.2 33
2 System Overview

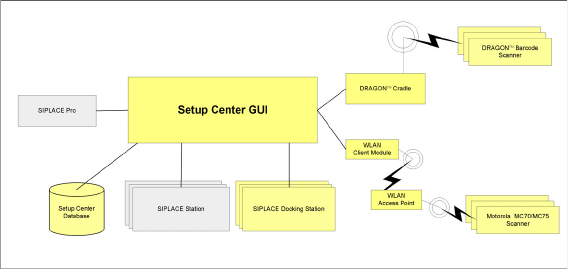

The SIPLACE Setup Center package comprises the following subsystems:
▪ Setup Center GUI
▪ Setup Center Database
▪ Barcode Reader
▪ Docking Station
SIPLACE Setup Center loads the target setup from SIPLACE Pro. After the download of a recipe at the
line, Setup Center automatically loads target setup during online setup verification. In the case of offline
setup verification, the operator selects the target setup manually.
During setup verification, packaging unit data are recorded via the barcode reader, then checked against
the currently loaded target setup and finally stored in the Setup Center database. During the process of
forced setup verification, the resulting data is transferred to the machine via the station interface.
