PCB Barcode V2.0 SP3 / Installation Manual Ausgabe 12/2012 Edition

► Open the Environment Variables in the Advanced tab.

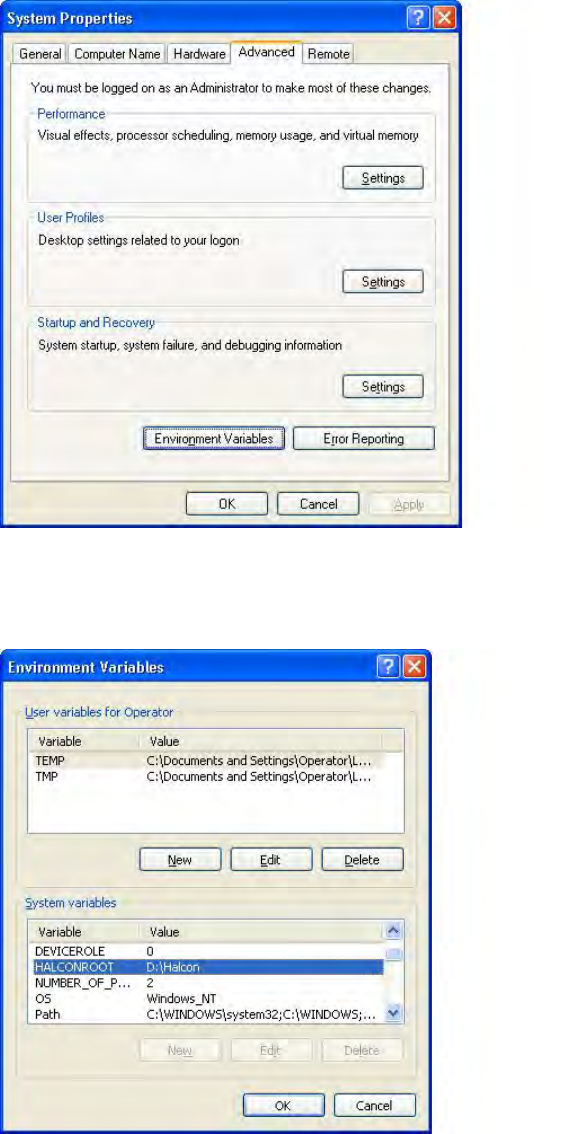

Figure 4-7: Opening Environment Variables

The HALCONROOT variable with the D:\Halcon path should be listed in the lower window under

System variables.

Figure 4-8: System variables

► If not, repeat the installation.

PCB Barcode V2.0 SP3 / Installation Manual Ausgabe 12/2012 Edition

5 Testing PCB Barcode

You can test the PCB Barcode with SIPLACE Pro and the station software.

In SIPLACE Pro:

► Create a new board in the Board Editor.

► Create a new fiducial of the type PCB Barcode in the Fiducial Editor and enter dimensions

and tolerances.

► Create at least one component for the board in the Component Editor.

► Assign the component and the barcode fiducial to the board in the Board Editor.

► Define the placement program for the station.

More information about the single steps can be found in the "Getting Started with SIPLACE Pro"

manual and in the online help to SIPLACE Pro.

In the station software:

After the placement program has been downloaded to the station:

► Teach the barcode under Teaching fiducials in the Board view.

More information about this can be found in the online helps to the station software and SIPLACE

Vision.
