G e n e r a l P u r p o s e Power Relays SZR-LY Series HOLDING CLIPS x Holding clips are included with the sockets x Holding clips for the SLF-08N cannot be removed once ins erted x The holding clip for the SLF-14 can be…
General Purpose
Power Relays SZR-LY Series
CATALOG LISTING MATRIX
SZR – LY 2 – ___ 1 P – AC110-120V
Product Type
General Purpose Relay
Amp Rating:
MY = 5 A or 3 A
LY = 10 A
Poles
2 = DPDT
4 = 4PDT
Option Type
__ = No Indicator or Diode
D = Interna l S urg e P r ot ection Diode
N = Red LED Operation Indica tor
X = LED and Dio de
Mounting Type
1 = Terminal
Terminal Type
__ = Solder/P lu g-in
P = PCB
Voltage Rating:
AC6V = 6 Vac
AC12V = 12 Vac
AC24V = 24 Vac
AC50V = 50 Vac
AC100V = 100 Vac
AC110-120V = 110/120 Vac
AC200V = 200 Vac
AC220V = 220 Vac
AC220-240V = 220/240 Vac *
DC6V = 6 Vdc
DC12V = 12 Vdc
DC24V = 24 Vdc
DC48V = 48 Vdc
DC100V = 100 Vdc
240 Vac - Su bm i t ted for UL a ppro val
Honeywell x Sensing and Control 5
General Purpose
Power Relays SZR-LY Series
HOLDING CLIPS
x Holding clips are included with the sockets
x Holding clips for the SLF-08N cannot be removed once inserted
x The holding clip for the SLF-14 can be removed by pushing the side of the inserting hold with a sharp object
x Holding clips for all SMB sockets are wire for easy removal
x Holding clips are to be inserted into the slots provided on the socket

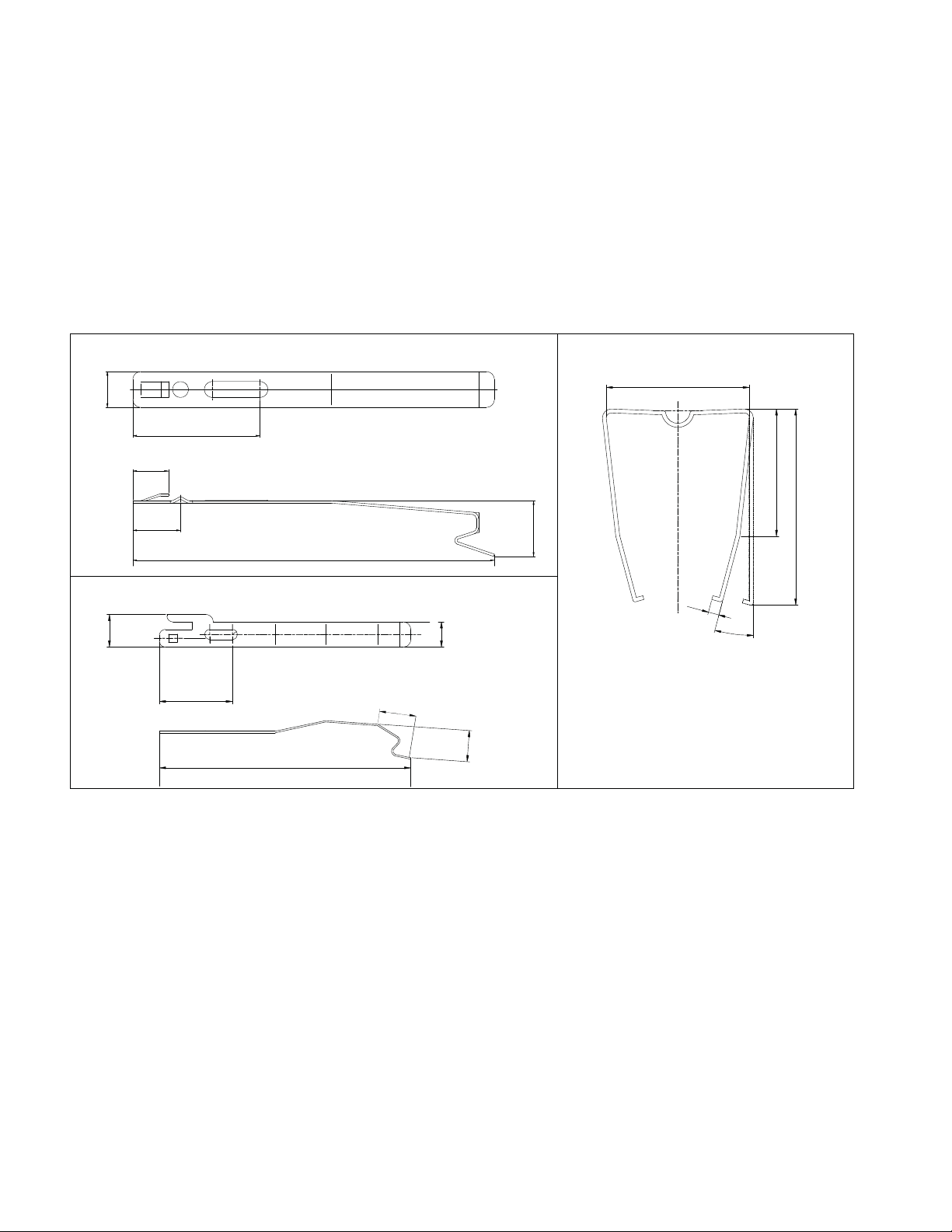

DIMENSIONS (For reference only – mm/in)
Figure 1. Dimensions
For SZX-SLF-14 sockets
16,0 [0.63]
4,5
[0.18]
4,5
[0.18]
6,0
[0.24]
45,5 [1.79]
7,0
[0.28]
Figure 2. Dimensions
For SZX-SLF-08N sockets
49,9 [1.96]
6,2
[0.24]
5,0
[0.20]
14,5
[0.57]
6,5
[0.26]
4,6 [0.18]
Figure 3. Dimensions
For all SZX-SLB sockets
29,0 [1.14]
22,0 [0.87]
39,6 [1.56]
2
,
2
[
0
.
0
9
]
1
5
°
6 Honeywell x Sensing and Control
General Purpose
Power Relays SZR-LY Series

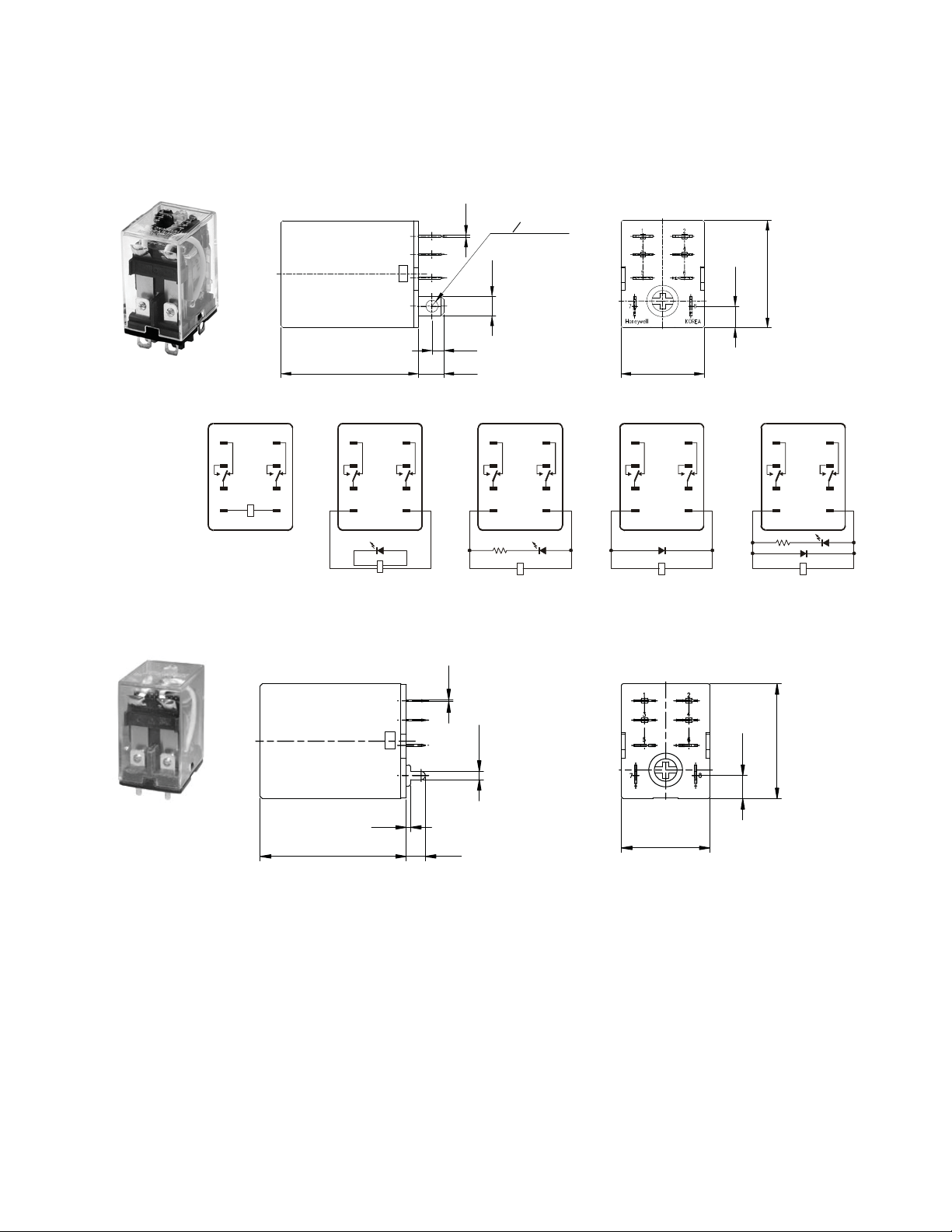

FIGURE 4. DIMENSION, CIRCUIT DIAGRAM, TERMINAL ARRANGEMENT, AND MOUNTING HOLE FOR
SZR-LY2-1, SZR-LY2-N1, SZR-LY2-D1, and SZR-LY2-X1
Max. 36,0 [1.42]
0,5
[0.02]
5,0
[0.20]
3,0 [0.12]
6,4 [0.26]
Max. 21,5
[0.85]
5,75
[0.23]
Max. 28,0 [1.10]
14 - O 3,0 [0.12]
Bottom view
1
2
3
4
56
78
LY2-1 LY2-N1 AC LY2-N1 DC
78
1
3
5
2
4
6
LY2-D1 LY2-X1
78
1
3
5
2
4
6
-+
78
1
3
5
2
4
6
-+
78
1
3
5
2
4
6
-+
FIGURE 5. DIMENSION, CIRCUIT DIAGRAM, TERMINAL ARRANGEMENT, AND MOUNTING HOLE FOR
SZR-MY2-1P and SZR-MY4-1P
0,5
[0.02]
2,0
[0.08]
1,0
[0.04]
4,5
[0.18]
Max. 36,0 [1.42]
Max. 21,5 [0.85]
Max. 28,0 [1.10 ]
5,75
[0.23]
The circuit diagram is the same wit standard type of SZR-MY2-1 or the SZR-MY4-1
