G e n e r a l P u r p o s e Power Relays SZR-LY Series FIGURE 6. DIMENSION, CIRCUIT DIAGRAM, TERMINAL ARRANGEMENT, AND MOUNTING HOLE FOR SZR-LY4-1, SZR-LY4-N1, SZR-LY4-D1, and SZR-LY4-X1 14 - O 3.0 Holes Max. 36,0 [1.42]…

100%1 / 10
General Purpose
Power Relays SZR-LY Series
FIGURE 4. DIMENSION, CIRCUIT DIAGRAM, TERMINAL ARRANGEMENT, AND MOUNTING HOLE FOR
SZR-LY2-1, SZR-LY2-N1, SZR-LY2-D1, and SZR-LY2-X1
Max. 36,0 [1.42]
0,5
[0.02]
5,0
[0.20]
3,0 [0.12]
6,4 [0.26]
Max. 21,5
[0.85]
5,75
[0.23]
Max. 28,0 [1.10]
14 - O 3,0 [0.12]
Bottom view
1
2
3
4
56
78
LY2-1 LY2-N1 AC LY2-N1 DC
78
1
3
5
2
4
6
LY2-D1 LY2-X1
78
1
3
5
2
4
6
-+
78
1
3
5
2
4
6
-+
78
1
3
5
2
4
6
-+
FIGURE 5. DIMENSION, CIRCUIT DIAGRAM, TERMINAL ARRANGEMENT, AND MOUNTING HOLE FOR
SZR-MY2-1P and SZR-MY4-1P
0,5
[0.02]
2,0
[0.08]
1,0
[0.04]
4,5
[0.18]
Max. 36,0 [1.42]
Max. 21,5 [0.85]
Max. 28,0 [1.10 ]
5,75
[0.23]
The circuit diagram is the same wit standard type of SZR-MY2-1 or the SZR-MY4-1
Honeywell x Sensing and Control 7
General Purpose
Power Relays SZR-LY Series
FIGURE 6. DIMENSION, CIRCUIT DIAGRAM, TERMINAL ARRANGEMENT, AND MOUNTING HOLE FOR
SZR-LY4-1, SZR-LY4-N1, SZR-LY4-D1, and SZR-LY4-X1
14 - O 3.0 Holes
Max. 36,0 [1.42]
6,4 [0.25]
3,0
[0.12]
5,0
[0.20]
0,5
[0.02]
Max. 41,5 [1.63]
Max. 28, 0 [1.10]
13
1
5
9
2
6
10
3
7
11
4
8
12
14
LY4-1 LY4-N1 DC
13
1
5
9
2
6
10
3
7
11
4
8
12
14
LY4-N1 AC
LY4-D1
LY4-X1
13
1
5
9
2
6
10
3
7
11
4
8
12
14
-
+
13
1
5
9
2
6
10
3
7
11
4
8
12
14
-
+
13
1
5
9
2
6
10
3
7
11
4
8
12
14
-
+
Bottom view
FIGURE 7. CIRCUIT DRAWING FOR SZR-LY2- and SZR-LY4-
3.4
5.3
5.5 4. 1
14.2
10
8- 2.5
0.1
10 10 10
7.15
13.15 4.6
14- 2.5
0.1
4PDT
DPDT
8 Honeywell x Sensing and Control
General Purpose
Power Relays SZR-LY Series

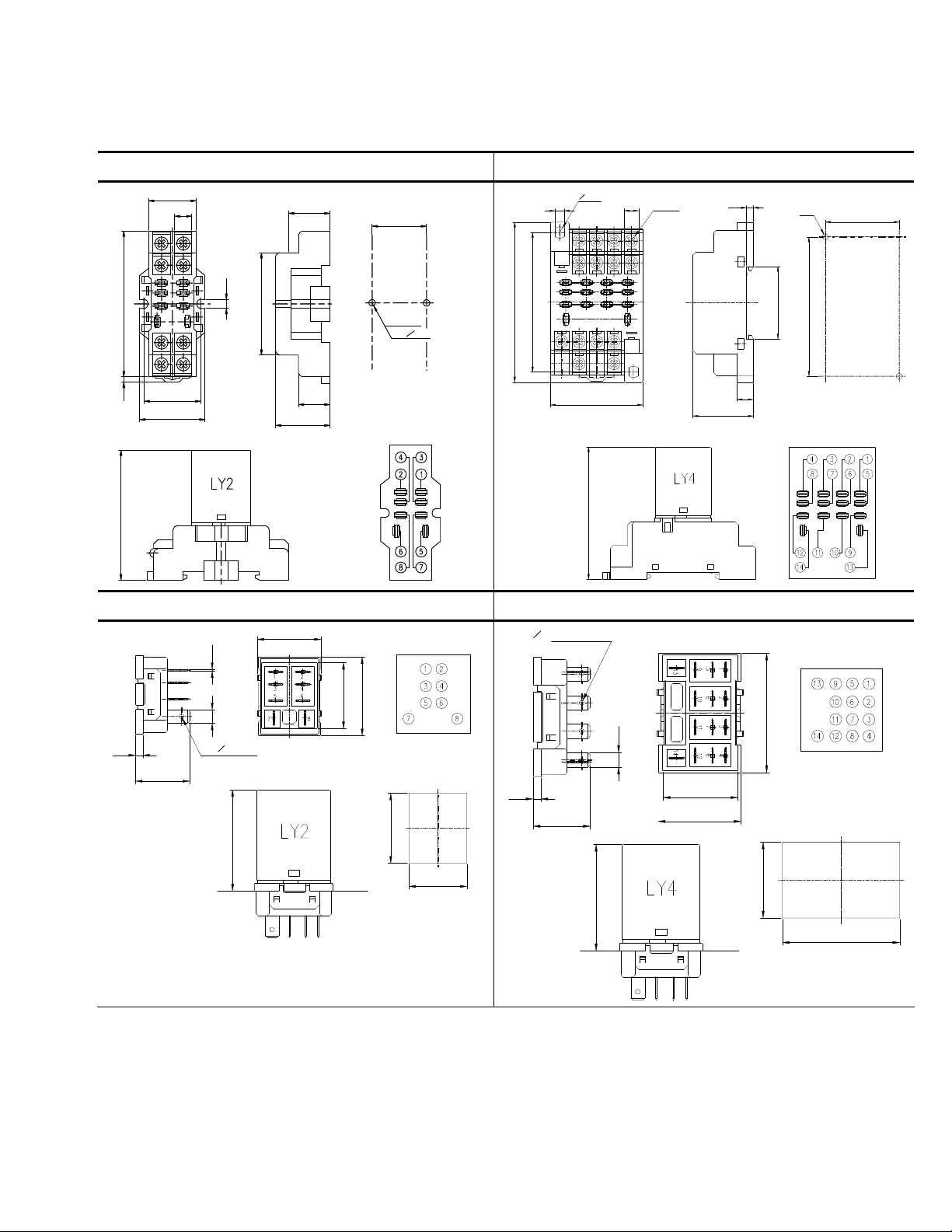

SOCKETS
FIGURE 8. SZX-SLF-08N FIGURE 9. SZX-SLF-14
2 - O 4,5 [0.18] Holes
2 - M4
25,0 ± 0,2
[0.99 ± .008]
19,0
[0.75]
2,5
[0.10]
14,5
[0.57]
25,0 [0.99]
4,2
[0.17]
30,0 [1.18]
26,0
[1.02]
47,0
[1.85]
67,0 [2.64]
22,0 [0.87]
8,0
[0.31]
Max. 61,0 [2.40]
Max. 30,0 [1.18]
8,0
[0.31]
35,5 [1.40]
69,0 ± 0,3
[2.72 ± 0.01]
36,0 ± 0, 2
[1.42 ± 0.008]
2-M4
3,4 [0.13]
14-M3.5x8
7,0
[0.28]
2 - O 6,0 [0.24]
4,5
[0.18]
68,0 [2.68]
Max. 78,5 [3.09]
Max. 45,5
[1.79]
Max. 66,0 [2.60]
FIGURE 10. SZX-SLB-08 FIGURE 11. SZX-SLB-14
8 - O 1,7 [0.07]
Max. 20,5
[0.81]
2,7
[0.11]
5,0
[0.20]
0,3
[0.01]
Max. 24,0
[0.94]
M
a
x
.
2
5
,
5
[
1
.
0
0
]
M
a
x
.
2
9
,
5
[
1
.
1
6
]
38,5
[1.52]
25,8 ± 0,2
[1.02 ± .008]
Max. 21,4 ± 0,2
[0.84 ± . 008]
14 - O 1,7 [0.07] Holes
5,0
[0.20]
Max. 42,5 [1.67]
Max. 26,5
[1.04]
Max. 29,5 [1.16]
Max. 20,5
[0.81]
2,7
[0.11]
38,5 [1.52]
26,6 ± 0,3
[1.05 ± 0.01]
41,0 ± 0,2
[1.61 ± 0. 00 8]
