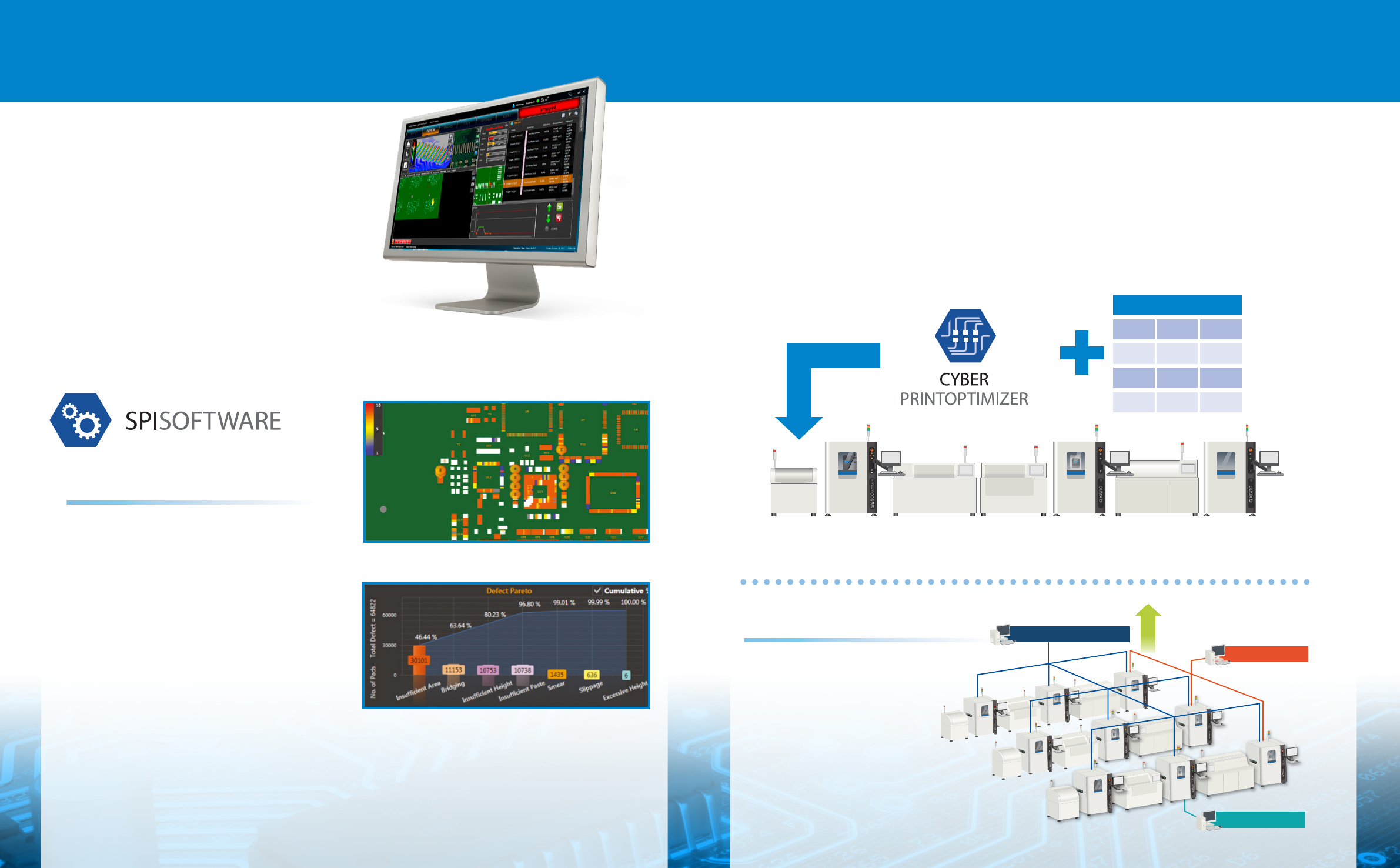

The SPI V5 series soware delivers
world-class user experience with its
intuitive interface, completely
changing the way users interact
with our system.
With full multi-touch experience, SPI
V5 series soware oers a range of
revolutionary features that enable
smarter and faster inspection.
Features Include
• Seamless integration of all applications -
Teach, Inspection, Defect Review and
Real-time SPC.
• Unlimited undo-redo and global search
options in Teach.
• Loads of smart, informative and relevant
charts that provide yield summary, FPY
information, hotspot display, top 10 pad
failures, historical panel and more.
• Easy, hassle-free operation using multi
touch, multi-selection, pinchzoom,
and pan-move options.
CyberPrint OPTIMIZER™ automatically optimizes the print process by
proactively analyzing accurate trend data - first-ever in the industry!
Pre-defined templates help you get started quickly while customizable
rules support perfect customization for specific product needs.
CyberPrint OPTIMIZER‘s predictive process improvement gets you
better yields and reduces downtime.
Award-Winning Intuitive Soware CyberPrint OPTIMIZER™ Ready
Real-time SPC.
Hot Spot Display.
Defect Correlation
SPI AOI AOI
FAIL
FAIL
FAIL
FAIL
FAIL FAIL
PASS PASS
PASS
Fast, scalable SPC solution
CyberReport™ oers full-fledged
machine-level to factory-level SPC
capability with powerful historical
analysis and reporting tools.
Factory-level SPC
Line-level SPC
Machine-level SPC
Yield
Failure analysis drives line optimization and auto tolerance changes
Defect Review Interface.
10 | SE3000-DD 3D SPI SE3000-DD 3D SPI | 11
MRS is an ideal technology solution for a wide range of applications
including those with very high quality requirements.
LED
Aerospace
Advanced Packaging
SMT Electronics
Advanced Socket Metrology
Automotive
Medical
Solder Paste
Defense
Semiconductor
High End Applications
