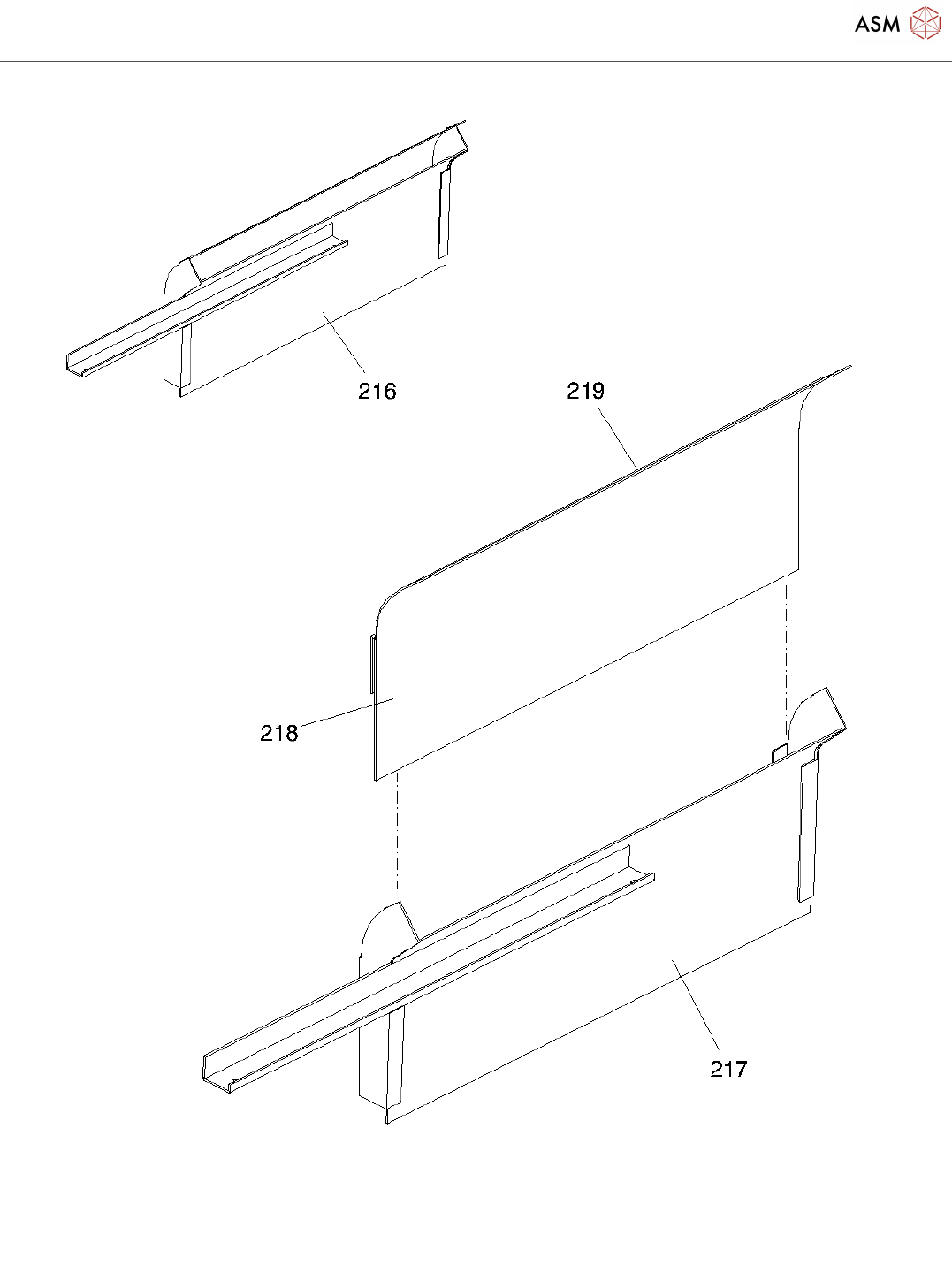

WPW 80F/3 Page 15 / 22 19.11.2021
WPW 80F/3

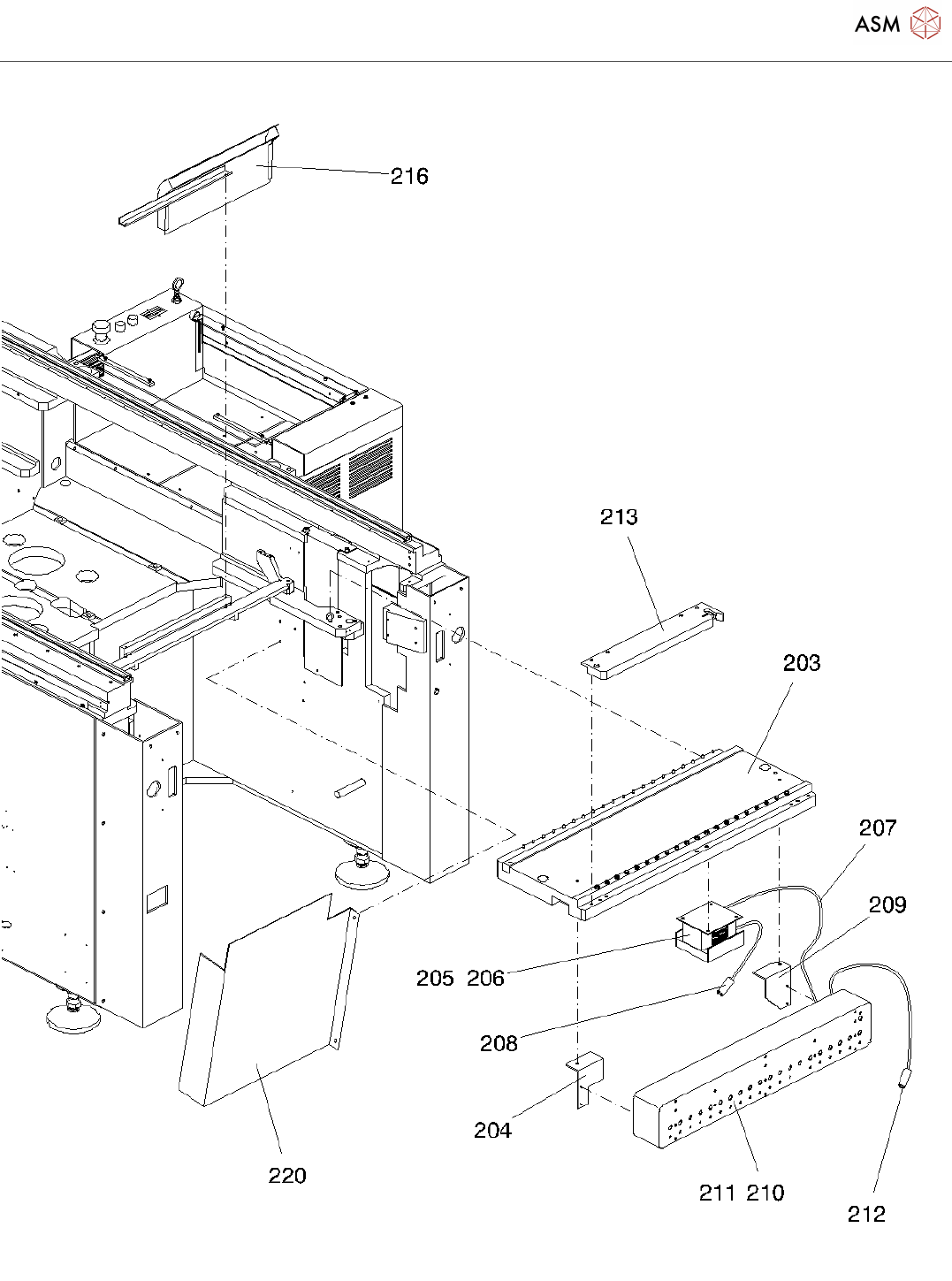

Page 14 / 22 19.11.2021
WPW 80F/3
Page 15 / 22 19.11.2021
WPW 80F/3
Page 16 / 22 19.11.2021
Pos. Item no. Description Part marking
00116427-04 WPW 80F/3
00319890-03 WPW 80F/3
00320516-03 WPC 80F/3 MECHANIC
00320146-03 FRAME
4 00320102-05 RACK
6 00345044-01 MACHINE BASE RD 70 M24, 140
LONG
7 00320104-04 CARRIER
8 00320099-03 CARRIER FRAME
9 00320106-03 ROCKER
10 00320107-03 ROCKER
11 00320108-03 BRACKET
12 00320109-01 SUPPORT ANGLE
13 00320110-01 HINGE BOLT
14 00320111-02 HINGE BLOCK
15 00320112-01 HINGE BLOCK
16 00320113-02 ADJUSTMENT SPINDLE SPARE PART
17 00320114-02 SET COLLAR
18 00320115-02 AXIS
19 00320116-03 DISTANCE SLEEVE
20 00324347-01 SOLID-RUBBER WHEEL DZR 100/30
ANTISTAT.
SPARE PART
21 00324001-01 SWIVEL CASTOR 2470 DXK 075 S70 SPARE PART
22 00320160-01 AXIAL DEEP GROOVE BALL BEARING
24 00308876-01 HEXAGON SOCKET HEAD CAP
SCREW
25 00095477-01 WASHER
26 24000981-01 LOCK WASHER 6 DIN127 ST
27 00327082-01 CRANK SK 10 SPARE PART
28 00845075-01 HEXAGON SOCKET HEAD CAP
SCREW M8*16
29 00328816-01 SPINDLE NUT TR16X4 SPARE PART
30 00328367-02 HOUSING F. PLUG-IN UNIT
WPW80F/3
00303011-02 WPC SIPLACE, FAN IN CONTROL
UNIT
31 00302821-01 AXIAL FAN 4314 / 24V DC SPARE PART
