MODEL ： F1-82-1005 (F_type) CODE No. ： LG4-M2A00-081 Serial No. F1-825-018886F～
I･pulse F1 Series
F1-823 (F type)
P 7
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A90-000
REEL HOLDER ASSY
1
AS -201720
1
LG4-M1AA1-003 CONTROL BOARD 1
FTA-A08-8151-FCB
2
LG4-M1A6R-010
CONTROL BOARD COLLAR
3
FTA-A08-8152-B
3
LG4-M3A6S-000
CONTROL BOARD COVER
1
FTA-A08-8153-B63
4
LG4-M1A91-000
REEL HOLDER
1
201720
5 LG4-M1A92-000
CLAMP ARM
1
201721
6 K87-M111N-000 SCREW,PAN HEAD＋ 3
3MC-3-P
7 K87-M111W-000 SCREW,PAN HEAD＋ 3
3MC-5-P
8 LG4-M1ADF-000
SCREW,BAIND HEAD+
3
3M-10-P-P-Bi
9
LG4-M1AC1-000 SERIAL NO. STICKER 1
FTA-A08-8150-SNS

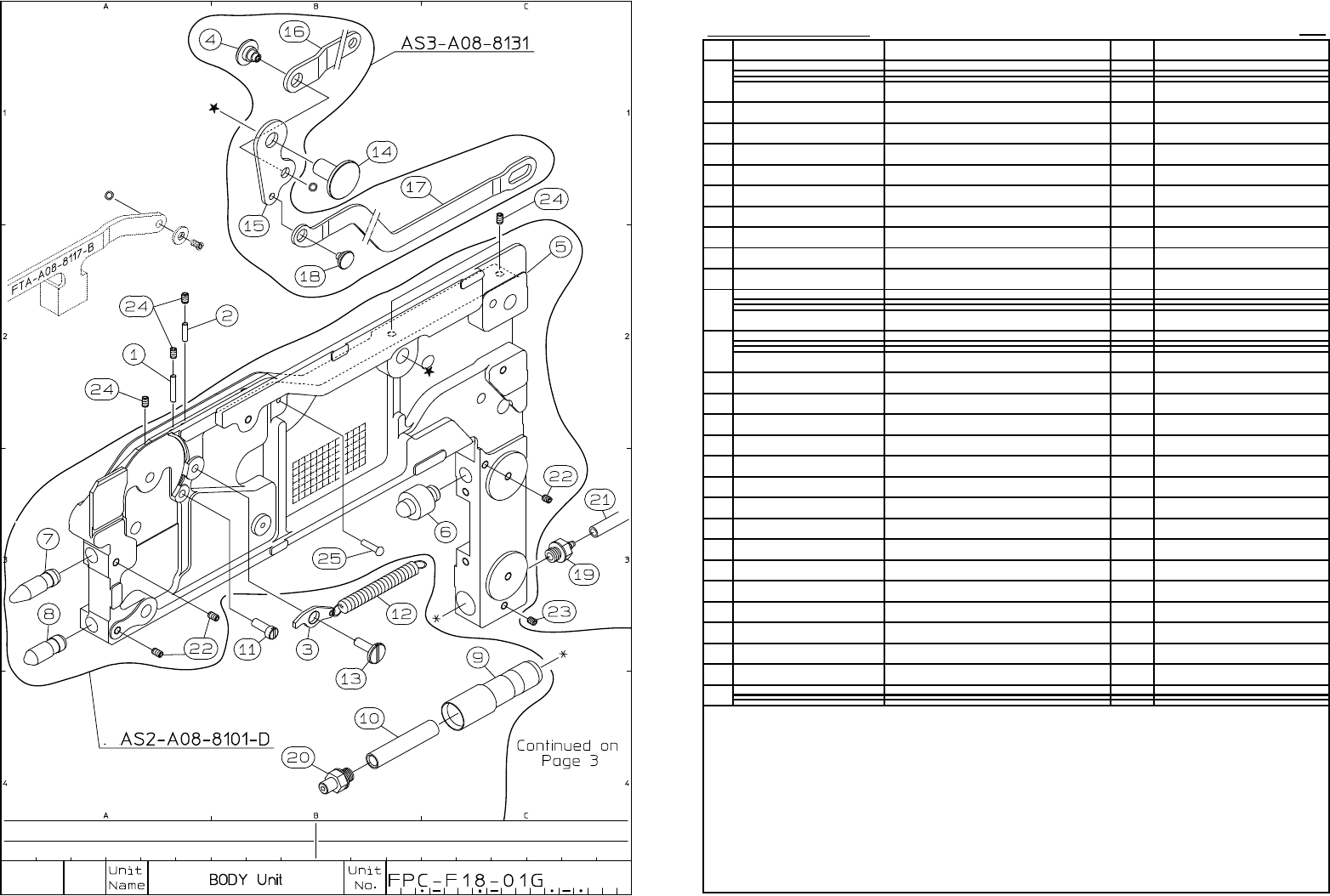

MODEL ： F1-82-1005 (F_type)
CODE No. ： LG4-M2A00-081
Serial No.
F1-825-018886F～
I･pulse F1 Series
F1-825 (F type)
P 1
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A10-050
BODY ASSY 1 AS1-A08-8101-D
LG4-M1A10-060
BODY ASSY 1 AS2-A08-8101-D
LG4-M1A1M-011
MAIN LEVER ASSY 1 AS3-A08-8131
1 K87-M111D-000
PUSH PIN 1 CTF-M08- 25
2 K87-M111G-100
PUSH PIN 1 CTF-M08- 325
3 K87-M111H-200
BACK STOPPER 1 FTA-A08-1114
4 KW1-M114E-000
ARM AXIS PIN 1 FTA-A08-1134
5 LG4-M1A11-030
BODY 1 FTA-A08-8101-D
6 LG4-M1A12-510
MAIN GUIDE PIN 1 FTA-E08-8502-B
7 LG4-M1A13-510
LOCATE PIN R 1 FTA-E08-8503-B
8 LG4-M1A14-510
LOCATE PIN F 1 FTA-E08-8504-B
LG4-M1A15-000
PLUG HOLDER GUIDE 1 FTA-A08-8105
LG4-M1A15-010
PLUG HOLDER GUIDE 1 FTA-A08-8105-B
LG4-M1A16-000
PLUG HOLDER 1 FTA-A08-8106
LG4-M1A16-010
PLUG HOLDER 1 FTA-A08-8106-B
11 LG4-M1A17-000
STOPPER PIN 1 FTA-A08-8113
※1 10
※1 1
※1 9
12 LG4-M1A19-001
BACK STOPPER SPRING 1 FTA-A12-6132-510
13 LG4-M1A18-000
BACK STOPPER AXIS 1 FTA-A08-8115
14 LG4-M1A1K-000
LEVER AXIS PIN 1 FTA-A08-8130-B
15 LG4-M1A1N-000
MAIN LEVER 1 FTA-A08-8131
16 LG4-M1A1P-000
ARM 1 FTA-A08-8135
17 LG4-M1A1R-020
SUB ARM 1 FTA-A08-8138-C
18 LG4-M1A1S-010
SUB ARM GUIDE PIN 1 FTA-A08-8139-B
19 K87-M1186-000
BARB CONNECTOR 1 BF3BU
20 LG4-M1AB2-000
PLUG 1 MA-MC05PM
21 LG4-M1ABA-010
AIR HOSE 1 U3B-157
22 K87-M23B3-000
SCREW,SET 3 3MY-5
23 K87-M111X-000
SCREW,SET 1 3MY-4-F
24 K87-M111R-000
SCREW,SET 5 3MY-5-F
25 LG4-M1AD1-000
CIRCULAR RIVET 1 2-8
※1 26 LG4-M1AD2-000
CIRCLIP C 1 STW-7
※1…F1-825-016886F～
