I･pulse F1 Series F1-825 (F type) P 4 No. Code No. Parts Name Q'ty Parts No. LG4-M2A40-012 T.G. PLATE ASSY 1 AS -A08-8119-05C 1 LG4-M2A41-011 TAPE GUIDE PLATE 1 FTA-A08-8119-05C 2 LG4-M2A42-010 SHUTTER PLATE 1 FTA-A…

100%1 / 138
I･pulse　 F1　Series
F1-825 (F type)

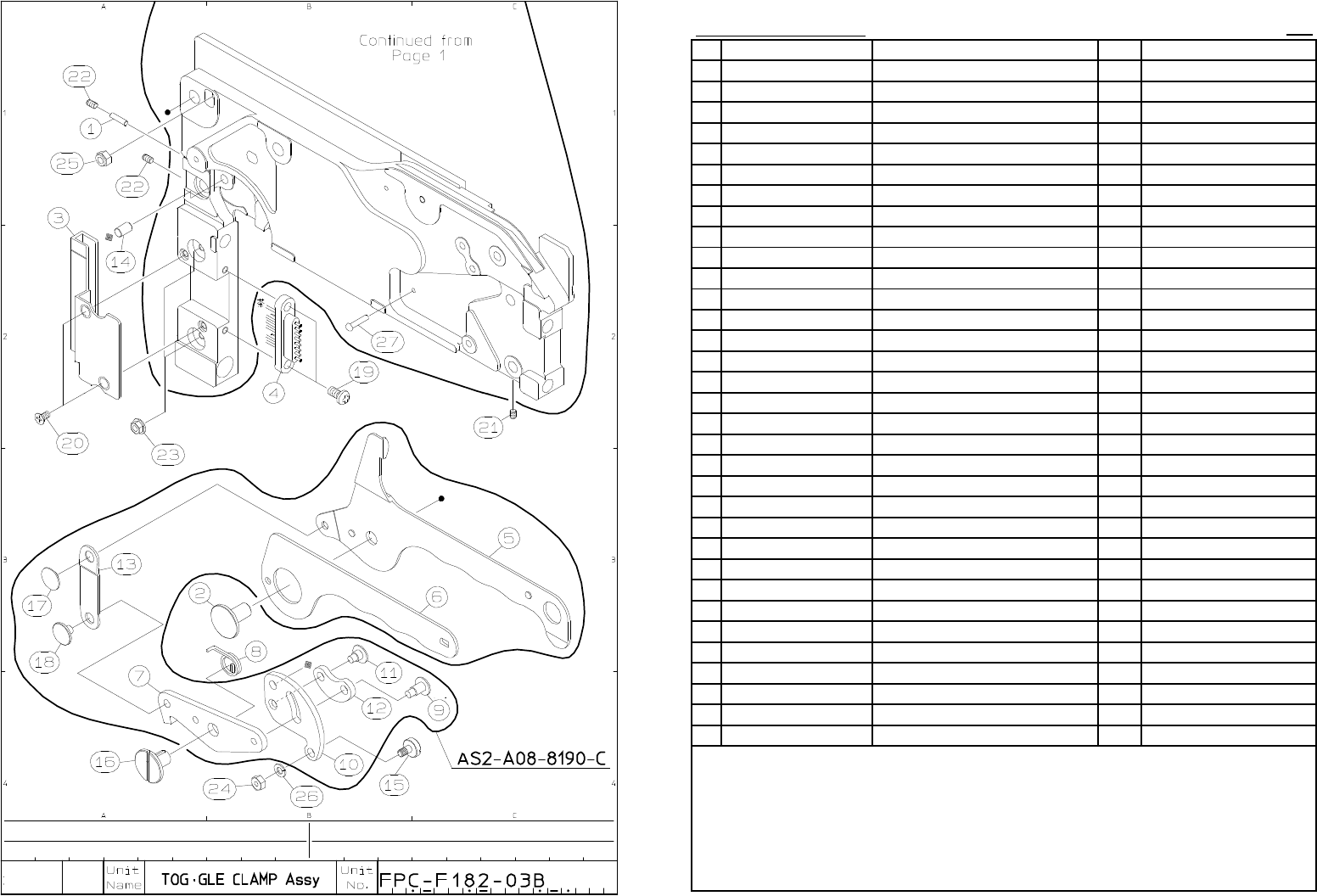

P 3
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A30-021
HOLD LEVER ASSY 1
AS2-A08-8190-C
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2 LG4-M1A1K-000 LEVER AXIS PIN 1
FTA-A08-8130-B
3 LG4-M1A1A-001
COVER PLATE
1
FTA-A08-8149-C
4
LG4-M1AA2-001
SP.CONNECTOR ASSY
1
FTA-A08-8151-5B
5 LG4-M1A31-010
HOLD LEVER M
1 FTA-A08-8190-C
6 LG4-M1A32-000
HOLD LEVER S
1 FTA-A08-8190-1B
7 LG4-M1A34-001
CLAMP LEVER
1 FTA-A08-8191-C
8 LG4-M1A3M-000 SCREW COIL SPRING 1
FTA-A08-8191-SCSp
9 LG4-M1A3A-001
HINGE PIN 1
1
FTA-A08-8191-1C
10
LG4-M1A35-001
CLANK ARM
1 FTA-A08-8192-B
11 LG4-M1A3B-000
HINGE PIN 2
1
FTA-A08-8192-1
12 LG4-M1A36-000
ARM
1
FTA-A08-8193
13 LG4-M1A33-000
LINK PLATE
1
FTA-A08-8194
14
LG4-M1A3L-000
CLANK ARM AXIS PIN
1
FTA-A08-8195
15 LG4-M1A37-010 ADJUST CLAMP PIN 1
FTA-A08-8196
16 LG4-M1A3K-001
CLAMP LEVER AXIS PIN
1 FTA-A08-8197-B
17 LG4-M1A38-000
LINK PIN T
1
FTA-A08-8198
18
LG4-M1A39-000
LINK PIN U
1
FTA-A08-8199
19 LG4-M1ADC-000
SCREW,PAN HEAD+ 2 3MC-7-P
20 K87-M111S-000
SCREW,FLAT HEAD+
2
3MK-6-P
21 K87-M111T-000 SCREW,SET 1 3MY-3-F
22 K87-M111R-000 SCREW,SET 2
3MY-5-F
23 K87-M111U-000
SCREW FLANGE NUT
2
3MH-FS
24 K87-M21BN-000
SCREW NUT
1
3MH-P
25 LG4-M1ADH-000
U-NUT
1
3MH-U-P
26 K87-M21BM-000
SPRING LOCK WASHER
1
3MU-P
27 K87-M1115-000
CIRCULAR RIVET
1
2-10
28
29
30
31
32
I･pulse　 F1　Series
F1-825 (F type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M2A40-012 T.G. PLATE ASSY 1 AS -A08-8119-05C
1
LG4-M2A41-011 TAPE GUIDE PLATE 1 FTA-A08-8119-05C
2
LG4-M2A42-010 SHUTTER PLATE 1 FTA-A08-8120-05B
3
LG4-M1A45-000 SHUTTER GUIDE PIN 2 FTA-A08-8121
4
LG4-M1A44-001 SHUTTER PUSH SPRING 1 FTA-A08-8122-B
5
LG4-M1A43-020 SHUTTER GUARD PLATE 1 FTA-A08-8123-E
6
LG4-M1A4L-000 T.G. GUIDE SCREW 1 FTA-A08-8124
7
LG4-M1A47-000 T.G. GUIDE PIN 1 FTA-A08-8125
8
LG4-M1A46-000 LOCK LEVER 1 FTA-A08-8127-B
9 LG4-M1A48-001
T.G. PUSH SPRING 1 FTA-A08-8127-50
10
LG4-M1A4K-000 T.G.A. GUIDE PIN 1 FTA-A08-8129
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
I･pulse　 F1　Series
F1-825 （F type)
P 5
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A60-130
BACK PLATE ASSY
1
AS -A08-8250-B
LG4-M1A60-140
BACK PLATE ASSY
1
AS1-A08-8250-B
LG4-M1A68-000
TENSION LEVER ASSY
1
AS -A08-8168
1 K87-M116A-100 SPRING HOOK PIN 2 CTF-M08- 166-B
2 LG4-M1A72-000
CONNECT PIN
1 FTA-A08-8146
3 LG4-M1A71-000
ROD CONNECT
1 FTA-A08-8147
4 LG4-M1AA3-000
MICRO SWITCH ASSY
1 FTA-A08-8151-6
5 LG4-M1AA4-000
VALVE HARNESS ASSY
1 FTA-A08-8151-7
6 LG4-M1A6K-000
TENSION LEVER
1
FTA-A08-8168
7 LG4-M1A6L-000
COIL SPRING
1
FTA-A08-8168-SP
8 LG4-M1A6E-000 METAL 1 FTA-A08-8169
9 LG4-M1A6F-000
ROLLER
3 FTA-A08-8172
10 LG4-M1A6A-000
ROLLER AXIS T
1 FTA-A08-8173
11 LG4-M1A6C-000
LEAF T
1 FTA-A08-8173-1
12 LG4-M1A6B-010
ROLLER AXIS U
1 FTA-A08-8174-B
13 LG4-M1A6N-010
MIDDLE GUIDE PLATE C
1 FTA-A08-8176-D
※1
14
LG4-M1A61-110
BACK PLATE
1 FTA-A08-8250-B
15
LG4-M5A6D-000 LEAF U
1 FTA-A16-8174-1
16 LG4-M1A69-500
ROLLER AXIS U
1
FTA-E08-8582
17 LG4-M1AB1-010
VAL PACK CYLINDER
1 BDA10×15-380W
18 LG4-M1AB3-000
BARB CONNECTOR
1 BF3BU-136W
19 K87-M111N-000
SCREW,PAN HEAD+
3 3MC-3-P
20 LG4-M1ADC-000
SCREW,PAN HEAD+
1 3MC-7-P
21 K87-M11B4-100
SCREW,FLAT HEAD+
1 3MK-12-P
22 LG4-M1ADD-000
SCREW,FLAT HEAD+
5 3MK-14-P
23 K87-M23B6-000
SCREW,FLAT HEAD+
1 4MK-8-P
24 K87-M21BN-000
SCREW,NUT
2 3MH-P
25 K87-M11D7-000
CIRCLIP E
1 E.32
26
27
28
29
30
※1…F1-825-016886F～
