MODEL ： F1-12 (H_type) CODE No. ： LG4-M4A00-091 Serial No. F1-12-010768H～
I･pulse F1 Series
F1-84 (F type)
P 7
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A90-000
REEL HOLDER ASSY
1
AS -201720
1
LG4-M1AA1-003 CONTROL BOARD 1
FTA-A08-8151-FCB
2
LG4-M1A6R-010
CONTROL BOARD COLLAR
3
FTA-A08-8152-B
3
LG4-M1A6S-001
CONTROL BOARD COVER
1
FTA-A08-8153-B
4
LG4-M1A91-000
REEL HOLDER
1
201720
5 LG4-M1A92-000
CLAMP ARM
1
201721
6 K87-M111N-000 SCREW,PAN HEAD＋ 3
3MC-3-P
7 K87-M111W-000 SCREW,PAN HEAD＋ 3
3MC-5-P
8 LG4-M1ADF-000
SCREW,BAIND HEAD+
3
3M-10-P-P-Bi
9
LG4-M1AC1-000 SERIAL NO. STICKER 1
FTA-A08-8150-SNS
MODEL ： F1-12 (H_type)
CODE No. ： LG4-M4A00-091
Serial No.
F1-12-010768H～

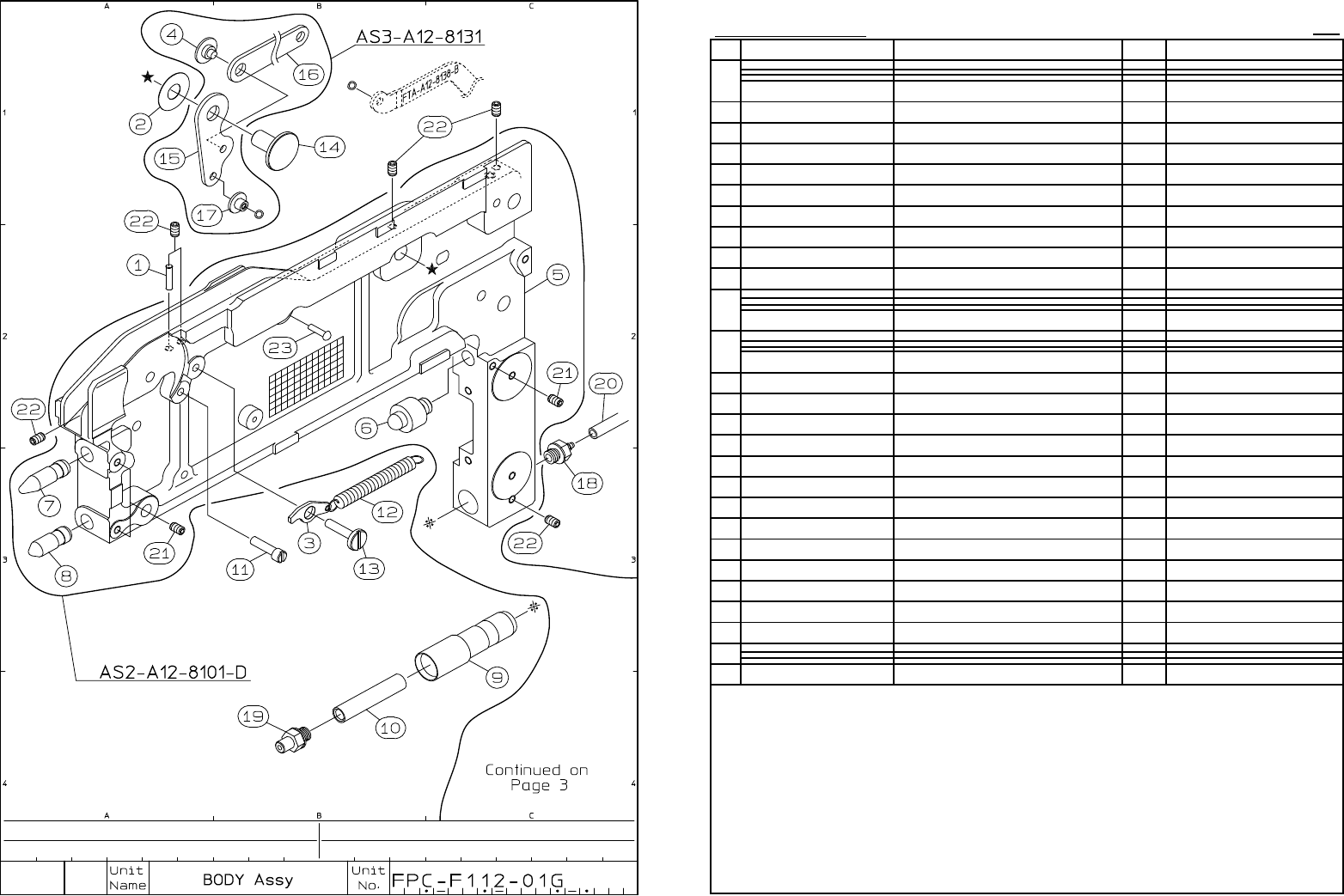

I･pulse F1 Series
F1-12 (H type)
P 1
No. Code No. Parts Name Q'ty Parts No.
LG4-M4A10-050 BODY ASSY
1
AS1-A12-8101-D
LG4-M4A10-060 BODY ASSY
1
AS2-A12-8101-D
LG4-M4A1M-010 MAIN LEVER ASSY
1
AS3-A12-8131
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2
LG4-M1A1L-000 THRUST WASHER
1
CTF- 53- 38-02
3 K87-M111H-200 BACK STOPPER 1
FTA-A08-1114
4
LG4-M4A1T-000
ARM AXIS PIN 1 FTA-A12-8134
5
LG4-M4A11-030
BODY 1
FTA-A12-8101-D
6 LG4-M1A12-510
MAIN GUIDE PIN
1
FTA-E08-8502-B
7 LG4-M1A13-510
LOCATE PIN R
1
FTA-E08-8503-B
8
LG4-M1A14-510
LOCATE PIN F
1
FTA-E08-8504-B
LG4-M4A15-000 PLUG HOLDER GUIDE
1
FTA-A12-8105
LG4-M1A15-010
PLUG HOLDER GUIDE 1 FTA-A08-8105-B
LG4-M1A16-000 PLUG HOLDER
1
FTA-A08-8106
LG4-M1A16-010
PLUG HOLDER 1 FTA-A08-8106-B
11
KW1-M221F-100 STOPPER PIN
1
CTF-M12- 313
12
LG4 M4A19 001
BACK STOPPER SPRING
1
FTA A08 6164 1600
※1 10
※1
※1 9
12
LG4-M4A19-001 BACK STOPPER SPRING
1
FTA-A08-6164-1600
13
K87-M211B-000 BACK STOPPER AXIS
1
CTF-M12- 315
14
LG4-M1A1K-000 LEVER AXIS PIN
1
FTA-A08-8130-B
15
LG4-M4A1N-000 MAIN LEVER
1
FTA-A12-8131
16
LG4-M4A1P-000 ARM
1
FTA-A12-8135-B
17
LG4-M4A1S-000
ARM AXIS PIN 1
FTA-A12-8139
18 K87-M1186-000
BARB CONNECTOR
1
BF3BU
19
LG4-M1AB2-000 PLUG
1
MA-MC05PM
20
LG4-M4ABA-010 AIR HOSE
1
U3B-167
21 K87-M23B3-000 SCREW,SET 3
3MY-5
22 K87-M111R-000 SCREW,SET 6
3MY-5-F
23
K87-M1115-000 CIRCULAR RIVET
1
2-10
※1 24
LG4-M1AD2-000 CIRCLIP C
1
STW-7
※1…F1-12-008528H～
