P a g e | 10 Rework Hoof-Cartridges – For Drag Soldering SOICs/QFPs SMTC- 5 170 Hoof, (B evel /L ) 60° x 6.1 mm, long reach, (ø x L) 3.05 x 15. 24mm SMTC- 0 170 SMTC- 1 170 SMTC- 8 170V1 SMC- 5 HF6030S SMC- 6 HF6030S SMC…
P a g e | 9
3,0 mm

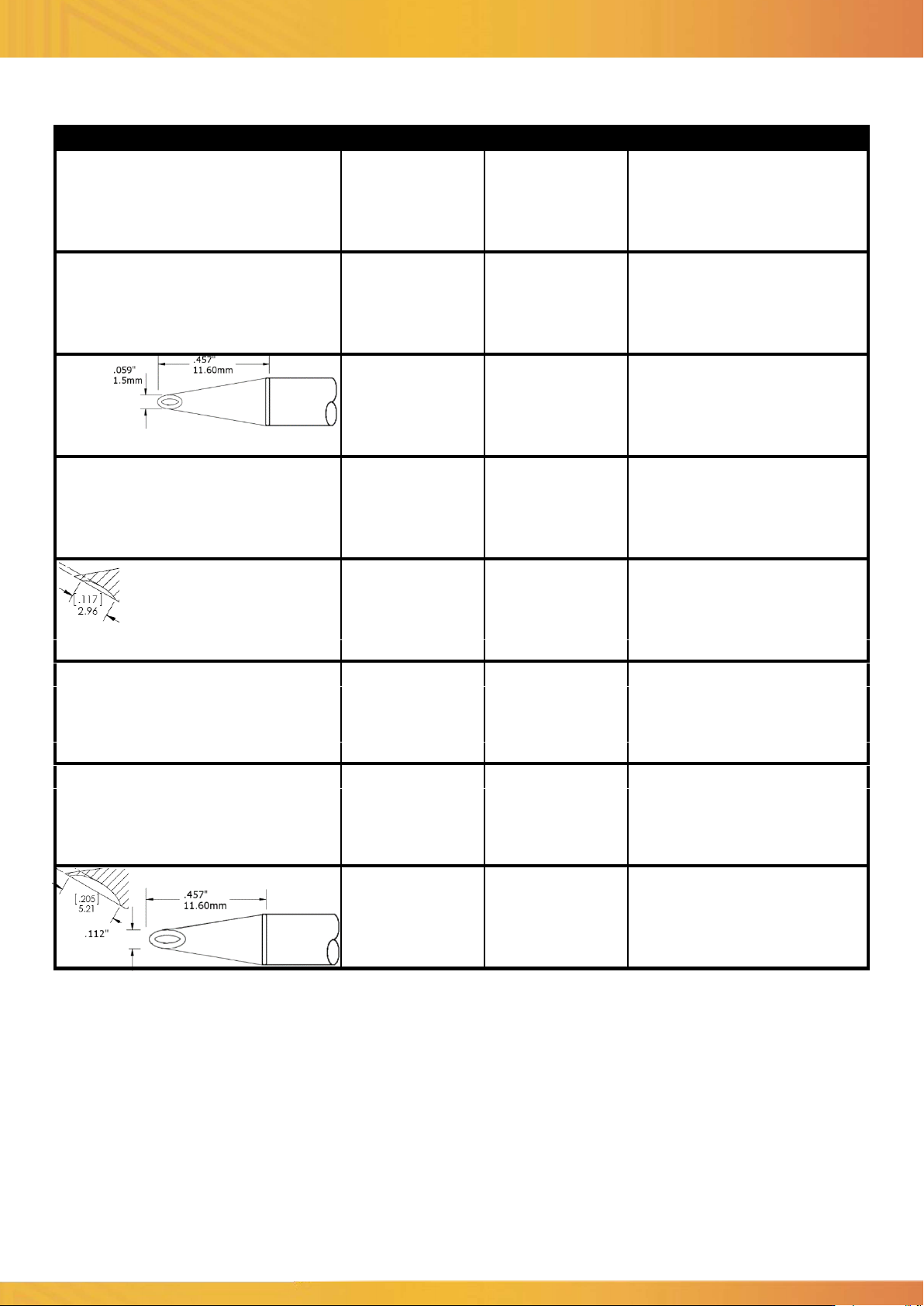

Rework Hoof-Cartridges – For Drag Soldering SOICs/QFPs
SMTC-5175
Micro Hoof,
(Bevel/L) 60° x 1.54 mm,
(ø x L) 0.77 x 11.61 mm
SMTC-0175
SMTC-1175
SMTC-8175V1
SMC-5HF6009S
SMC-6HF6009S
SMC-7HF6009S
SMC-8HF6009S
SMC-9HF6009S SMTC-8175
SMTC-5174
Micro Hoof,
(Bevel/L) 60° x 1.5 mm, long reach,
(ø x L) 0.75 x 16.51 mm
SMTC-0174
SMTC-1174
SMTC-8174V1
SMC-5HF6011S
SMC-6HF6011S
SMC-7HF6011S
SMC-8HF6011S
SMC-9HF6011S SMTC-8174
SMTC-5184
Concave Hoof,
(Bevel/L) 60° x 3 mm,
(ø x L) 1.5 x 11.6 mm
SMTC-0184
SMTC-1184
SMTC-8184V1
SMC-5HF0015V
SMC-6HF0015V
SMC-7HF0015V
SMC-8HF0015V
SMC-9HF0015V
SMTC-8184
SMTC-5167
Hoof,
(Bevel/L) 30° x 1.76 mm,
long reach,
(ø x L) 1.52 x 16.51 mm
SMTC-0167
SMTC-1167
SMTC-8167V1
SMC-5HF6015S
SMC-6HF6015S
SMC-7HF6015S
SMC-8HF6015S
SMC-9HF6015S SMTC-8167
SMTC-5185
Concave Hoof,
(Bevel/L) 60° x 4 mm,
(ø x L) 2.0 x 11.6 mm
SMTC-0185
SMTC-1185
SMTC-8185V1
SMC-5HF0020V
SMC-6HF0020V
SMC-7HF0020V
SMC-8HF0020V
SMC-9HF0020V SMTC-8185
SMTC-5169
Hoof,
(Bevel/L) 60° x 4.06 mm,
(ø x L) 2.03 x 15.24 mm
SMTC-0169
SMTC-1169
SMTC-8169V1
SMC-5HF6020S
SMC-6HF6020S
SMC-7HF6020S
SMC-8HF6020S
SMC-9HF6020S SMTC-8169
SMTC-5183
Concave Hoof,
(Bevel/L) 30˚ x 2.9 mm, bent 30˚,
(ø x L) 2.5 x 16.0 mm
SMTC-0183
SMTC-1183
SMTC-8183V1
SMC-5HF3025S
SMC-6HF3025S
SMC-7HF3025S
SMC-8HF3025S
SMC-9HF3025S SMTC-8183
SMTC-5186
Concave Hoof,
(Bevel/L 60°) x 6 mm,
(ø x L) 3.0 x 11.6 mm
SMTC-0186
SMTC-1186
SMTC-8186V1
SMC-5HF0030V
SMC-6HF0030V
SMC-7HF0030V
SMC-8HF0030V
SMC-9HF0030V SMTC-8186
.059"
1.5 mm
.03"
ø 0.77 mm
.45"
11.61 mm
.03"
ø 0.75 mm
P a g e | 10
Rework Hoof-Cartridges – For Drag Soldering SOICs/QFPs
SMTC-5170
Hoof,
(Bevel/L) 60° x 6.1 mm,
long reach,
(ø x L) 3.05 x 15.24mm
SMTC-0170
SMTC-1170
SMTC-8170V1
SMC-5HF6030S
SMC-6HF6030S
SMC-7HF6030S
SMC-8HF6030S
SMC-9HF6030S SMTC-8170
SMTC-5147
Hoof,
(Bevel/L) 60° x 6.6 mm,
long reach,
(ø x L) 3.3 x 17.78 mm
SMTC-0147
SMTC-1147
SMTC-8147V1
SMC-5HF6033S
SMC-6HF6033S
SMC-7HF6033S
SMC-8HF6033S
SMC-9HF6033S SMTC-8147
Special Rework Cartridges
SMTC-5172
Hook – for fine drag- and point-to-
point soldering on contacts from J-
lead components, bend 30°,
(ø x L) 0.51 x 15.24 mm
SMTC-0172
SMTC-1172
SMTC-8172V1
SMC-5HK0005S
SMC-6HK0005S
SMC-7HK0005S
SMC-8HK0005S
SMC-9HK0005S SMTC-8172
SMTC-5171
Used to remove small components
like 0201 and 0402 components
from a “topside” angle, bent 30°
for work under a microscope,
(ø x L) 0.76 x 16.51 mm
SMTC-0171
SMTC-1171
SMTC-8171V1
SMC-5HK0008S
SMC-6HK0008S
SMC-7HK0008S
SMC-8HK0008S
SMC-9HK0008S SMTC-8171
Rework Knife-Cartridges – For Multi-Lead Soldering of PLCCs/SOJs
SMTC-5165
Knife, 45° angled,
tinned area length 2.03 mm
(W x L) 2.5 x 12.0 mm
SMTC-0165
SMTC-1165
SMTC-8165V1
SMC-5KN0025S
SMC-6KN0025S
SMC-7KN0025S
SMC-8KN0025S
SMC-9KN0025S SMTC-8165
SMTC-5161
Knife, 45° angled, -
tinned area length 2.03 mm,
(W x L) 4.83 x 16.51 mm
SMTC-0161
SMTC-1161
SMTC-8161V1
SMC-5KN0048S
SMC-6KN0048S
SMC-7KN0048S
SMC-8KN0048S
SMC-9KN0048S SMTC-8161
SMTC-5173
Knife, 45° angled,
tinned area length 5.84 mm,
(W x L) 4.83 x 16.51 mm
SMTC-0173
SMTC-1173
SMTC-8173V1
SMC-5KN0048W
SMC-6KN0048W
SMC-7KN0048W
SMC-8KN0048W
SMC-9KN0048W
SMTC-8173
STTC-5173P
Knife, 45° angled,
0ptimised geometry for best
thermal performance,
tinned area length 5.6 mm,
(W x L) 5.0 x 13.2 mm
STTC-0173P
STTC-1173P
STTC-8173PV1
SMC-5KN0050P
SMC-6KN0050P
SMC-7KN0050P
SMC-8KN0050P
SMC-9KN0050P STTC-8173P
Knife, 45° angled, Long Life,
optimised geometry for best
thermal performance,
tinned area length 5.6 mm,
(W x L) 5.0 x 13.2 mm
STTC-5173PLL
STTC-0173PLL
STTC-1173PLL
SMC-5KN0050X
SMC-6KN0050X
SMC-7KN0050X
SMC-8KN0050X
SMC-9KN0050X
STTC-8173PLLV1
STTC-8173PLL
P a g e | 11
UFC Ultra-Fine Cartridges for work in tight spaces, compatible with CV-5200,
CV-500 Systems and Ultra-Fine Solder Hand piece CV-H2-UF.
Temperature CV-Series Application
UFC-6
Temperature Sensitive
UFC-7
Most Standard
Please note the above temperatures are the maximum temperatures of the heater. The idle temperature is dependent on the geometry
of the cartridge.
Ultra-Fine Chisel Cartridge
UFC-6CH5106S
UFC-7CH5106S
(W x L) 0.6 x 5.1 mm
UFC-6CH9006S
UFC-7CH9006S
Long reach,
(W x L) 0.6 x 9 mm
UFC-6CH5108S
UFC-7CH5108S
(W x L) 0. 8 x 5.1 mm
UFC-6CH9008S
UFC-7CH9008S
Long reach,
(W x L) 0.8 x 9 mm
UFC-6CH5112S
UFC-7CH5112S
(W x L) 1.2 x 5.1 mm
Ultra-Fine Conical Cartridge
UFC-6CN5101S
UFC-7CN5101S
(ø x L) 0.13 x 5.1 mm
UFC-6CN5102S
UFC-7CN5102S
(ø x L) 0.2 x 5.1 mm
675 °F/357 °C
775 °F/413 °C
