P a g e | 15
PTC Tweezer Cartridges are compatible with MX-500, MX-5000, MX-5200 and CV-5200,
CV-500 Systems, MX-PTZ and CV-H4-PTZ Tweezer Hand pieces.
PTTC Tweezer-Cartridges are compatible with MX-500, MX-5000, MX-5200 and
CV-5200, CV-500 Systems – MX-PTZ and CV-H4-PTZ Tweezer Hand pieces.
Temperature CV-Series MX-Series Application
PTC-6 PTTC-6
Temperature Sensitive
PTC-7 PTTC-7
Most Standard
PTC-8
Ceramic and High Thermal Demand
PTC-9 PTTC-8
Please note the above temperatures are the maximum temperatures of the heater. The idle temperature is dependent on the geometry of
the cartridge.
These tips will provide data via the CV power supplies, but due to the nature of their application the Connection Validation function is not
required and therefore not enabled. - All tweezer cartridges are sold per pair!
Rework Tweezer Cartridges - Bent
PTTC-601B
Conical, 30° bent, for work under a
microscope,
(Ø x L) 0.4 x 14.3 mm
Sold per pair
PTTC-701B
---
PTC-6CN1404A
PTC-7CN1404A
PTC-8CN1404A
PTC-9CN1404A PTTC-801B
PTC-6FB1235R
PTTC-608B
Blade, 30° bent, for work under a
microscope,
(W x L) 3.2 x 12.1 mm,
Sold per pair
PTC-7FB1235R PTTC-708B
PTC-8FB1235R ---
PTC-9FB1235R PTTC-808B

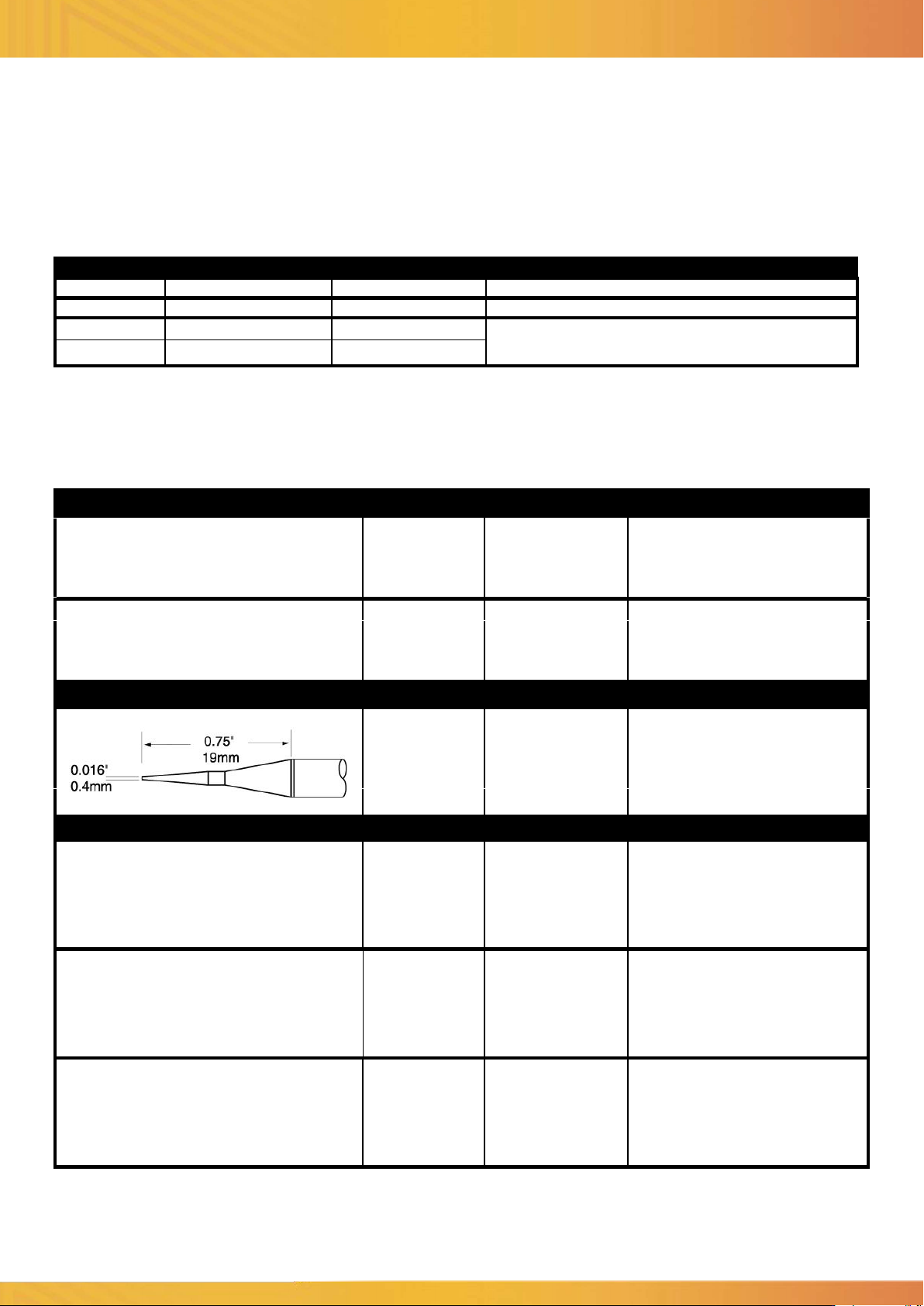

Rework Tweezer Cartridges - Conical
PTTC-601
Conical,
(Ø x L) 0.4 x 19 mm,
Sold per pair
PTTC-701
---
PTC-6CN2304A
PTC-7CN2304A
PTC-8CN2304A
PTC-9CN2304A PTTC-801
Rework Tweezer Cartridges - Blade
PTTC-602
Blade,
(W x L) 1.3 x 16.55 mm,
Sold per pair
PTTC-702
---
PTC-6CH1713A
PTC-7CH1713A
PTC-8CH1713A
PTC-9CH1713A PTTC-802
PTTC-603
Blade,
(W x L) 2.0 x 16.5 mm,
Sold per pair
PTTC-703
---
PTC-6CH1720A
PTC-7CH1720A
PTC-8CH1720A
PTC-9CH1720A PTTC-803
PTC-6BL1306R PTTC-604
Blade,
(W x L) 6.35 x 12.7 mm,
Sold per pair
PTC-7BL1306R PTTC-704
PTC-8BL1306R
---
PTC-9BL1306R PTTC-804
675 °F/357 °C
775 °F/413 °C
875 °F/468 °C
950 °F/510 °C
P a g e | 16
Rework Tweezer Cartridges - Blade
PTC-6BL1316R PTTC-605
Blade,
(W x L) 15.75 x 12.7 mm,
Sold per pair
PTC-7BL1316R PTTC-705
PTC-8BL1316R ---
PTC-9BL1316R PTTC-805
PTC-6BL1321R PTTC-606
Blade,
(W x L) 20.6 x 12.7 mm,
Sold per pair
PTC-7BL1321R PTTC-706
PTC-8BL1321R ---
PTC-9BL1321R PTTC-806
PTC-6BL1328R PTTC-607
Blade,
(W x L) 28 x 12.7 mm,
Sold per pair
PTC-7BL1328R PTTC-707
PTC-8BL1328R ---
PTC-9BL1328R PTTC-807
P a g e | 17
UFT Ultra-Fine Tweezer Cartridges are compatible with CV-5200, CV-500 Systems
and CV-H4-UFT Ultrafine Tweezer Hand piece.
Temperature CV-Series Application
UFT-6
Temperature Sensitive
UFT-7
Most Standard
Please note the above temperatures are the maximum temperatures of the heater. The idle temperature is dependent on the geometry of
the cartridge.
These tips will provide data via the CV power supplies, but due to the nature of their application the Connection Validation function is not
required and therefore not enabled. All tweezer cartridges are sold per pair!
Ultra-Fine Tweezer Cartridge - Chisel
UFT-6CH9006S
UFT-7CH9006S
(W x L) 0.6 x 9 mm
Sold per pair
UFT-6CH9008S
UFT-7CH9008S
(W x L) 0.8 x 9 mm
Sold per pair
Ultra-Fine Tweezer Cartridge - Conical
UFT-6CN5502R
UFT-7CN5502R
Conical, Bent, for work under a microscope,
(ø x L) 0.2 x 5.6 mm,
Sold per pair
UFT-6CN5504R
UFT-7CN5504R
Conical, Bent, for work under a microscope,
(ø x L) 0.4 x 5.6 mm,
Sold per pair
UFT-6CN8004S
UFT-7CN8004S
Conical
(ø x L) 0.4 x 8.7 mm,
Sold per pair
Ultra-Fine Tweezer Cartridge - Power Wedge
UFT-6PW3150S
UFT-7PW3150S
Power Wedge, two-way use, tip and long side,
(ø x L) 0.31 x 5.0 mm,
Sold per pair
UFT-6PW2954C
UFT-7PW2954C
Power Wedge, two-way use, tip and long side,
(ø x L) 0.29 x 5.4 mm,
Sold per pair
675 °F/357 °C
775 °F/413 °C
