- - 50.BAD MA R K READER COM P O NENT S 1 2 4 5 8 7 3 7 8 6 9
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9819-729-0A0 CABLE ASM. 2
2 SL-6041092-TN SCREW 8
3 EA-9500B01-00 CABLE BAND 10
4 HA-0055300-10 LENSE GREEN 2
5 HA-0055300-20 BEZEL 2
6 400-02252 FEEDER SWITCH CABLE ASM 2
- -
50.BAD MARK READER COMPONENTS
1
2
4
5
8
7
3
7
8
6
9
- -

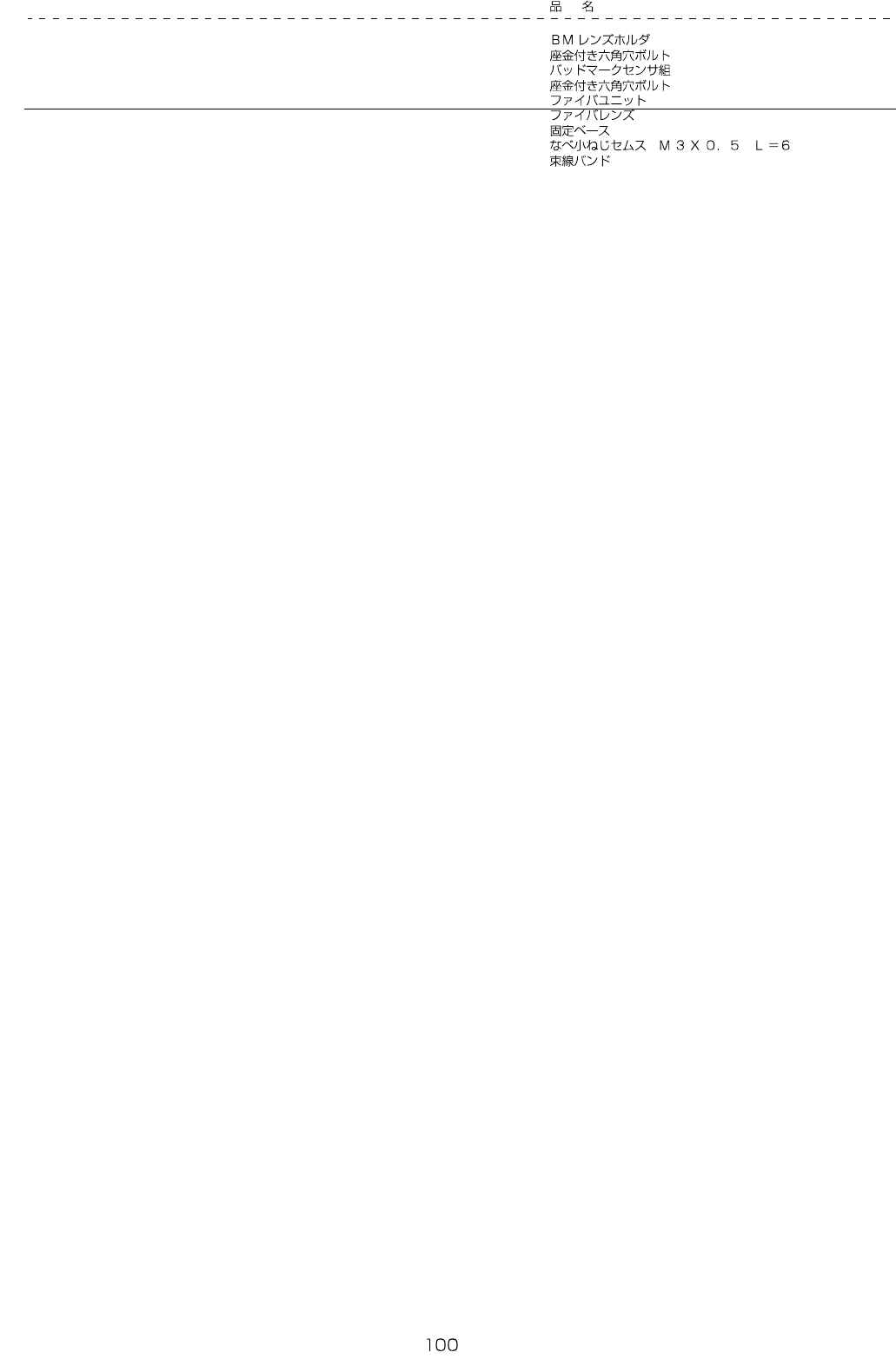

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01300 BM LENS HOLDER 1
2 SL-6030692-TN BOLT 2
3 400-02267 BAD MARK SENSOR ASM 1
4 SL-6032092-TN BOLT 2
5 HD-0013100-30 FIBER UNIT 1
6 E9638-729-000 FIBER LENS 1
7 HX-0029400-00 FIXED BASE 2
8 SL-4030691-SC SCREW M3X6 2
9 EA-9500B01-00 CABLE BAND 4
