- - 61.R HEA D COMPONENTS (1) 6 4 0 4 6 0 4 2 6 1 6 1 5 3 1 6 7 5 2 5 7 4 8 9 1 2 1 4 1 3 1 5 1 7 1 8 2 3 2 0 2 1 2 3 2 3 2 2 6 4 1 6 2 4 6 3 3 6 5 3 0 6 2 3 2 3 3 3 5 3 6 3 7 3 9 5 8 4 2 4 1 4 5 4 4 4 7 4 6 5 1 5 0 5 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-45523 FLUXER CYL UNIT PL ASM 1
2 CM-3002000-01 ATTENTION SEAL (2)
3 400-42180 FLUXER CYLINDER UNIT ASM (1)
4 EA-9500B01-00 CABLE BAND (2)
5 EA-9500B02-00 CABLE BAND 150 (1)
6 400-44050 FLUXER CYL UNIT (1)
7 400-44094 FLUX CONTAINER COVER (1)
8 400-44093 FLUX CONTAINER (1)
9 400-50208 SLIDING PLATE ASM (1)
10 400-50212 LINEAR SLIDE (1)
11 400-50262 BASE PLATE ASM (1)
12 400-50209 RIGHT LEVER HOLDER ASM (1)
13 400-50550 TERMINAL STRIP (1)
14 400-50215 CYL. SCREW M3-8 (2)
15 400-50217 LENS SCREW M3-6 BN1593 (2)
16 BT-0400251-EB URETHANE HOSE, BLACK (1.5)
17 PJ-3040405-07 LONG ELBOW UNION (1)
18 PX-0505010-00 SILENCER (2)
19 400-50211 SOLENOID VALVE (1)
20 400-50551 SV CABLE ASM (1)
21 PJ-3040405-04 ELBOW UNION (2)
22 400-50214 CYL. SCREW M3-6 (8)
23 400-50216 SUNK SCREW M4-12 BN21 (6)
24 BT-0400251-EB URETHANE HOSE, BLACK (0.1)
25 PA-9000690-00 SHOCK ABSORBER (2)
26 400-50549 REED SWITCH (2)
27 PC-0105070-00 SPEED CONTROLLER (2)
28 400-50210 LEFT LEVER HOLDER ASM (1)
29 PJ-0105050-01 JOINT (2)
30 400-50485 RUBBER CAP (2)
31
#02
400-66695 FLUX SCRAPER (1)
32 400-44218 BASE FRAME ASM 1
33 400-44084 BASE FRAME RIB (1)
34 400-44085 BASE FRAME SF (1)
35 400-44086 BASE FRAME SR (1)
36 SL-6041492-TN SCREW (1)
37 SM-6051602-TN BOLT (4)
38 SL-6042092-TN SCREW M4 L=20 (8)
39 HX-0029400-00 FIXED BASE (1)
40 EA-9500B01-00 CABLE BAND (6)
41 SM-4040801-SC SCREW M4X0.7 L=8 (1)
42 SL-6052092-TN SCREW (4)
43 SM-6041202-TN SCREW M4X0.7 L=12 (8)
44 400-42244 WASHER M5 (4)
45 400-44083 BASE FRAME B (1)
46 400-39442 FLUXER BB 1
47 400-44087 FLUXER PB 1
48 SM-6102502-TN BOLT M10 L=25 1
49 WP-1052001-SC WASHER 10,5X21X2 1
50 WS-1020002-KN SPRING WASHER M10 1
51 SL-6061292-TN SCREW 2
52 SL-6063592-TN SCREW 2
53 SL-9081693-SE HEXAGON SCREW WITH WASHER 1
54 HX-0029400-00 FIXED BASE 1
55 SM-4040801-SC SCREW M4X0.7 L=8 1
56 PJ-3010400-04 REDUCER 1
57 PJ-3080600-03 Y UNION 1
58 BT-0600400-EC TUBE HOSE, BLUE 0.05
59 400-44165 JIG PLATE ASM 1
60
#01
400-44090 FLUXER PLATE 120/200 1
61
#01
400-44091 FLUXER PLATE 30/50/70/100 1
62 400-42181 FLUXER SIGNAL CABLE ASM 1
63 400-44082 FLUXER BASE 1
- -
61.R HEAD COMPONENTS (1)
6
4 0
4
6 0
4 2
6 1
6 1
5
3 1
6
7
5 2
5 7
4 8
9
1 2
1 4
1 3
1 5
1 7
1 8
2 3
2 0
2 1
2 3
2 3
2 2
6 4
1 6
2 4
6 3
3
6 5
3 0
6 2
3 2
3 3 3 5
3 6
3 7
3 9
5 8
4 2
4 1
4 5
4 4
4 7
4 6
5 1
5 0
5 3
5 4
2
5 6
7 9 8 2
8 58 3
8 4
7 6
5 9
7 2
7 1
6 7
7 3
7 5
6 8
7 0
7 1
7 7
8 6
1
1 9
6 9
9
4 9
7 4
4 3
7 8
5 5
3 8
1 0
1 1
6 6
8
2 8
2 7
2 5
2 6
2 9
- -

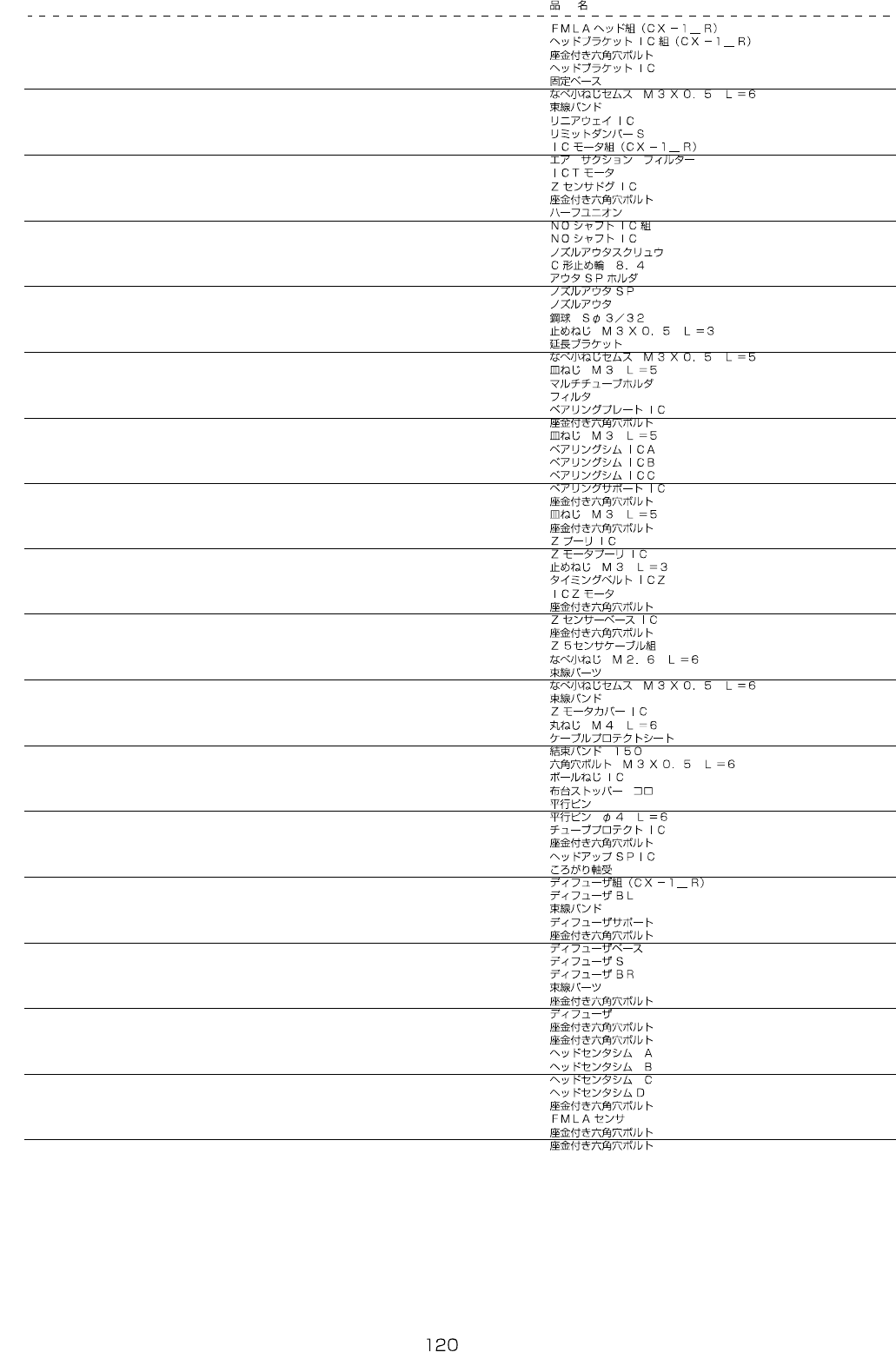

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-52514 FMLA HEAD ASM(CX-1_R) 1
2 400-52517 HEAD BRACKET IC ASM(CX-1_R) (1)
3 SL-6035092-TN BOLT (2)
4 400-01150 HEAD BRACKET IC (1)
5 HX-0029400-00 FIXED BASE (1)
6 SL-4030691-SC SCREW M3X6 (4)
7 EA-9500B01-00 CABLE BAND (1)
8 400-01161 LINEAR WAY IC (1)
9 E3046-729-000 LIMIT DAMPER S (2)
10 400-52521 IC T MOTOR ASM(CX-1_R) (1)
11 L155E-321-000 AIR SUCTION FILTER (1)
12 400-03256 IC THETA MOTOR (1)
13 400-01168 Z SENSOR DOG IC (1)
14 SL-6030692-TN BOLT (2)
15 PJ-2105041-00 HALF UNION (1)
16 400-01178 NO SHAFT IC ASM (1)
17 400-01179 NO SHAFT IC (1)
18 400-01139 NOZZLE OUTER SCREW (1)
19 RC-0841011-KP RETAINING RING 8.4 (1)
20 E3062-729-000 OUTER SP HOLDER (1)
21 400-13575 NOZZLE OUTER SP (1)
22 400-01292 NOZZLE OUTER (1)
23 E4228-760-000 STEEL BALL (3)
24 SM-8030302-TP SCREW M3X0.5 L=3 (1)
25 400-98316 EXTEND BR (1)
26 SL-4030581-SC COMBINATION SCREW M3 X 5 (2)
27 SM-1030552-TN SCREW M3 L=5 (2)
28 400-11220 MULTI TUBE HOLDER (1)
29 E3052-729-000 FILTER (1)
30 400-01153 BEARING PLATE IC (1)
31 SL-6030892-TN SCREW (2)
32 SM-1030552-TN SCREW M3 L=5 (2)
33 400-01154 BEARING SHIM IC A (1)
34 400-01155 BEARING SHIM IC B (1)
35 400-01156 BEARING SHIM IC C (1)
36 400-01157 BEARING SUPPORT IC (1)
37 SL-6030892-TN SCREW (2)
38 SM-1030552-TN SCREW (2)
39 SL-6042042-TN SCREW (4)
40 400-01158 Z PULLEY IC (1)
41 400-01159 Z MOTOR PULLEY IC (1)
42 SM-8030312-TP SCREW M3 L=3 (2)
43 400-01160 TIMING BELT IC Z (1)
44 400-03255 IC Z MOTOR (1)
45 SL-6041292-TN SCREW (4)
46 400-39882 Z SENSOR BASE IC (1)
47 SL-6032092-TN BOLT (2)
48 400-02226 Z5 SENSOR RELAY CABLE ASM. (1)
49 SM-4860601-SC SCREW M2.6 L=6 (1)
50 HX-0034400-00 HARNESS PARTS (1)
51 SL-4030691-SC SCREW M3X6 (1)
52 EA-9500B01-00 CABLE BAND (2)
53 400-01165 Z MOTOR COVER IC (1)
54 SM-3040652-TN SCREW M4 L=6 (3)
55 400-01306 CABLE PROTECTOR SHEET (1)
56 EA-9500B02-00 CABLE BAND 150 (1)
57 SM-6030602-TN HEX SCREW M3 X 6 (6)
58 400-01152 BALL SCREW IC (1)
59 B4122-804-000 ROLLER (4)
60 PH-0500122-C0 PIN (1)
61 PH-0400062-C0 PIN (4)
62 400-01151 TUBE PROTECTOR IC (1)
63 SL-6030892-TN SCREW (2)
64 400-01163 HEAD UP SP IC (2)
65 SB-1100025-00 BEARING (1)
66 400-52518 DIFFUSER ASM(CX-1_R) (1)
67 400-01174 DIFFUSER BL (1)
68 EA-9500B01-00 CABLE BAND (2)
69 400-39881 DIFFUSER SUPPORT (1)
70 SL-6030692-TN BOLT (4)
71 400-01172 DIFFUSER BASE (2)
72 400-01173 DIFFUSER S (2)
73 400-01175 DIFFUSER BR (1)
74 HX-0034400-00 HARNESS PARTS (2)
75 SL-6030692-TN BOLT (2)
76 400-39880 DIFFUSER (1)
77 SL-6030692-TN BOLT (4)
78 SL-6040892-TN BOLT (3)
79 E3019-721-000 HAED CENTER SHIM A (1)
80 E3020-721-000 HAED CENTER SHIM B (1)
81 E3021-721-000 HAED CENTER SHIM C (1)
82 E3047-729-000 HAED CENTER SHIM D (1)
83 SL-6041292-TN SCREW (4)
84 400-03264 FMLA SENSOR (1)
85 SL-6051692-TN BOLT (4)
86 SL-6030692-TN BOLT (1)
