RX-7-Rev07PDFA.pdf - 第56页
A- 46 A 20 搬送部ユニット - 幅調 整 1 Conv eyor unit – 1
A-45
A19
P8 ヘッド ASSY-4
P8 Head assy-4
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1
401-56132
BASE_BOTTOM
ｼﾀﾍﾞｰｽ
1
2
401-56146
HOLDER_SPLINE
ｽﾌﾟﾗｲﾝﾎﾙﾀﾞｰ
1
3
401-56429
BEARING(MR104B-H-ZZ)
ﾍﾞｱﾘﾝｸﾞ(ME104B-H-ZZ)
2
4
401-56440
O_RING(SS4)
O-ﾘﾝｸﾞ(SS4)
1
5
401-56441
O_RING(SS6)
O-ﾘﾝｸﾞ(SS6)
1
6
401-56453
SMALL HEAD CAP SCREW(M4X16)_HEX SOCKET
ﾛｯｶｸｱﾅﾂｷｼｮｳｱﾀﾏﾎﾞﾙﾄ(M4x16)
3
7
401-60784
MOTOR COVER(1)_H AXIS
H ｼﾞｸﾓｰﾀｰｶﾊﾞｰ(1)
1
8
401-56155
BASE(H)_MOTOR
ﾓｰﾀｰﾍﾞｰｽ H
1
9
401-56174
PLATE_USB MEMORY FIXED
USB ﾒﾓﾘｰｺﾃｲｲﾀ
1
10
401-56530
MOTOR ASSY (H)
MOTOR ASSY (H)
1
11
EZ7-683-403-04
BOLT HEXAGON SOCKET 3X6
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6
2
12
EZ7-683-404-04
BOLT HEXAGON SOCKET 3X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8
2
13
EZ7-683-481-04
BOLT HEXAGON SOCKET 2.5X4
6 ｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ 2.5X4
1
14
EZ7-683-480-14
BOLT HEXAGON SOCKET 2X4
6 ｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ 2X4
1
15
EZ7-683-402-04
BOLT HEXAGON SOCKET 3X5
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X5
2
16
EZ7-683-403-04
BOLT HEXAGON SOCKET 3X6
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6
2
17
EZ7-683-404-04
BOLT HEXAGON SOCKET 3X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8
2
18
EZ7-683-421-04
BOLT HEXAGON SOCKET 4X12
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ(C4X12)
3
19
EZ7-683-419-04
BOLT HEXAGON SOCKET 4X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8
2
20
EZ1-458-773-11
USB EXTENSION (USB-EX50)
USB EXTENSION (USB-EX50)
1
21
401-63295
USB MEMORY (SP008GBUF3J06V1D)
USB ﾒﾓﾘ- (SP008GBUF3J06V1D)
1
22
EZ4-453-997-02
HEAD FIXING BLOCK
ﾍﾂﾄﾞｶﾞﾜ ｺﾃｲ ﾌﾞﾛﾂｸ
1
23
EZ4-457-931-01
TAPE (80) FIXED
ｺﾃｲ ﾃ-ﾌﾟ (80)
1
24
401-55887
COLLAR(5)_BEARING
ﾍﾞｱﾘﾝｸﾞｶﾗｰ(5)
2
25
401-55911
HOLDER_LEVER
ﾚﾊﾞｰﾎﾙﾀﾞ
1
26
401-55914
SHAFT_JOINT
ｼﾞｮｲﾝﾄｼｬﾌﾄ
1
27
401-56144
PLATE_SUPPORT
ｻﾎﾟｰﾄﾌﾟﾚｰﾄ
1
28
401-56159
BLOCK(2)_STOPPER
ｽﾄｯﾊﾟｰﾌﾞﾛｯｸ(2)
1
29
401-56450
LINEAR GUIDE(MLC7C1R45H)
ﾘﾆｱｶﾞｲﾄﾞ(MLC7C1R45H)
1
30
EZ7-683-480-24
BOLT HEXAGON SOCKET 2X5
6 ｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ 2X5
2
31
EZ7-683-404-04
BOLT HEXAGON SOCKET 3X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8
2
32
EZ3-681-308-02
BOLT (M2X6) HOLE HEXAGON
ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ M2X6
3
33
EZ3-703-360-01
PIN PARALLEL (DIA. 3X6)
ﾍｲｺｳﾋﾟﾝ (ﾌｱｲ 3X6)
1
34
EZ4-454-040-01
LEVER SHAFT
ﾚﾊﾞ- ｼﾔﾌﾄ
2
35
EZ4-454-046-01
BEARING (MR83)
ﾍﾞｱﾘﾝｸﾞ (MR83)
2
36
EZ7-684-023-04
N 3 TYPE 2
N 3 TYPE 2
3
37
401-56139
HOLDER(RN)_BEARING
ﾍﾞｱﾘﾝｸﾞﾎﾙﾀﾞｰ RN
1
38
401-56147
SHAFT_GEAR RN
RN ｷﾞｱｰｼｬﾌﾄ
1
39
401-56169
COLLAR(10)_BEARING
ﾍﾞｱﾘﾝｸﾞｶﾗｰ(10)
1
40
401-56292
GEAR_RN DRIVING
RN ﾄﾞﾗｲﾌﾞｷﾞｱｰ
1
41
401-56428
BEARING(MR115-H-ZZ)
ﾍﾞｱﾘﾝｸﾞ(MR115-H-ZZ)
2
42
EZ3-170-255-01
SCREW (M3X3)
ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M3X3)
4
43
RC-0470611-KP
C-RING 5 (4.7)
C 形止め輪 5 (4.7)
1
44
SM-6032002-UZ
SCREW M3X20
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3X20
3
45
401-56133
BLOCK_CLAMP
ｸﾗﾝﾌﾟﾌﾞﾛｯｸ
1
46
401-56426
SPEED CONTROLLER(SPR-N-M3N)
ｽﾋﾟｺﾝ(SPR-N-M3N)
2
47
401-56427
SPEED CONTROLLER(SPER-Z-M3-Z14-002)
ｽﾋﾟｺﾝ(SPER=Z-M3-Z14-002)
1
48
401-56745
BARB ELBOW(M-3ALU-2)
ﾊﾞｰﾌﾞｴﾙﾎﾞ(M-3ALU-2)
1
49
401-56746
BARB FITTING(M-3AU-4)
ﾊﾞｰﾌﾞﾂｷﾞﾃ(M-3AU-4)
2
50
EZ7-683-403-04
BOLT HEXAGON SOCKET 3X6
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6
2
51
EZ3-703-360-03
PIN PARALLEL (DIA. 3X10)
ﾍｲｺｳﾋﾟﾝ (ﾌｱｲ 3X10)
2
52
EZ4-465-277-21
HEAD CLAMP BLOCK SHIM (T0.5)
ﾍﾂﾄﾞ ｸﾗﾝﾌﾟ ﾌﾞﾛﾂｸ ｼﾑ (T0.5)
1
53
WP-0220301-SC
WASHER M2
ﾋﾗｻﾞｶﾞﾈ ﾐｶﾞｷﾏﾙ M2
1
A-46
A20

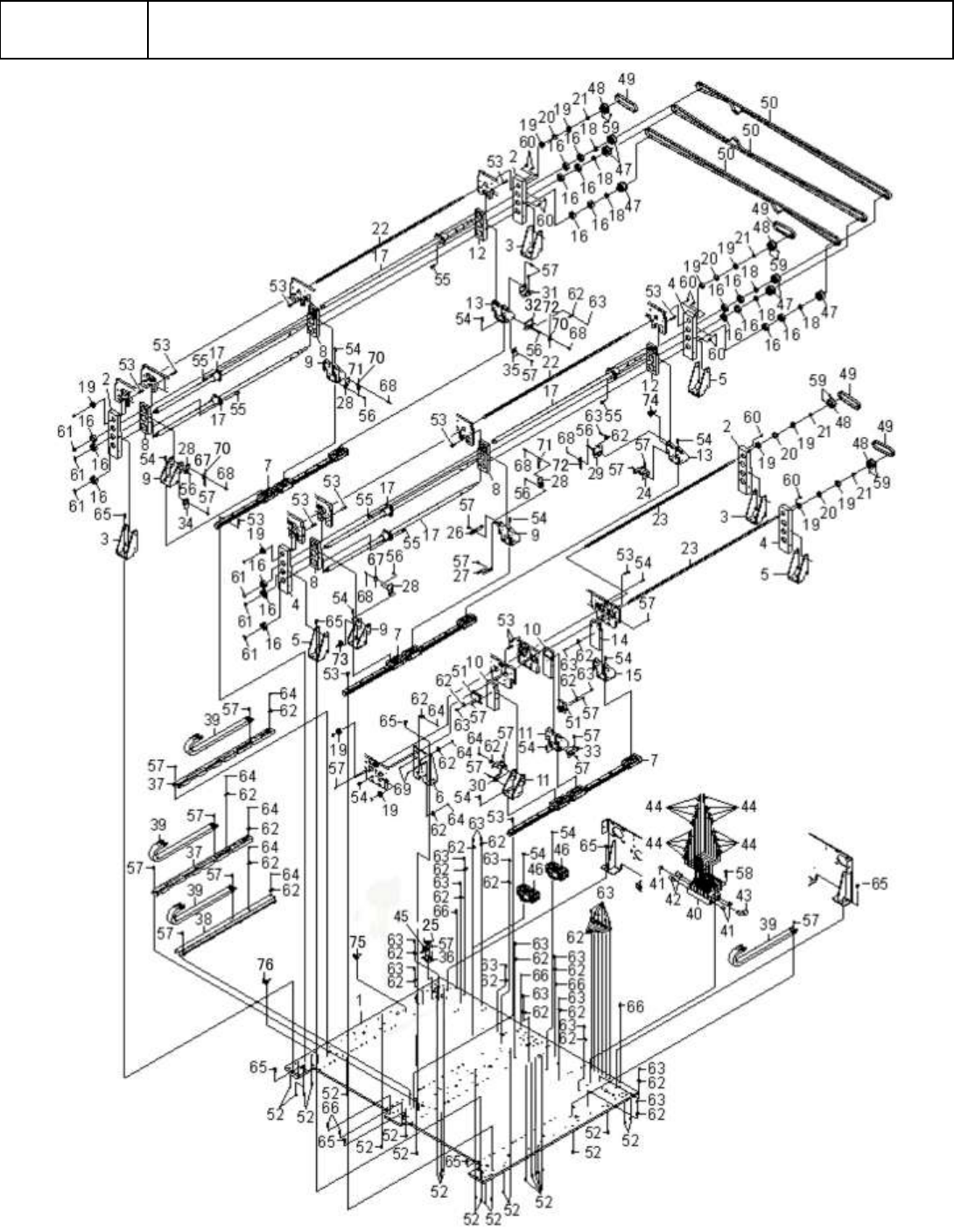

搬送部ユニット-幅調整 1
Conveyor unit – 1
A-47
A20
搬送部ユニット-幅調整 1
Conveyor unit – 1
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1
EZ4-454-259-02
BASE, CONVEYOR
ｺﾝﾍﾞｱ ﾍﾞ-ｽ
1
2
EZ4-454-254-01
SUPPORT (L), FIXED
ｺﾃｲ ｼﾁﾕｳ (L)
1
3
EZ4-454-255-01
BRACKET, FIXED SUPPORT
ｺﾃｲ ｼﾁﾕｳ ﾌﾞﾗｹﾂﾄ
1
4
EZ4-454-254-11
SUPPORT (R), FIXED
ｺﾃｲ ｼﾁﾕｳ (R)
1
5
EZ4-454-255-01
BRACKET, FIXED SUPPORT
ｺﾃｲ ｼﾁﾕｳ ﾌﾞﾗｹﾂﾄ
1
6
EZ4-454-260-02
BRACKET, RAIL
ﾚ-ﾙ ﾌﾞﾗｹﾂﾄ
1
7
EZ4-454-502-01
GUIDE (MHS15C3R640S2ET213)
ｶﾞｲﾄﾞ (MHS15C3R640S2ET213)
3
8
EZ4-454-256-01
SUPPORT (LR), MOVABLE
ｶﾄﾞｳ ｼﾁﾕｳ (LR)
1
9
EZ4-454-258-01
BRACKET, MOVABLE SUPPORT
ｶﾄﾞｳ ｼﾁﾕｳ ﾌﾞﾗｹﾂﾄ
1
10
EZ4-454-257-01
SUPPORT (C), MOVABLE
ｶﾄﾞｳ ｼﾁﾕｳ (C)
1
11
EZ4-454-258-01
BRACKET, MOVABLE SUPPORT
ｶﾄﾞｳ ｼﾁﾕｳ ﾌﾞﾗｹﾂﾄ
1
12
EZ4-454-256-01
SUPPORT (LR), MOVABLE
ｶﾄﾞｳ ｼﾁﾕｳ (LR)
1
13
EZ4-454-258-01
BRACKET, MOVABLE SUPPORT
ｶﾄﾞｳ ｼﾁﾕｳ ﾌﾞﾗｹﾂﾄ
1
14
EZ4-454-257-01
SUPPORT (C), MOVABLE
ｶﾄﾞｳ ｼﾁﾕｳ (C)
1
15
EZ4-454-258-01
BRACKET, MOVABLE SUPPORT
ｶﾄﾞｳ ｼﾁﾕｳ ﾌﾞﾗｹﾂﾄ
1
16
EZ4-700-061-01
BEARING (6000ZZ)
ﾍﾞｱﾘﾝｸﾞ (6000ZZ)
18
17
EZ4-453-827-01
SCREW (TMR14-RX739/TNBC)
ﾀﾞｲｹｲﾈｼﾞ(TMR14-RX739/TNBC-AT*)
6
18
EZ4-761-803-11
NUT, FINE U (TREATMENT HAVE)
ﾌｱｲﾝ U ﾅﾂﾄ (ｼﾖﾘ ｱﾘ) (FU00SS)
6
19
EZ4-453-831-01
BEARING (626ZZ1)
ﾍﾞｱﾘﾝｸﾞ (626ZZ1)
12
20
EZ4-454-515-01
WASHER (FWSSA-D19-V16.0-T4.0)
ｷﾝｿﾞｸﾜﾂｼﾔ(FWSSA-D19-V16.0-T4.0)
4
21
EZ4-455-705-01
COLLAR (D10-D6.2-L2.8)
ｶﾗ- (D10-D6.2-L2.8)
4
22
EZ4-455-481-01
SPLIN (HTS7P-2+HTP7SX730)
ﾛﾂｶｸ ｽﾌﾟﾗｲﾝ(HTS7P-2+HTP7SX730)
2
23
EZ4-455-480-01
SPLIN (HTS7P-2+HTP7SX717)
ﾛﾂｶｸ ｽﾌﾟﾗｲﾝ(HTS7P-2+HTP7SX717)
2
24
EZ4-454-288-02
BRACKET, CABLE BARE
ｹ-ﾌﾞﾙ ﾍﾞｱ ﾌﾞﾗｹﾂﾄ
1
25
EZ1-492-229-31
SENSOR ASSY
ｾﾝｻ ASSY (ﾊﾊﾞ ﾘﾐﾂﾄ RL4)
1
26
EZ4-454-292-01
DOG (3RR), SENSOR
ｾﾝｻ- ﾄﾞｸﾞ (3RR)
1
27
EZ4-454-370-01
DOG (4RR), SENSOR
ｾﾝｻ- ﾄﾞｸﾞ (4RR)
1
28
EZ4-454-365-02
PLATE L2-3 (LR), SENSOR
ｾﾝｻ ﾌﾟﾚ-ﾄ L2-3 (LR)
4
29
EZ4-454-366-12
PLATE L4 (R), SENSOR
ｾﾝｻ ﾌﾟﾚ-ﾄ L4 (R)
1
30
EZ4-454-368-02
BRACKET (2R), CABLE BARE
ｹ-ﾌﾞﾙ ﾍﾞｱ ﾌﾞﾗｹﾂﾄ (2R)
1
31
EZ4-454-369-02
BRACKET (4RL), CABLE BARE
ｹ-ﾌﾞﾙ ﾍﾞｱ ﾌﾞﾗｹﾂﾄ (4RL)
1
32
EZ4-454-366-02
PLATE L4 (L), SENSOR
ｾﾝｻ ﾌﾟﾚ-ﾄ L4 (L)
1
33
EZ4-454-364-02
BRACKET (3R), CABLE BARE
ｹ-ﾌﾞﾙ ﾍﾞｱ ﾌﾞﾗｹﾂﾄ (3R)
1
34
EZ4-454-290-01
DOG (2R), SENSOR
ｾﾝｻ- ﾄﾞｸﾞ (2R)
1
35
EZ4-454-372-01
DOG (4R-A2), SENSOR
ｾﾝｻ ﾄﾞｸﾞ (4R-A2)
1
36
EZ4-455-707-01
PLATE SENCER 4R-A2
ﾌﾟﾚ-ﾄ ｾﾝｻ (4R-A2)
1
37
EZ4-454-371-01
BRACKET (L), DUCT
ﾀﾞｸﾄ ﾌﾞﾗｹﾂﾄ L
2
38
EZ4-455-708-01
BRACKET (C), DUCT
ﾀﾞｸﾄ ﾌﾞﾗｹﾂﾄ (C)
1
39
EZ4-454-503-01
BARE (TKP0130W15R20), CABLE
ｹ-ﾌﾞﾙ ﾍﾞｱ (TKP0130W15R20)
4
40
EZ1-492-217-14
SOLENOID VALVE ASSY
ｿﾚﾉｲﾄﾞ ﾊﾞﾙﾌﾞ ASSY
1
41
EZ4-453-569-01
PLUG (CYP025-08B29449)
ﾌﾟﾗｸﾞ (CYP025-08B29449)
3
42
EZ4-426-151-01
SILENCER(AN10-01)
ｻｲﾚﾝｻ(AN10-01)
2
43
EZ4-447-063-41
UNION (KQ2L08-01AS), ELBOW
ｴﾙﾎﾞ ﾕﾆｵﾝ (KQ2L08-01AS)
2
44
EZ4-457-146-31
CONTROLLER (AS1211F-M5-02A)
ｽﾋﾟ-ﾄﾞ ｺﾝﾄﾛ-ﾗ-(AS1211F-M5-02A)
16
45
EZ1-492-215-21
SENSOR ASSY
ｾﾝｻ ASSY (ﾊﾊﾞ ｹﾞﾝﾃﾝ RL4)
1
46
EZ4-453-764-01
RAIL, DIN(5PERF60MM/Z)
DIN ﾚ-ﾙ (NS35/7, 5PERF60MM/Z)
2
47
EZ4-453-826-01
PULLEY (P1110-015) (E), TIMING
ﾀｲﾐﾝｸﾞ ﾌﾟ-ﾘ (P1110-015) E
6
48
EZ4-453-823-01
PULLEY (P1110-010-1) (B)
ﾀｲﾐﾝｸﾞ ﾌﾟ-ﾘ (P1110-010-1) B
4
49
EZ2-177-403-01
BELT, TIMING (234-3GT-9)
ﾀｲﾐﾝｸﾞ ﾍﾞﾙﾄ (234-3GT-9)
4
50
EZ4-453-828-21
BELT (1947-3GT-9), TIMING
ﾀｲﾐﾝｸﾞ ﾍﾞﾙﾄ (1947-3GT-9)
3
