3 Machine description
3.1 Overview of the modules
Instruction Guide ASM ProcessLens Dual-lane 06/2018 49

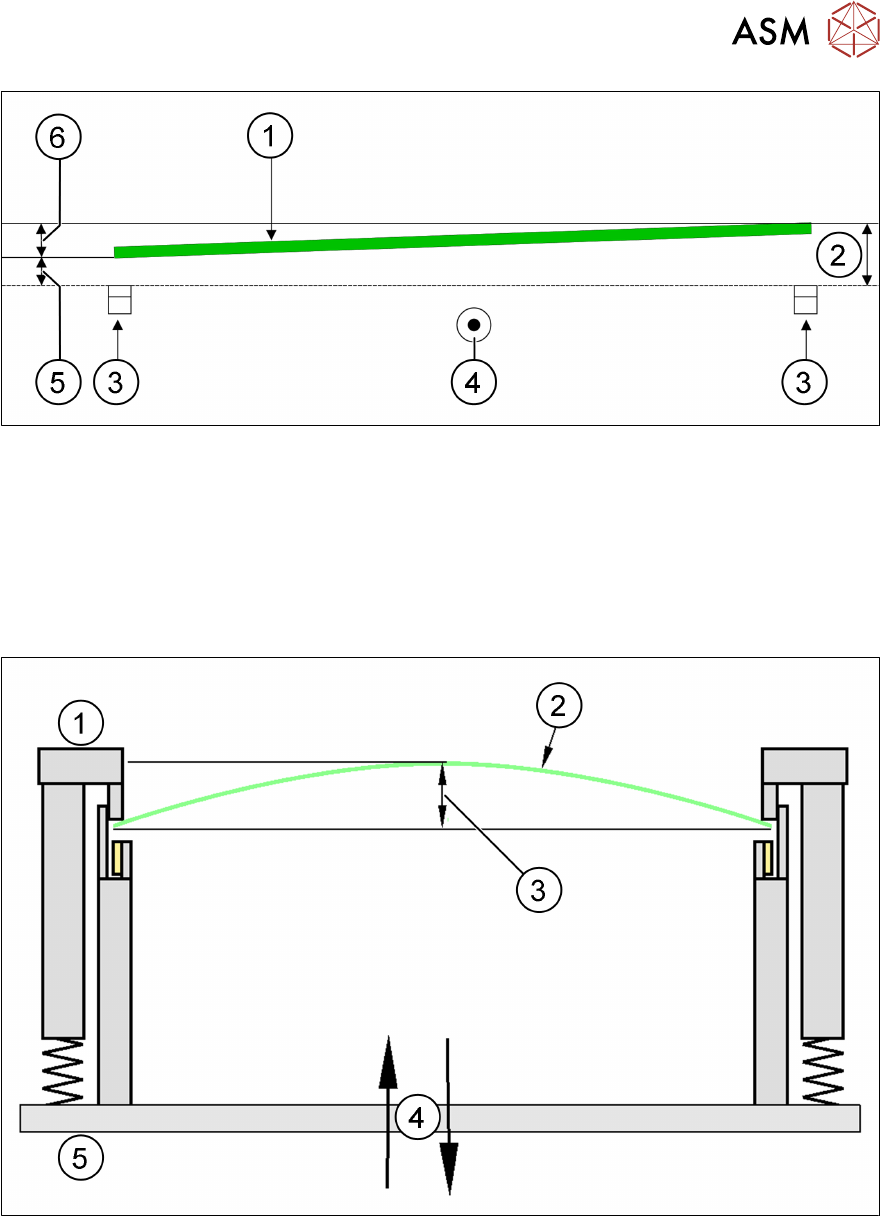

1 Front board edge 2 Max. 2.5 mm
3 Conveyor rail 4 PCB transport direction
5 Max. 2.5 mm 6 Max. 3 mm
3.1.4.2 Maximum PCB warpage allowed during processing of the board
There is active PCB warpage measurement and tracking during the inspection so that images re-
main in sharp focus, ensuring best height measurement accuracy on the market.
1 Fixed clamped edge 2 Printed circuit board
3 ≤ 2 mm 4 Movable clamping device
5 Conveyor rail
PCB warpage down, max. 4.5 mm
3 Machine description
3.1 Overview of the modules
50 Instruction Guide ASM ProcessLens Dual-lane 06/2018
1 Fixed clamped edge 2 0.5 mm
3 Printed circuit board 4 Magnetic pin support
5 Movable clamping device 6 Conveyor rail
► Use magnetic pin supports to achieve this value.
3 Machine description
3.2 Technical data
Instruction Guide ASM ProcessLens Dual-lane 06/2018 51
3.2 Technical data
3.2.1 Dimensions and ambient conditions for machine operation
Machine dimension
Length along PCB transport direction 1130 mm
Width 1300 mm
Height at a conveyor height of 950 mm 1600 mm
Machine weight 780 kg
Adjustable monitor and keyboard height range 880 - 1140 mm
Floor load 5 kN/m²
Machine ground clearance
(for PCB conveyor height 900 mm) machine height is 1831 mm ± 15 mm
(for PCB conveyor height 930 mm) machine height is 1861 mm ± 15 mm
(for PCB conveyor height 950 mm) machine height is 1881 mm ± 15 mm
Room temperature Between 15°C and 35°C
Atmospheric humidity 30% to 75% (no higher than 45% on average to
prevent any possibility of condensation in the
machine)
Operating temperature range Between 0°C and 50°C
Operating humidity max. 50% at 40°C
Operating altitude max. up to 1000m sea level
Max. noise emissions 78 dB (A)
3.2.2 Ambient conditions for packaging, transportation and storage
Temperature range Between -25°C and 55°C
Atmospheric humidity Up to 95%
Ambient pressure Up to 1700 m height without pressure equalization
