KLC-100_YSi-X_HD_pl.pdf - 第14页
1 3 XT -Motor / Sensor Moving-axis KLC-1304 28 35 36 15 22 16 30 10 21 18 12 29 10 24 14 13 1 1 9 9 33 35 33 35 36 7 8 5 23 23 6 27 27 26 3 36 19 28 38 25 20 4 37 26 27 2 14 27 2 1 31 34 34 17 32 39 43 40 41 42 35 No. Pa…
7
2

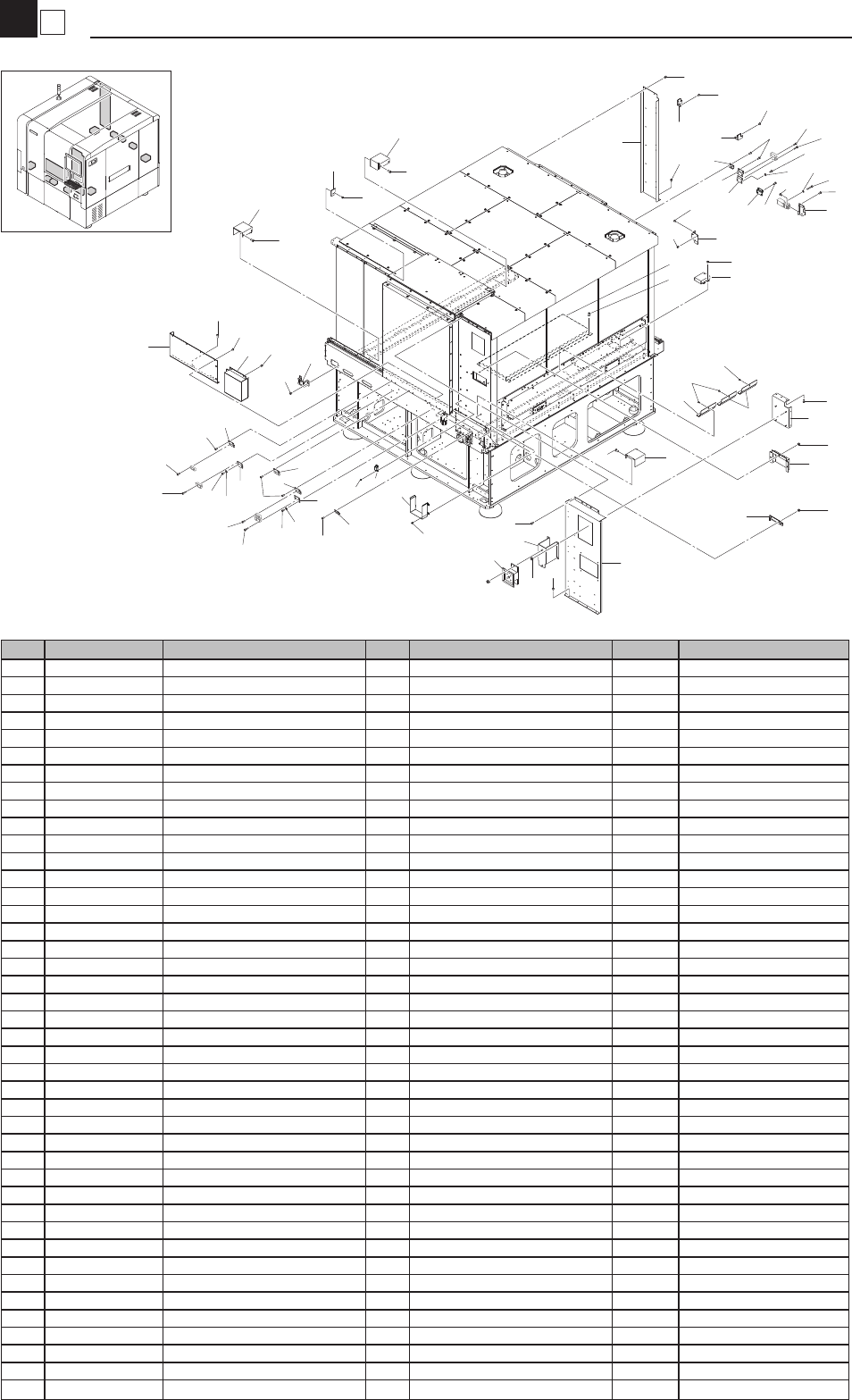

Shield Cover
Cover
KLC-1304
4
26
26
24
11
26
7
8
24
24
5
22
16
25
40
41
25
25
19
16
17
15
29
14
35
28
23
20
26
8
1
3
26
10
10
26
9
24
18
27
31
33
25
25
40
13
12
24
24
15
16
17
41
32
25
24
24
28
21
28
6
2
25
34
34
25
25
32
40
41
32
17
28
24
36
38
25
37
28
42
39
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M1341-00 SHIELD,HNS.PANEL 1
2 KLC-M1342-00 SHIELD,HNS. HV 1
3 KLC-M1343-00 REINF.,SHIELD F1 1
4 KLC-M1344-00 PLATE,SHIELD FRL 1
5 KLC-M1345-00 PLATE,SHIELD FRL2 1
6 KLC-M1346-00 SHIELD,RRG LWR. 1
7 KLC-M1347-L0 SHIELD,FRAME Y 1
8 KLC-M1347-R0 SHIELD,FRAME Y 2
9 KLC-M1348-00 SHIELD,BASE 2 1
10 KLC-M1349-00 SHIELD,FRAME R 3
11 KLC-M134A-00 SHIELD,FRG UPR. L 1
12 KLC-M134B-L0 SHIELD,RRG UPR. 1
13 KLC-M134B-R0 SHIELD,RRG UPR. 1
14 KLC-M13G1-00 STAY,MONITOR 1
15 KLC-M13G2-00 KEY 2
16 KLC-M13G3-00 BRKT.,SW. ACT 3
17 KLC-M13G4-00 BRKT.,SW. SENSOR 3
18 KLC-M13G5-00 PLATE,KEY 1
19 KLC-M13G6-00 PLATE.DAMPER 1
20 KLC-M13G7-00 PLATE,1 1
21 KLC-M13G8-00 PLATE,2 1
22 KLC-M13G9-00 BRKT.,SENSOR P 1
23 KLC-M13GA-00 HOLDER,LCD ASSY. 1
24 KLC-M11FA-00 BOLT,BUTTON HEAD 24
25 KLC-M11FA-20 BOLT,BUTTON HEAD 23
26 KLC-M11FB-30 BOLT,BUTTON HEAD 11
27 KGS-M1360-00 BOLT 2
28 91312-04006 BOLT HEX.SOCKET HEAD 14 M4X6
29 91312-04010 BOLT HEX.SOCKET HEAD 6 M4X10
30 91312-04016 BOLT HEX.SOCKET HEAD 6 M4X16
31 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X25
32 92902-04200 WASHER PLAIN 6
33 92902-04600 WASHER PLAIN 2
34 95702-04500 NUT FLANGE 5
35 95702-05500 NUT,FLANGE 8
36 KLC-M134C-00 SHIELD,LX 2
37 KLC-M13GF-00 GUIDE,HNS. 1
38 KLC-M13GG-00 BRKT.,RR. DOOR 1
39 KV5-M1130-00 CATCH MG. 5
40 KLC-M11FC-20 BOLT,LOW HEAD SC 6
41 KLC-M11FC-50 BOLT,LOW HEAD SC 6
42
98902-03005 SCREW BINDING HEAD
10
1
3
XT-Motor / Sensor
Moving-axis
KLC-1304
28
35
36
15
22
16
30
10
21
18
12
29
10
24
14
13
11
9
9
33
35
33
35
36
7
8
5
23
23
6
27
27
26
3
36
19
28
38
25
20
4
37
26
27
2
14
27
2
1
31
34
34
17
32
39
43
40
41
42
35
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M2223-00 DAMPER 1
2 KLC-M2225-00 BRACKET,DOG 2
3 KLC-M2226-00 BRACKET COVER 1
4 KLC-M2227-00 BRACKET,SENSOR 1
5 KLC-M2228-00 COVER,HNS 1
6 KLC-M2231-00 BRACKET1,DUCT 1
7 KLC-M2232-01 DUCT2,HNS 1
8 KLC-M2233-01 BRACKET1,HNS 2
9 KLC-M2234-01 BRACKET2,HNS 2
10 KLC-M224A-00 HOLDER SET,XT AXIS 1
11 KLC-M2266-00 HOLDER,NUT X AXIS 1
12 KLC-M2271-A0 XT AXIS B.S ASSY 1
13 KLC-M2282-00 DOG.ORIGIN 1
14 KLC-M2283-00 DOG,2ND LIMIT 2
15 KLC-M22C1-00 COVER1,BS 1
16 KGT-M2220-00 COUPLING,X-AXIS 1
17 KHN-M224K-00 COLLAR B 2
18 KHN-M224J-00 COLLAR A 2
19 KHN-M22AD-00 GREASE NIPPLE 1
20 KHN-M22F6-00 WASHER,SWR06 4
21 KHY-M224H-00 DAMPER 1
22 90KA1-201462 AC SERVO MOTOR 1
23 90990-01J039 BOLT, HEX. SOCKET HEAD 4
24 90990-41J138 COLLAR 1
25 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
26 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
27 91312-05012 BOLT HEX.SOCKET HEAD 12 M5X12
28 91312-06020 BOLT HEX.SOCKET HEAD 8 M6X20
29 91312-06030 BOLT HEX.SOCKET HEAD 4 M6X30
30 91312-06045 BOLT HEX.SOCKET HEAD 4 M6X45
31 92012-04012 BOLT,BUTTON HEAD 1 M4X12
32 92012-04025 BOLT,BUTTON HEAD 2 M4X25
33 92902-04200 WASHER PLAIN 8
34 97602-04306 SCREW,BIN.HEAD W/W. 6
35 98902-04005 SCREW BINDING HEAD 10
36 98702-06008 SCREW, FLAT HEAD 4
37 KLC-M652C-01 SENSOR XT ORG ASSY 1
38 KLC-M652D-01 SENSOR XT OT ASSY 1
39 KLC-M2238-00 BRACKET,STOPPER 1
40 KLC-M2239-00 TAPE,XT AXIS 1 1
41 KLC-M223A-00 TAPE,XT AXIS 2 1
42 KLC-M225A-00 PLATE,HNS. 1
43 91312-06008 BOLT HEX.SOCKET HEAD 2
2
3
XT-Guide / Frame
Moving-axis
KLC-1304
13
16
4
9
17
10
10
11
14
14
16
13
12
15
18
8
1
7
6
20
19
2
2
21
21
5
20
19
1
12
15
18
8
22
23
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M2211-S0 FRAME,X AXIS 1
2 KLC-M2213-S0 PLATE A,B SET 1
3
4 KLC-M2215-00 PLATE3,JOINT 2
5 KLC-M2216-00 PLATE1,JOINT 1
6 KLC-M2217-00 PLATE2,JOINT 1
7 KLC-M2218-00 PLATE4,JOINT 1
8 KHN-M22F6-00 WASHER,SWR06 18
9 KLC-M2235-01 DUCT A,HNS. 1
10 KLC-M2236-00 STAY,COVER 6
11 KLC-M2237-00 COVER 37 1
12 KLC-M2276-S0 XT AXIS GUIDE SET 1
13 KHN-M22F4-00 WASHER,SWR04 24
14 90990-01J011 BOLT, HEX. SOCKET HE 18
15 91312-04016 BOLT,HEX.SOCKET HEAD 38 M4X16
16 91312-04020 BOLT HEX.SOCKET HEAD 24 M4X20
17 91312-05014 BOLT HEX.SOCKET HEAD 6 M5X14
18 91312-06030 BOLT HEX.SOCKET HEAD 18 M6X30
19 91312-08025 BOLT HEX.SOCKET HEAD 18 M8X25
20 91312-08020 BOLT HEX.SOCKET HEAD 20 M8X20
21 99480-06018 PIN PARALLEL 4
22 KLC-M2291-00 PLATE 91 1
23 KLC-M2292-00 PLATE 92 1
