2 8 Controller Controller KLC-100-1702 8 5 6 33 1 14 16 15 30 36 37 1 27 30 9 19 7 20 32 21 38 22 23 26 24 25 38 29 39 39 34 18 34 28 35 13 28 35 13 33 17 10 33 12 2 11 31 3 4 11 8 5 6 33 1 14 16 15 30 36 37 1 27 30 9 19…
1
8
Controller
Controller
KLC-1304
1
1617
22
18
33
13
15
29
2
12
32
8
29
11
3
29
29
5
27
29
21
29
4
6
20
7
29
23
19
24
25
26
30
28
31
9
10
14
28
31
9
10
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLB-M4101-00 PLATE,BOX 1 1
2 KLB-M4102-00 PLATE,BOX 2 1
3 KLB-M4103-00 PLATE,BOX 3 1
4 KLB-M4104-00 PLATE,BOX 4 1
5 KLB-M4105-00 STAY,ATX 1
6 KLB-M4106-00 STAY,HDD 1
7 KLB-M4109-00 BRKT.,HDD 1
8 KLB-M4114-00 WING BOLT 2
9 LC1-M40A2-00 SPACER,HED 4
10 LC1-M40A3-00 H.E.D. 4
11 KKH-M4108-00 GOM,BOARD 1
12 KKH-M4209-12 SYSTEM UNIT ASSY 1
13 KKH-M441H-A0 VISION BOARD SET 1
14 KGA-M4187-00 FAN GUARD 119MM 1
15 KLB-M4108-00 BRKT,BOARD 2 1
16 KKH-M4107-00 BRKT,PORT 1
17 KKH-M4106-00 BRKT,PORT 1
18 KLB-M4530-01 REMOTE IF BOARD ASSY 1
19 KLB-M6185-00 FAN MOTOR ASSY 1
20 KLB-M53J1-A0 HDD UNIT SET 1
21 LE3-M65E5-00 ATX POWER SUPPLY 1
22 KKH-M534M-00 HNS COM2 1
23 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
24 91312-04012 BOLT,HEX.SOCKET HEAD 2 M4X12
25 92902-04200 WASHER PLAIN 2
26 95302-04600 NUT HEXAGON 2
27 97602-03306 SCREW,PAN HEAD W/W 12
28 97602-03316 SCREW,PAN HEAD W/W 4
29 97602-04306 SCREW,BIN.HEAD W/W. 11
30 90990-08J022 SCREW, PAN HEAD 4
31 90990-28J126 WASHER,PLAIN 2
32 90990-05J025 SPACER BOLT 8
33 KLB-M4530-21 REMOTE IF BOARD ASSY 1
2
8
Controller
Controller
KLC-100-1702
8
5
6
33
1
14
16
15
30
36
37
1
27
30
9
19
7
20
32
21
38
22
23
26
24
25
38
29
39
39
34
18
34
28
35
13
28
35
13
33
17
10
33
12
2
11
31
3
4
11
8
5
6
33
1
14
16
15
30
36
37
1
27
30
9
19
7
20
32
21
38
22
23
26
24
25
38
29
39
39
34
18
34
28
35
13
28
35
13
33
17
10
33
12
2
11
31
3
4
11
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KH1-M1396-00 WASHER 18
2 KKH-M441H-10 VISION BOARD ASSY 1
3 KLB-M4530-41 REMOTE IF BOARD ASSY 1
4 KLB-M4530-51 REMOTE IF BOARD ASSY 1
5 KLC-M1135-00 PLATE 1,AMP 4
6 KLC-M1136-00 PLATE 2,AMP 4
7 KLC-M1139-00 PLATE 3,AMP 1
8 KLC-M4186-00 FAN MOTOR ASSY 1
9 KLC-M4209-00 SYSTEM UNIT ASSY 1
10 KLC-M4213-00 PLATE,TOP 2 1
11 KLC-M421C-00 PANEL,BLANK 2
12 KLC-M421D-00 PLATE,FIN 1
13 KLC-M421F-00 STAY,HDD 2
14 KLC-M421G-00 STAY,FILTER 1
15 KLC-M421K-00 SCREW,FLAT HEAD 4
16 KLC-M421L-00 FILTER 1
17 KLC-M450R-00 GPU 1
18 KLC-M65E5-00 ATX POWER SUPPLY 1
19 KLC-M65H1-A0 YT SERVO AMP ASSY 1
20 KLC-M65H2-A0 XT SERVO AMP ASSY 1
21 KLC-M65H3-A0 W SERVO AMP ASSY 1
22 KLC-M65H4-A0 MS SERVO AMP ASSY 1
23 KLC-M65H5-A0 LY SERVO AMP ASSY 1
24 KLC-M65H6-A0 LX SERVO AMP ASSY 1
25 KLC-M65H7-A0 HZ SERVO AMP ASSY 1
26 KLC-M65H8-A0 HS SERVO AMP ASSY 1
27 KLC-M65H9-A0 HL SERVO AMP ASSY 1
28 KLR-M4108-00 DAMPER 4
29 KLT-M53J1-00 HDD UNIT 1
30 90990-11J005 SCREW, PAN HEAD W/W 18
31 90990-11J006 SCREW, PAN HEAD W/W 7
32 90990-11J011 SCREW, PAN HEAD W/W 4
33 90990-11J023 SCREW, PAN HEAD W/W 12
34 90990-28J030 WASHER,PLAIN 4
35 90990-41J132 COLLAR 4
36 92902-03200 WASHER,PLAIN 4
37 95302-03600 NUT HEXAGON 4
38 97602-04312 SCREW PAN HEAD W/WASHER 18
39 98902-03012 SCREW BINDING HEAD 4
1
9

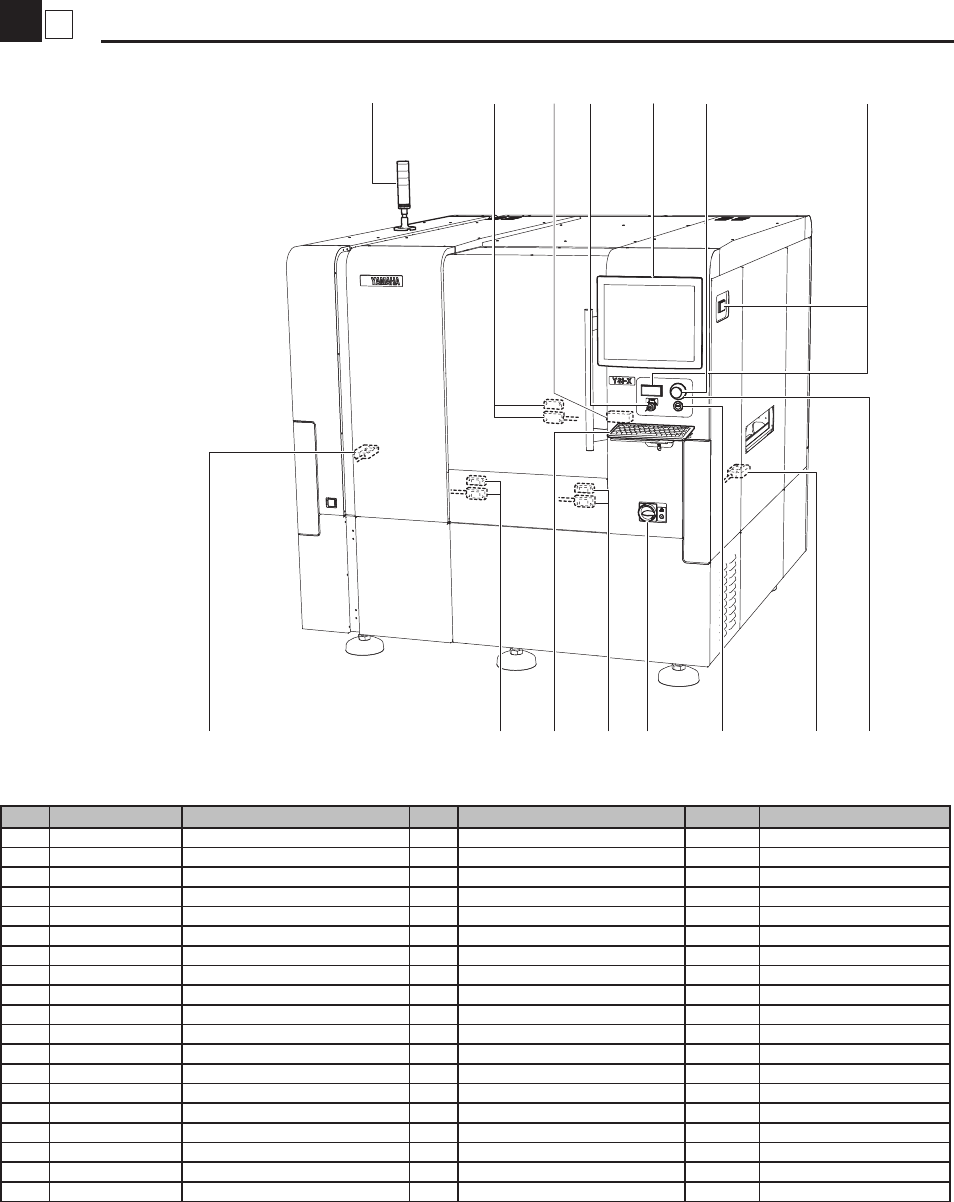

Exterior, etc.1
Exterior, etc.
KLC-1304
110,11
91914 17 2 8
4,5,6,7
3151813 1216
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M6554-00 MAIN SWITCH 1
2 KLC-M5138-00 EMG SWITCH ASSY 1
3 KGK-M5381-00 EMG PLATE 1
4 KLC-M4899-00 LIGHT 1 ASSY (L=294) 1
5 KLC-M4899-10 LIGHT 1 ASSY (L=394) 1
6 KLC-M4899-20 LIGHT 1 ASSY (L=494) 1
7 KLC-M4899-30 LIGHT 1 ASSY (L=594) 1
8 KLC-M65HF-A0 X-RAY LANP ASSY 4
9 KLB-M5109-01 17TOUCH LCD" 1
10 KW3-M5150-50 KEYBOARD J 1
11 KW3-M5150-60 KEYBOARD E 1
12 KLC-M5126-A1 FRONT SAFE.SW ASSY 1
13 KLC-M5126-B0 SAFETY SW ASSY 1
14 KLC-M5126-C1 REAR SAFETY SW ASSY 1 Rear Door
15 KLC-M5126-D1 RIGHT SAFE.SW ASSY 1
16 KLC-M5126-E1 LEFT SAFETY SW ASSY 1
17 KLC-M5126-G0 SAFETY SW UNIT ASSY 1 Rear Door
18 KGA-M669V-14 HNS,SWITCH READY 1
19 KLC-M6555-00 SAFETY KEY SEL, SW 1
