- - 16. OCC COMPO N ENTS 5 6 7 8 1 0 1 1 1 4 1 6 2 8 3 1 2 5 2 6 1 2 4 1 5 1 7 9 1 8 3 2 0 2 3 2 2 2 4 2 7 2 9 3 0 2 1 3 5 3 6 3 7 3 4 3 3 3 8 3 9 4 1 4 8 4 3 3 2 1 9 4 9 4 4 4 5 4 2 4 6 4 7 4 0
- -

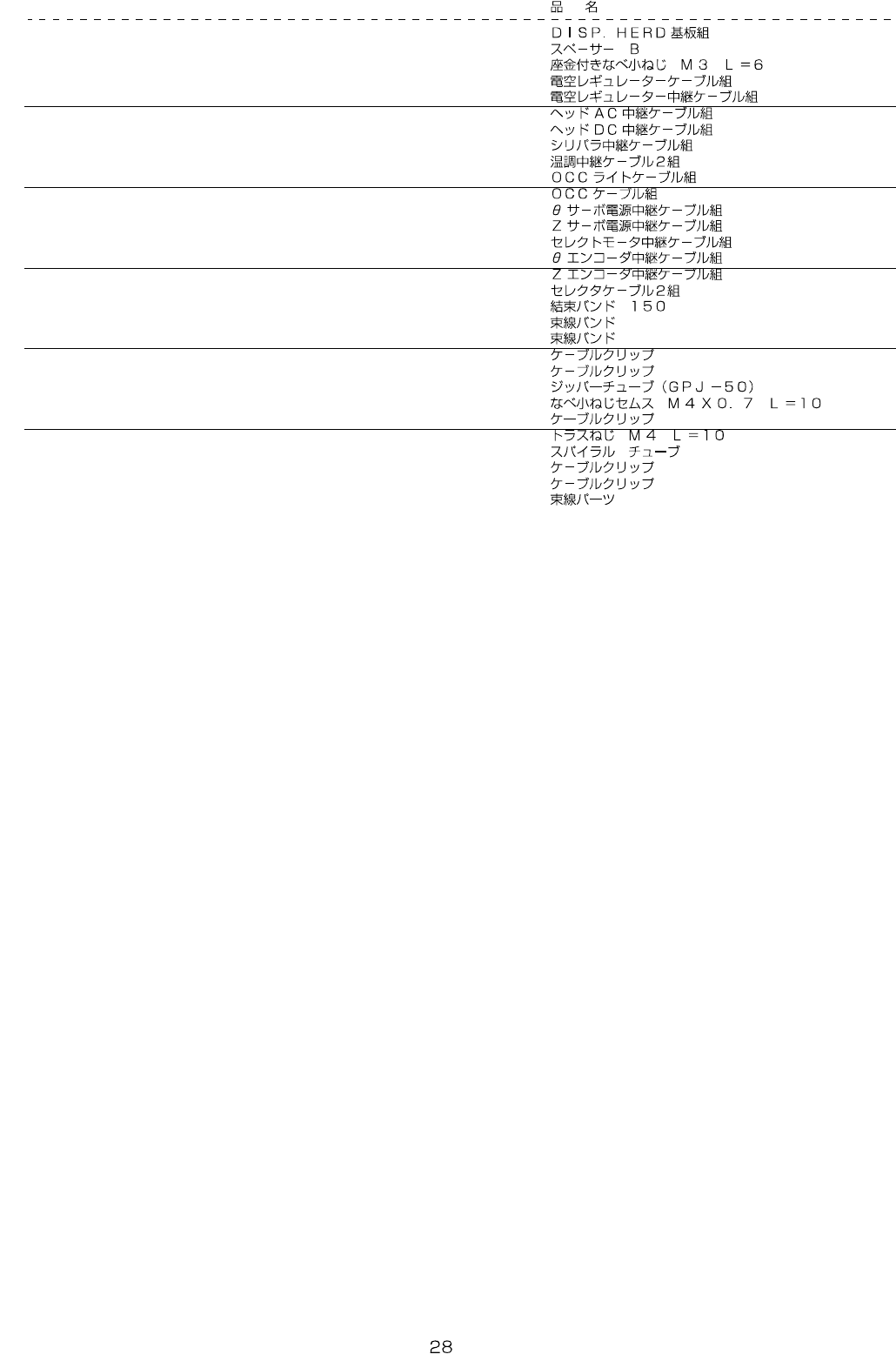

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E8607-802-0A0 DISP. HERD BOARD ASM. 1
2 HX-0005600-0A SPACER B 4
3 SL-4030681-SC SCREW M3 L=6 4
4 E9301-802-0A0 REGULATER CABLE ASM. 1
5 E9302-802-0A0 REGULATER RELAY CABLE ASM. 1
6 E9229-802-0A0 HEAD AC RELAY CABLE ASM. 1
7 E9231-802-0A0 HEAD DC RELAY CABLE ASM. 1
8 E9268-802-0A0 PARALLEL RELAY CABLE ASM. 1
9 E9334-802-0A0 TEMP. RELAY CABLE 2 ASM. 1
10 E9341-721-0A0 OCC LIGHT CABLE ASM. 1
11 E9342-721-0A0 OCC CABLE ASM. 1
12 E9285-802-0A0 SERVO POWER RELAY CABLE ASM. 1
13 E9284-802-0A0 Z SERVO POWER RELAY CABLE ASM. 1
14 E9289-802-0A0 SELECT MOTOR RELAY CABLE ASM. 1
15 E9275-802-0A0 ENCODER RELAY CABLE ASM. 1
16 E9274-802-0A0 Z ENCODER RELAY CABLE ASM. 1
17 E9336-802-0A0 SELECT CABLE 2 ASM. 1
18 EA-9500B02-00 CABLE BAND 150 4
19 EA-9500B01-00 CABLE BAND 8
20 HX-0006500-0B CABLE BAND 1
21 HX-0015000-0H CABLE CLIP 1
22 HX-0015000-0B CABLE CLIP 6
23 E9632-715-F00 ZIPPER TUBE (GPJ-50) 1.05
24 SL-4041091-SC SCREW M4 L=10 8
25 HX-0015000-0L CABLE CLIP 3
26 SM-0041001-SC SCREW M4 L=10 3
27 HX-0031400-0A SPIRAL TUBE 0.55
28 HX-0015000-0F CABLE CLIP 2
29 HX-0015000-0A CABLE CLAMP 1
30 HX-0015000-0C CABLE CLIP 1
- -
16. OCC COMPONENTS
5
6
7
8
1 0
1 1 1 4
1 6
2 8
3 1
2 5
2 6
1
2
4
1 5
1 7
9
1 8
3
2 0
2 3
2 2
2 4
2 7
2 9
3 0
2 1
3 5
3 6
3 7
3 4
3 3
3 8
3 9
4 1
4 8
4 3
3 2
1 9
4 9
4 4
4 5
4 2
4 6
4 7
4 0
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E3801-802-000 OCC BRACKET 1
2 SL-6051292-TN BOLT 4
3 E3800-802-0A0 CAMERA UNIT ASM. 1
4 E3802-725-000 CAMERA BRACKET U (1)
5 400-10386 CCD CAMERA (1)
6 E9618-721-000 OCC LENS (1)
7 E3853-715-000 CCD CAMERA BLOCK (1)
8 SM-6020752-TP SCREW (4)
9 SL-6040842-TN SCREW M4 L=8 (4)
10 E3803-721-000 LENS HOLDER (1)
11 E3804-721-000 OCC SHIM A (1)
12 E3805-721-000 OCC SHIM B (1)
13 E3806-721-000 OCC SHIM C (1)
14 E3807-721-000 OCC SHIM D (1)
15 SL-6040842-TN SCREW M4 L=8 (2)
16 E3808-721-000 LENS HOLD PLATE (1)
17 SL-6030692-TN BOLT (2)
18 SL-6040842-TN SCREW M4 L=8 (4)
19 E3802-802-0B0 LIGHT UNIT ASM. 1
20 E3802-802-000-A MIRROR BOX SUPPORT (1)
21 400-57353 MIRROR BOX ASM. (1)
22 400-50604 MIRROR BOX (1)
23 SL-6030592-TN SCREW M3 L=5 (4)
24 118-04606 RUBBER PLUG (14)
25 E3855-721-000 BEAM SPLITTER (1)
26 E3856-721-000 A CLOTHES PAPER (1)
27 400-50605 LIGHT DIFFUSER (1)
28 E3857-725-000 UNDER COVER (1)
29 SM-4030401-SC SCREW M3X0.5 L=4 (2)
30 E3858-725-000 OCC LENS DIFFEUSER (1)
31 SM-1030501-SC SCREW M3 L=5 (2)
32 E3803-802-0A0 OCC LIGHT BRACKET ASM. (1)
33 E3803-802-000 OCC LIGHT BRACKET (1)
34 E8612-725-0A0 OCC LIGHT CIRCUIT BOARD A ASM. (1)
35 HX-0033500-0E SPACER (4)
36 SL-6031492-TN SCREW (4)
37 HX-0028800-00 FLAT WASHER FOR INSULATION (4)
38 SL-6030892-TN SCREW (2)
39 E3862-721-000 FILTER HOLDER (1)
40 400-57943 LENS FILTER ASM. (1)
41 400-43896 LENS FILTER (1)
42 WP-0280501-SC WASHER M2.6 (4)
43 E3858-715-000 SEAL (1)
44 SM-8030312-TP SCREW M3 L=3 (1)
45 E3814-725-000 PUSHER RUBBER (1)
46 SM-0020401-SC SCREW M2 L=4 (4)
47 E3864-721-000 OCC LIGHT LABEL (1)
48 SL-6030892-TN SCREW 2
49 SL-6040892-TN BOLT 2
