17. TRANSFORMER COMPONENTS
1 5
1 4
1
7
9
1 6
1 7
1 3
4 0
1 9
3 6
3 5
2 4
3 0
3 8
3 9
4 1
3 7
T H R E E P H A S E
S I N G L E P H A S E
1 8
3 4
2 1
2 2
2 3
5
2 5
2 9
3 1
1 1
3 3
2 0
4
3
2
6
8
2 8
1 0
3 2
1 2
2 6
2 7
4 2
4 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9640-721-000 POWER SUPPLY TRANSFORMER 1
2 SM-6061202-TN BOLT 4
3 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 4
4 WP-0841601-SC WASHER 8.4X17.4X1.6 4
5 HN-0008900-0A NOISE FILTER 20A 1
6 SL-4041091-SC SCREW M4 L=10 2
7 HK-0433500-30 TERMINAL BASE 3P 1
8 SL-4042591-SC SCREW M4 L=25 2
9 400-62401 CIRCUIT PROTECTOR 1
10 SL-6051092-TN BOLT 4
11 E1004-802-000 BREAKER BRACKET 1
12 SL-6051042-TN SCREW 4
13 E9214-725-0A0 TRANSFORMER INPUT CABLE ASM. 1
14 E9216-725-0A0 BREAKER INPUT CABEL ASM. 1
15 E9217-725-0A0 BREAKER OUTPUT CABEL ASM. 1
16 E9218-725-0A0 NOISE FILTER FG CABLE ASM. 1
17 E9219-725-0A0 FG CONNECTING CABLE ASM. 1
18 E9589-725-0A0 POWER ON LIGHT RELAY CABLE ASM 1
19 E9450-700-0A0 POWER SUPPLY CABLE ASM. 1
20 E9641-721-000 POWER SUPPLY TRANSFORMER 1
21 SM-6061202-TN BOLT 4
22 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 4
23 WP-0841601-SC WASHER 8.4X17.4X1.6 4
24 HN-0014000-00 NOIS FILTER 1
25 SL-4041091-SC SCREW M4 L=10 4
26 E1620-725-000 NF BRACKET (THREE PHASE) 1
27 SL-6051042-TN SCREW 2
28 HK-0433500-40 TERMINAL BASE 4P 1
29 SL-4042591-SC SCREW M4 L=25 2
30 HA-0040300-00 BRAKER 1
31 SL-6051092-TN BOLT 4
32 E1014-802-000 BRAKER BRACKET(THREE PHASE) 1
33 SL-6051042-TN SCREW 4
34 E9215-802-0A0 TRANSFORMER FG CABLE ASM. 1
35 E9218-725-0A0 NOISE FILTER FG CABLE ASM. 1
36 E9219-725-0A0 FG CONNECTING CABLE ASM. 1
37 E9585-725-0A0 TRANSFORMER INPUT CABLE ASM. 1
38 E9586-725-0A0 BREAKER INPUT CABLE ASM. 1
39 E9587-725-0A0 BREAKER OUTPUT CABLE ASM. 1
40 E9589-725-0A0 POWER ON LIGHT RELAY CABLE ASM 1
41 E9599-721-0A0 POWER SUPPLY CABLE ASM. 1
42 E8760-452-W00 TUBE 0.6
- -

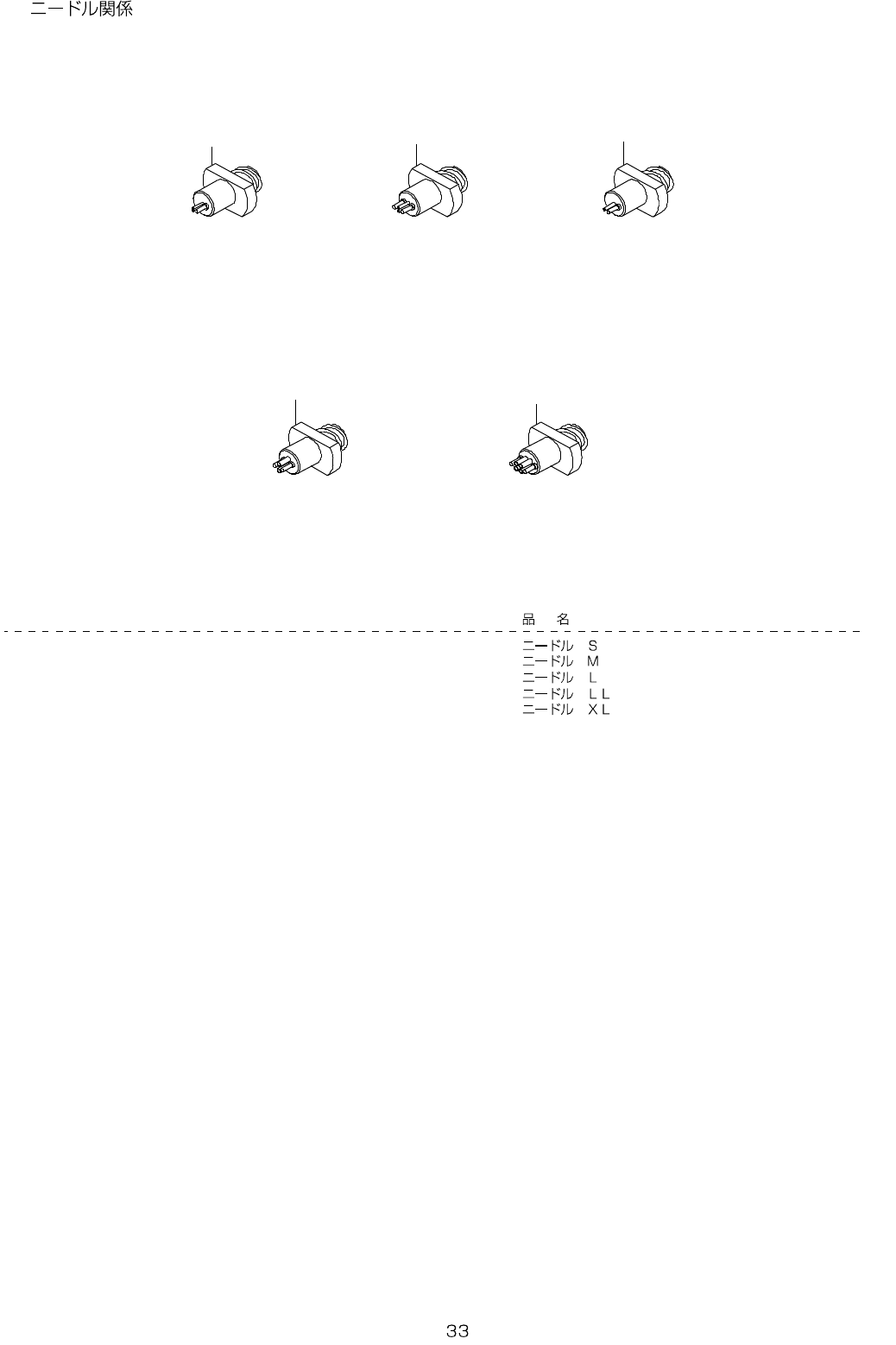

18. NEEDLE COMPONENTS
5
4
3
2
1
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E3401-802-000 NEEDLE S 1
2 E3406-802-000 NEEDLE M 1
3 E3411-802-000 NEEDLE L 1
4 E3416-802-000 NEEDLE LL 1
5 E3421-802-000 NEEDLE XL 1
