- - 17. TRANSFORMER COM PONENTS 1 5 1 4 1 7 9 1 6 1 7 1 3 4 0 1 9 3 6 3 5 2 4 3 0 3 8 3 9 4 1 3 7 T H R E E P H A S E S I N G L E P H A S E 1 8 3 4 2 1 2 2 2 3 5 2 5 2 9 3 1 1 1 3 3 2 0 4 3 2 6 8 2 8 1 0 3 2 1 2 2 6 2 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E3801-802-000 OCC BRACKET 1
2 SL-6051292-TN BOLT 4
3 E3800-802-0A0 CAMERA UNIT ASM. 1
4 E3802-725-000 CAMERA BRACKET U (1)
5 400-10386 CCD CAMERA (1)
6 E9618-721-000 OCC LENS (1)
7 E3853-715-000 CCD CAMERA BLOCK (1)
8 SM-6020752-TP SCREW (4)
9 SL-6040842-TN SCREW M4 L=8 (4)
10 E3803-721-000 LENS HOLDER (1)
11 E3804-721-000 OCC SHIM A (1)
12 E3805-721-000 OCC SHIM B (1)
13 E3806-721-000 OCC SHIM C (1)
14 E3807-721-000 OCC SHIM D (1)
15 SL-6040842-TN SCREW M4 L=8 (2)
16 E3808-721-000 LENS HOLD PLATE (1)
17 SL-6030692-TN BOLT (2)
18 SL-6040842-TN SCREW M4 L=8 (4)
19 E3802-802-0B0 LIGHT UNIT ASM. 1
20 E3802-802-000-A MIRROR BOX SUPPORT (1)
21 400-57353 MIRROR BOX ASM. (1)
22 400-50604 MIRROR BOX (1)
23 SL-6030592-TN SCREW M3 L=5 (4)
24 118-04606 RUBBER PLUG (14)
25 E3855-721-000 BEAM SPLITTER (1)
26 E3856-721-000 A CLOTHES PAPER (1)
27 400-50605 LIGHT DIFFUSER (1)
28 E3857-725-000 UNDER COVER (1)
29 SM-4030401-SC SCREW M3X0.5 L=4 (2)
30 E3858-725-000 OCC LENS DIFFEUSER (1)
31 SM-1030501-SC SCREW M3 L=5 (2)
32 E3803-802-0A0 OCC LIGHT BRACKET ASM. (1)
33 E3803-802-000 OCC LIGHT BRACKET (1)
34 E8612-725-0A0 OCC LIGHT CIRCUIT BOARD A ASM. (1)
35 HX-0033500-0E SPACER (4)
36 SL-6031492-TN SCREW (4)
37 HX-0028800-00 FLAT WASHER FOR INSULATION (4)
38 SL-6030892-TN SCREW (2)
39 E3862-721-000 FILTER HOLDER (1)
40 400-57943 LENS FILTER ASM. (1)
41 400-43896 LENS FILTER (1)
42 WP-0280501-SC WASHER M2.6 (4)
43 E3858-715-000 SEAL (1)
44 SM-8030312-TP SCREW M3 L=3 (1)
45 E3814-725-000 PUSHER RUBBER (1)
46 SM-0020401-SC SCREW M2 L=4 (4)
47 E3864-721-000 OCC LIGHT LABEL (1)
48 SL-6030892-TN SCREW 2
49 SL-6040892-TN BOLT 2
- -
17. TRANSFORMER COMPONENTS
1 5
1 4
1
7
9
1 6
1 7
1 3
4 0
1 9
3 6
3 5
2 4
3 0
3 8
3 9
4 1
3 7
T H R E E P H A S E
S I N G L E P H A S E
1 8
3 4
2 1
2 2
2 3
5
2 5
2 9
3 1
1 1
3 3
2 0
4
3
2
6
8
2 8
1 0
3 2
1 2
2 6
2 7
4 2
4 2
- -

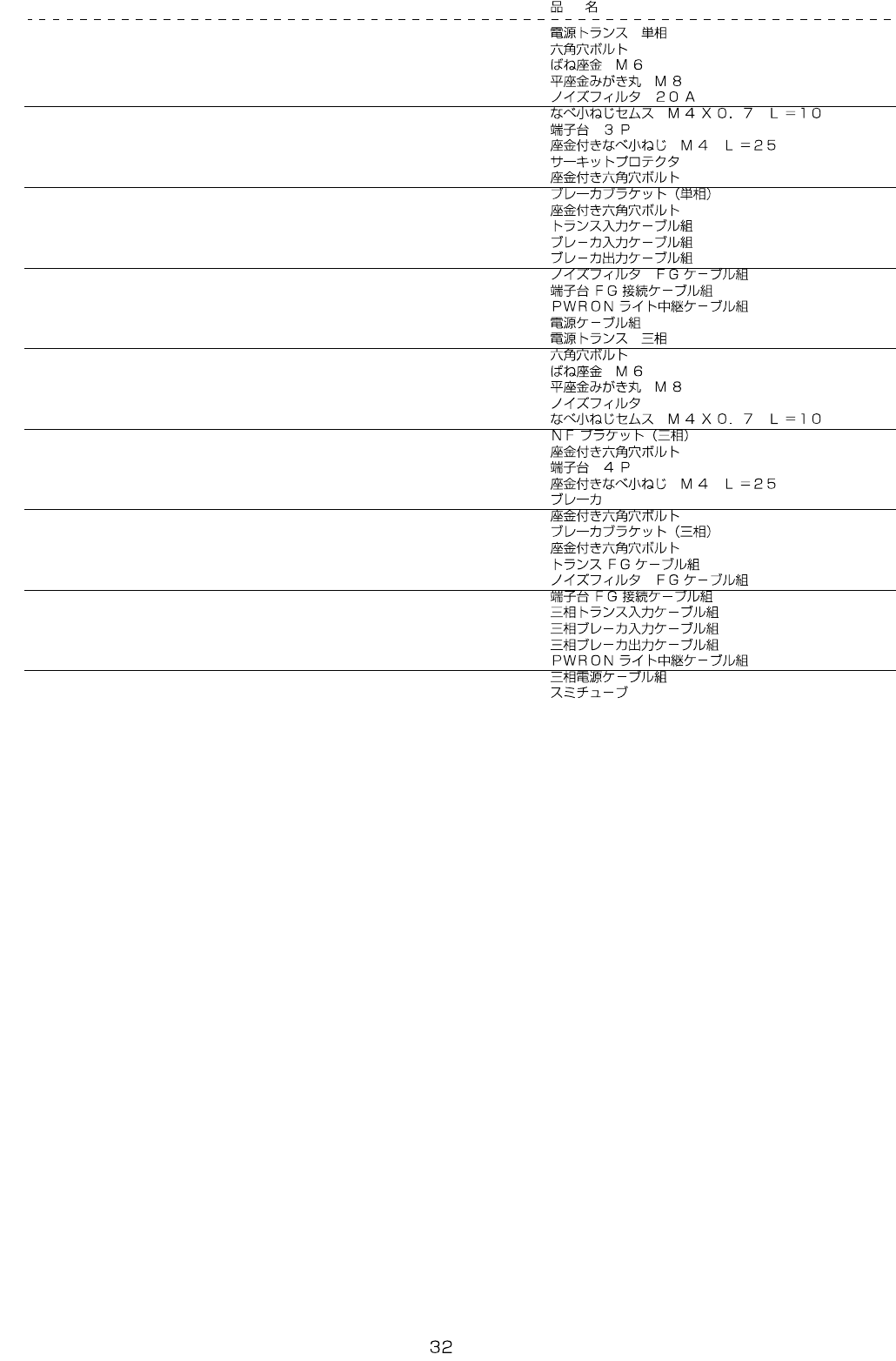

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9640-721-000 POWER SUPPLY TRANSFORMER 1
2 SM-6061202-TN BOLT 4
3 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 4
4 WP-0841601-SC WASHER 8.4X17.4X1.6 4
5 HN-0008900-0A NOISE FILTER 20A 1
6 SL-4041091-SC SCREW M4 L=10 2
7 HK-0433500-30 TERMINAL BASE 3P 1
8 SL-4042591-SC SCREW M4 L=25 2
9 400-62401 CIRCUIT PROTECTOR 1
10 SL-6051092-TN BOLT 4
11 E1004-802-000 BREAKER BRACKET 1
12 SL-6051042-TN SCREW 4
13 E9214-725-0A0 TRANSFORMER INPUT CABLE ASM. 1
14 E9216-725-0A0 BREAKER INPUT CABEL ASM. 1
15 E9217-725-0A0 BREAKER OUTPUT CABEL ASM. 1
16 E9218-725-0A0 NOISE FILTER FG CABLE ASM. 1
17 E9219-725-0A0 FG CONNECTING CABLE ASM. 1
18 E9589-725-0A0 POWER ON LIGHT RELAY CABLE ASM 1
19 E9450-700-0A0 POWER SUPPLY CABLE ASM. 1
20 E9641-721-000 POWER SUPPLY TRANSFORMER 1
21 SM-6061202-TN BOLT 4
22 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 4
23 WP-0841601-SC WASHER 8.4X17.4X1.6 4
24 HN-0014000-00 NOIS FILTER 1
25 SL-4041091-SC SCREW M4 L=10 4
26 E1620-725-000 NF BRACKET (THREE PHASE) 1
27 SL-6051042-TN SCREW 2
28 HK-0433500-40 TERMINAL BASE 4P 1
29 SL-4042591-SC SCREW M4 L=25 2
30 HA-0040300-00 BRAKER 1
31 SL-6051092-TN BOLT 4
32 E1014-802-000 BRAKER BRACKET(THREE PHASE) 1
33 SL-6051042-TN SCREW 4
34 E9215-802-0A0 TRANSFORMER FG CABLE ASM. 1
35 E9218-725-0A0 NOISE FILTER FG CABLE ASM. 1
36 E9219-725-0A0 FG CONNECTING CABLE ASM. 1
37 E9585-725-0A0 TRANSFORMER INPUT CABLE ASM. 1
38 E9586-725-0A0 BREAKER INPUT CABLE ASM. 1
39 E9587-725-0A0 BREAKER OUTPUT CABLE ASM. 1
40 E9589-725-0A0 POWER ON LIGHT RELAY CABLE ASM 1
41 E9599-721-0A0 POWER SUPPLY CABLE ASM. 1
42 E8760-452-W00 TUBE 0.6
