PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 8 挿入部(移ｼ 替ｴﾍｯ ﾄﾞ部1) INSERT SECT.(TRANSFE R HEAD SE CT.-1) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610129110AA INSERTION U NIT ｿｳﾆｭｳﾕﾆｯﾄ 1 001 N210156178AA FRAME ﾌﾚｰﾑ 1 003 X02G4…

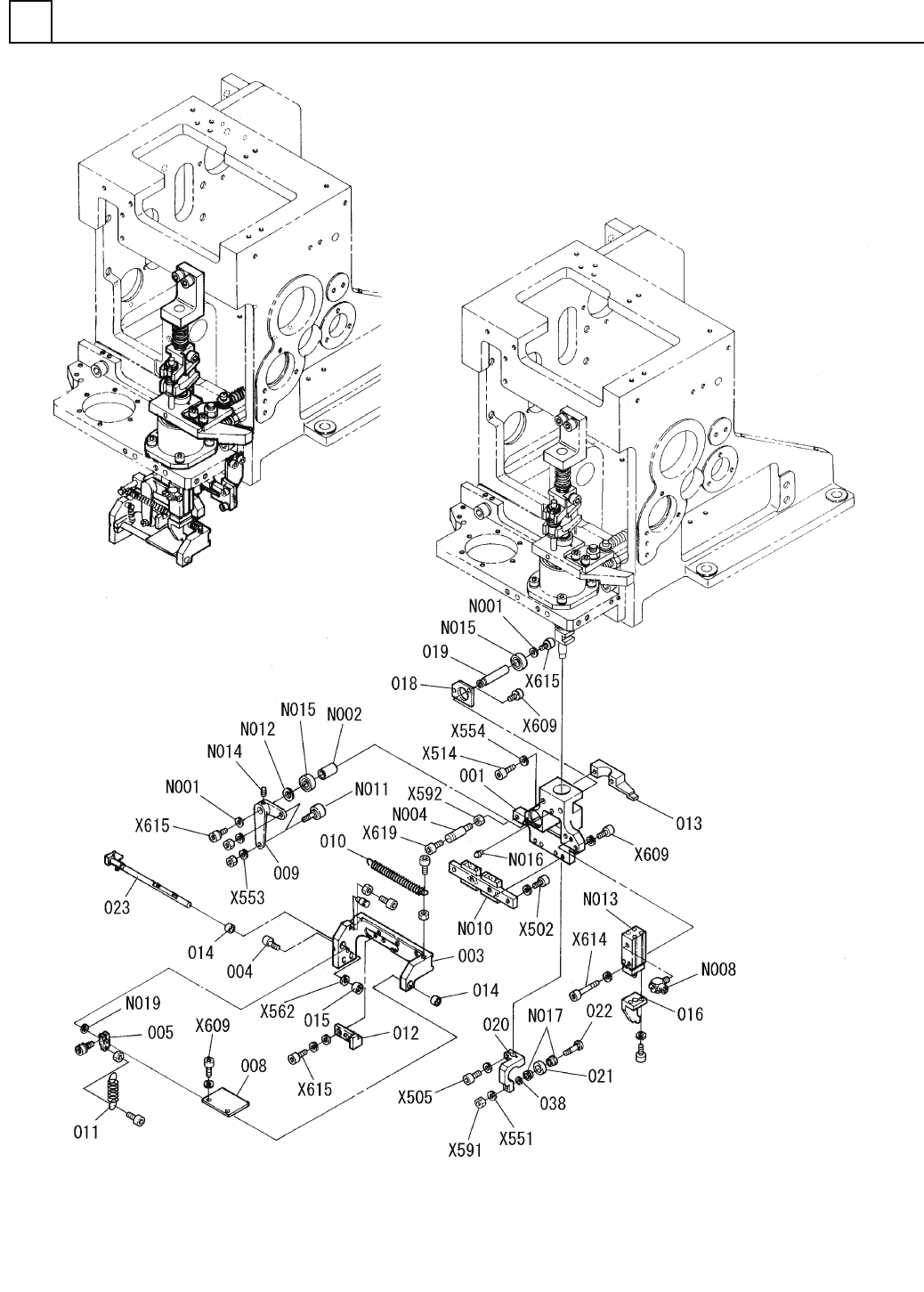

挿入部(移ｼ替ｴﾍｯﾄﾞ部1)
INSERT SECT.(TRANSFER HEAD SECT.-1)
8
FN610129110AA_02-1
M135
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
8
挿入部(移ｼ替ｴﾍｯﾄﾞ部1)
INSERT SECT.(TRANSFER HEAD SECT.-1)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610129110AA
INSERTION UNIT ｿｳﾆｭｳﾕﾆｯﾄ
1
001 N210156178AA
FRAME ﾌﾚｰﾑ
1
003 X02G44103
FRAME ﾌﾚｰﾑ
1004 X02G44105
PIN ﾋ
ﾟﾝ
1005 X02G44108
LEVER ﾚﾊ
ﾞｰ
1
008 X01L4400701
PLATE ｲﾀ
1
009 X01L44008
LEVER ﾚﾊﾞｰ
1010 N210145701AA
SPRING ﾊ
ﾞﾈ
1011 X01L44015
SPRING ﾊ
ﾞﾈ
1
012 X01L44016
BLOCK ﾌﾞﾛｯｸ
1013 X01A4401401
HOLDER ﾎﾙﾀﾞ
2014 X01A44021
BUSHING ﾌ
ﾞｯｼｭ
1
015 X01A44023
NUT ﾅｯﾄ
1
016 X01A4402601
PUSHER ﾌﾟｯｼｬ
1018 N210156179AA
BOARD ﾎﾞｰﾄﾞ
1019 X01A44042
PIN ｼﾃﾝﾋ
ﾟﾝ
1
020 N210134223AA
PUSHER ﾌﾟｯｼｬ
1
021 N210066424AA
ROLLER ﾛｰﾗ
1022 X01A44047
PIN ﾋﾟﾝ
1023 N210065175AA
CLAW ﾂﾒ
1
038 N210065178AA
WASHER ﾜｯｼｬ
87FWSSB-D10.0-V4.0-T2
2
N001
N510024978AA
WASHER ﾜｯｼｬ
1
N002
N210158613AA
COLLAR ｶﾗｰ
87FNCLB-V4.0-D6.0-L15
1
N004
N510044533AA
COLLAR ｶﾗｰ
M-5HL-6
1
N008
KXF02TAAA00
FITTING ﾂｷﾞﾃ
2RSR7WZMUU+110LM-I
1
N010
N5132RSR-697
LM GUIDE LMｶﾞｲﾄﾞ
CFS5V
2
N011
KXF0A4EAA00
CAM FOLLOWER ｶﾑﾌｫﾛｱ
WR9
1
N012
N508WR9
CLIP ｸﾘｯﾌﾟ
5S-M9NS-X1391
1
N013
N401CDUK-J57
CYLINDER ｼﾘﾝﾀﾞ
M4X4-45H A2J (Trivale
2
N014
N510018370AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
608ZZ
2
N015
KXF0DX0SA00
BEARING ﾍﾞ
ｱﾘﾝｸﾞ
NP3.2X3.5
1
N016
N560NP3.23.5
GREASE NIPPLE ｸﾞﾘｽﾆｯﾌﾟﾙ
MF63ZZ
2
N017
KXF0D1YAA00
BEARING ﾍﾞｱﾘﾝｸﾞ
MMSRB6.5-0.5
1
N019
N510021281AA
WASHER ﾜｯｼｬ
M3X8-10.9 A2J (Trival
6
X502
N510017341AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X10-10.9 A2J (Triva
1
X505
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X25-10.9 A2J (Triva
2
X514
N510017437AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
3 10H A2J (Trivalent)
2
X551
N510018478AA
ROUND PLAIN WASHER ｺｶ
ﾞﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
5 10H A2J (Trivalent)
4
X553
N510018480AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻ
ﾞｶﾞﾈ
6 10H A2J (Trivalent)
2
X554
N510018481AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
4 10H A2J (Trivalent)
1
X562
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M3-6H-4T A2J (Trivale
1
X591
N510017849AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4-6H-4T A2J (Trivale
1
X592
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M3X6-10.9 A2J (Trival
14
X609
N510017337AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X30-10.9 A2J (Triva
2
X614
N510017323AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X8-10.9 A2J (Trival
6
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X30-10.9 A2J (Triva
1
X619
N510017361AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M136
FN610129110AA_02-1
挿入部(移ｼ替ｴﾍｯﾄﾞ部2)
INSERT SECT.(TRANSFER HEAD SECT.-2)
8
FN610129110AA_02-2
M137
