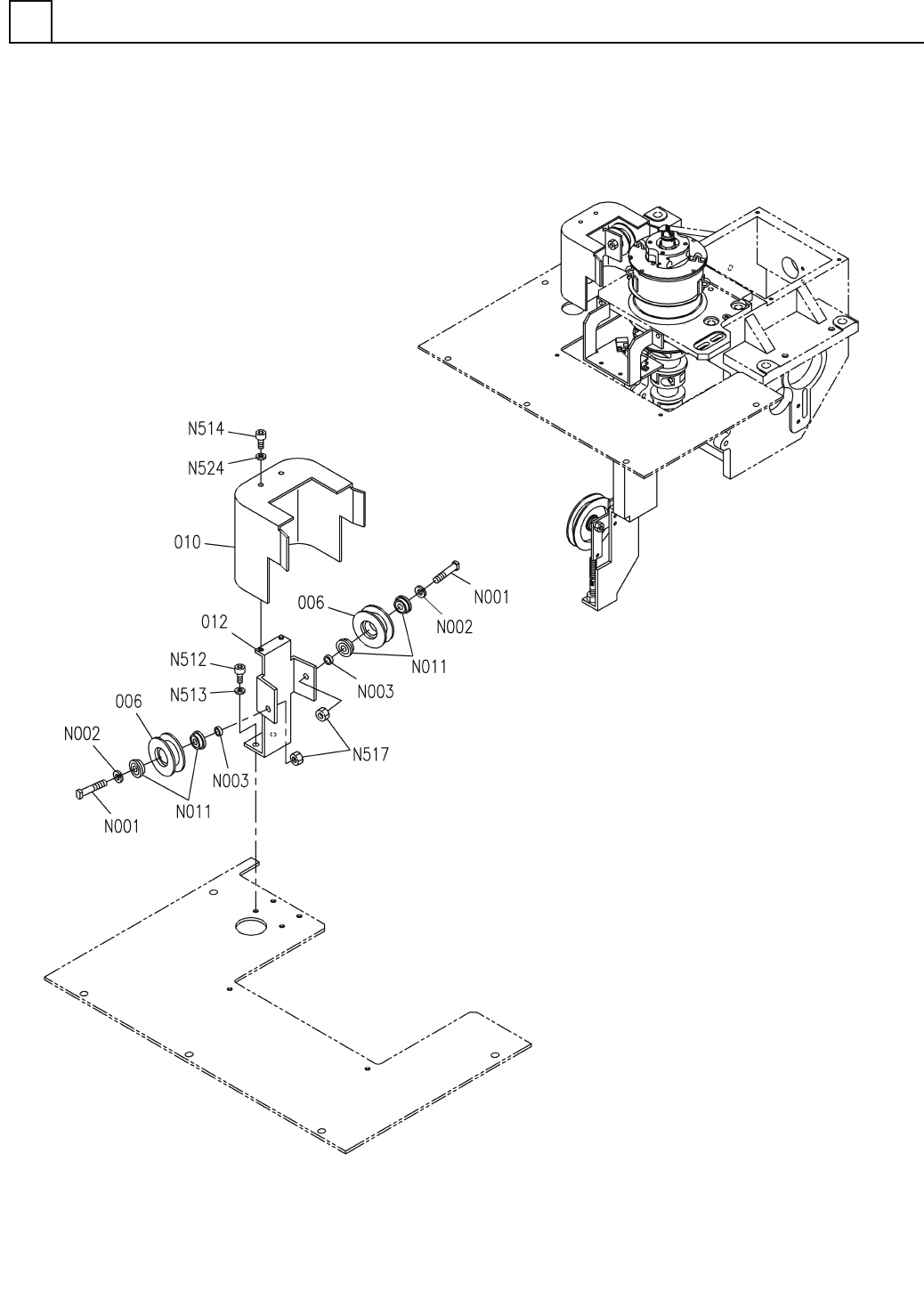

PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 10 下部ｱﾝﾋﾞﾙ部 (本体部 3) LOWER ANVIL SECT.(MA IN BODY SECT .-3) 部 品 名 品 番 個数 備 考 R 1 R 2 2 006 N210100289AA PULLEY ﾌ ﾟｰﾘｰ 1 010 N210092119AA COVER ｶﾊﾞｰ 1 012 N210092123AA…
下部ｱﾝﾋﾞﾙ部(本体部3)
LOWER ANVIL SECT.(MAIN BODY SECT.-3)
10
FN610074515AA_10-3
M153
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
10
下部ｱﾝﾋﾞﾙ部(本体部3)
LOWER ANVIL SECT.(MAIN BODY SECT.-3)
部 品 名 品 番 個数
備 考
R
1
R
2
2006 N210100289AA
PULLEY ﾌ
ﾟｰﾘｰ
1
010 N210092119AA
COVER ｶﾊﾞｰ
1
012 N210092123AA
BRACKET ﾌﾞﾗｹｯﾄ
87RFN6-30
2
N001
N510038147AA
PIN ﾋ
ﾟﾝ
WR7
2
N002
N508WR7
CLIP ｸﾘｯﾌ
ﾟ
87FWSSM-D8.0-V6.0-T3.
2
N003
N510037885AA
WASHER ﾜｯｼｬ
F696ZZ
4
N011
KXF020RAA00
BEARING ﾍﾞｱﾘﾝｸﾞ
M5X10-10.9 A2J (Triva
2
N512
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
5 10H A2J (Trivalent)
2
N513
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻ
ﾞｶﾞﾈ
M4X6-10.9 A2J (Trival
2
N514
N510017376AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6-6H-4T A2J (Trivale
2
N517
N510017867AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
4 10H A2J (Trivalent)
2
N524
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M154
FN610074515AA_10-3
下部ｱﾝﾋﾞﾙ部(ｱﾝﾋﾞﾙ動力部1)
LOWER ANVIL SECT.(ANVIL DRIVING SECT.-1)
10
FN610129074AA_02-1
