PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 9 ﾃｰﾌﾟ屑ﾀﾞｸ ﾄ部(4 0ｽﾃｰｼｮﾝ) WASTE TAPE DUCT SECT .(40 STATION ) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610123555AA WASTE TAPE DU CT UNIT ﾃｰﾌﾟ ｸｽﾞ ﾀﾞｸﾄﾕﾆｯﾄ 1 001 N210152892AA DUCT …

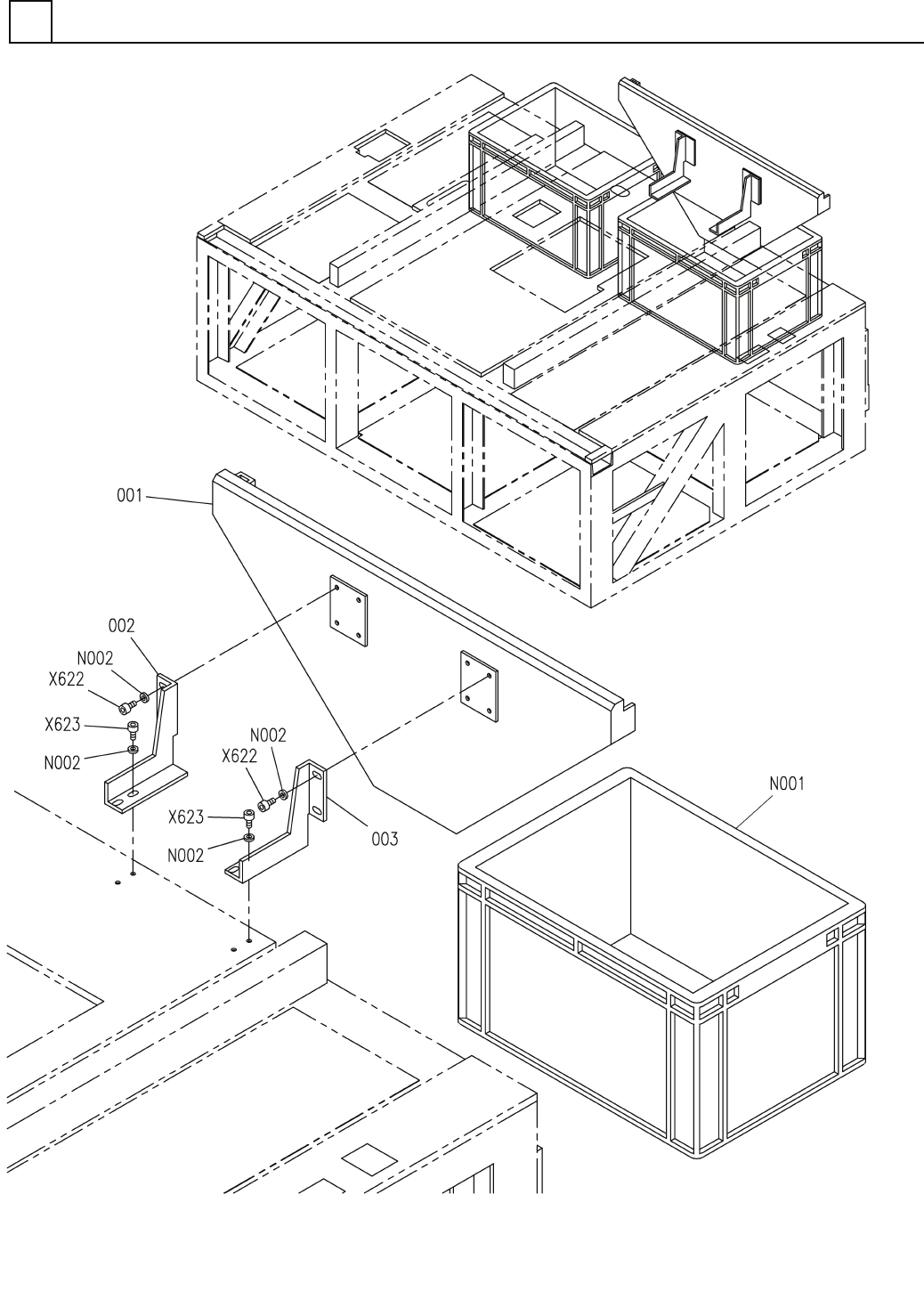

ﾃｰﾌﾟ屑ﾀﾞｸﾄ部(40ｽﾃｰｼｮﾝ)
WASTE TAPE DUCT SECT.(40 STATION)
9
FN610123555AA_03
M145
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
9
ﾃｰﾌﾟ屑ﾀﾞｸﾄ部(40ｽﾃｰｼｮﾝ)
WASTE TAPE DUCT SECT.(40 STATION)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610123555AA
WASTE TAPE DUCT UNIT ﾃｰﾌﾟ
ｸｽﾞ ﾀﾞｸﾄﾕﾆｯﾄ
1
001 N210152892AA
DUCT ﾀﾞｸﾄ
1
002 N210154433AB
BRACKET ﾌﾞﾗｹｯﾄ
1003 N210145904AB
BRACKET ﾌ
ﾞﾗｹｯﾄ
NMC406-Blue
2
N001
N510040711AA
BOX ﾎﾞｯｸｽ
M5
12
N002
N510020100AA
WASHER ｻﾞｶﾞﾈ
M5X10-10.9 A2J (Triva
8
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X25-10.9 A2J (Triva
4
X623
N510017399AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M146
FN610123555AA_03
ﾃｰﾌﾟ屑ﾀﾞｸﾄ部(80ｽﾃｰｼｮﾝ)
WASTE TAPE DUCT SECT.(80 STATION)
9
FN610130631AA_02
M147
