Monthly Inspection
Chapter 5
Multi-Functional Placer
STM1-S Maintenance Handbook
5-2

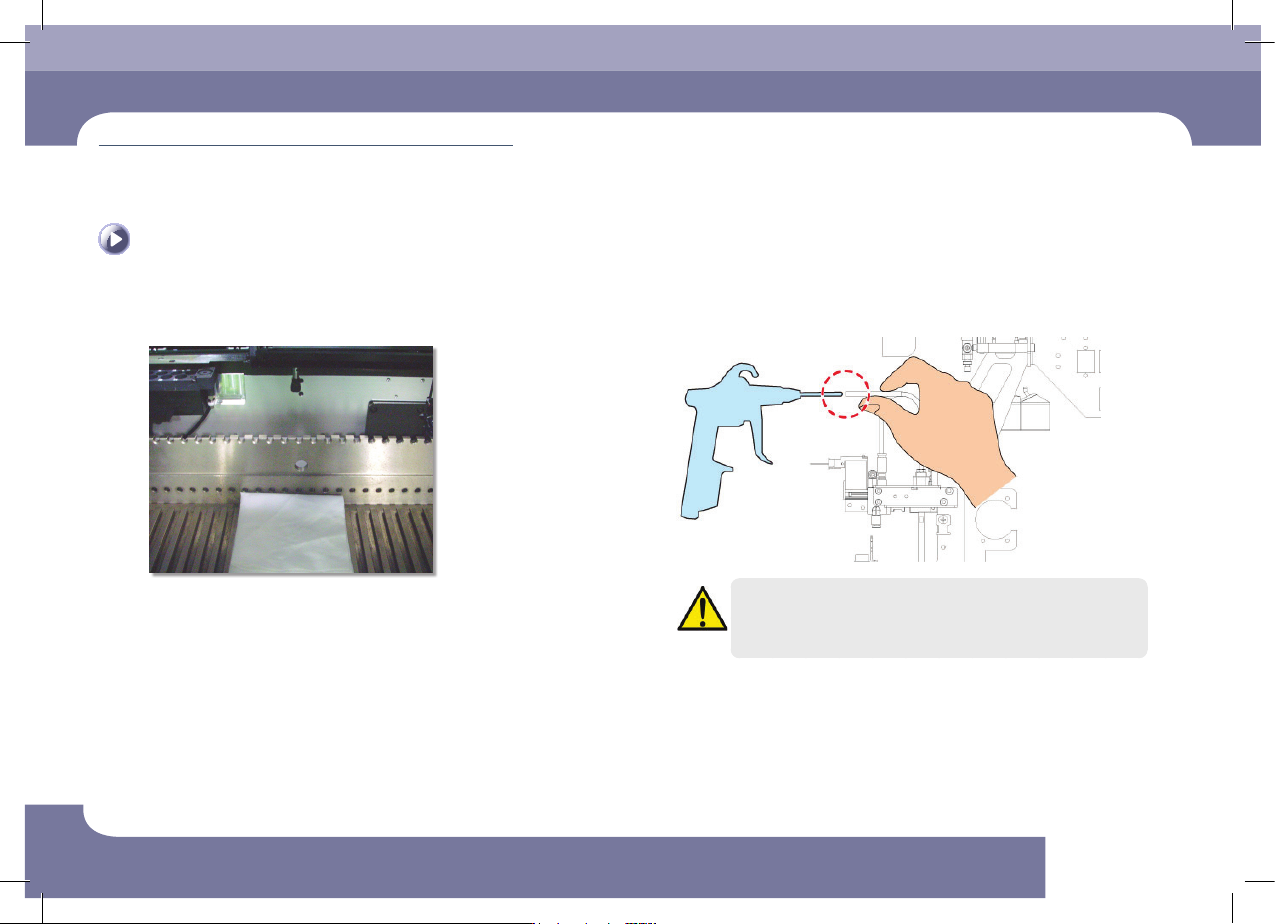

Cleaning the Head Spindle
Monthly Inspection
Step 5.
Put the cloth underneath the spindle
Step 6.
Cleaning the interior of the tube by an air gun.
Caution
Using the air gun without putting on goggles may cause injury to
operator's eyes. Be sure to wear goggles when using the air gun.
Step 7.
Release the emergency stop as described in "Releasing
'Emergency Stop' mode" on page 1-6 and perform the
operation again.
Monthly Inspection
Chapter 5
Multi-Functional Placer
STM1-S Maintenance Handbook
5-3
Inspection and cleaning conveyor sensor
Inspection and cleaning conveyor sensor
Tool for Maintenance
Cleaning liquid, ultra-fine fiber cloth, cotton swab
Measures
Step 1.
Move the X Frame to rear by referring to "Backward
movement of the X-frame" on page 1-4.
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.
Step 3.
Check the recognition accuracy of the corresponding
photo sensor as shown in the following figure. (The red
LED is turned on when an object is recognized.)
(Time required: 10min / No. M-2)
Monthly Inspection
Chapter 5
Multi-Functional Placer
STM1-S Maintenance Handbook
5-4
Inspection and cleaning conveyor sensor
Monthly Inspection
Step 4.
Clean the sensor window a cotton swab and an ultra-
fine fiber cloth.
Remove the dust or foreign material on the sensor window using the cotton swab
or ultra-fine fiber cloth
Step 5.
Release the emergency stop as described in "Releasing
'Emergency Stop' mode" on page 1-6 and perform the
operation again.
Caution
When the sensor operates abnormally or has a problem, contact our
C/S company or local agent for adjustment for proper measures
