PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 11 ｱﾝﾋﾞﾙ上部 (35°<P =10mm>)( 4P) UPPER ANVIL SECT.(35 DEG<P=10mm> )(4P) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610113335AA UPPER ANVIL U NIT ｱﾝﾋ ﾞﾙｼﾞｮｳﾌﾞﾕﾆｯﾄ 1 A100 N…

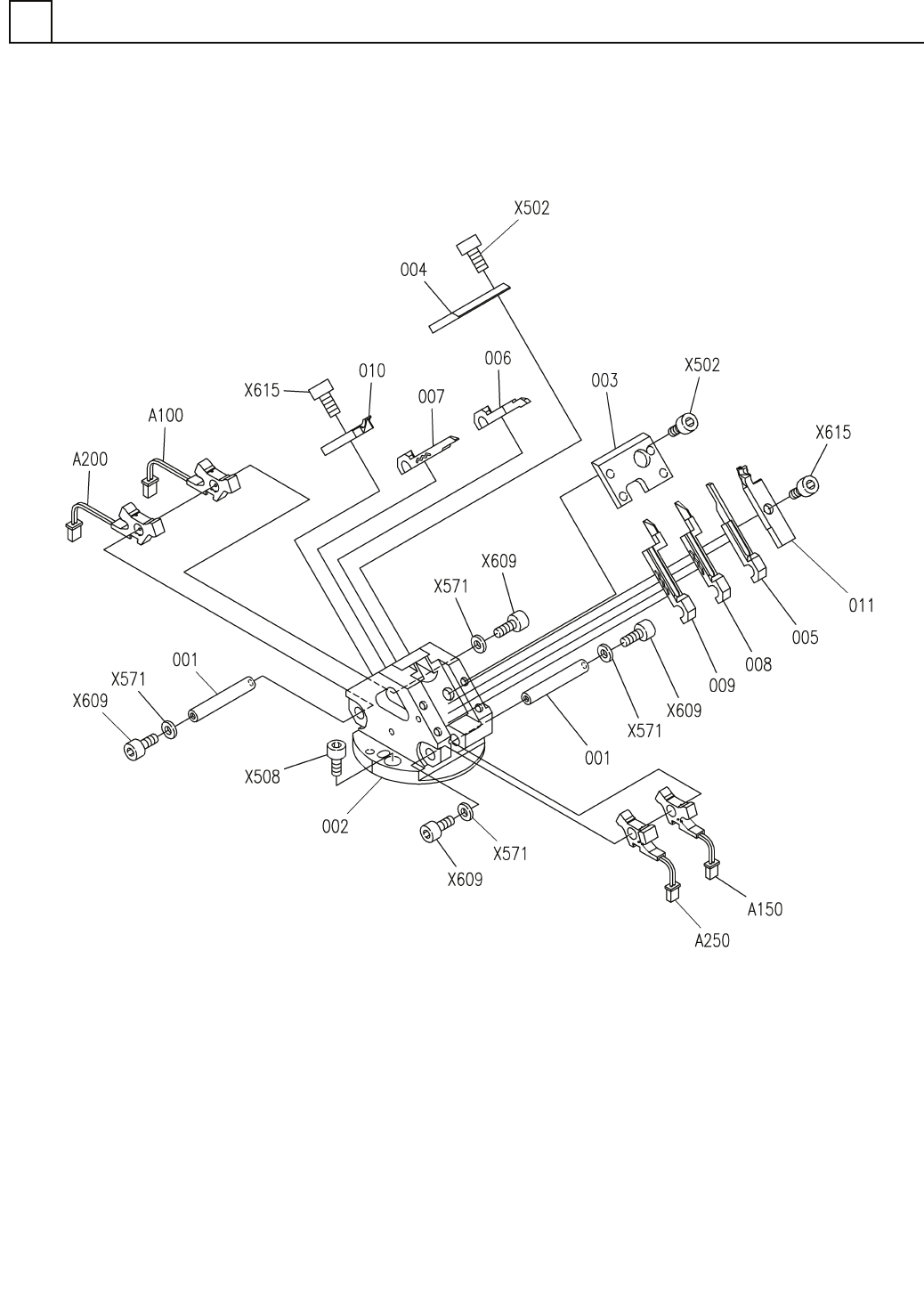

ｱﾝﾋﾞﾙ上部(35°<P=10mm>)(4P)
UPPER ANVIL SECT.(35 DEG<P=10mm>)(4P)
11
FN610113335AA_02
M171
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
11
ｱﾝﾋﾞﾙ上部(35°<P=10mm>)(4P)
UPPER ANVIL SECT.(35 DEG<P=10mm>)(4P)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610113335AA
UPPER ANVIL UNIT ｱﾝﾋ
ﾞﾙｼﾞｮｳﾌﾞﾕﾆｯﾄ
1
A100
N610082092AA
LEVER ﾚﾊﾞｰ
1
A150
N610082093AA
LEVER ﾚﾊﾞｰ
1
A200
N610099024AA
LEVER ﾚﾊ
ﾞｰ
1
A250
N610113363AA
LEVER ﾚﾊ
ﾞｰ
2
001 X02G51201
PIN ﾋﾟﾝ
1
002 N210133826AC
ANVIL(UPPER) ｱﾝﾋﾞﾙ(ｱｯﾊﾟｰ)
1003 N210134017AA
GUIDE PLATE ｶ
ﾞｲﾄﾞﾌﾟﾚｰﾄ
1004 N210134018AA
GUIDE PLATE ｶﾞｲﾄﾞ
ﾌﾟﾚｰﾄ
1
005 N210056711AA
CUTTER ｶｯﾀｰ
1006 N210133670AA
CUTTER ｶｯﾀｰ
1007 N210133671AA
CUTTER ｶｯﾀｰ
1
008 N210133672AA
CUTTER ｶｯﾀｰ
1
009 N210133673AA
CUTTER ｶｯﾀｰ
1010 N210133668AA
CUTTER ｶｯﾀｰ
1011 N210133669AA
CUTTER ｶｯﾀｰ
M3X8-10.9 A2J (Trival
8
X502
N510017341AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X12-10.9 A2J (Triva
2
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3
4
X571
N510020098AA
WASHER ｻﾞｶﾞﾈ
M4X8-10.9 A2J (Trival
2
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M3X6-10.9 A2J (Trival
4
X609
N510017337AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M172
FN610113335AA_02
専用部品部(ｱﾝﾋﾞﾙ上部<P=7.5mm>)
EXCLUSIVE PARTS SECT.(UPPER ANVIL SECT.<P=7.5mm>)
12
FN610114971AA_03-1
M173
