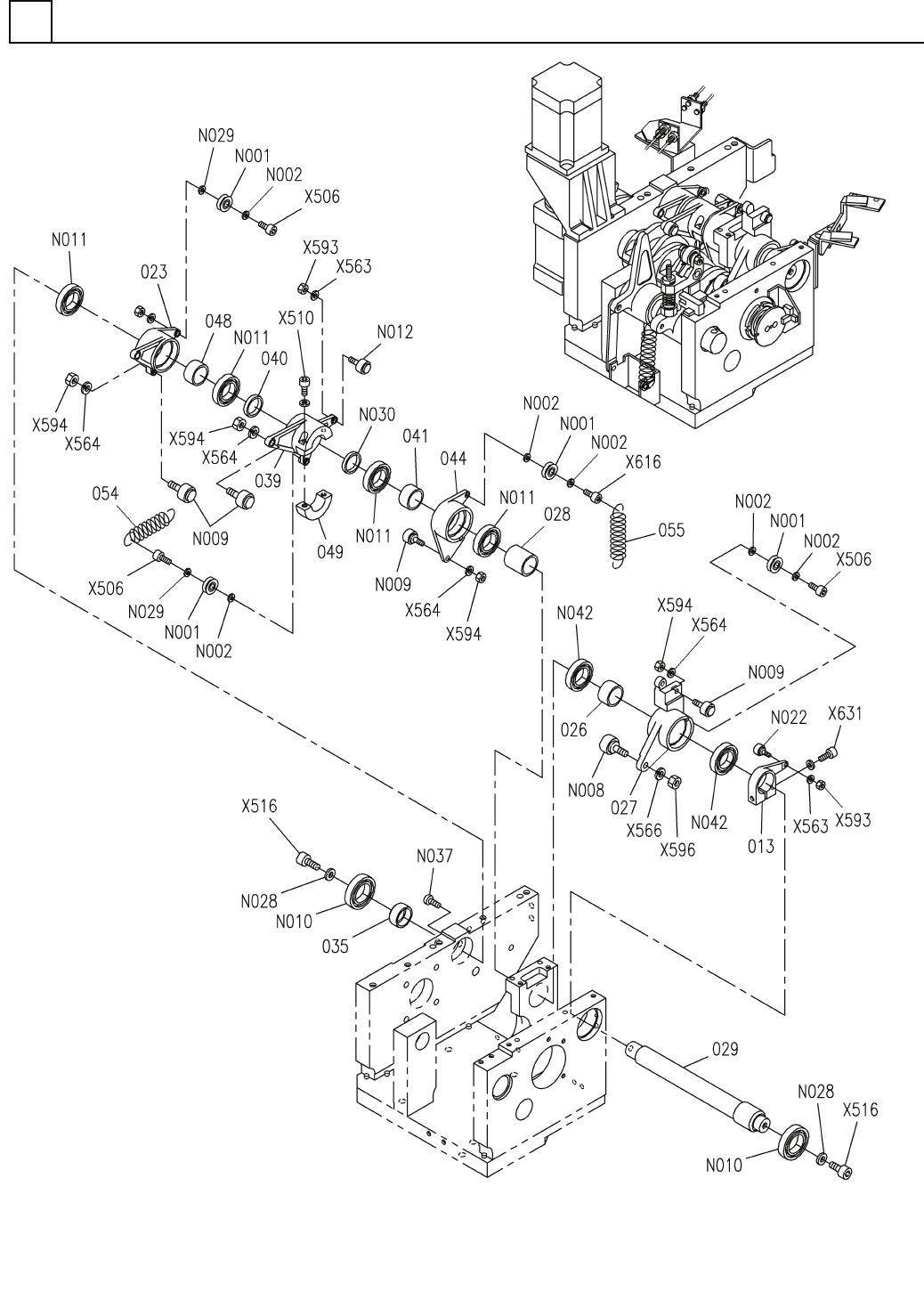

部品加工部(動力部4)
PARTS PROCESS SECT.(DRIVING SECT.-4)
20
FN610125387AA_07-4
M245
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
20
部品加工部(動力部4)
PARTS PROCESS SECT.(DRIVING SECT.-4)
部 品 名 品 番 個数
備 考
R
1
R
2
1013 N210103572AA
LEVER ﾚﾊ
ﾞｰ
1
023 N210086544AB
LEVER ﾚﾊﾞｰ
1
026 N210156574AA
COLLAR ｶﾗｰ
1027 N210156400AA
LEVER ﾚﾊ
ﾞｰ
1028 N210148363AA
COLLAR ｶﾗｰ
1
029 N210148364AA
SHAFT ｼｬﾌﾄ
1
035 N210148366AA
COLLAR ｶﾗｰ
1039 N210086543AC
LEVER ﾚﾊ
ﾞｰ
1040 N210087149AA
COLLAR ｶﾗｰ
1
041 X01A14029
COLLAR ｶﾗｰ
1044 N210148367AA
LEVER ﾚﾊﾞｰ
1048 N210087147AA
COLLAR ｶﾗｰ
1
049 N210087543AA
NUT ﾅｯﾄ
1
054 N210138019AA
TENSION SPRING ﾃﾝｼｮﾝﾊﾞﾈ
1055 X01A14062
SPRING ﾊﾞﾈ
4-13VZZ
4
N001
N648413VZZ
BEARING ﾍﾞ
ｱﾘﾝｸﾞ
87FWSSB-D6.0-V4.0-T1.
6
N002
N510031417AA
WASHER ｻﾞｶﾞﾈ
CFN12R-A
1
N008
N531CFN12RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
CFN6R-A
4
N009
N531CFN6RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
6004ZZ
2
N010
KXF0E23YA00
BEARING ﾍﾞ
ｱﾘﾝｸﾞ
6905ZZ
4
N011
KXF06P1AA00
BEARING ﾍﾞｱﾘﾝｸﾞ
CFN5R-A
1
N012
N531CFN5RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
CFS5
1
N022
N532CFS5
CAM FOLLOWER ｶﾑﾌｫﾛｱ
87FWSSB-D25-V8.0-T5.0
2
N028
N510037908AA
WASHER ﾜｯｼｬ
87FWSSB-D6.0-V4.0-T2.
2
N029
N510028901AA
WASHER ﾜｯｼｬ
87FWSSB-D30-V25.0-T2.
1
N030
N510037210AA
WASHER ﾜｯｼｬ
M5X10-4.8 A2J (Trival
2
N037
N510018284AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼ
ﾞ
6005ZZ
2
N042
KXF00K8AA00
BEARING ﾍﾞｱﾘﾝｸﾞ
M4X12-10.9 A2J (Triva
1
X616
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X16-10.9 A2J (Triva
4
X506
N510017351AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X20-10.9 A2J (Triva
2
X510
N510017398AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M6X35-10.9 A2J (Triva
1
X631
N510017440AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8X20-10.9 A2J (Triva
2
X516
N510017472AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
2
X563
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
6 10H A2J (Trivalent)
4
X564
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻ
ﾞｶﾞﾈ
10 10H A2J (Trivalent
1
X566
N510018505AA
WASHER ﾋﾗｻﾞｶﾞﾈ
M5-6H-4T A2J (Trivale
2
X593
N510017862AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M6-6H-4T A2J (Trivale
4
X594
N510017867AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M10-6H-4T A2J (Trival
1
X596
N510017887AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
