部品手册2N7203A389B03.pdf - 第273页
PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 20 部品加工部( 動力部2) PARTS PROCE SS SECT.( DRIVING SECT .-2) 部 品 名 品 番 個数 備 考 R 1 R 2 MSMD082PJA S 1 A001 N610074305AA MOTOR ﾓｰﾀ 1 A002 N610089590AC HOSE ﾎｰｽ 1 001 N21015…
部品加工部(動力部2)
PARTS PROCESS SECT.(DRIVING SECT.-2)
20
FN610125387AA_07-2
M241
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
20
部品加工部(動力部2)
PARTS PROCESS SECT.(DRIVING SECT.-2)
部 品 名 品 番 個数
備 考
R
1
R
2
MSMD082PJA S
1
A001
N610074305AA
MOTOR ﾓｰﾀ
1
A002
N610089590AC
HOSE ﾎｰｽ
1
001 N210151129AA
CAM(V CUTTER O/C) ｶﾑ(V CUTTER O/C)
1002 N210156459AA
CAM ｶﾑ
1004 N210156592AA
CAM ｶﾑ
1
005 N210151128AA
CAM ｶﾑ
1
006 N210155000AB
CAM(POSITIONING O/C) ｶﾑ(POSITIONING O/C)
1009 N210089102AD
BRACKET ﾌ
ﾞﾗｹｯﾄ
1012 X02G14019
HOLDER(TUBE) ﾎﾙﾀﾞ(
ﾁｭｰﾌﾞ)
2
016 X02G14104
KEY ｷｰ
1018 N210058841AA
KEY ｷｰ
1030 N210148365AA
SHAFT ｼｬﾌﾄ
1
043 N210089103AA
DOG FOR SENSOR ﾄﾞｸﾞ
1
058 N210089105AA
BRACKET ﾌﾞﾗｹｯﾄ
M8X10-45H A2J (Trival
5
N003
N510018455AA
SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
SW50E07LF-AGB(231D860
1
N005
N510036776AA
REDUCTION GEAR ｹ
ﾞﾝｿｸｷ
FUS05SS
1
N006
KXF023AAA00
LOCK-NUT ﾛｯｸﾅｯﾄ
6007ZZ
1
N013
KXF00KAAA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
87MSWT2
2
N021
N510023248AA
PLUG ﾌﾟﾗｸﾞ
PANADAC921SA1
1
N024
N310P921SA1
SENSOR ｾﾝｻ
SFC-040DA2-16B-19B
1
N031
N510042281AA
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
KS-1/4
1
N032
N431KS02
FITTING ﾂｷﾞﾃ
KN-1/4
1
N033
N431KN02
FITTING ﾆｯﾌ
ﾟﾙ
AN203-02
1
N034
KXF00WEAA00
SILENCER ｻｲﾚﾝｻ
FU07SS
1
N038
KXF023CAA00
NUT ﾅｯﾄ
M3X8-4.8 A2J (Trivale
2
N041
N510018161AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M3X12-10.9 A2J (Triva
8
X503
N510017308AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X6-10.9 A2J (Trival
2
X504
N510017376AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X16-10.9 A2J (Triva
4
X509
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X16-10.9 A2J (Triva
2
X512
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X20-10.9 A2J (Triva
2
X513
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M6X25-10.9 A2J (Triva
10
X514
N510017437AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
3 10H A2J (Trivalent)
2
X551
N510018478AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
4 10H A2J (Trivalent)
2
X562
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
6 10H A2J (Trivalent)
6
X564
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻ
ﾞｶﾞﾈ
M6
2
X574
N510020101AA
WASHER ｻﾞｶﾞﾈ
M6X35-10.9 A2J (Triva
4
X631
N510017440AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M242
FN610125387AA_07-2

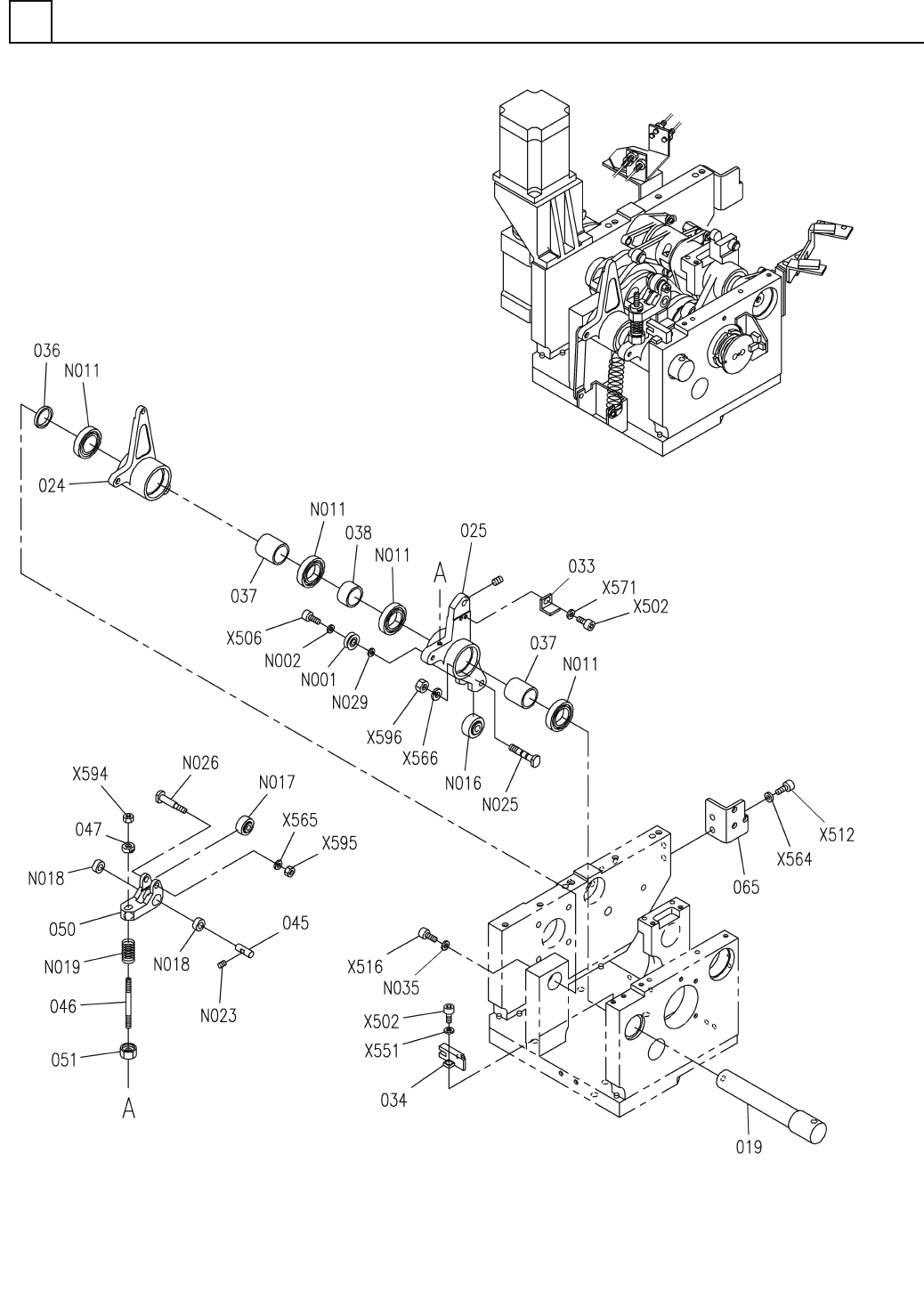

部品加工部(動力部3)
PARTS PROCESS SECT.(DRIVING SECT.-3)
20
FN610125387AA_07-3
M243
