8 Modular Machine Concept Step 1: Placement system with 1 gan try Step 2: Selection of the placement heads 12-segment C & P head 6-segment C & P head Pick & Place head Step 3: Selection of the conveyor Single…

7
Machine Performance
Incredibly fast new prod-
uct introduction (NPI) with
external set-up preparation
and vision teaching
The SIPLACE D1 really
comes into its own in flexible
production environments.
For example, NPI can be
implemented as fast as pos-
sible with the SIPLACE Vir-
tual Product Build. This NPI
solution allows you to pro-
gram offline, set up and
check offline and to make
adjustments offline with the
SIPLACE Pro software.
This increases machine utili-
zation and reduces waste.
And with respect to the cur-
rent production run, the
SIPLACE vision teaching
station also makes it
extremely simple and fast to
generate component shape
descriptions, even for com-
plex components. The set-up
process starts once you have
optimized the product and
defined all the components in
the programming system.
This is also done externally
and then checked by means
of the barcode and data
transfer. This makes the
product change child's play:
the program and all the data
are sent to the line and the
new production run can start.
It just can't get any faster!
Lowest dpm with set-up
verification, sophisticated
sensors and AOI
The highest machine quality
allows the SIPLACE D1 to
produce the highest product
quality. This is guaranteed by
a number of additional
features.
Sensors check the presence
and position of the compo-
nents before and after every
pick-up and placement oper-
ation at the placement head.
The digital SIPLACE Vision
System detects the compo-
nents faster and more reli-
ably than the old analog
technology. Finally, with
SIPLACE OS, the SIPLACE
team is offering an AOI
(Automatic Optical Inspec-
tion) device that checks the
products and signals errors
to the placement machine.
This network of tests consid-
erably lowers dpm rates and
increases the first pass yield.
Types of place-
ment head
12-nozzle Collect&Place head (C&P12)
6-nozzle Collect&Place head (C&P6)
SIPLACE Pick&Place head (P&P)
PLEASE NOTE IPC value [comp./h]
According to the vendor-neutral conditions of the IPC 9850 standard published
by the Association of Connecting Electronics Industries.
SIPLACE Benchmark value [comp./h]
The SIPLACE benchmark value is measured during the machine acceptance
tests. It corresponds to the conditions set out in the SIPLACE scope of service
and supply.
Theoretical maximum output value [comp./h]
The theoretical maximum output value is calculated from the most favorable
conditions for each machine type and setting, and corresponds to the theoret-
ical conditions normally used in the industry.
Number of
gantries
1
IPC value Benchmark value Theoretical value
Placement head
configuration and
placement head
rate
C&P12
C&P6
P&P
13,000
8,400
2,600
15,000
9,800
2,800
20,000
11,500
3,500

8
Modular Machine Concept
Step 1: Placement system with 1 gantry
Step 2: Selection of the placement heads
12-segment C&P head
6-segment C&P head
Pick&Place head
Step 3: Selection of the conveyor
Single conveyor
Flexible dual conveyor
Step 4: Selection of the component
changeover table, WPC
Component changeover table
Waffle-pack changer WPC
Step 5: Selection of the feeder modules
S tape feeder modules

9
Modular Machine Concept

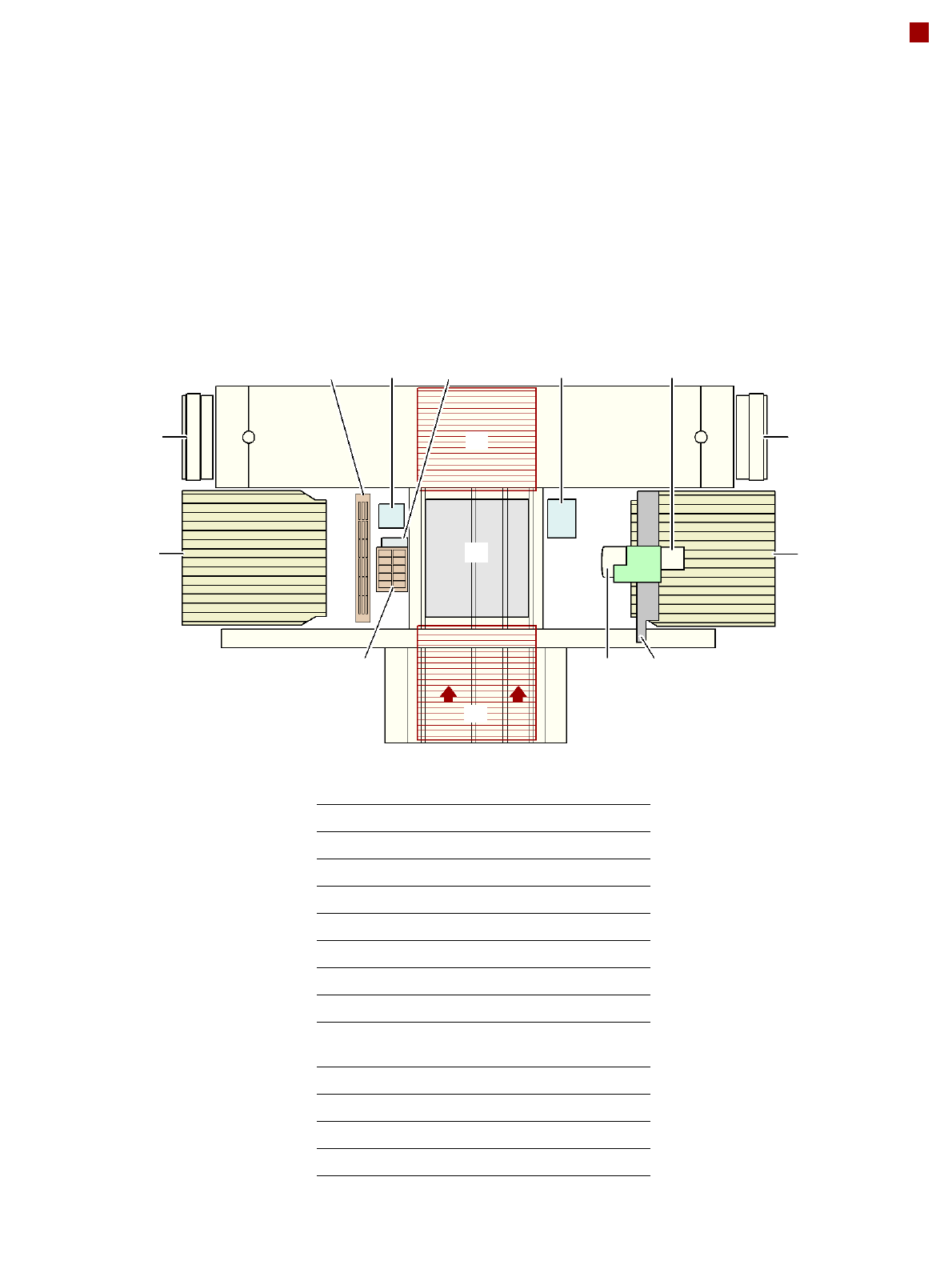

Sample Configuration
BZ Buffer zone
C&P Collect&Place head
CM Coplanarity module
COT Component changeover table
FCC Flip-chip camera, type 25
G1 Gantry 1
ICC IC camera, type 33 or 36
NCH C&P Nozzle changer for the C&P head
NCH P&P Nozzle changer for the Pick&Place
head
OP Operator panel
P&P Pick&Place head
PA Placement area
WPC Waffle-pack changer
COT
NCH P&P
NCH C&P FCC CM ICC P&P
COT/WPC
C&P
BZ
BZ
OP OP
G1
PA
