Hybrid Calibration Offset Measurement and Correction Operation Manual NXT V8.95
FUJI CORPORATION 15/18
5. Returning the module completes the procedure for clearing the error. The
machine waits for the START button to be pushed.
6. Push the START button to start hybrid calibration measurement (regardless
of the condition before the error, measurement is performed for all holders).
Note:
The jig parts are extremely small. Be careful not to drop them inside the machine
when performing this procedure.
Hybrid Calibration Offset Measurement and Correction Operation Manual NXT V8.95
FUJI CORPORATION 16/18
9. Clearing errors in Accessory Software
Errors cannot be cleared by pushing READY ON if the module is not pulled forward
and the nozzle station removed. If the state of the stopped machine makes it difficult to
pull the module out or remove the nozzle station, then the nozzle changeover error
cannot be cleared. In this case, Accessory Software can be used to forcibly clear the
error.
9.1. Specify remote operation access authority
The command for clearing errors in accessory software is an emergency use
command. For this reason, it is recommended that access authority for remote
operation is set in Security Tool Editor, and that the environment is set up so that only
line managers can use the function.
Ÿ Select [Programs]-[Fuji Flexa]-[Setup]-[Security Tool Editor] on the computer
installed with Fuji Flexa to start Security Tool Editor.
Ÿ Use Security Tool Editor to specify access authority for the [Remote operation] -
[Forced error removal] command. Refer to the Fuji Flexa User Manual for details.
Ÿ Turn on the user confirmation function in Accessory Software and perform access
management. Refer to the Fuji Accessory Software Operation Manual for details
on the method for specifying the setting.
Hybrid Calibration Offset Measurement and Correction Operation Manual NXT V8.95
FUJI CORPORATION 17/18
9.2. Clearing nozzle changeover errors from Accessory Software

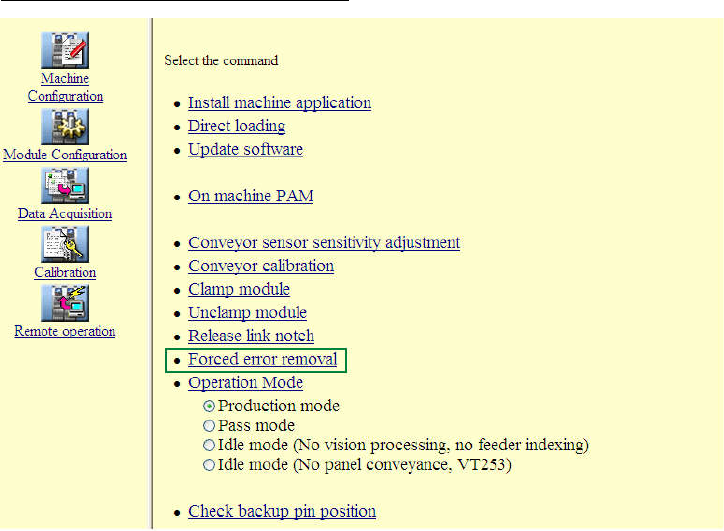

Accessory Software remote operation
Ÿ Select the appropriate module and then click [Remote operation] on the menu.
Ÿ Select the [Forced error removal] command.
Ÿ Click [Start] to clear the nozzle changeover error.
