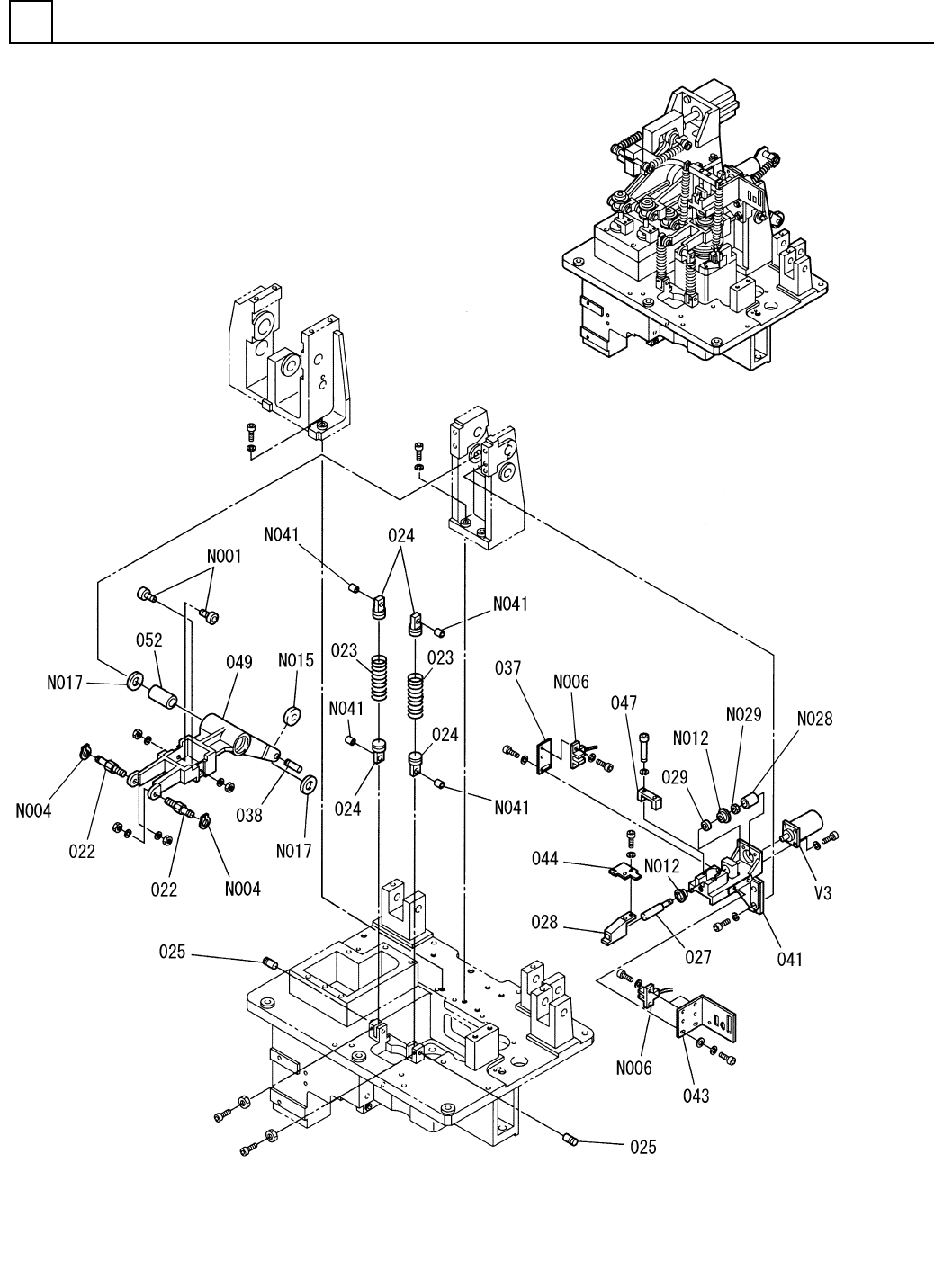

挿入ﾍｯﾄﾞ部(5)
INSERTION HEAD SECT.(5)
5
F10871-09-000-AF_01-5
M85
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
5
挿入ﾍｯﾄﾞ部(5)
INSERTION HEAD SECT.(5)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
2022 108710902203
PIN ﾋﾟﾝ
2
023 1087109023
SPRING ﾊﾞﾈ
4
024 108710902403
HOOK ﾌｯｸ
2025 1087109025
PIN ﾋﾟﾝ
1027 101770905503
BALL SCREW ﾎﾞｰﾙﾈｼﾞ
1
028 101770905302
SLIDER ｽﾗｲﾀﾞ
1
029 101635701601
COLLAR ｶﾗｰ
1037 1087109037
PLATE ﾌﾟﾚｰﾄ
1038 102460903701
PIN ﾋﾟﾝ
1
041 1087109041
FRAME ﾌﾚｰﾑ
1043 108710904302
BRACKET ﾌﾞﾗｹｯﾄ
1044 1087109044
DOG FOR SENSOR ｾﾝｻﾄﾞｸﾞ
1
047 1017709050
BLOCK ﾌﾞﾛｯｸ
1
049 108710904901
LEVER ﾚﾊﾞｰ
1052 104130906602
BUSHING ﾌﾞｯｼｭ
CF6R-A
2
N001
N531CF6RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
6,STEEL,P.C
2
N004
XUB6FP
RETAINING RING C-TYPE,SHAFT C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
PANADAC921SA1
3
N006
N310P921SA1
SENSOR ｾﾝｻ
F606ZZ
6
N012
XLCNF606ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
NART10R-040010
1
N015
N531NART-016
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
R-TW2040
2
N017
N560RTW2040
WASHER ｻﾞｶﾞﾈ
SFC-010WD-4.5B-8B
1
N028
N644SFC0-199
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
M6,2-TYPE,STAINLESS,ST
1
N029
XNGNU6YFP
LOCK-NUT ﾛｯｸﾅｯﾄ
4
N041
N510009161AA
BUSHING ﾌﾞｯｼｭ
MSM5AZAJA S
1
V 3 308711300101
MOTOR ﾓｰﾀ
