PART NAME REMARKS Q'TY 2 ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部2) COVER SECT. (Z-AXIS COVER SECT.-2) ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 713 1087102714 RAIL ﾚｰﾙ 1 718 1087102719 FRAME (R) ﾌﾚｰﾑ(R) 1 720 108710232601 GUIDE(R) ｶ…

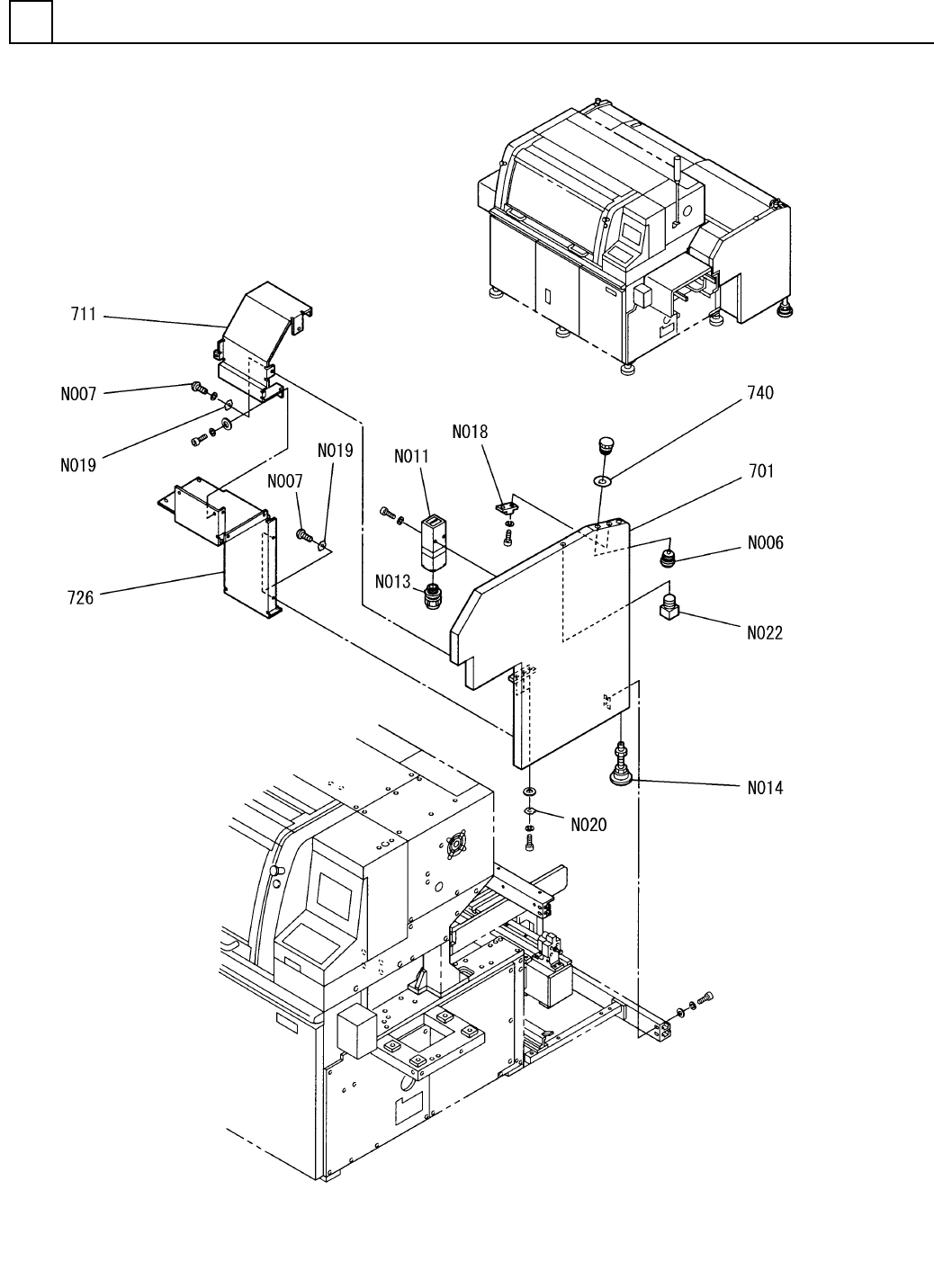

ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部2)
COVER SECT.(Z-AXIS COVER SECT.-2)
2
F10871-02-700_03-2
M41
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部2)
COVER SECT.(Z-AXIS COVER SECT.-2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1713 1087102714
RAIL ﾚｰﾙ
1
718 1087102719
FRAME (R) ﾌﾚｰﾑ(R)
1
720 108710232601
GUIDE(R) ｶﾞｲﾄﾞ(R)
1721 1087102722
FRAME ﾌﾚｰﾑ
1722 108710232801
GUIDE (L) ｶﾞｲﾄﾞ(L)
1
724 1087102330
FRAME (L) ﾌﾚｰﾑ(L)
3
730 1046902345
BRACKET ﾌﾞﾗｹｯﾄ
1742 1087102743
BRACKET ﾌﾞﾗｹｯﾄ
5 External toothed Ste
4
N019
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
8 External toothed Ste
8
N021
N510018768AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
