MODEL TCM-3100J 981 1-001 3- 2 Key No. PART No. PART NAME Q'ty REMA RK S 1 630 060 9684 ASSY,PLATE(CZ) 1 2 630 052 0422 GUIDE,LINEAR 1 659KB-03H-019 3 630 048 2294 PLATE,LOCAT E 1 659KB-03B-015 4 630 038 5663 PIN,LO…
MODEL TCM-3100J
9811-001

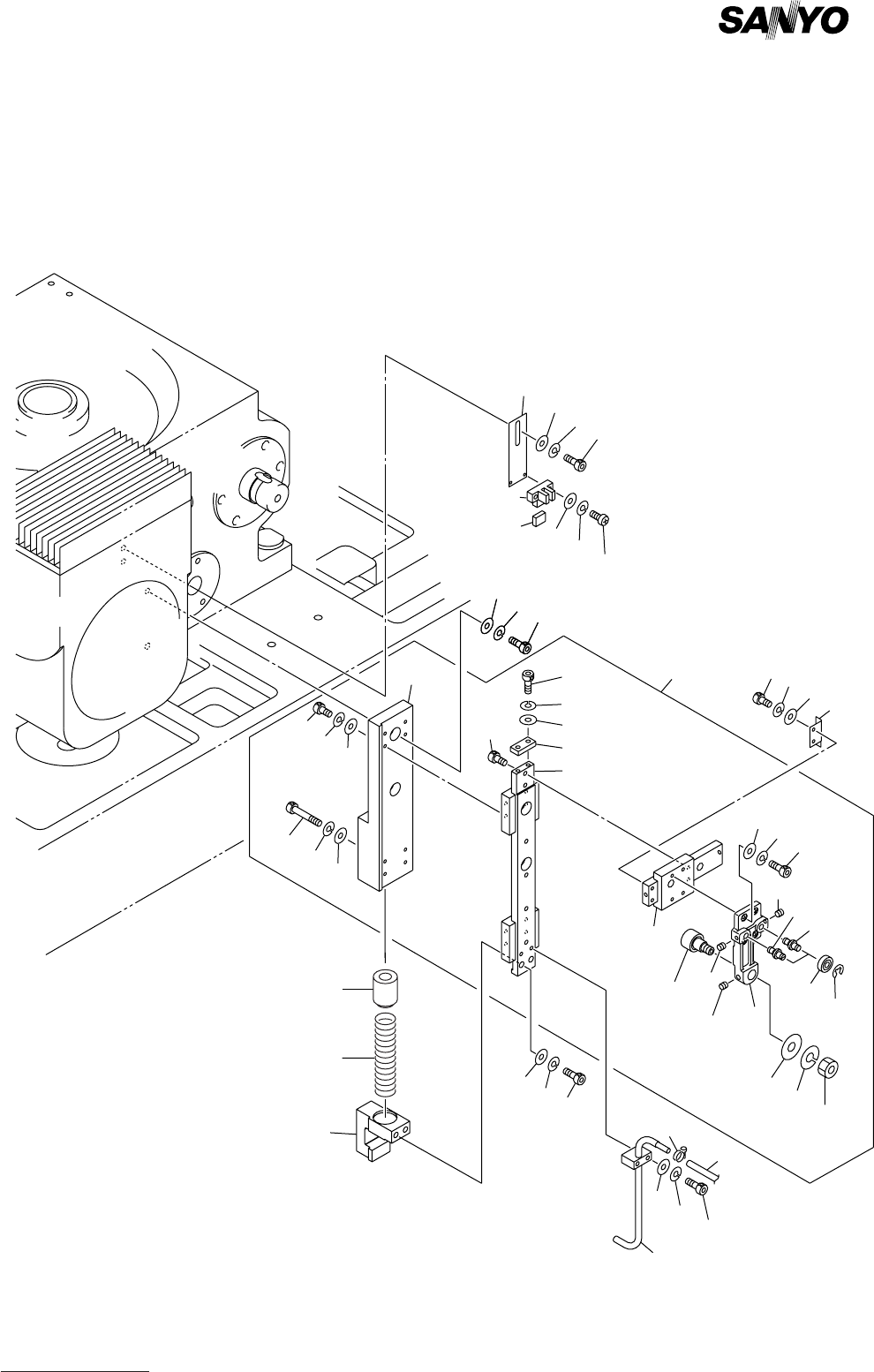

ヘッド駆動部 HEAD DRIVING SECTION
Fig. 3-2 装着上下補正部 Placement Level Adjuster
19
17
20
21
22
34
35
36
24
25
26
27
2
18
3
14
15
16
5
4
8
6
7
9
10
11
12
13
51
52
53
54
4796
20
21
23
8
55
56
57
58
59
44
45
46
47
48
49
31
32
33
38
39
40
42
41
37
1
43
MODEL TCM-3100J
9811-001
3- 2
Key No. PART No. PART NAME Q'ty REMARKS
1 630 060 9684 ASSY,PLATE(CZ) 1
2 630 052 0422 GUIDE,LINEAR 1 659KB-03H-019
3 630 048 2294 PLATE,LOCATE 1 659KB-03B-015
4 630 038 5663 PIN,LOCATE 1 659KB-03B-007
5 630 038 5687 PIN,LOCATE 1 659KB-03B-008
6 630 001 1241 BEARING,RADIAL 2 659KB-03H-005
7 411 001 0003 RING E 4 2 659KB-03H-006
8 630 000 8920 SET SCREW 2 M4X6 SET
9 630 058 1270 CAM FOLLOWER 1 659KB-03H-007
10 411 141 4503 WASHER V 8X17X1.6 1 FW8
11 411 141 3100 WASHER SPR 8 1 SW8
12 411 141 0901 NUT HEX 8 1 M8
13 630 000 8944 SET SCREW 1 M5X6 SET
14 411 141 3902 WASHER V 3X7X0.5 4 FW3
15 411 141 2806 WASHER SPR 3 4 SW3
16 630 000 7510 BOLT,HEX-SCT 4 M3X8
17 630 052 0439 GUIDE,LINEAR 1 659KB-03H-020
18 630 000 7619 BOLT,HEX-SCT 2 M4X8
19 630 052 3904 PLATE 1 659KB-03B-014
20 411 141 3902 WASHER V 3X7X0.5 8 FW3
21 411 141 2806 WASHER SPR 3 8 SW3
22 630 000 7534 BOLT,HEX-SCT 4 M3X12
23 630 000 7572 BOLT,HEX-SCT 4 M3X25
24 630 052 3911 PLATE 1 659KB-03B-018
25 411 141 4008 WASHER V 4X9X0.8 2 FW4
26 411 141 2905 WASHER SPR 4 2 SW4
27 630 000 7626 BOLT,HEX-SCT 2 M4X10
31 630 059 6663 COLLAR 1 659KB-03B-031
32 630 059 6687 SPRING,COMP 1 659KB-03B-034
33 630 059 4119 SLIDE(MZ) 1 659KB-03B-030
34 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
35 411 141 3001 WASHER SPR 6 2 SW6
36 630 000 7893 BOLT,HEX-SCT 2 M6X20
37 630 056 1647 BLOCK 1 659KB-03B-013
38 411 141 4008 WASHER V 4X9X0.8 2 FW4
39 411 141 2905 WASHER SPR 4 2 SW4
40 630 000 7671 BOLT,HEX-SCT 2 M4X25
42 630 029 6389 PIPE FITTINGS 1 659KB-03H-024
43 630 048 2317 PLATE 1 659KB-03B-017
44 411 141 3902 WASHER V 3X7X0.5 2 FW3
45 411 141 2806 WASHER SPR 3 2 SW3
46 630 000 7503 BOLT,HEX-SCT 2 M3X6
47 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
48 411 141 3001 WASHER SPR 6 2 SW6
49 630 000 7886 BOLT,HEX-SCT 2 M6X16
51 630 048 2300 BRACKET 1 659KB-03B-016
52 630 000 0252 SENSOR,PHOTO 1 659KB-03H-010
53 630 000 0269 SENSOR,PHOTO(CONNECTOR) 1 659KB-03H-012
54 411 088 9005 WASHER F 3X6X0.5 2 FWS3 F
55 411 086 4408 WASHER SPR 3 2 SW3 F
NOTE
MODEL TCM-3100J
9811-001
3- 2
Key No. PART No. PART NAME Q'ty REMARKS
56 411 040 7803 SCR PAN 3X12 2 M3X12 PAN
57 411 141 4107 WASHER V 5X10X1 2 FW5
58 411 141 6705 WASHER SPR 5 2 SW5
59 630 000 7749 BOLT,HEX-SCT 2 M5X10
