4. ELECTRICAPPARATUSCOMPONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-91343 TR1RBELECTRICASM 1

2 E9601-723-0A0 YMOTORASM (1)

3 E9002-723-0A0 CONFIRMATIONRAMPASM. (1)

4 E9003-723-0A0 SUPPLYCOMPLETIONBUTTONASM. (1)

5 E9004-723-0A0 DOORSWITCHASM. (1)

6 HD-0005700-0A SENSOR (1)

7 400-34285 ITSOLENOIDASM (1)

8 400-93038 TR1EBPCBASM (1)

9 401-91342 TR1RBI/FASM (1)

10 HD-0017000-00 SENSOR (2)

11 HX-0066900-00 GROMMET (0.03)

- -

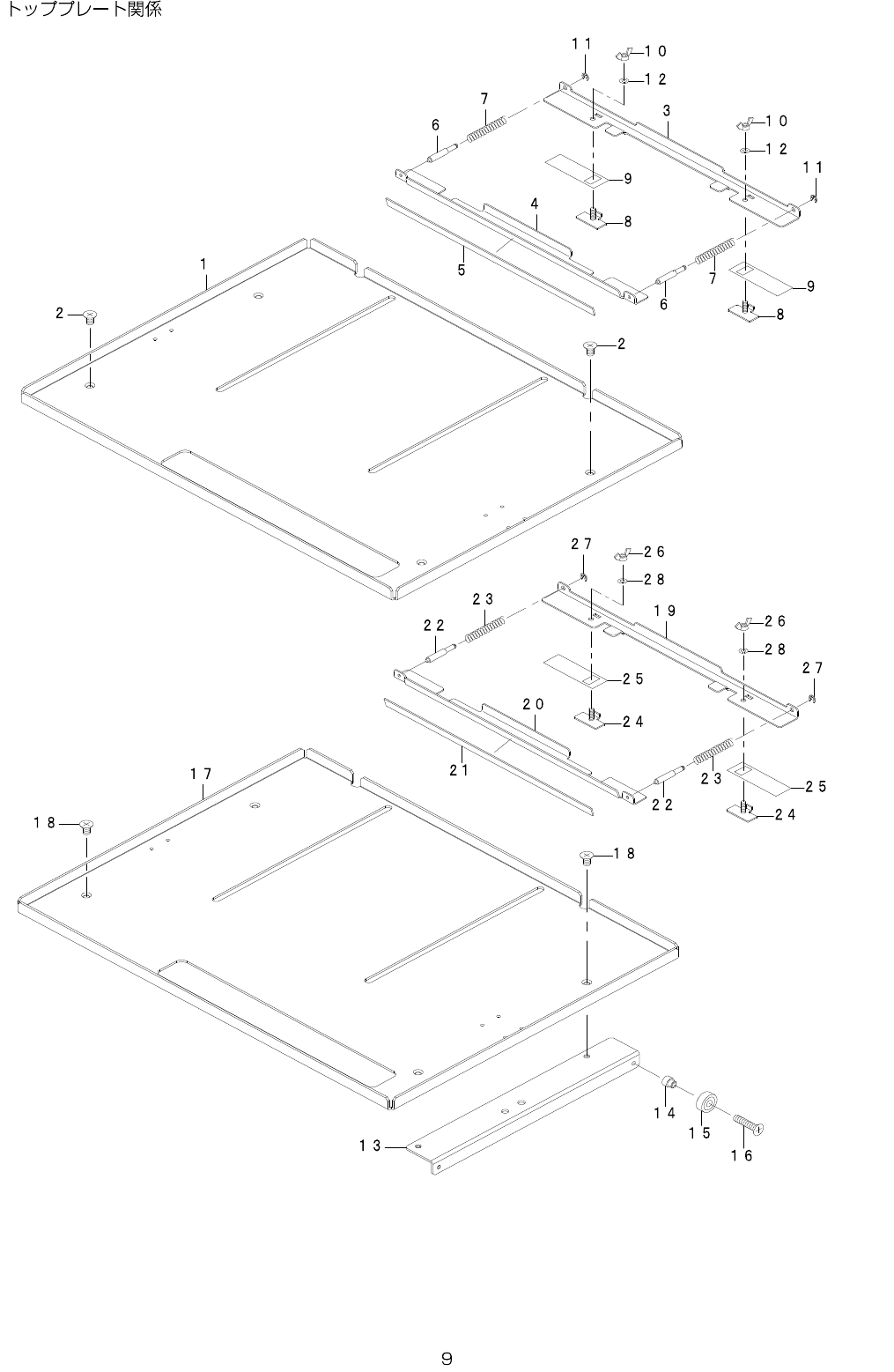

5. TOPPLATECOMPONENTS
