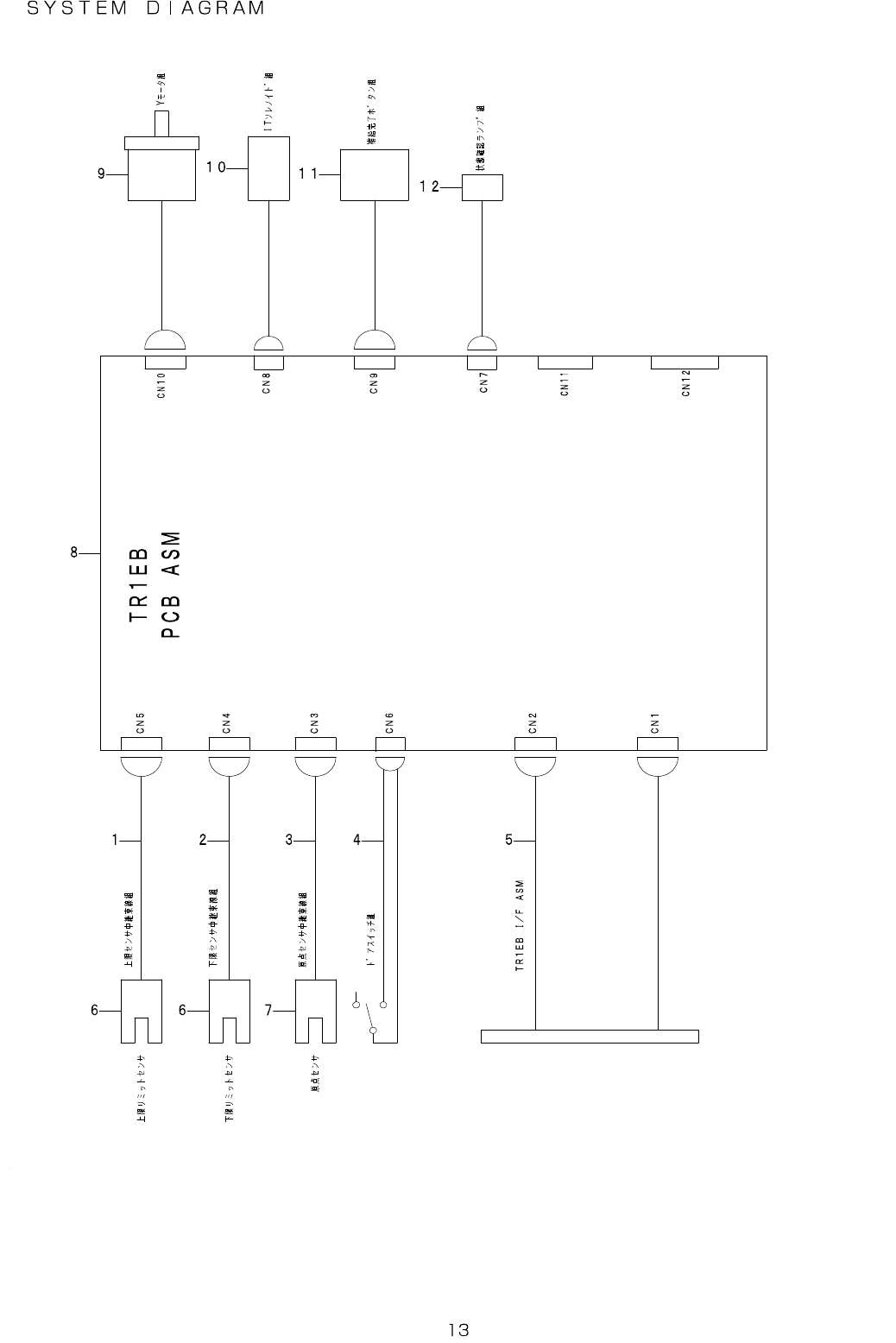

7. SYSTEMDIAGRAM

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 E9005-723-0A0 UPPERLIMITSENSORASM. 1

2 E9006-723-0A0 LOWERLIMITSENSORASM. 1

3 E9007-723-0A0 SENSORRELAYCABLEASM. 1

4 E9004-723-0A0 DOORSWITCHASM. 1

5 401-91342 TR1RBI/FASM 1

6 HD-0017000-00 SENSOR 2

7 HD-0005700-0A PHOTOSENSOR 1

#01

400-93038 TR1EBPCBASM 1

9 E9601-723-0A0 YMOTORASM 1

10 400-34285 ITSOLENOIDASM 1

11 E9003-723-0A0 SUPPLYCOMPLETIONBUTTONASM. 1

12 E9002-723-0A0 CONFIRMATIONRAMPASM. 1
