- - 2. COVERCOMPO NENTS

100%1 / 20
- -

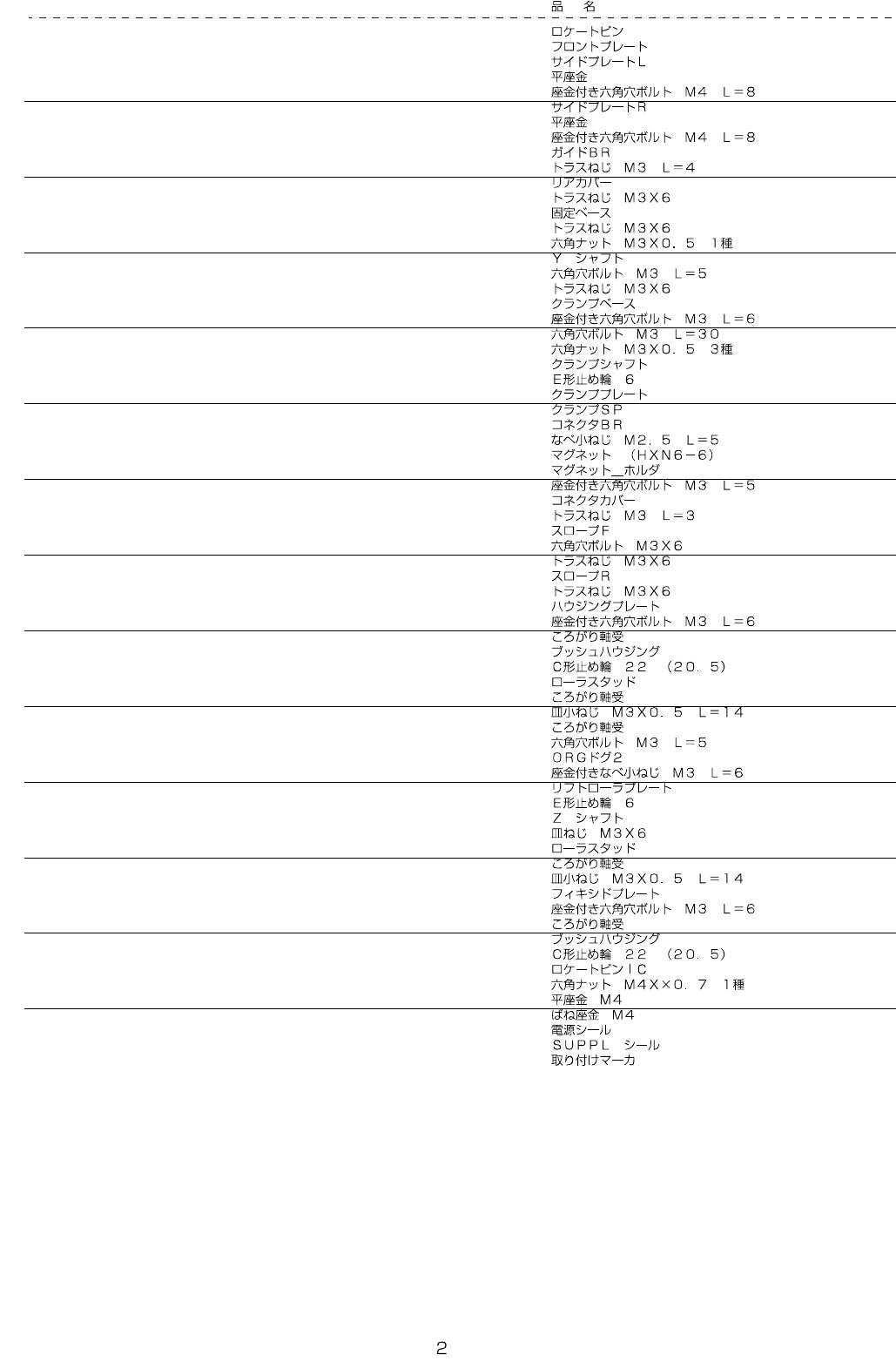

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-91524 LOCATE_PIN 2
2 401-91525 FRONT_PLATE 1
3 401-91526 SIDE_PLATE_L 1
4 WP-0431005-SP PLAINWASHER 2
5 SL-6040892-TN SCREWM4L=8 2
6 401-91527 SIDE_PLATE_R 1
7 WP-0431005-SP PLAINWASHER 2
8 SL-6040892-TN SCREWM4L=8 2
9 E1113-723-000 GUIDEBR 2
10 SM-0030401-SC SCREWM3L=4 10
11 401-91528 REAR_COVER 1
12 SM-0030601-SC SCREWM3X6 4
13 HX-0029400-00 FIXEDBASE 4
14 SM-0030601-SC SCREWM3X6 4
15 NM-6030001-SC NUTM3X0.5TYPE1 4
16 E1105-723-000 YSHAFT 2
17 SM-6030502-TN SCREWM3L=5 2
18 SM-0030601-SC SCREWM3X6 2
19 401-91529 CLAMP_BASE 1
20 SL-6030692-TN SCREWM3L=6 4
21 SM-6033002-TN SCREWM3L=30 1
22 NM-6030003-SC NUTM3X0.5TYPE3 1
23 401-91530 CLAMP_SHAFT 1
24 RE-0600000-K0 E-RING6 4
25 401-91531 CLAMP_PLATE 1
26 401-91532 CLAMP_SP 3
27 401-91533 CONNECTOR_BR 1
28 SM-4850501-SC SCREWM2.5L=5 2
29 EZ-4456320-01 MAGNET(HXN6-6) 1
30 401-61592 MAGNET_HOLDER 1
31 SL-6030592-TN SCREWM3L=5 2
32 401-91534 CONNECTOR_COVER 1
33 SM-0030301-SN SCREW 2
34 401-91536 SLOPE_F 2
35 SM-6030602-TN SCREWM3X6 4
36 SM-0030601-SC SCREWM3X6 2
37 401-91537 SLOPE_R 2
38 SM-0030601-SC SCREWM3X6 4
39 401-91538 HOUSING_PLATE 1
40 SL-6030692-TN SCREWM3L=6 4
41 SB-7120001-00 BEARING 2
42 E1106-723-000 BUSHINGHOUSING 2
43 RC-0220001-KP C-RING22(20.5) 4
44 E1153-723-000 ROLLERSTUD 1
45 SB-1050003-00 BEARING 1
46 SM-1031401-SC SCREWM3X0.5L=14 1
47 SB-8080001-00 BEARING 2
48 SM-6030502-TN SCREWM3L=5 8
49 401-94851 ORG_DOG2 1
50 SL-4030691-SC SCREWM3L=6 2
51 401-91539 LIFT_ROLLER_PLATE 2
52 RE-0600000-K0 E-RING6 2
53 E1174-723-000 ZSHAFT 2
54 SM-1030601-SC SCREWM3X6 2
55 E1153-723-000 ROLLERSTUD 4
56 SB-1050003-00 BEARING 4
57 SM-1031401-SC SCREWM3X0.5L=14 4
58 401-91540 FIXED_PLATE 1
59 SL-6030692-TN SCREWM3L=6 4
60 SB-7120001-00 BEARING 2
61 E1106-723-000 BUSHINGHOUSING 2
62 RC-0220001-KP C-RING22(20.5) 4
63 401-87780 LOCATE_PIN_IC 1
64 NM-6040001-SC NUTM4X0.7TYPE1 1
65 WP-0430801-SC WASHERM4 1
66 WS-0410002-KN SPRINGWASHERM4 1
67 E2106-716-000 POWERSUPPLYSEAL 1
68 E4037-717-000 SUPPLYSEAL 1
69 E1602-723-000 MARKER 1
- -

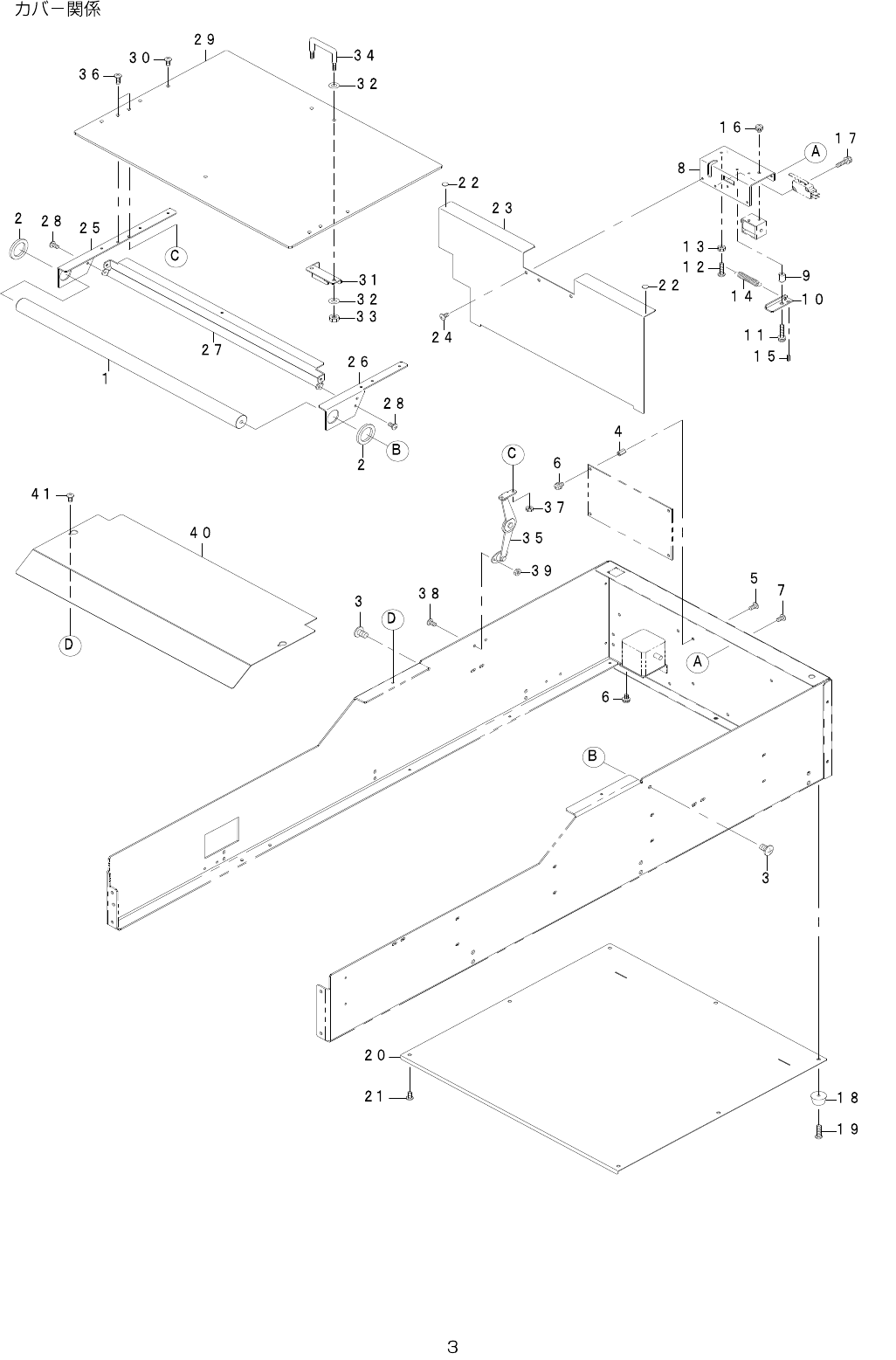

2. COVERCOMPONENTS
- -

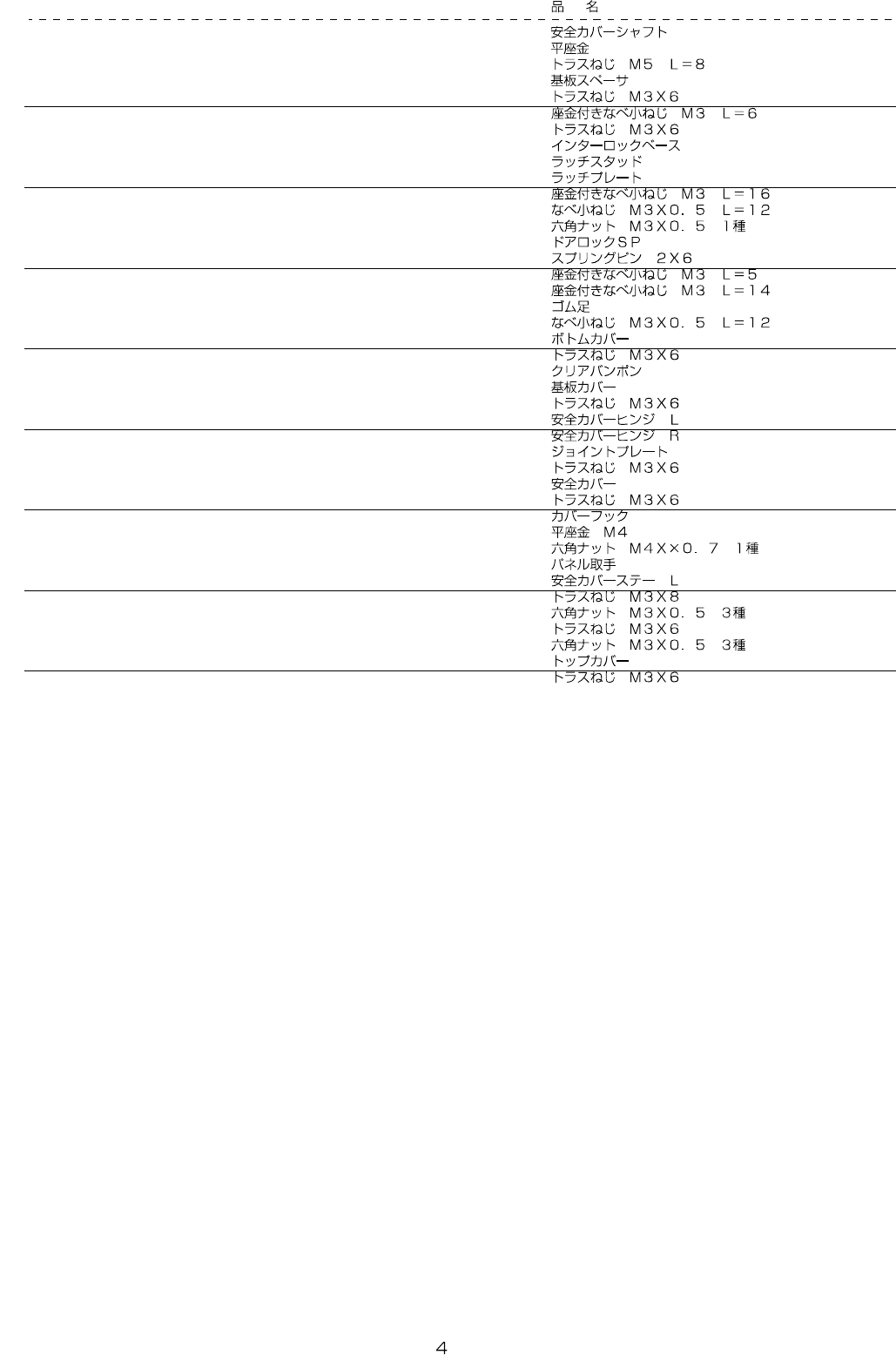

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-91535 SAFETY_COVER_SHAFT 1
2 WP-2103001-SE PLAINWASHER 2
3 SM-0050801-SC SCREW 2
4 HX-0007900-0B SPACER 4
5 SM-0030601-SC SCREWM3X6 4
6 SL-4030691-SC SCREWM3L=6 8
7 SM-0030601-SC SCREWM3X6 2
8 E1251-723-000 INTERLOCKBASE 1
9 E1252-723-000 LATCHSTUD 1
10 E1253-723-000 LATCHPLATE 1
11 SL-4031691-SC SCREWM3L=16 1
12 SM-4031201-SC SCREWM3X0.5L=12 1
13 NM-6030001-SC NUTM3X0.5TYPE1 1
14 E1055-717-000 DOORLOCKSP 1
15 PS-0200062-KH SPRINGPIN2X6 1
16 SL-4030591-SC SCREWM3L=5 2
17 SL-4031481-SC SCREWM3L=14 2
18 E4809-172-000 RUBBERFOOT 2
19 SM-4031201-SC SCREWM3X0.5L=12 2
20 401-91542 BOTTOM_COVER 1
21 SM-0030601-SC SCREWM3X6 5
22 E2134-172-000 RUBBERSTOPPER 2
23 401-91543 PWB_COVER 1
24 SM-0030601-SC SCREWM3X6 2
25 E1202-723-000 SAFTYCOVERHINGEL 1
26 E1203-723-000 SAFTYCOVERHINGER 1
27 401-91544 JOINT_PLATE 1
28 SM-0030601-SC SCREWM3X6 4
29 401-91545 SAFETY_COVER 1
30 SM-0030601-SC SCREWM3X6 7
31 E1206-723-000 COVERHOOK 1
32 WP-0430801-SC WASHERM4 4
33 NM-6040001-SC NUTM4X0.7TYPE1 2
34 E1023-760-000 PANELHANDLE 1
35 E1210-723-000 SAFTYCOVERSTAYL 1
36 SM-0030801-SC SCREWM3X8 2
37 NM-6030003-SC NUTM3X0.5TYPE3 2
38 SM-0030601-SC SCREWM3X6 2
39 NM-6030003-SC NUTM3X0.5TYPE3 2
40 401-91550 TOP_COVER 1
41 SM-0030601-SC SCREWM3X6 2
