HIGH-ENERGY AND HIGH-RESOLUTION COMPUTED TOMOGRAPHY (CT) INSPECTION SYSTEM FOR A WIDE SAMPLE SPECTRUM - CT system with new dimensions in flexibility , versatility , and modularity - Extensive range of applications - Intui…
HIGH-ENERGY AND HIGH-RESOLUTION COMPUTED TOMOGRAPHY
(CT) INSPECTION SYSTEM FOR A WIDE SAMPLE SPECTRUM
- CT system with new dimensions in flexibility, versatility, and modularity
- Extensive range of applications
- Intuitive Geminy graphical user interface with touch screen operation

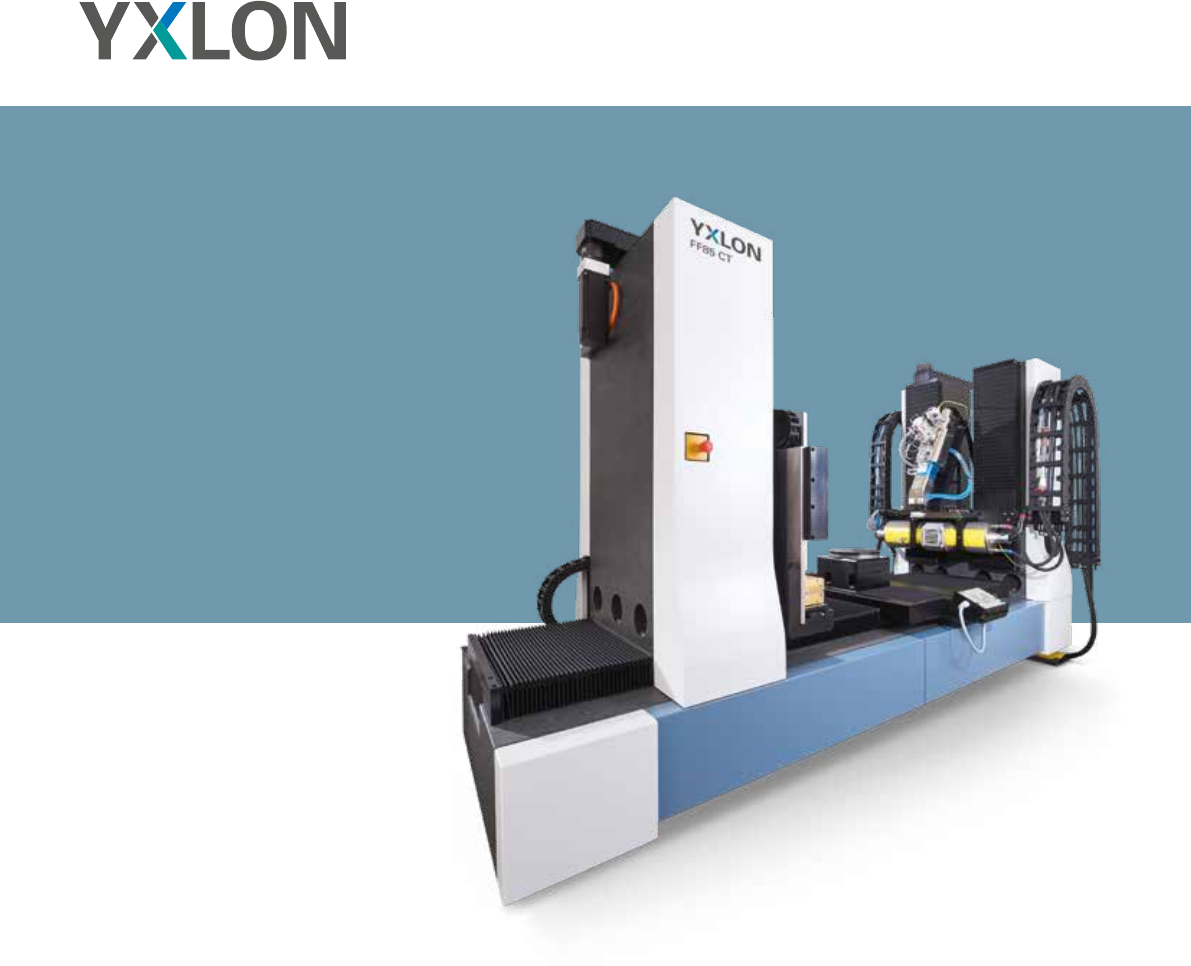

YXLON FF85 CT

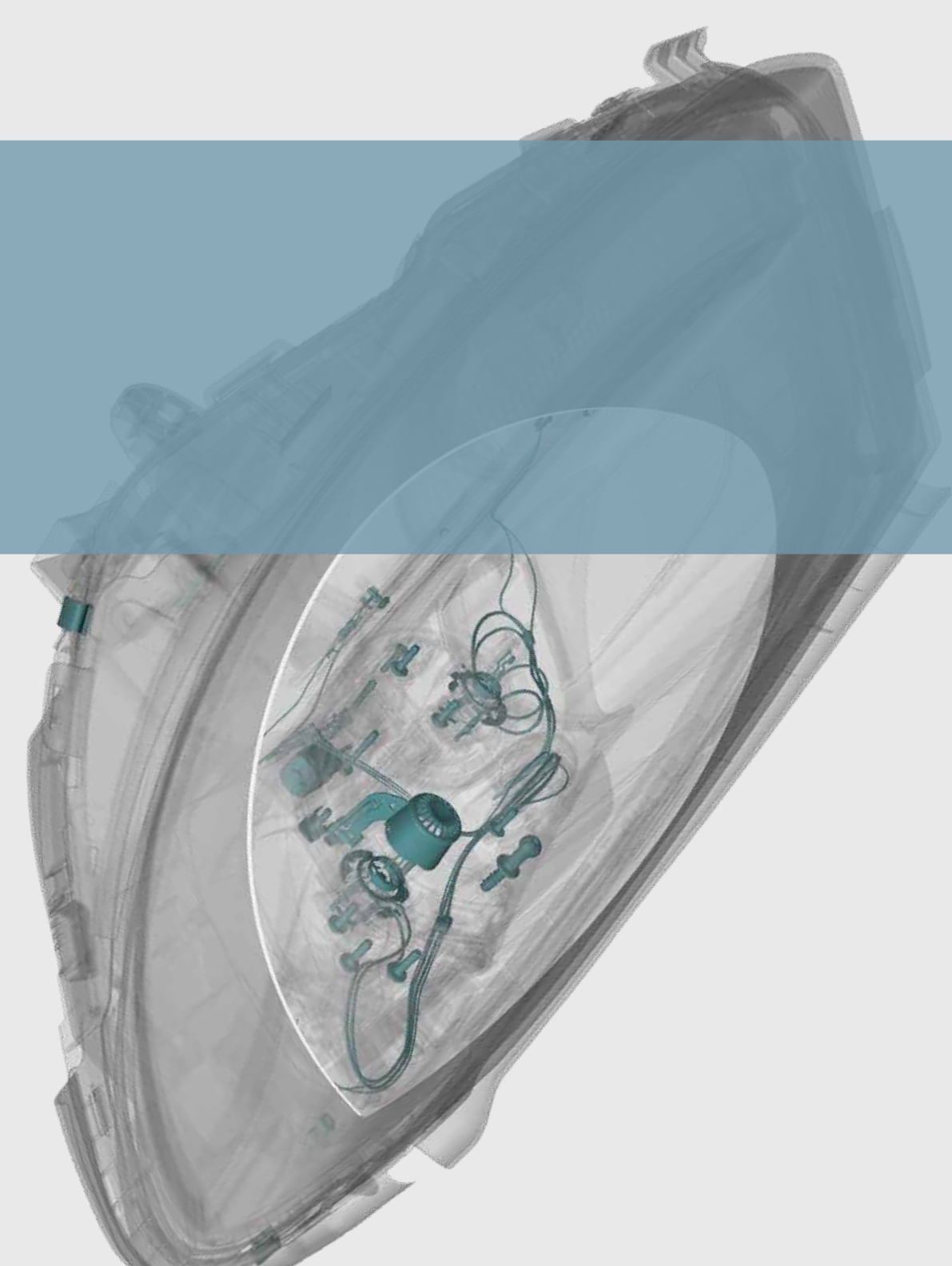

Car headlight
Do you need to examine a wide range of part sizes from
very small to large? Do you have to inspect very dense
and fine items? The YXLON FF85 CT provides the most
diverse inspection portfolio among current X-ray and
CT systems thanks to its high-performance hardware and
innovative software features.
The optional combination of two tubes with a spacious flat
panel detector (FPD) and a linear detector array (LDA)
caters to the broadest application range and enables you
to efficiently test different parts in one run. A high-energy
minifocus X-ray tube and a high-resolution microfocus
X-ray tube are at your disposal throughout a single
inspection sequence. The minifocus tube, with its high
power, reduces the scan times significantly allowing you
to get the work done faster. With the microfocus X-ray
tube you can count on high-resolution results for smaller
samples. Together, they operate to accommodate very
large scan volumes by using the FPD or the LDA.
Experience inspection versatility
Another building block that contributes to the premium
performance of FF85 CT is the rock-solid granite based
manipulator; which makes this system extremely precise
and durable. You’ll benefit from warp-resistance and
temperature stability.
With FF85 CT your investment is secure because the
system is truly future-proof. You can rely on continuous
updates and upgrades. It runs on YXLON’s common and
highly intuitive and user-friendly software platform
Geminy. This allows developments in other systems to
be seamlessly transferred to the FF85 CT.
High-energy minifocus X-ray tube and high-resolution microfocus
X-ray tube
Newest generation of flat panel detector and line detector array
for maximum versatility
3
YXLON FF85 CT KEY BENEFITS
- Extensive range of applications using up to 600 kV
minifocus and a up to 300 kV directional microfocus
tubes
- Expanded inspection envelope with horizontal field
of view extension, Helical and dual Helical CT
techniques
- Flexible ROI CT scanning thanks to virtual
rotation axis
- Increased versatility via high precision manipulation
with up to 7 axes
- Intuitive touchscreen operation
- Revolutionary inspection sequence creation
using icons
- Clear health status indication of the system
condition via Health Monitor
