The two ergonomically arranged touch monitors of the
user interface Geminy are one important element for the
ease of use. You can control the CT systems via graphical
symbols. Presets, wizards, and assistants guide the
operator through his inspection tasks. At the same time,
the scan results are displayed on the second monitor for
your direct evaluation.
If the manipulation of test part and X-ray components is
particularly critical you can position all axes directly in front
of the system by use of the handheld terminal. This saves
time and increases your efficiency.
The new CTScan 3 line detector array has been
developed and is manufactured by Yxlon for customers’
special requirements. With its unprecedented signal-to-
noise ratio, its dynamic range, and a pixel pitch of 254 µm,
it is the no-alternative solution for a crystal-clear inspection
of high and dense components.. It is designed for up to
600 kV operation reducing unwanted scatter radiation,
providing low-noise electronics and highly-efficient
scintillators: I.e. compared to a standard LDA with a 200
µm pixel pitch, CTScan 3 proves a scintillator conversion
volume that is more than 3 times larger.
4
Perfection of CT inspection made simple and efficient
WHERE DO YOU USE THE YXLON FF85 CT?
- research and development
- first article inspection
- dimensional measurement
- small series inspection
- failure analysis
- defect and material analysis
- assembly checks
1 Ergonomic touch monitor
arrangement with Geminy interface

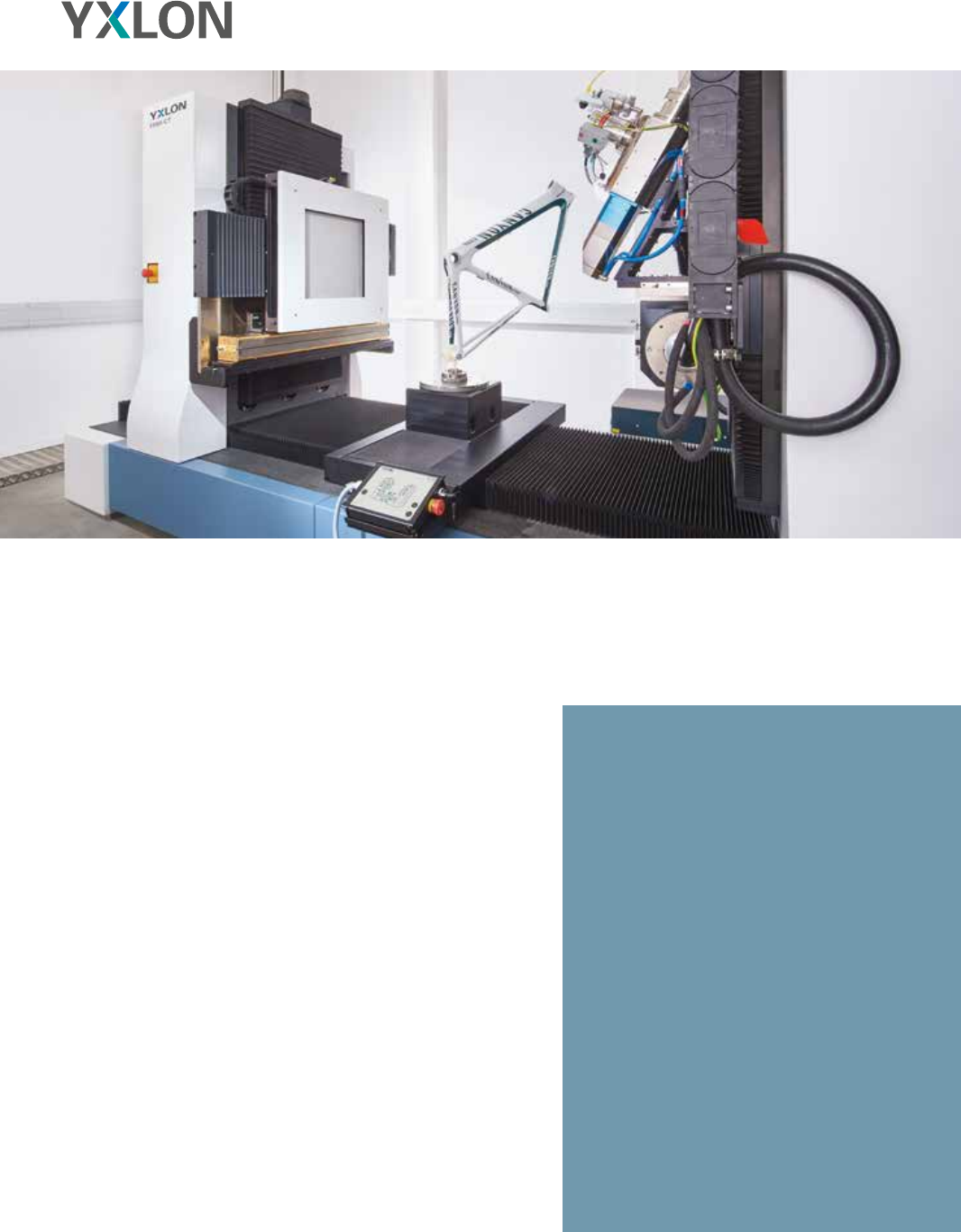

2 Precise inspection part manipulation
with additional handheld terminal
3 New LDA generation Yxlon CTScan 3
for crystal-clear fan-beam CT
1 2
3
WHICH ITEMS AND MATERIALS ARE ESPECIALLY
SUITABLE FOR THE YXLON FF85 CT?
- aluminum, steel and super alloy components
- additive manufacturing samples
- fiber-reinforced composites
- plastic injection molded parts
- historical art and archeological objects
- geological samples
- biological samples
- mechatronic modules
You can easily combine the 2D Highly-Dynamic
Radioscopy (HDR) and 3D CT inspection tasks into one
sequence and graphically create your individual imaging
chain via drag and drop icons.
Use Yxlon’s helical CT scanning HeliExtend and
HeliExtend Dual for tall parts, create an accurate image
without the need of stitching and reduce artifacts for an
accurate, brilliant image.
You can further expand the bandwidth of inspection parts
by the use of ScanExtend, the Yxlon feature for horizontal
and/or vertical field-of-view extension.
The virtual rotation axis FlexCenter gives you the freedom
to inspect any region of interest in detail without having
to reposition the part physically. You even don’t need to
adhere to any sample positioning techniques, because
FlexCenter recognizes your part and defines the rotation
axis itself.
Additionally, you can apply software improvement tools:
ScatterFix: The innovative ScatterFix functionality
developed by YXLON reduces parasitic scattered radiation
and thereby improves the quality of the CT data. This
effect is an essential advantage, e.g. for an optimized
surface determination, when inspecting large, massive
and strongly scattering components.
Beam Hardening Reduction (BHC) can be used model
based for single-material objects or in multi-material
mode, where materials such as Carbon, Tungsten,
Aluminum and Steel can be selected.
Metal Artifact Reduction (MAR) reduces heavily
disturbing metal-induced artifacts in multi-material parts.
Get the most
out of your CT scans
5

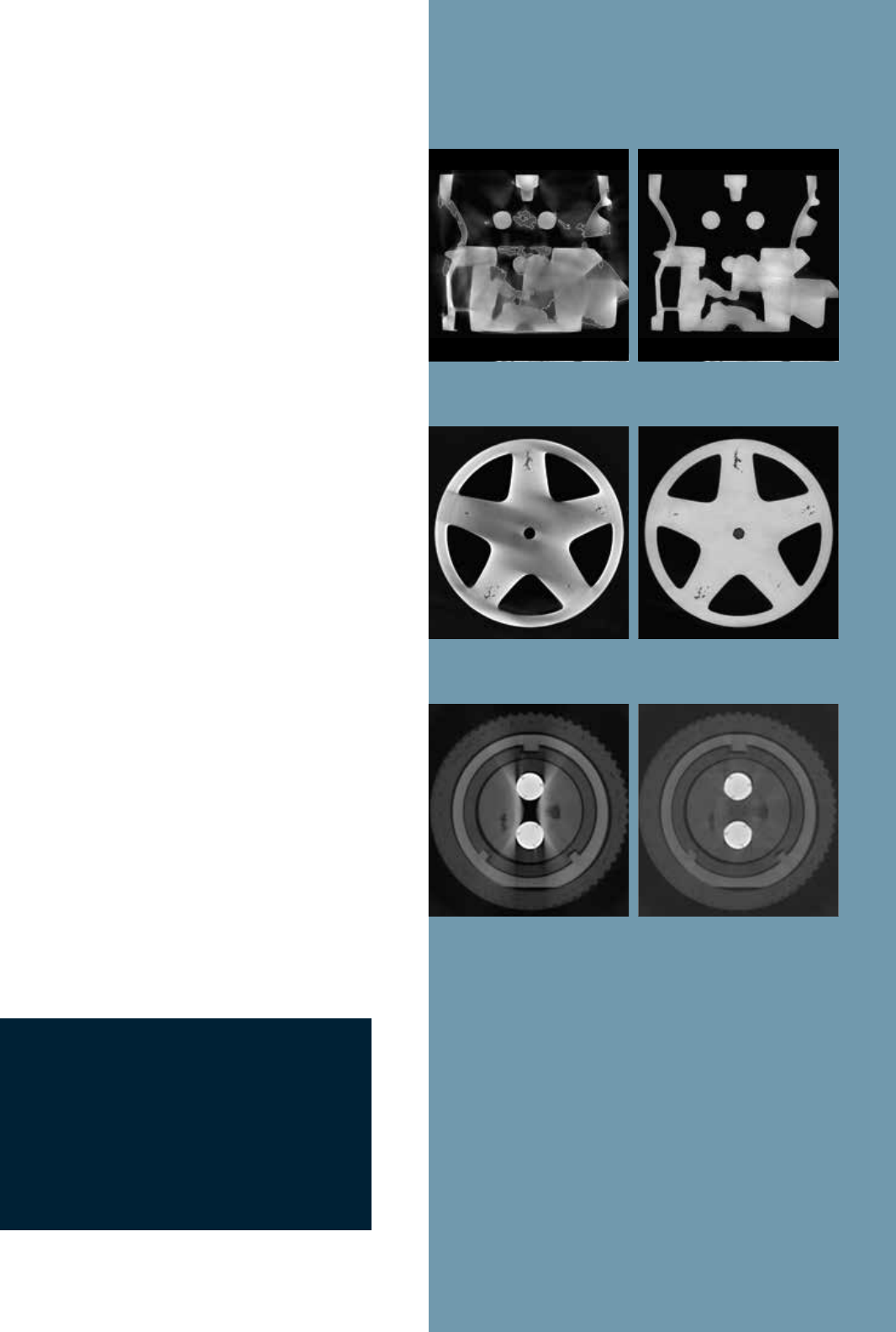

Without Scatterfix With Scatterfix
Without BHC With BHC
Without MAR With MAR
To support our customers’ success, we created our
Service Engine 4.0 including first-class technical problem-
solving combined with high economic efficiency. This
engine drives our service, our processes and our partners
to detect and correct failures quickly and reliably by
remote access and during on-site visits. Our service
centers and our service partners worldwide are at your
disposal and can be contacted by phone, e-mail or via
our website.
YOU BENEFIT FROM
-
guaranteed operational safety
-
maximized system availability
-
minimized repair times
-
full cost control of life-cycle costs
-
extended product lifetime
-
maintaining the measuring capability of metrology
systems [FF20/35 CT Metrology]
Our module-based approach such as performance and
feature upgrades enable you to adapt to future require-
ments and safeguard your initial investment by extending
the product lifetime. With our Service Engine 4.0, fast
support for you is provided by the way we network all
service activities with our organization. We not only see
your immediate need but are predictive of your future
needs.
YXLON LIFECYCLE SERVICES
Academy – full performance from day one through
tailored training solutions
SmartExchange – direct replacement of defective
or worn-out components to minimize unscheduled
system downtime
SpareParts – 100% compatibility and safety
through Yxlon qualified spare parts
WarrantyPass – full cost control through our
customizable warranty extension program
ServicePass – predictive maintenance and
servicing, tailored to your requirements
SmartPass – maximum system uptime for
customers with particularly high demands
LifeCyclePass – all-inclusive concept for full
cost control over the entire product lifetime
Support – fully digitalized 1st-line support
organized in a worldwide expert network,
available remote or on-site
Upgrades – performance increase and new
features for your Yxlon system portfolio
