www.dct.cleaning TECHNICAL DATA SHEET InJet ® 388 TRIPLE CRRD www.dct.cleaning CHAMBE R CHAMBER InJet 388 TRIPLE CRRD STENCIL, MISPRINT, SQUEEGEE cleaning PUMPRINT cleaning PCB cleaning

100%1 / 8
www.dct.cleaning
TECHNICAL DATA SHEET
InJet
®
388 TRIPLE CRRD 
www.dct.cleaning
CHAMBER
CHAMBER
InJet
388 TRIPLE CRRD 
STENCIL, MISPRINT, SQUEEGEE cleaning
PUMPRINT cleaning
PCB cleaning
InJet
®
388 TRIPLE CRRD
TECHNICAL DATA SHEET
2
www.dct.cleaning
GENERAL INFORMATION
The InJet 388 series cleaning systems represent
unique vertical Spray-In-Air technology developed
and manufactured by DCT.
The vertically installed Spray-In-Air device minimizes the
shadowing eff ect commonly seen in horizontal cleaners,
and maximizes the effi ciency of the cleaning process
as the cleaning  uid is sprayed directly onto the cleaned
component.
The InJet
®
388 TRIPLE CRRD, including a 100% closed loop,
with cleaning, rinsing and drying technology processes.
All of the processes are fully automated, and take place
in 3 process chambers, whereby the cleaning takes place
in the  rst inlet chamber, after which the part which is being
cleaned is automatically transported to a central chamber
where the  rst rinsing process takes place. The third, and
last, outlet chamber is designed for the  nal rinsing
and the drying process.
All 3 chambers can be used in parallel, which increases the
machine’s capacity and reduces cross-contamination when
compared with single-chamber devices.
Depending on your cleaning requirements,
the DCT project manager, in collaboration
with a local distributor, will advise you
on a suitable water-based cleaning fl uid
and the correct setup of the entire process.
InJet
®
388 TRIPLE CRRD
TECHNICAL DATA SHEET
3
www.dct.cleaning

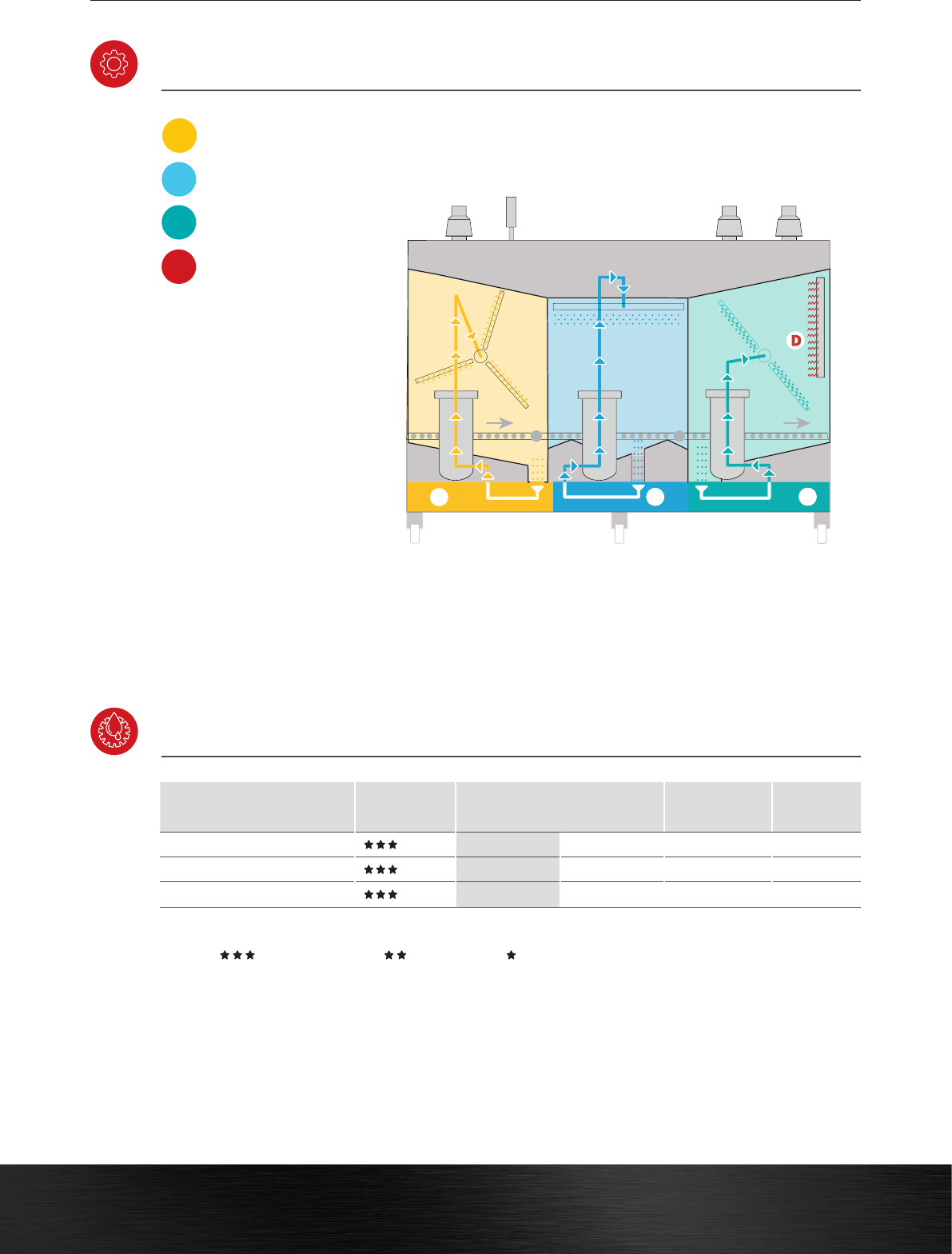

C
R
R
C
CLEANING
PRE-RINSING
RINSING
DRYING
R
D
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Stencil, misprint, squeegee
20 – 40°C 68 – 104 °F 20 min. 48
PumPrint
40 – 55°C 104 – 131 °F 20 min. 48
PCB
35 – 55°C 95 – 131 °F 32 min. 768 *
4 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
R
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
