InJet
®
388 TRIPLE CRRD
TECHNICAL DATA SHEET
2
www.dct.cleaning
GENERAL INFORMATION
The InJet 388 series cleaning systems represent
unique vertical Spray-In-Air technology developed
and manufactured by DCT.
The vertically installed Spray-In-Air device minimizes the
shadowing eff ect commonly seen in horizontal cleaners,
and maximizes the effi ciency of the cleaning process
as the cleaning  uid is sprayed directly onto the cleaned
component.
The InJet
®
388 TRIPLE CRRD, including a 100% closed loop,
with cleaning, rinsing and drying technology processes.
All of the processes are fully automated, and take place
in 3 process chambers, whereby the cleaning takes place
in the  rst inlet chamber, after which the part which is being
cleaned is automatically transported to a central chamber
where the  rst rinsing process takes place. The third, and
last, outlet chamber is designed for the  nal rinsing
and the drying process.
All 3 chambers can be used in parallel, which increases the
machine’s capacity and reduces cross-contamination when
compared with single-chamber devices.
Depending on your cleaning requirements,
the DCT project manager, in collaboration
with a local distributor, will advise you
on a suitable water-based cleaning fl uid
and the correct setup of the entire process.
InJet
®
388 TRIPLE CRRD
TECHNICAL DATA SHEET
3
www.dct.cleaning
C
R
R
C
CLEANING
PRE-RINSING
RINSING
DRYING
R
D
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Stencil, misprint, squeegee
20 – 40°C 68 – 104 °F 20 min. 48
PumPrint
40 – 55°C 104 – 131 °F 20 min. 48
PCB
35 – 55°C 95 – 131 °F 32 min. 768 *
4 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
R
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
InJet
®
388 TRIPLE CRRD
TECHNICAL DATA SHEET
4
www.dct.cleaning

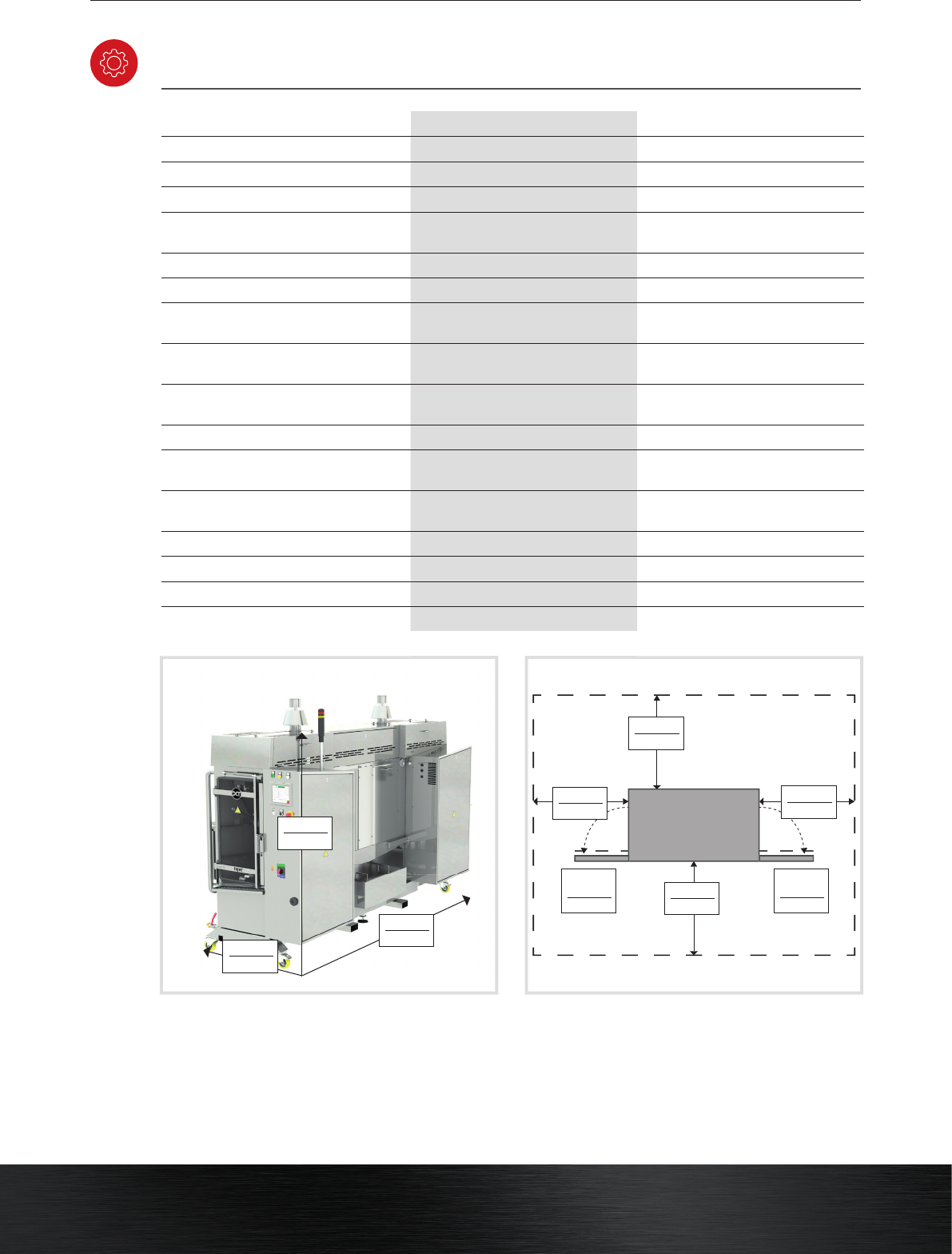

TECHNICAL PARAMETERS
DIMENSIONS
MINIMUM SERVICE SPACE
AROUND THE MACHINE
1860 mm
73.2 in
3200 mm
126 in
1205 mm
47.4 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
open door
450 mm
17.7 in
open door
450 mm
17.7 in
metric units imperial units
Dimensions (w x l x h) 1205 x 3200 x 1860 mm 47.4 x 126 x 73.2 in
Weight 890 Kg 1962 lbs
Ø energy consumption per cycle 1,65 kWh 1.65 kWh
Cleaning and rinsing  uid consumption
per cycle
0,05 – 0,3 l 0.01 gal – 0.08 gal
Compressed air consumption per cycle 2 l / 5 Bar 0.52 gal / 72.5 PSI
Max. dimensions of the cleaned parts 100 x 810 x 740 mm 3.93 x 31.89 x 29.13 in
Exchangeable mechanical  lter of cleaning
and rinsing  uid
5 – 200 μm 5 – 200 μm
Operating pressure / 45 °C / 113 °F
Cleaning
0,3–2,8 bar 4.35–40.61 PSI
Operating pressure / 45 °C / 113 °F
Rinsing
0,0–1,5 bar 0.0–21.76 PSI
Cleaning  uid  ow rate 200 l / min 52.8 gal / min
Temperature range setting of the cleaning
and rinsing  uid
From ambient temperature to 60°C From ambient temperature to 140°F
Conductivity range settings of the rinsing
uid in the tanks.
0 – 2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 8,4“ touchscreen PLC + 8.4“ touchscreen
Volume of the storage tanks 75 l 19,81 gal
