InJet ® 388 TRIPLE CRRD TECHNICAL DATA SHEET 4 www.dct.cleaning TECHNICAL PARAMETERS DIMENSIONS MINIMUM SERVICE SPACE AROUND THE MACHINE 1860 mm 73.2 in 3200 mm 126 in 1205 mm 47.4 in 600 mm 23.6 in 600 mm 23.6 in 600 mm…

100%1 / 8
InJet
®
388 TRIPLE CRRD
TECHNICAL DATA SHEET
3
www.dct.cleaning
C
R
R
C
CLEANING
PRE-RINSING
RINSING
DRYING
R
D
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Stencil, misprint, squeegee
20 – 40°C 68 – 104 °F 20 min. 48
PumPrint
40 – 55°C 104 – 131 °F 20 min. 48
PCB
35 – 55°C 95 – 131 °F 32 min. 768 *
4 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
R
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
InJet
®
388 TRIPLE CRRD
TECHNICAL DATA SHEET
4
www.dct.cleaning
TECHNICAL PARAMETERS
DIMENSIONS
MINIMUM SERVICE SPACE
AROUND THE MACHINE
1860 mm
73.2 in
3200 mm
126 in
1205 mm
47.4 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
open door
450 mm
17.7 in
open door
450 mm
17.7 in
metric units imperial units
Dimensions (w x l x h) 1205 x 3200 x 1860 mm 47.4 x 126 x 73.2 in
Weight 890 Kg 1962 lbs
Ø energy consumption per cycle 1,65 kWh 1.65 kWh
Cleaning and rinsing  uid consumption
per cycle
0,05 – 0,3 l 0.01 gal – 0.08 gal
Compressed air consumption per cycle 2 l / 5 Bar 0.52 gal / 72.5 PSI
Max. dimensions of the cleaned parts 100 x 810 x 740 mm 3.93 x 31.89 x 29.13 in
Exchangeable mechanical  lter of cleaning
and rinsing  uid
5 – 200 μm 5 – 200 μm
Operating pressure / 45 °C / 113 °F
Cleaning
0,3–2,8 bar 4.35–40.61 PSI
Operating pressure / 45 °C / 113 °F
Rinsing
0,0–1,5 bar 0.0–21.76 PSI
Cleaning  uid  ow rate 200 l / min 52.8 gal / min
Temperature range setting of the cleaning
and rinsing  uid
From ambient temperature to 60°C From ambient temperature to 140°F
Conductivity range settings of the rinsing
uid in the tanks.
0 – 2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 8,4“ touchscreen PLC + 8.4“ touchscreen
Volume of the storage tanks 75 l 19,81 gal
InJet
®
388 TRIPLE CRRD
TECHNICAL DATA SHEET
5
www.dct.cleaning

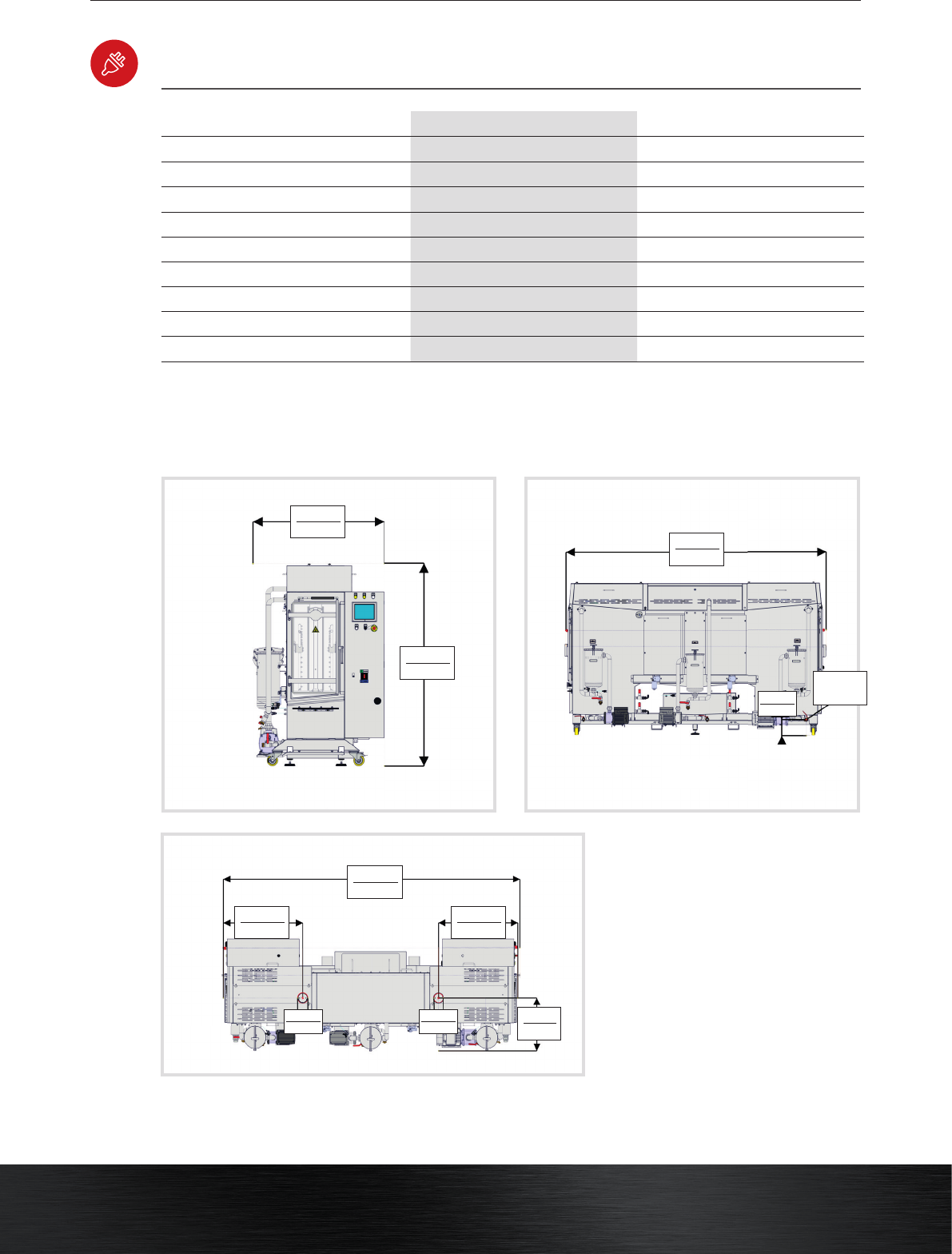

INSTALLATION REQUIREMENTS
FRONT
VIEW
TOP
VIEW
1860 mm
73.2 in
LEFT
VIEW
1205 mm
47.4 in
discharge
of the fluids
845 mm
33.3 in
845 mm
33.3 in
3200 mm
126 in
3200 mm
126 in
570 mm
22.4 in
Ø 100 mm
ID 3.94 in
Ø 100 mm
ID 3.94 in
190 mm
7.48 in
metric units imperial units
Power supply 400V, 32A, 50Hz (3+N+PE) 400V, 32A, 60Hz* (3+N+PE)
Pmax 16 kW 16 kW
Compressed air connection Pipe Ø 6 mm and Ø 10 mm Pipe ID 0.24 and 0.39 in
Recommended working pressure 4,5 – 6 Bar 65.25 – 87 PSI
Compressed air quality 3. Class ** 3. Class **
Exhaust pipe diameter 3 x Ø 100 mm 3 x ID 3.94 in
Exhaust pipe capacity 580 m
3
/h 20450 ft
3
/h
Minimum liquid for  rst run 3 x 75 l 3 x 19.8 gal
Service space required around the device 600 mm 23.6 in
* When using frequency convertor
** According to the norm ISO 8573-1
