Meister MS-510 区分 RANK 项 番 Parts No. 部品名称 Parts Name 型 号 Model 数量/台 QTY 备 注 Remark 厂 家 Maker B2 N05001-01-03 减压阀 Regulator HR200-02-B 1Pcs KOGANEI B2 N05001-01-12 压力表 Pressure Meter G43-4-02 1Pcs SMC B2 N05001-01-05 速度控制…
Meister MS-510
区分
RANK
项 番
Parts No.
部品名称
Parts Name
型 号
Model
数量/台
QTY
备 注
Remark
厂 家
Maker
A2 N98608
门限位开关
Limit Switch
GLS-S1 3Pcs OMRON
B2 N02038
磁石
Magnet
C-100-A-2 2Pcs TAKIGEN
A2 N98625
缓冲器
Damper
FGS-19-200-AA-200 2Pcs FUJISEIKI
B1 N05001-01-01
电磁阀单元
Solenoid Valve Unit
组件 1Set KOGANEI
A2 N05001-01-15
电磁阀
Solenoid Valve
F10T2-A1 DC2V 8Pcs KOGANEI
A2 N05001-01-16
电磁阀
Solenoid Valve
F10T2-A1-PPM DC2V 1Pcs KOGANEI
A2 N05003
串行传输模组
Serial Transfer Block
PCVM-24T-C 1Pcs NKE
A2 N05001-01-08
电磁阀
Solenoid Valve
F18T3-F4-PS DC24V 1Pcs KOGANEI
空压关系
Valve Relation
罩壳关系
Cover Relation
N98608 限位开关
Limit Switch
N02038 磁石
Magnet
N98625 缓冲器
Damper
N05003 串行传输模块
Serial Transfer Block
N05001-01-01 电磁阀单元
Solenoid Valve Unit
N05001-01-15 电磁阀
Solenoid Valve
N05001-01-08 电磁阀
Solenoid Valve
N05001-01-16 电磁阀
Solenoid Valve
— 2 —
Meister MS-510
区分
RANK
项 番
Parts No.
部品名称
Parts Name
型 号
Model
数量/台
QTY
备 注
Remark
厂 家
Maker
B2 N05001-01-03
减压阀
Regulator
HR200-02-B 1Pcs KOGANEI
B2 N05001-01-12
压力表
Pressure Meter
G43-4-02 1Pcs SMC
B2 N05001-01-05
速度控制阀
Speed Control Valve
SC6-02-A 1Pcs PISCO
B1 N05001-02-02
排气阀
Exhaust Valve
300V-3-1W 1Pcs KOGANEI
A2 N05001-02-04
空气过滤器
Air Filter
F300-03 1Pcs KOGANEI
A2 N05001-04-01
废气过滤器
Exhaust Filter
EF300-03 1Pcs KOGANEI

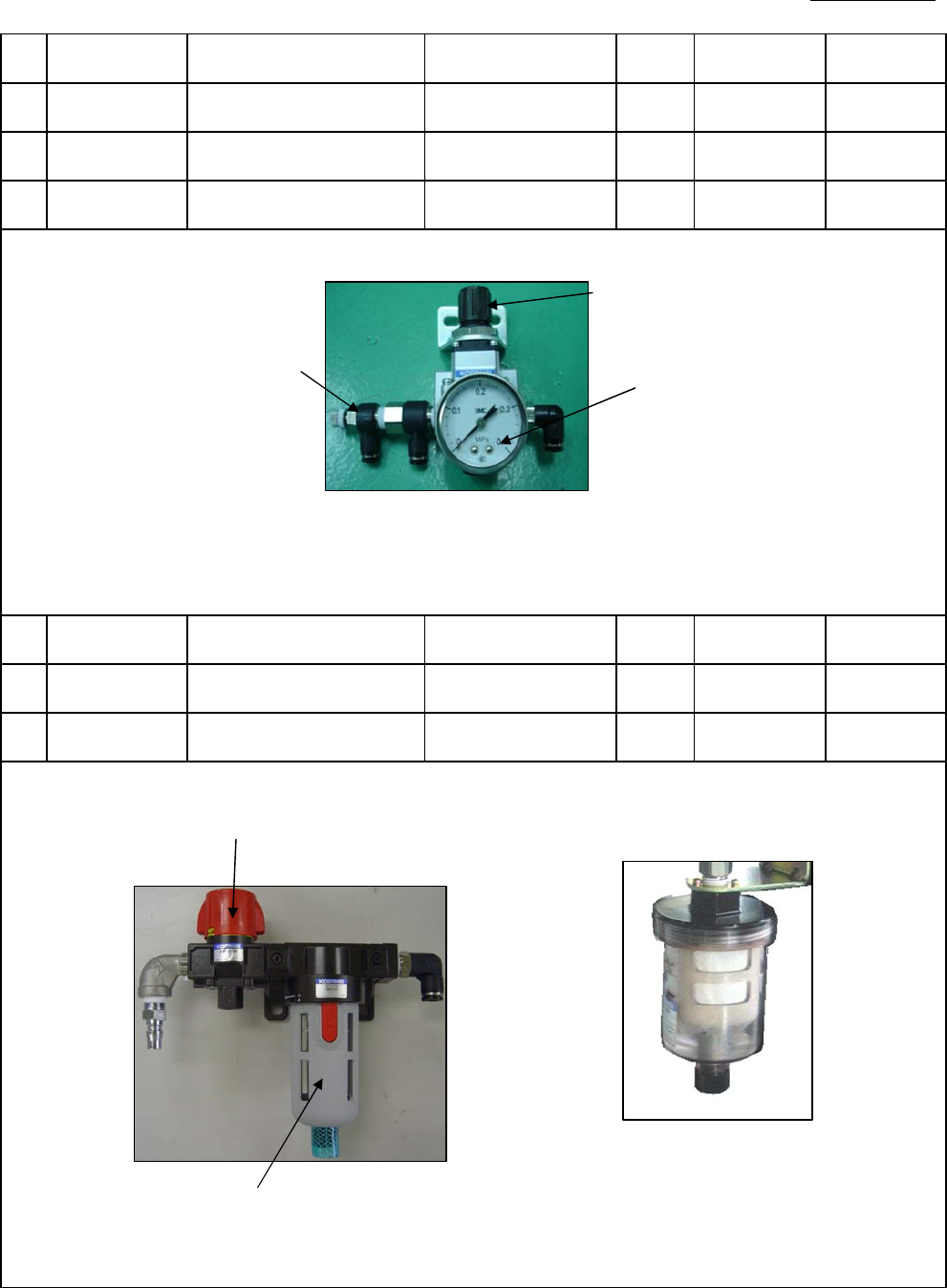

N05001-01-03 减压阀
Regulator
N05001-01-12 压力表
Pressure Meter
N05001-04-01 废气过滤器
Exhaust Filter
N05001--01-05 速度控制阀
Speed Control Valve
N05001-02-02 排气阀
Exhaust Valve
N05001-02-04 空气过滤器
Air Filter
— 3 —
Meister MS-510
区分
RANK
项 番
Parts No.
部品名称
Parts Name
型 号
Model
数量/台
QTY
备 注
Remark
厂 家
Maker
B2 N05001-05-01
调压阀
Pressure Reducing Valve
R300-03 1Pcs KOGANEI
B2 N05001-05-02
调压阀
Pressure Reducing Valve
HR200-02 2Pcs KOGANEI
B2 N05001-05-03
压力表
Pressure Meter
G46-4-01M 3Pcs SMC
B2 N05001-05-04
压力表
Pressure Meter
GP46-10-01ML5-C 1Pcs SMC
A2 N05001-06-01
电磁阀
Solenoid Valve
F18T4-F4-PS 1Pcs KOGANEI
A2 N05001-07-01
电控比例阀
Electric Regulator
EV2500-108-C11B4 1Pcs CKD

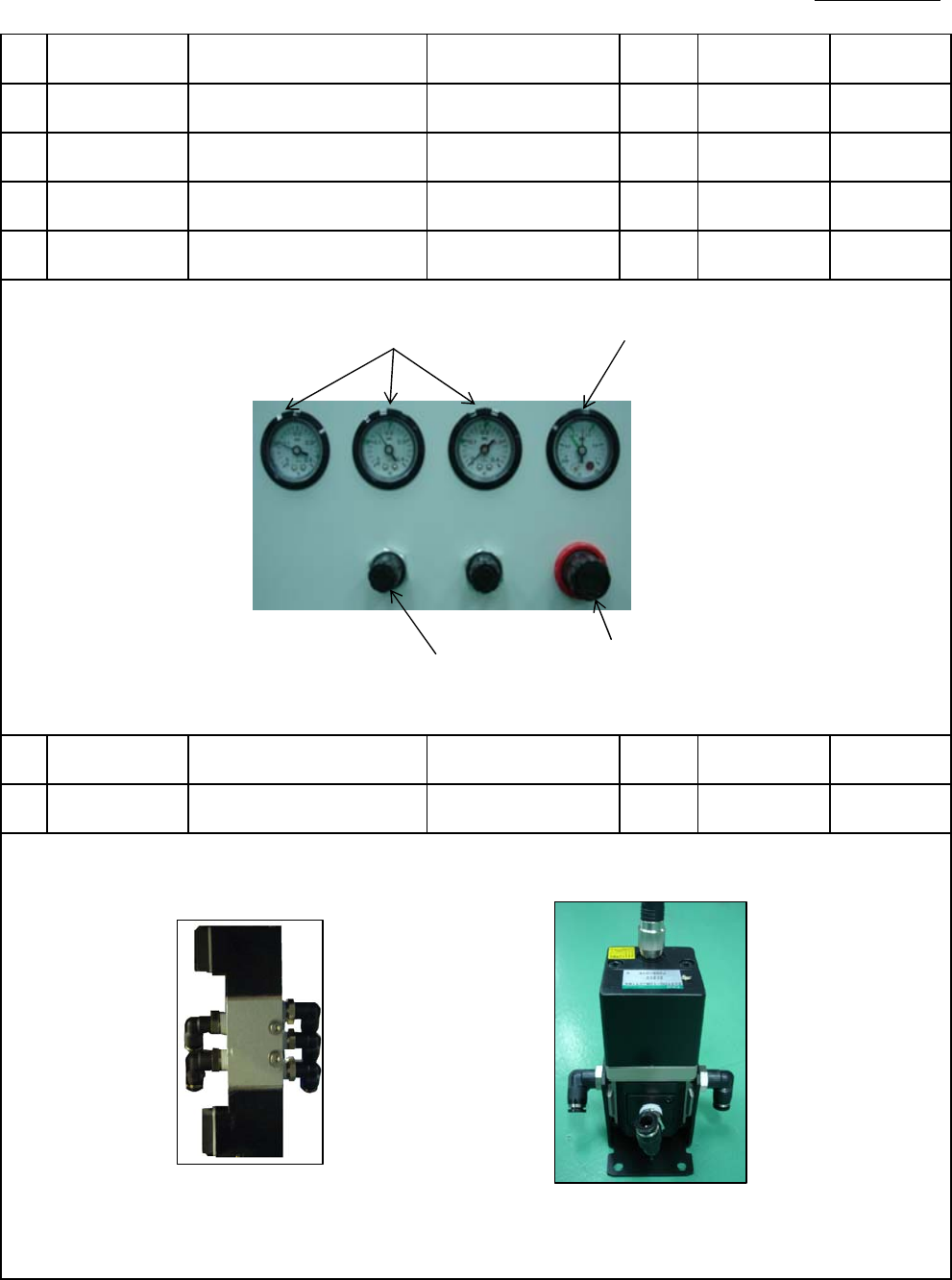

N05001-05-01 调压阀
Pressure Reducing Valve
N05001-05-02 调压阀
Pressure Reducing Valve
N05001-05-04 压力表
Pressure Meter
N05001-05-03 压力表
Pressure Meter
N05001-06-01 电磁阀
Solenoid Valve
N05001-07-01 电控比例阀
Electric Regulator
