Meister MS-510
区分
RANK
项 番
Parts No.
部品名称
Parts Name
型 号
Model
数量/台
QTY
备 注
Remark
厂 家
Maker
B2 N05001-01-03
减压阀
Regulator
HR200-02-B 1Pcs KOGANEI
B2 N05001-01-12
压力表
Pressure Meter
G43-4-02 1Pcs SMC
B2 N05001-01-05
速度控制阀
Speed Control Valve
SC6-02-A 1Pcs PISCO
B1 N05001-02-02
排气阀
Exhaust Valve
300V-3-1W 1Pcs KOGANEI
A2 N05001-02-04
空气过滤器
Air Filter
F300-03 1Pcs KOGANEI
A2 N05001-04-01
废气过滤器
Exhaust Filter
EF300-03 1Pcs KOGANEI
N05001-01-03 减压阀
Regulator
N05001-01-12 压力表
Pressure Meter
N05001-04-01 废气过滤器
Exhaust Filter
N05001--01-05 速度控制阀
Speed Control Valve
N05001-02-02 排气阀
Exhaust Valve
N05001-02-04 空气过滤器
Air Filter
— 3 —
Meister MS-510
区分
RANK
项 番
Parts No.
部品名称
Parts Name
型 号
Model
数量/台
QTY
备 注
Remark
厂 家
Maker
B2 N05001-05-01
调压阀
Pressure Reducing Valve
R300-03 1Pcs KOGANEI
B2 N05001-05-02
调压阀
Pressure Reducing Valve
HR200-02 2Pcs KOGANEI
B2 N05001-05-03
压力表
Pressure Meter
G46-4-01M 3Pcs SMC
B2 N05001-05-04
压力表
Pressure Meter
GP46-10-01ML5-C 1Pcs SMC
A2 N05001-06-01
电磁阀
Solenoid Valve
F18T4-F4-PS 1Pcs KOGANEI
A2 N05001-07-01
电控比例阀
Electric Regulator
EV2500-108-C11B4 1Pcs CKD
N05001-05-01 调压阀
Pressure Reducing Valve
N05001-05-02 调压阀
Pressure Reducing Valve
N05001-05-04 压力表
Pressure Meter
N05001-05-03 压力表
Pressure Meter
N05001-06-01 电磁阀
Solenoid Valve
N05001-07-01 电控比例阀
Electric Regulator
— 4 —
Meister MS-510
区分
RANK
项 番
Parts No.
部品名称
Parts Name
型 号
Model
数量/台
QTY
备 注
Remark
厂 家
Maker
B2 N11002
气缸
Cylinder
CDAS50×150-B 2Pcs KOGANEI
A2 N11002-2
气缸感应器
Cylinder Sensor
ZE155A1 2Pcs KOGANEI
B2 N11015
减震器
Absorber
FK-2530 2Pcs FUJISEIKI
B2 N11031
减震器
Absorber
FK2022-R-HT1 2Pcs FUJISEIKI
B2 N11024
联轴节
Coupling
UC-45 1Pcs SAKAI
A2 N11025
电机驱动套件
Motor and Driver
1Set ORIENTAL
B2 N11025-1
电机
Motor
FBL440A-200 1Pcs ORIENTAL
B2 N11025-2
电机驱动器
Motor Driver
FBLD40A 1Pcs ORIENTAL
B2 N11025-3
电机电缆
Cable
CC07FBL 1Pcs ORIENTAL
A2 N11041
光电传感器
PhotoSensor
EE-SX672A 1Pcs OMRON

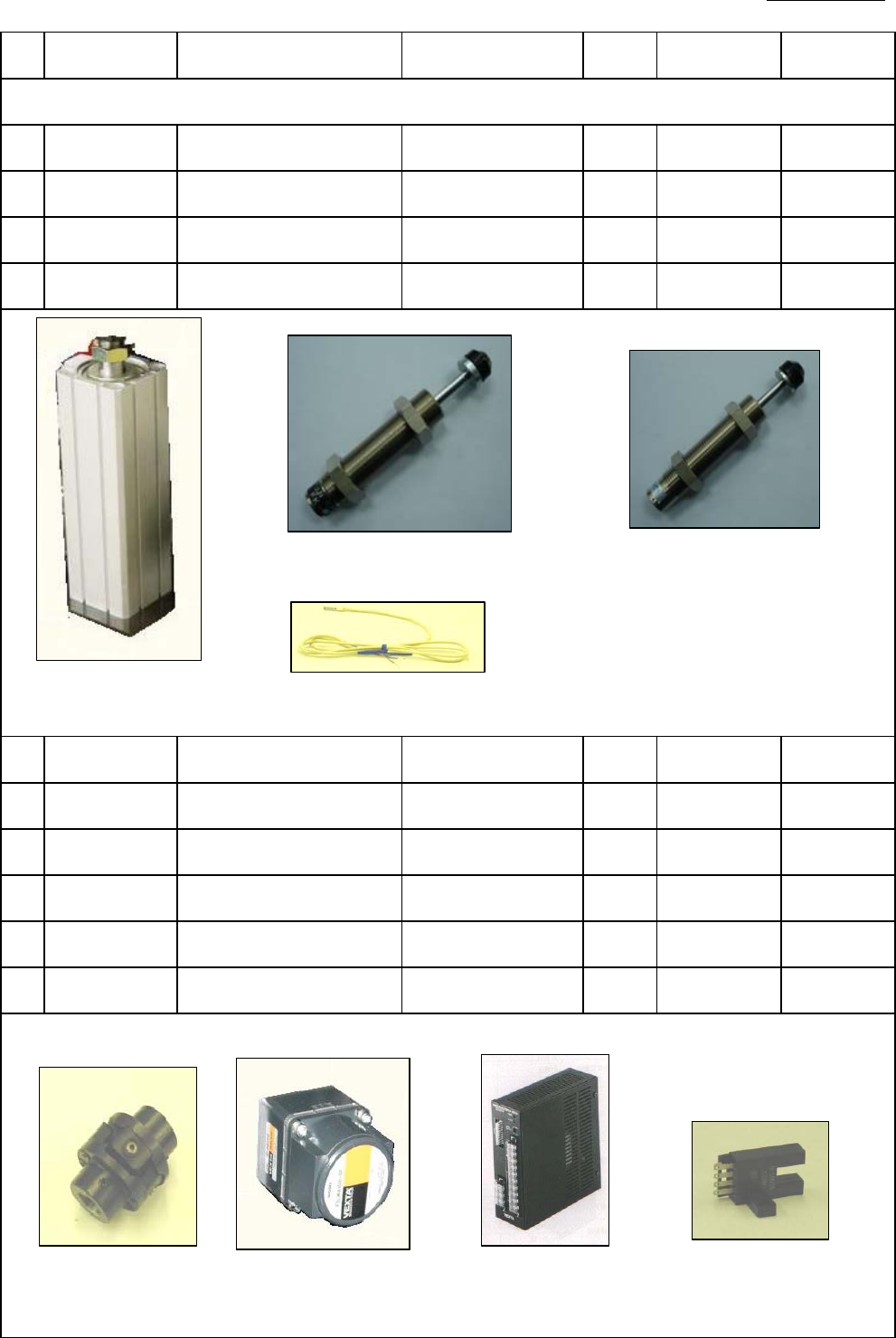

Z轴升降部
Z Axis Unit
N11002 气缸
Cylinder
N11015 减震器
Absorber
N11002-2 气缸感应器
Cylinder Sensor
N11031 减震器
Absorber
N11024 联轴节
Coupling
N11025-1 电机
Motor
N11025-2 电机驱动器
Motor Driver
N11041 光电传感器
PhtS
