PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 15 ﾌﾟﾘﾝﾄ基板ﾎﾟｼﾞｼｮﾅ部(1) P.C.B. POSITIO NER SECT .(1) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610061375AA POSITIONER UN IT ﾎﾟｼﾞｼｮﾅﾕﾆｯﾄ 1 002 N210066295AA GUIDE ｶﾞｲﾄﾞ 1 003 N21006618…

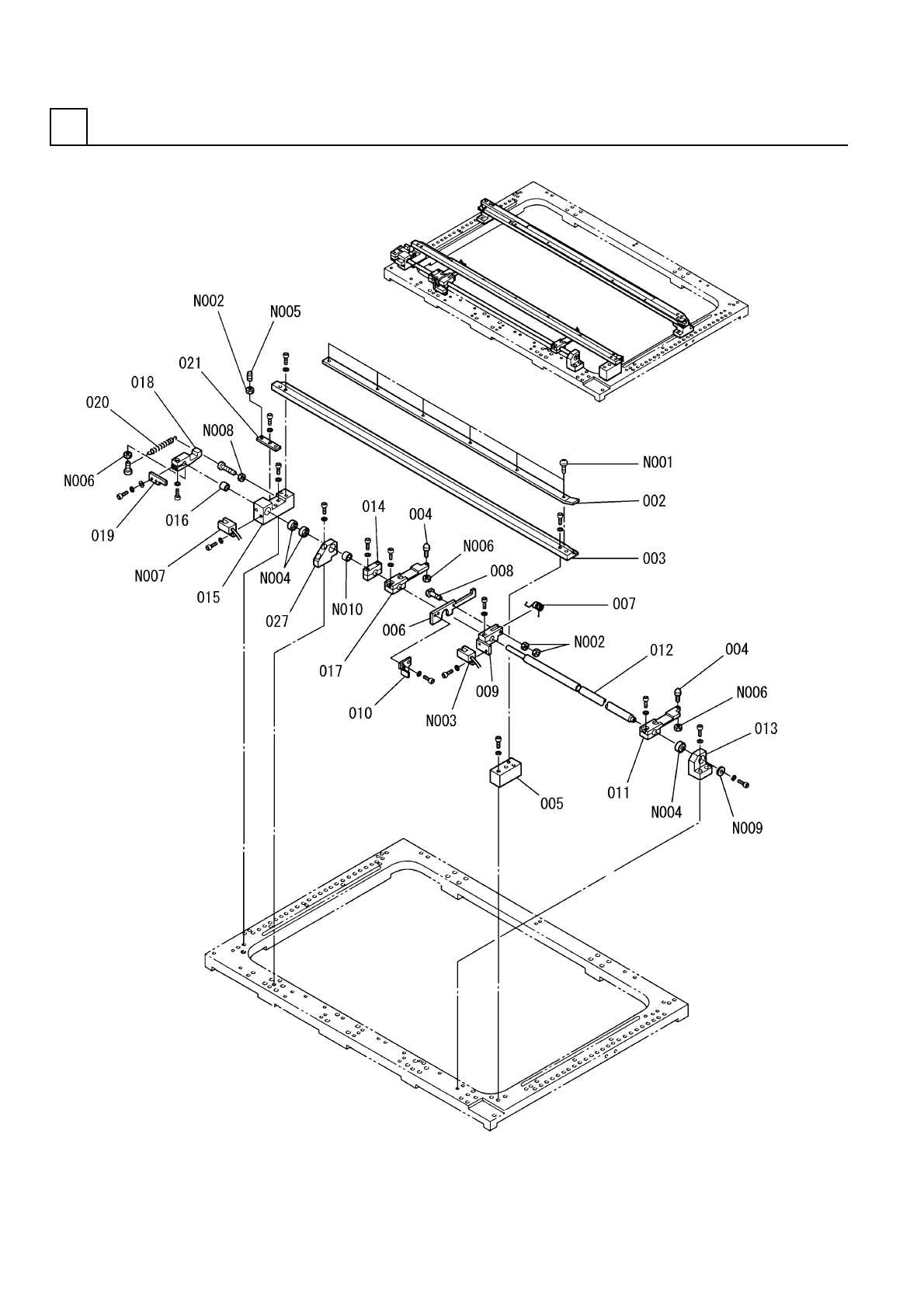

ﾌﾟﾘﾝﾄ基板ﾎﾟｼﾞｼｮﾅ部(1)
P.C.B. POSITIONER SECT.(1)
15
FN610061375AA_00-1
M125
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
15
ﾌﾟﾘﾝﾄ基板ﾎﾟｼﾞｼｮﾅ部(1)
P.C.B. POSITIONER SECT.(1)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610061375AA
POSITIONER UNIT ﾎﾟｼﾞｼｮﾅﾕﾆｯﾄ
1
002 N210066295AA
GUIDE ｶﾞｲﾄﾞ
1
003 N210066184AC
GUIDE ｶﾞｲﾄﾞ
2004 1087188201
PIN ﾋﾟﾝ
1005 1087114005
BLOCK(R) ﾌﾞﾛｯｸ(R)
1
006 1041314011
LEVER ﾚﾊﾞｰ
1
007 102030401203
SPRING ﾊﾞﾈ
1008 102030401301
PIN ﾋﾟﾝ
1009 108711400901
BLOCK ﾌﾞﾛｯｸ
1
010 108711401001
DOG FOR SENSOR ﾄﾞｸﾞ
D=5.0
1011 102030401601
LEVER ﾚﾊﾞｰ
1012 108711401202
SHAFT ｼｬﾌﾄ
1
013 N210068279AB
BLOCK ﾌﾞﾛｯｸ
C=5.0
1
014 102030402604
BLOCK ﾌﾞﾛｯｸ
1015 108711401502
BLOCK(L) ﾌﾞﾛｯｸ(L)
1016 108711401601
COLLAR ｶﾗｰ
D=5.0
1
017 102030403402
LEVER ﾚﾊﾞｰ
1
018 108711401803
LEVER ﾚﾊﾞｰ
1019 108711401902
DOG FOR SENSOR ﾄﾞｸﾞ
1020 1087114020
SPRING ﾊﾞﾈ
1
021 108711402102
PLATE ﾌﾟﾚｰﾄ
1
027 1087114027
BLOCK ﾌﾞﾛｯｸ
M3X5-4.8 A2J (Trivalen
6
N001
N510018251AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M4-6H-4T A2J (Trivalen
3
N002
N510017859AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
P914SA1
1
N003
N310P914SA1
SENSOR ｾﾝｻ
6800ZZ
3
N004
KXF00M6AA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M4X10-45H A2J (Trivale
1
N005
N510018427AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾝﾂｷﾄﾒﾈｼﾞ
M3-6H-4T A2J (Trivalen
3
N006
N510017852AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
P914S1
1
N007
N310P914S1
SENSOR ｾﾝｻ
M5-6H-4T A2J (Trivalen
1
N008
N510017865AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
87FWSSB-D12.0-V5.0-T2.
1
N009
N510028918AA
WASHER ﾜｯｼｬ
K5B1512
1
N010
N510022574AA
BUSHING ﾌﾞｯｼｭ
M126
FN610061375AA_00-1

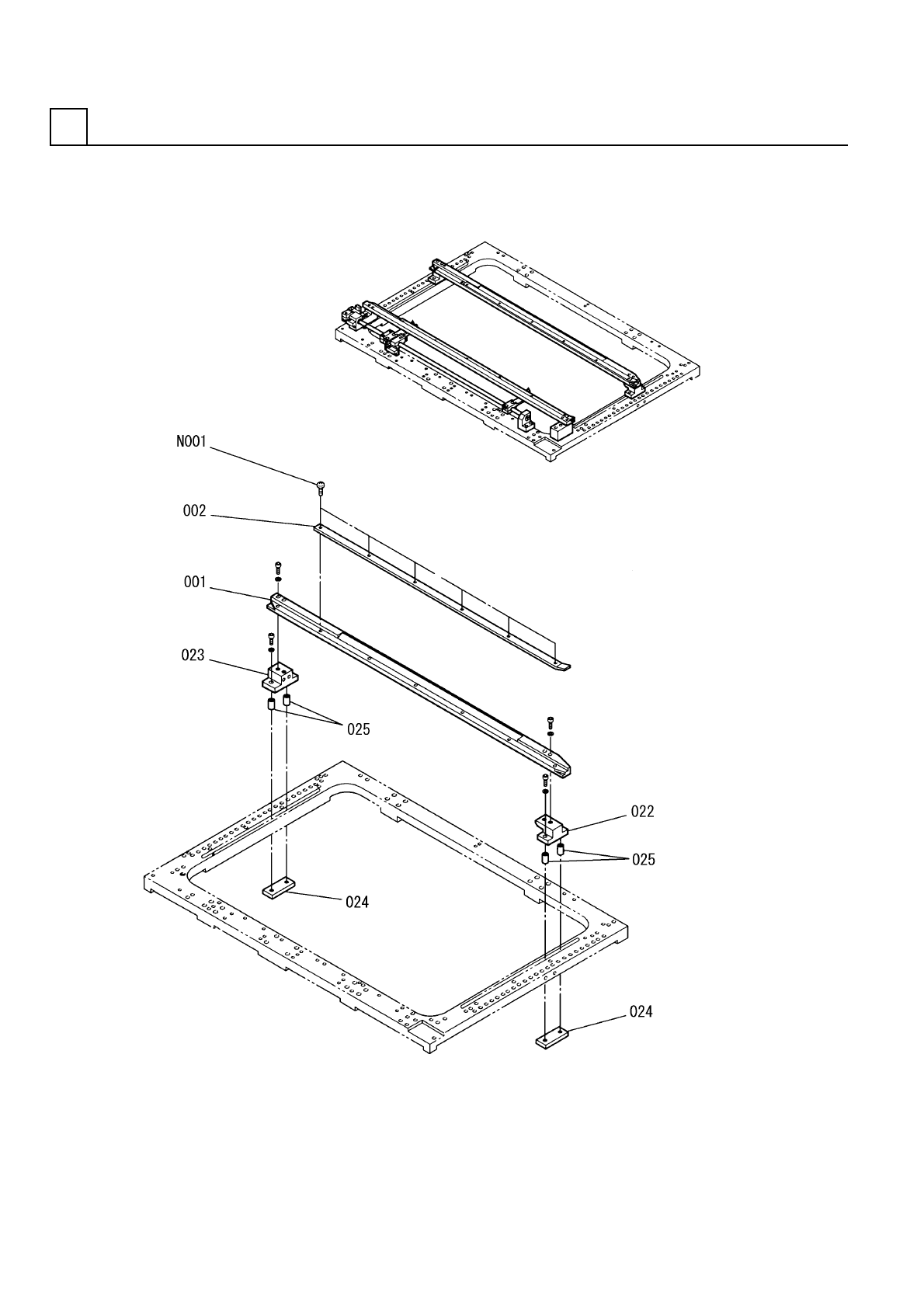

ﾌﾟﾘﾝﾄ基板ﾎﾟｼﾞｼｮﾅ部(2)
P.C.B. POSITIONER SECT.(2)
15
FN610061375AA_00-2
