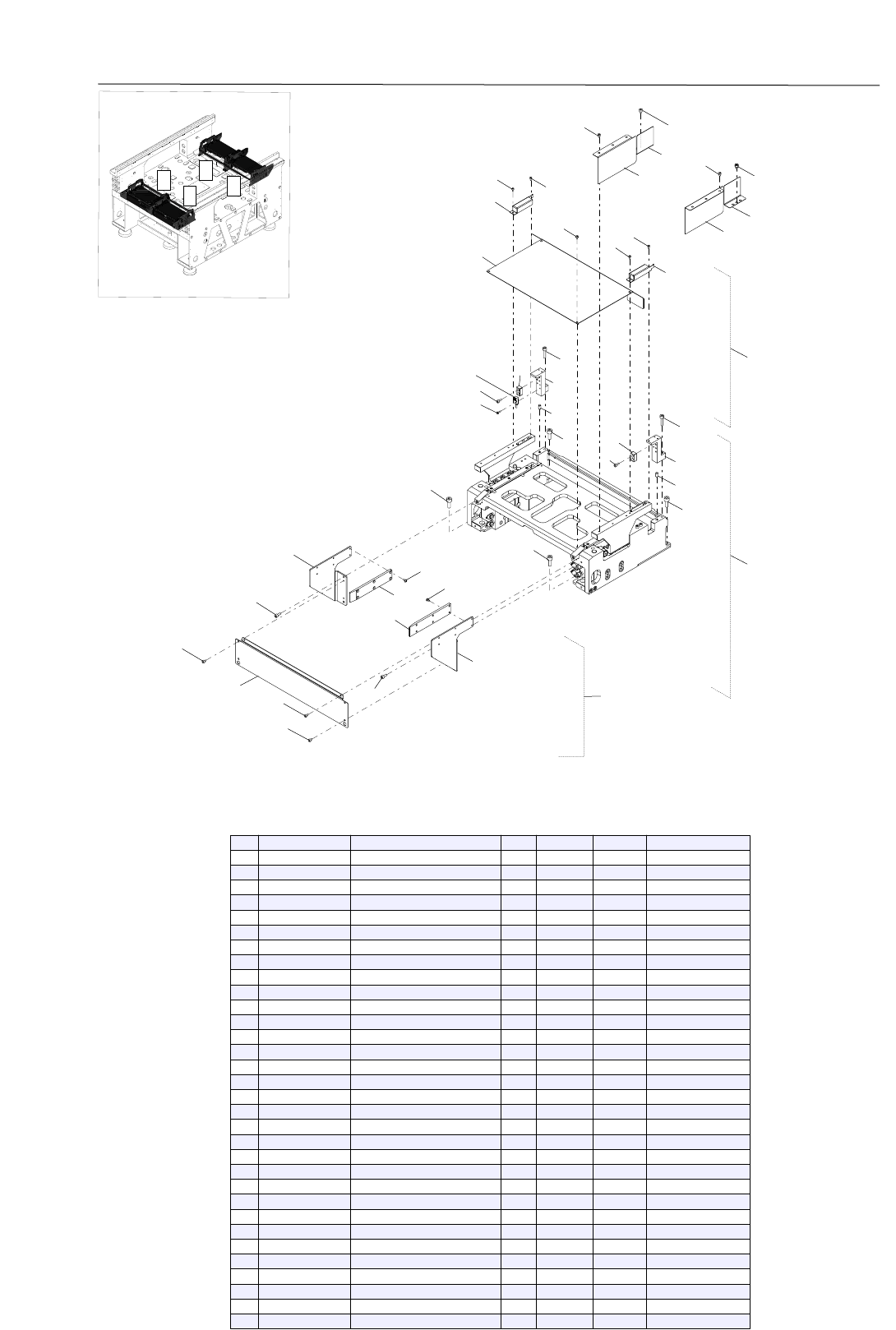

FES32 Carriage (Cover)
Feeder
KLW-1502
3-9
OLD
OLD
Fig 1
Fig 2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90172-00J050
WASHER, EXTL, TOOTHED
2
2
90990-01J074
BOLT HEX,SOCKET HEAD
2
3
91317-04018
BOLT HEX,SOCKET HEAD
8
l=18mm
3-1
91317-04016
BOLT HEX,SOCKET HEAD
8
l=16mm
NG
MM30118-2015/3/31
3-2
91317-04014
BOLT HEX,SOCKET HEAD
8
l=14mm
NG
MM50239-2015/6/2
4
92B12-05012
SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP
2
5
98707-03006
SCREW,FLAT HEAD
8
6
KLW-M373S-00
PLATE,WEIGHT
6
t=4.5mm
6-1
KLW-M373S-01
PLATE,WEIGHT
4
t=6mm
NG
MM30118-2015/3/31
7
KLW-M373T-01
COVER,SS R
1
7-1
KLW-M373T-02
COVER,SS R
1
NG
MN90083-2016/9/30
8
KLW-M373U-01
COVER,SS L
1
8-1
KLW-M373U-02
COVER,SS L
1
NG
MN90083-2016/9/30
9
KLW-M373V-01
BRKT.,SS COVER R
1
M4 spacer Fig 1
9-1
KLW-M373V-02
BRKT.,SS COVER R
1
M4 direct Fig 2
NG
MM50239-2015/6/2
9-2
KLW-M373V-03
BRKT.,SS COVER R
1
NG
MN90083-2016/9/30
10
KLW-M373W-01
BRKT.,SS COVER L
1
M4 spacer Fig 1
10-1
KLW-M373W-02
BRKT.,SS COVER L
1
M4 direct Fig 2
NG
MM50239-2015/6/2
10-2
KLW-M373W-03
BRKT.,SS COVER L
1
NG
MN90083-2016/9/30
11
KLW-M37A2-00
FES32 COVER ASSY.
1
12
90990-01J164
BOLT HEX,SOCKET HEAD
2
13
90990-41J205
COLLAR
2
30
8
6
22
32
12
10
9
22
14
23
31
9
12
24,25,26,27
29
5
9
30
11
8
9
5
13
15
18
2
28
28
17
2
7
16
15
4
19
2
7
2
4
1
4
21
3
20
6
3
A
B
C
D
30
8
6
22
32
12
10
9
22
14
23
31
9
12
24,25,26,27
29
5
9
30
11
8
9
5
13
15
18
2
28
28
17
2
7
16
15
4
19
2
7
2
4
1
4
21
3
20
6
3
FES32 Clamp Unit
Feeder
KLW-1502
3-10
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90990-01J065
BOLT HEX,SOCKET HEAD
4
2
91312-03006
BOLT HEX,SOCKET HEAD
4
3
91312-04005
BOLT HEX,SOCKET HEAD
6
4
91312-04006
BOLT HEX,SOCKET HEAD
6
5
91312-04010
BOLT HEX,SOCKET HEAD
4
6
91312-05006
BOLT HEX,SOCKET HEAD
4
7
91312-05012
BOLT HEX,SOCKET HEAD
4
8
91312-06025
BOLT HEX,SOCKET HEAD
2
9
91312-08020
BOLT HEX,SOCKET HEAD
4
10
KLW-M3J0C-00
BLOCK,STOPPER L
1
11
KLW-M3J0D-00
BLOCK,STOPPER R
1
12
KLW-M3J0F-00
STOPPER
2
13
KLW-M3J11-00
PLATE,GUIDE L
1
14
KLW-M3J12-00
PLATE,GUIDE R
1
15
KLW-M3J13-00
GUIDE,FES
2
16
KLW-M3J14-00
COVER,CLAMP
1
17
KLW-M3J1B-01
COVER,UPPER
1
18
KLW-M3J1C-00
COVER,CONNECTOR L
1
19
KLW-M3J1D-00
COVER,CONNECTOR R
1
20
KLW-M3J1G-00
COVER,CLAMP L
1
B,D
21
KLW-M3J1H-00
COVER,CLAMP R
1
A,C
22
KLW-M3J1J-00
COVER,CLAMP FRONT
2
23
KLW-M3JA0-00
C/U MAIN ASSY.
1
24
KLW-M653T-00
SEN.F1 CART FWD ASSY
1
A
25
KLW-M653T-10
SEN.F2 CART FWD ASSY
1
B
26
KLW-M653T-20
SEN.R1 CART FWD ASSY
1
C
27
KLW-M653T-30
SEN.R2 CART FWD ASSY
1
D
28
92012-04006
BOLT, BOTTON HEAD
12
29
98902-03010
SCREW BINDING HEAD
4
30
99480-06012
PIN,PARALLEL
2
31
KLW-M3JA1-00
FES GUIDE ASSY.
1
32
KLW-M3JA2-00
C/U COVER ASSY.
1
5
14
25
26
10
10
1
7
26
2
13
8
7
27
1
18
8
26
7
17
26
7
8
12
27
12
14
16
10
25
15
5
7
7
11
16
14
25
27
7
7
23
15
2
6
11
13
3
22
19
21
21
24
6
20
9
11
4
2
11
16
8
14
27
15
26
7
13
7
3
5
5
14
25
26
10
10
1
7
26
2
13
8
7
27
1
18
8
26
7
17
26
7
8
12
27
12
14
16
10
25
15
5
7
7
11
16
14
25
27
7
7
23
15
2
6
11
13
3
22
19
21
21
24
6
20
9
11
4
2
11
16
8
14
27
15
26
7
13
7
3
5
Feeder Floating Det.
Feeder
KLW-1409
3-11
Fix 70
Fes 32
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-2N
NYLON CLIP
2
2
90112-02J006
BOLT HEX,SOCKET HEAD
3
3
90990-11J003
SCREW, PAN HEAD W/W
2
4
90K41-001320
LABEL,CAUTION
1
5
90K41-001620
LABEL,CAUTION
3
6
91312-03006
BOLT HEX,SOCKET HEAD
2
7
91312-04010
BOLT HEX,SOCKET HEAD
10
8
91312-05014
BOLT HEX,SOCKET HEAD
4
9
92012-04006
BOLT, BOTTON HEAD
1
10
92902-03200
WASHER,PLAIN
3
11
KLW-M653V-00
SENSOR,FDR.FLT.ASSY
2
12
KLW-M653V-10
SENSOR,FDR.FLT.ASSY
1
13
KGS-M3906-00
BRACKET 6
3
14
KHY-M3901-00
BRACKET SENSOR 2
4
15
KHY-M3910-00
BRACKET SENSOR 1
3
16
KHY-M3951-00
PLATE SENSOR
3
17
KHY-M3952-00
PLATE SENSOR
1
18
KHY-M3953-00
BRACKET SENSOR 3
1
19
KLW-M3902-00
BRKT.,SENSOR L
1
20
KLW-M3904-00
BRKT.,SENSOR R
1
21
KLW-M3905-00
PLATE,NUT
2
22
KLW-M3907-00
BLOCK,SENSOR
1
23
KLW-M3908-00
STAY,SENSOR
1
24
KLW-M3909-00
COVER,SENSOR
1
25
91312-03010
BOLT HEX,SOCKET HEAD
3
26
92902-04200
WASHER,PLAIN
5
27
92902-05200
WASHER,PLAIN
4
