X-Axis Cable Duct / Cover
Moving-axis
KLW-1502
4-2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$US10
JOINT
2
2
90990-01J032
BOLT HEX,SOCKET HEAD
8
3
90990-46J015
BOLT, THIN HEAD
5
4
90K41-001320
LABEL,CAUTION
2
5
90K41-001430
LABEL,CAUTION
1
6
90KA1-904503
AC SERVO MOTOR
1
7
91312-04008
BOLT HEX,SOCKET HEAD
16
8
91312-04010
BOLT HEX,SOCKET HEAD
19
9
91312-06018
BOLT HEX,SOCKET HEAD
4
10
97602-03308
SCREW PAN HEAD W/WASHER
6
11
98902-03005
SCREW BINDING HEAD
4
12
KGT-M2266-10
PLATE, NUT
1
13
KGT-M71ST-50
STICKER,HEAD
1
A,B
14
KHY-M221A-A0
COVER DUCT ASSY.
1
15
KHY-M2268-00
BRACKET 1, TAPE
1
16
KKE-M2269-00
BRACKET 2,TAPE
1
17
KKE-M226D-00
PLATE,NUT
1
18
KLW-M220A-00
TAPE 1,X DUCT
1
19
KLW-M220B-00
TAPE 2,X DUCT
1
20
KLW-M220C-00
TAPE 3,X DUCT
1
21
KLW-M220D-00
TAPE,X AXIS
1
21-1
KLW-M220D-00
TAPE,X AXIS
2
OK
MM50058-2015/5/14
22
KLW-M2252-00
STOPPER
1
23
KLW-M2267-A0
CABLE DUCT ASSY.
1
24
KLW-M226A-01
BRACKET,CABLE DUCT
1
25
KLW-M226B-01
COVER 1,BACK X AXIS
1
26
KLW-M226C-01
COVER 2,BACK X AXIS
1
26-1
KLW-M226C-02
COVER 2,BACK X AXIS
1
OK
MM50058-2015/5/14
27
KLW-M227G-00
COVER,B.S.
1
28
KLW-M2282-00
DOG,ORIGIN
1
29
KLW-M2284-00
BRACKET,SENSOR
3
30
KLW-M2285-00
DOG,SECOND LIMIT
1
31
KLW-M22C5-00
UNDER COVER,X AXIS
1
32
KLW-M653B-00
SENSOR,X ORG ASSY
1
33
KLW-M653F-00
SENSOR,X OT1 ASSY
1
34
KLW-M653F-10
SENSOR,X OT2 ASSY
1
35
98902-04006
SCREW BINDING HEAD
4
32
28
15
30
16
29
29
27
22
7
31
30
15
26
17
6
16
10
1
10
4
24
20
23
12
13
3
18
18
2
2
29
29
5
25
24
3
13
12
14
23
2
14
14
11
2
2
14
9
2
8
31
19
21
6
32
28
15
30
16
29
29
27
22
7
31
30
15
26
17
6
16
10
1
10
4
24
20
23
12
13
3
18
18
2
2
29
29
5
25
24
3
13
12
14
23
2
14
14
11
2
2
14
9
2
8
31
19
21
6

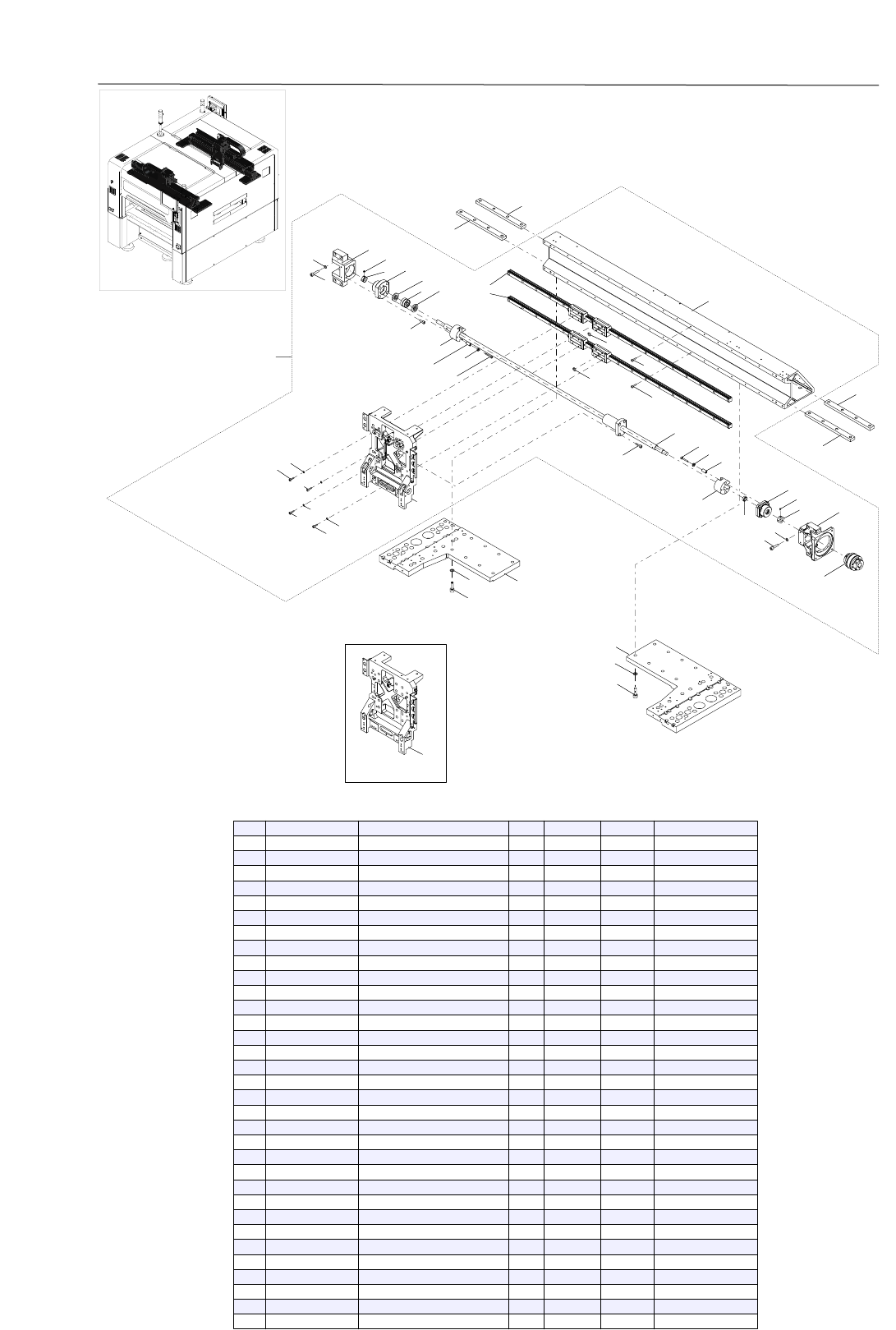

X-Axis SUB Assy
Moving-axis
KLW-1502
4-3
OLD
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90990-26J022
BEARING
1
2
91312-04014
BOLT HEX,SOCKET HEAD
50
3
91312-04025
BOLT HEX,SOCKET HEAD
4
4
91312-05014
BOLT HEX,SOCKET HEAD
4
5
91312-05018
BOLT HEX,SOCKET HEAD
4
6
91312-06025
BOLT HEX,SOCKET HEAD
8
7
KG2-M9173-00
LOCK NUT
1
8
KGS-M2628-00
LOCK NUT
1
9
KHN-M2221-00
SUPPORT UNIT
1
10
KHN-M2248-00
SPACER
2
11
KHN-M224D-00
SPACER
1
12
KHN-M224J-00
COLLAR A
4
13
KHN-M224K-00
COLLAR B
4
14
KHN-M22F4-00
WASHER,SWR04
16
15
KHN-M22F6-00
WASHER,SWR06
8
16
KHN-M22F8-00
WASHER,SWR08
16
17
KHY-M2240-00
SLEEVE,BRG.
1
18
KJV-M3422-00
O-RING
2
19
KKE-M2241-00
HOLDER,MOTOR X
1
20
KLW-M2211-00
FRAME,X AXIS
1
21
KLW-M2220-00
COUPLING,X AXIS
1
22
KLW-M2242-00
HOLDER,BRG.
1
23
KLW-M224H-00
DAMPER
2
24
KLW-M2261-A0
HEAD HOLDER ASSY.
1
24-1
KLW-M2261-A1
HEAD HOLDER ASSY.
1
NG
H021736-2015/9/2
25
KLW-M2271-00
BALL SCREW
1
26
KLW-M2276-00
GUIDE SET,X AXIS
1
27
KLW-M2613-00
PLATE A
1
28
KLW-M2614-01
PLATE B
1
29
KV7-M2231-00
SPACER R,NUT
4
30
91312-08025
BOLT HEX,SOCKET HEAD
16
31
92A08-04304
SCREW SET
2
32
KLW-M0201-00
X AXIS SUB ASSY.
1
7
10
19
21
17
10
14
7
11
10
35
35
24
27
3
7
5
7
6
33
2
7
15
32
9
4
36
34
1
10
8
5
16
2
5
5
33
8
1
34
26
36
4
5
28
9
3
18
33
7
2
19
5
23
12
5
25
5
6
11
18
7
10
20
13
32
5
5
22
5
31
15
22
5
5
2
26
33
8
7
5
34
1
9
5
26
28
36
4
36
21
9
4
34
29
10
5
1
8
30
29
5
2
32
18
33
33
2
7
16
10
14
6
27
13
18
24
7
31
23
25
5
5
12
17
20
26
5
5
5
5
30
32
10
6
7
10
19
21
17
10
14
7
11
10
35
35
24
27
3
7
5
7
6
33
2
7
15
32
9
4
36
34
1
10
8
5
16
2
5
5
33
8
1
34
26
36
4
5
28
9
3
18
33
7
2
19
5
23
12
5
25
5
6
11
18
7
10
20
13
32
5
5
22
5
31
15
22
5
5
2
26
33
8
7
5
34
1
9
5
26
28
36
4
36
21
9
4
34
29
10
5
1
8
30
29
5
2
32
18
33
33
2
7
16
10
14
6
27
13
18
24
7
31
23
25
5
5
12
17
20
26
5
5
5
5
30
32
10
6

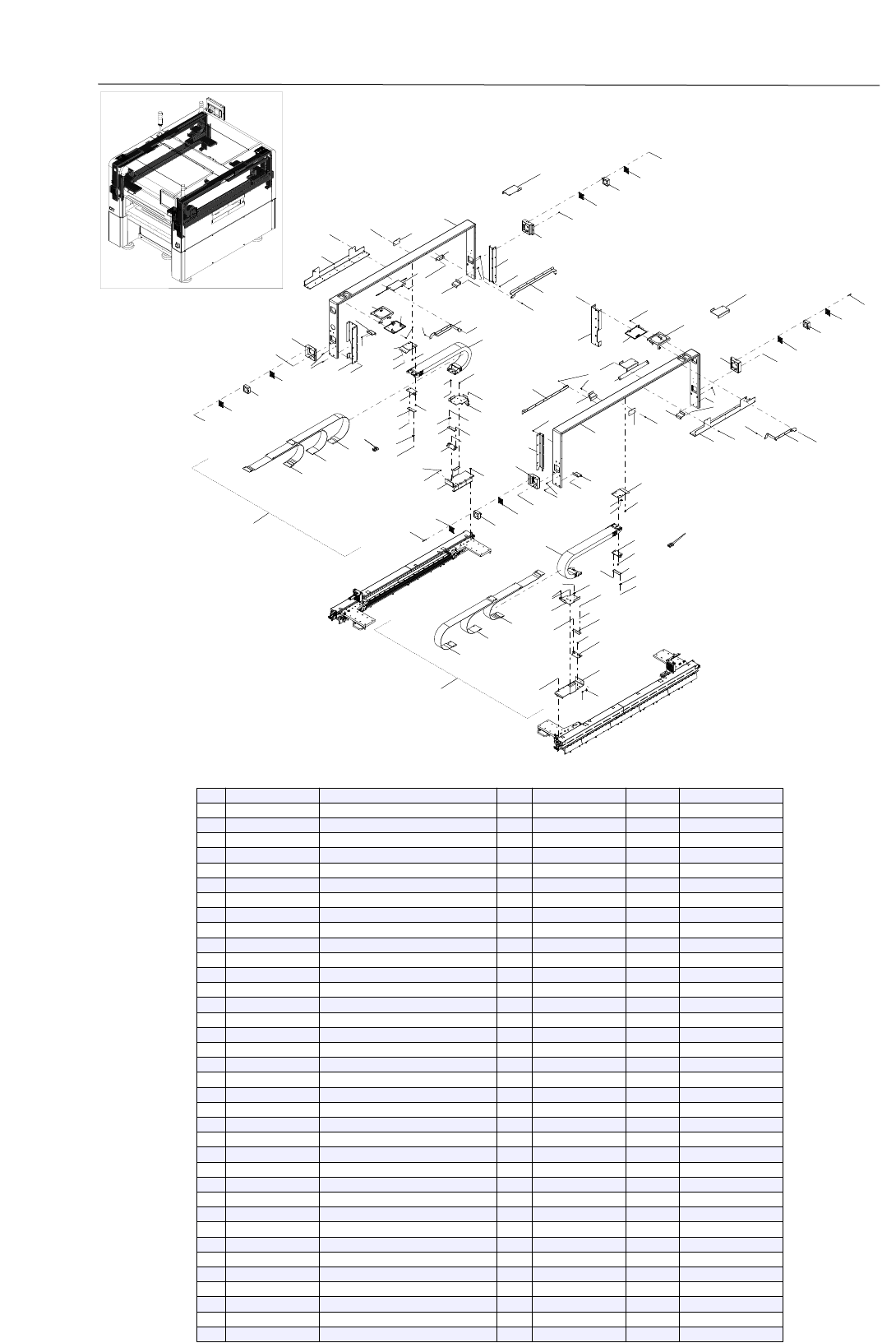

Y-Axis Frame / Duct
Moving-axis
KLW-1504
4-4
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$CTAM2
ANCHOR MOUNT
20
2
$NK-3N
NYLON CLIP
40
3
$US10
JOINT
4
4
90990-01J032
BOLT HEX,SOCKET HEAD
16
5
91312-04008
BOLT HEX,SOCKET HEAD
42
6
91312-04035
BOLT HEX,SOCKET HEAD
16
7
91312-05012
BOLT HEX,SOCKET HEAD
38
8
97602-04306
SCREW PAN HEAD W/WASHER
20
9
KHY-M2669-00
BRACKET,HARNESS
4
10
KJ3-M4187-00
FAN GUARD
8
11
KLW-M260B-00
TAPE 1,Y DUCT
2
12
KLW-M260C-00
TAPE 2,Y DUCT
2
13
KLW-M260D-00
TAPE 3,Y DUCT
2
14
KLW-M2678-00
DUCT,CABLE
2
15
KLW-M2695-03
BRACKET,Y AXIS DUCT
2
16
KLW-M2698-01
BRIDGE,HNS.
2
17
KLW-M26F1-01
FRAME 1
2
18
KLW-M26F3-00
BRKT.,FRAME
4
19
KLW-M26F4-01
STAY,CABLE
2
20
KLW-M26F6-00
BRKT.,CABLE 1
2
21
KLW-M26F7-00
BRKT.,FAN 1
2
22
KLW-M26F8-01
BRKT.2,COVER 2
2
23
KLW-M26F9-01
BRKT.1,COVER 1
2
24
KLW-M26FB-01
BRKT.2,COVER 1
2
25
KLW-M26FC-00
BRKT.3,COVER 1
2
26
KLW-M26FE-01
AIR DUCT,FAN 2
4
27
KLW-M26FF-01
BRKT.,LED
2
With illumination
28
KLW-M26FF-11
BRACKET
2
No illumination
29
KLW-M26FG-00
COVER,FAN
2
30
KLW-M26FH-00
BRKT.,SW.HNS.1
2
31
KLW-M26FJ-00
BRKT.,SW.HNS.2
2
32
KLW-M6185-90
FAN MOTOR
4
33
97602-04308
SCREW PAN HEAD W/WASHER
40
34
98502-03005
SCREW PAN HEAD
8
35
KLW-M2678-A0
CABLE DUCT ASSY.
2
36
KV7-M2266-00
PLATE, NUT
4
