YSM20_KLW_pl.pdf - 第83页
21 38 9 31 42 21 24 32 9 9 41 8 10 9 33 35 36 1 19 25 16 9 4 6 2 22 40 6 10 39 14 29 5 3 1 33 5 15 6 2 36 9 34 37 40 10 28 3 10 2 20 15 17 10 27 37 4 38 3 2 18 25 7 28 9 26 10 23 24 3 2 10 3 29 17 25 24 3 4 3 13 30 5 24 …
49
14
39
47
42
50
26
48
32
18
11
6
28
2
25
12
21
9
39
10
33
41
2
22
32
42
40
19
36
6
21
20
12
29
40
1
16
4
43
33
9
24
13
28
7
9
41
11
23
45
3
10
8
42
40
15
19
43
34
17
20
40
42
44
1
38
4
26
35
13
7
8
5
11
45
31
27
3
8
37
46
30
17
44
38
35
44
35
Board Width Adjust
Conveyor
KLW-1412
8-5
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90933-01J200
BEARING
2
2
90990-25J024
BEARING
4
3
90990-28J070
WASHER,PLAIN
2
4
90990-28J110
WASHER,PLAIN
2
5
90KC1-011306
AC SERVO MOTOR
1
6
91312-04005
BOLT HEX,SOCKET HEAD
4
7
91312-04008
BOLT HEX,SOCKET HEAD
4
8
91312-04010
BOLT HEX,SOCKET HEAD
6
9
91312-04014
BOLT HEX,SOCKET HEAD
9
10
91312-04016
BOLT HEX,SOCKET HEAD
18
11
KG7-M9111-01
PULLEY 1
3
12
KH2-M9121-00
BEARING
2
13
KHW-M9139-00
PLATE,BRG.
2
14
KHY-M9151-00
DAMPER A
1
15
KHY-M9152-00
SPACER
1
16
KHY-M9154-00
SPACER
1
17
KKE-M919C-00
COLLAR 2,BRG.
2
18
KKE-M919U-00
DAMPER A
1
19
KKT-M9101-00
STAY
2
20
KKT-M9102-00
PLATE 1
2
21
KKT-M9103-00
PLATE A
2
22
KKT-M9105-00
PLATE 1A
1
23
KKT-M9105-10
PLATE 1A
1
24
KKT-M9106-00
PLATE ,GUIDE
1
25
KKT-M9106-10
PLATE ,GUIDE
1
26
KKT-M9138-00
PLATE,GUIDE
2
27
KLW-M9109-00
BRKT.,MOTOR
1
28
KLW-M9116-00
LM GUIDE
2
29
KLW-M911G-00
BRKT.,STOPPER
1
30
KLW-M911R-00
PLATE,TENSIONER
1
31
KLW-M912B-00
BELT 2025-3GT-9
1
32
KLW-M9A00-00
BALL SCREW W
2
33
91312-04020
BOLT HEX,SOCKET HEAD
8
34
91312-04040
BOLT HEX,SOCKET HEAD
1
35
91312-05008
BOLT HEX,SOCKET HEAD
6
36
91312-05010
BOLT HEX,SOCKET HEAD
2
37
91312-05012
BOLT HEX,SOCKET HEAD
4
38
91312-05030
BOLT HEX,SOCKET HEAD
2
39
91312-06012
BOLT HEX,SOCKET HEAD
4
40
91312-06014
BOLT HEX,SOCKET HEAD
8
41
91312-06016
BOLT HEX,SOCKET HEAD
4
42
91312-06020
BOLT HEX,SOCKET HEAD
16
43
92902-04200
WASHER,PLAIN
2
44
92902-05200
WASHER,PLAIN
3
45
92A08-04303
SCREW SET
4
46
92A08-04305
SCREW SET
1
47
KLW-M91H3-A0
STAND SUB ASSY.
1
48
KLW-M91H4-A0
STAND SUB ASSY.
1
49
KLW-M91MD-A0
MOTOR SUB ASSY.
1
50
KLW-M91G7-A0
TENSIONER ASSY.
1
21
38
9
31
42
21
24
32
9
9
41
8
10
9
33
35
36
1
19
25
16
9
4
6
2
22
40
6
10
39
14
29
5
3
1
33
5
15
6
2
36
9
34
37
40
10
28
3
10
2
20
15
17
10
27
37
4
38
3
2
18
25
7
28
9
26
10
23
24
3
2
10
3
29
17
25
24
3
4
3
13
30
5
24
5
6
39
12
11
3
25
16
4
5

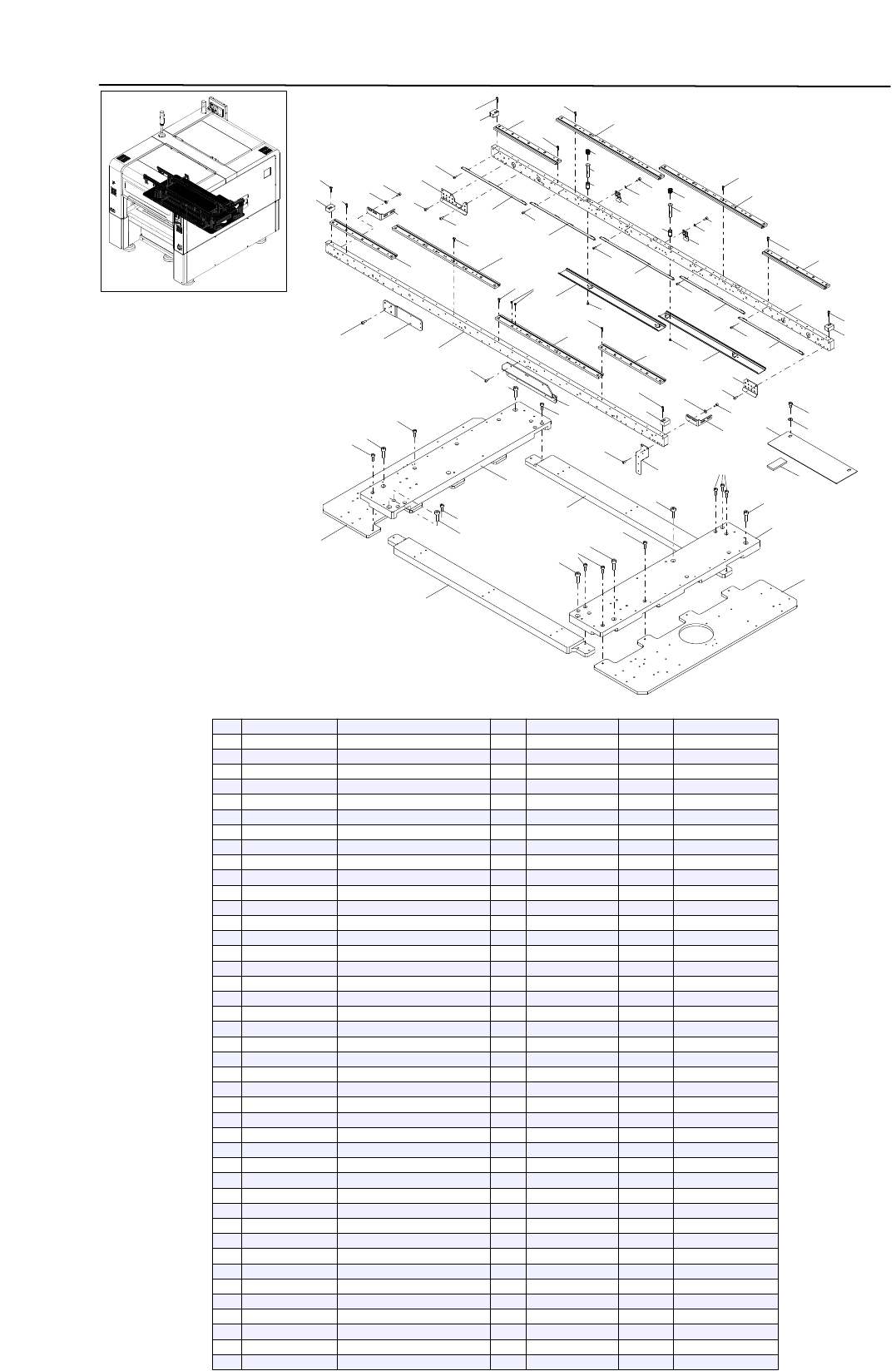

Base / Guide / Brkt. Sensor
Conveyor
KLW-1412
8-6
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90990-01J064
BOLT HEX.SOCKET HEAD
4
2
91312-03008
BOLT HEX,SOCKET HEAD
40
3
91312-03010
BOLT HEX,SOCKET HEAD
52
4
91312-03014
BOLT HEX,SOCKET HEAD
8
5
91312-04008
BOLT HEX,SOCKET HEAD
10
6
91312-04010
BOLT HEX,SOCKET HEAD
12
7
91312-05010
BOLT HEX,SOCKET HEAD
2
8
91312-06010
BOLT HEX,SOCKET HEAD
2
9
91312-06016
BOLT HEX,SOCKET HEAD
20
10
91312-08025
BOLT HEX,SOCKET HEAD
8
11
KKE-M9131-00
PLATE,HNS.
1
12
KKT-M912A-00
BRKT.,SENSOR
1
13
KKT-M9147-00
GUIDE.HNS.
1
14
KKT-M9275-00
BRKT.,SENSOR
1
15
KLC-M9203-00
LINEAR BUSHING
4
16
KLV-M917S-00
GUIDE
2
17
KLV-M917T-00
GUIDE
2
18
KLW-M9112-00
BRKT.,STOPPER
1
19
KLW-M911L-00
PLATE,PIN GUARD
1
20
KLW-M911M-00
PLATE,PIN GUARD
1
21
KLW-M911N-00
STAY,SENSOR
4
22
KLW-M911P-00
GUIDE,HNS.
1
23
KLW-M9121-00
FRAME,CONVEYOR
1
24
KLW-M9122-00
PLATE,GUIDE
4
25
KLW-M9123-00
PLATE,GUIDE
4
26
KLW-M9126-00
FRAME,CONVEYOR
1
27
KLW-M9127-00
PLATE,GUIDE
2
It's on both sides.
28
KLW-M9128-00
PLATE,GUIDE
4
It's on both sides.
29
KLW-M9129-00
PLATE,GUIDE
4
It's on both sides.
30
KLW-M9133-00
BRKT.,STOPPER
1
31
KLW-M9136-00
PLATE
1
32
KLW-M9137-00
DAMPER
2
33
KLW-M913B-00
PLATE
2
34
KLW-M913C-00
PLATE
1
35
KLW-M913D-00
PLATE
1
36
KLW-M913E-00
PLATE
2
37
KLW-M914G-00
PIN
4
38
KLW-M914K-00
SPRING
4
39
92902-04200
WASHER,PLAIN
4
40
92902-04600
WASHER,PLAIN
8
41
92902-06200
WASHER,PLAIN
2
42
95302-03700
NUT HEXAGON
4
5
15
18
19
14
12
13
5
12
16
5
19
18
2
17
2
16
7→21
11
2
2
2
3
1
2
10
19
14
5
9
1
1
4
7
18
13
2
5
12
4
17
8
16
4
1
2
5
15
4
4
19
18
14
5
12
4
13
11
17
3
1
13
15
12
4
3
16
2
4
17
10
18
9
1
19
6
1
15
14
19
5
18
8
4
13
1
4
2
17
5
2
4
2
16
15
14
4
14
15
4
3
5
16
4
13
17
5
4
12
6→20
5
4
5
5
15
18
19
14
12
13
5
12
16
5
19
18
2
17
2
16
7→21
11
2
2
2
3
1
2
10
19
14
5
9
1
1
4
7
18
13
2
5
12
4
17
8
16
4
1
2
5
15
4
4
19
18
14
5
12
4
13
11
17
3
1
13
15
12
4
3
16
2
4
17
10
18
9
1
19
6
1
15
14
19
5
18
8
4
13
1
4
2
17
5
2
4
2
16
15
14
4
14
15
4
3
5
16
4
13
17
5
4
12
6→20
5
4
5
Sensor
Conveyor
KLW-1412
8-7
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
91312-03006
BOLT HEX,SOCKET HEAD
16
2
92A08-03304
SCREW SET
16
3
97602-03310
SCREW PAN HEAD W/WASHER
8
4
98502-03005
SCREW PAN HEAD
32
5
KLF-M9156-01
HOLDER, SENSOR
16
6
KLW-M653H-00
SEN.L1 CV RIGHT ASSY
2
6-1
KLW-M653H-00
SEN.L1 CV RIGHT ASSY
1
After the Y34600
OK
MM40199-2015/5/7
7
KLW-M653J-10
SEN.L1 CV LEFT ASSY
2
7-1
KLW-M653J-10
SEN.L1 CV LEFT ASSY
1
After the Y34600
OK
MM40199-2015/5/7
8
KLW-M653L-00
SENSOR PUSH1-1 ASSY
2
9
KLW-M653L-10
SENSOR PUSH1-2 ASSY
2
10
KLW-M653L-20
SENSOR PUSH2-1 ASSY
2
11
KLW-M653L-30
SENSOR PUSH2-2 ASSY
2
12
KLW-M654A-00
SENSOR SL CV1 ASSY (Fiber+Amp)
2
KLW-M654B-00 (Amp) KHM-M654B-01 (Fiber)
13
KLW-M654A-10
SENSOR SL CV2 ASSY (Fiber+Amp)
2
KLW-M654B-10 (Amp) KHM-M654B-01 (Fiber)
14
KLW-M654A-30
SENSOR SL CV4 ASSY (Fiber+Amp)
2
KLW-M654B-30 (Amp) KHM-M654B-01 (Fiber)
15
KLW-M654A-40
SENSOR SL CV5 ASSY (Fiber+Amp)
2
KLW-M654B-40 (Amp) KHM-M654B-01 (Fiber)
16
KLW-M654A-50
SENSOR SL CV6 ASSY (Fiber+Amp)
2
KLW-M654B-50 (Amp) KHM-M654B-01 (Fiber)
17
KLW-M654A-60
SENSOR SL CV7 ASSY (Fiber+Amp)
2
KLW-M654B-60 (Amp) KHM-M654B-01 (Fiber)
18
KLW-M654A-70
SENSOR SL CV8 ASSY (Fiber+Amp)
2
KLW-M654B-70 (Amp) KHM-M654B-01 (Fiber)
19
KLW-M654A-80
SENSOR SL CV9 ASSY (Fiber+Amp)
2
KLW-M654B-80 (Amp) KHM-M654B-01 (Fiber)
20
KLW-M653U-40
SEN.L1 CV RIGHT ASSY
1
After the Y34600
OK
MM40199-2015/5/7
21
KLW-M653U-70
SEN.L1 CV LEFT ASSY
1
After the Y34600
OK
MM40199-2015/5/7
