Cerno 508.1
Specications
Facilities
Requirements
System footprint 508.1 S 1700 x 1700 mm (66.9 x 66.9 in.)
508.1 Two-Segment 2020 x 1750 mm (79.5 x 68.9 in.)
Compressed air 6 bar (90 psi) min., 8 bar (110 psi) max.
Power (mains)
(8)
508.1 S
508.1 Two-Segment
400V/480VAC, 50-60 Hz, 3-phase, 10
kW, 16 A without preheating, or 17 kW,
28 A with preheating
400V/480VAC, 50-60 Hz, 3-phase, 16
kW, 35 A without preheating, or 24 kW,
32 A with preheating
Nitrogen 99.99% (4.0) pure, 4-6 bar (60-90 psi), 1.3 m³/hour (single pot), 2.6 m³/hour (dual pot)
Ventilation 150 m³/hour (90 SCFM), one 100 mm (4.0 in.) dia. duct
System weight
(9, 10)
850 kg (1870 lbs.)
Standards
Compliance
SMEMA, CE
(8) Electrical power varies depending on the conguration.
(9) System weight varies depending on the conguration.
(10) Conguration dependent. Other congurations may be available. Contact Nordson.
Cerno 508.1
System Solutions
Essential —
Cerno 508.1 S
Single-pot selective
soldering for
batch and in-line
production .
An all-in-one ux, preheat, and selective soldering solution equipped with a
single station and single solder pot, ideal for precise batch processing.
Flexible Eiciency —
Cerno 508.1
Two-Segment
Dual-pot selective
soldering in three
modes for batch and
in-line production .
An all-in-one ux, preheat, and selective soldering solution equipped with
two stations, dual solder pots, top and bottom-side preheat, and precision
single-lane in-line processing.
Nordson Electronics Solutions builds the future of electronics reliability all across the globe. We’re proud of the decades of
service and solutions we’ve provided to enhance product reliability. No matter where you are, you’ve likely manufactured or
purchased a product made reliable with our equipment.
Explore the Cerno selective soldering solutions. Continue to see how we support the future.
For more information, contact us at info-electronics@nordson.com.

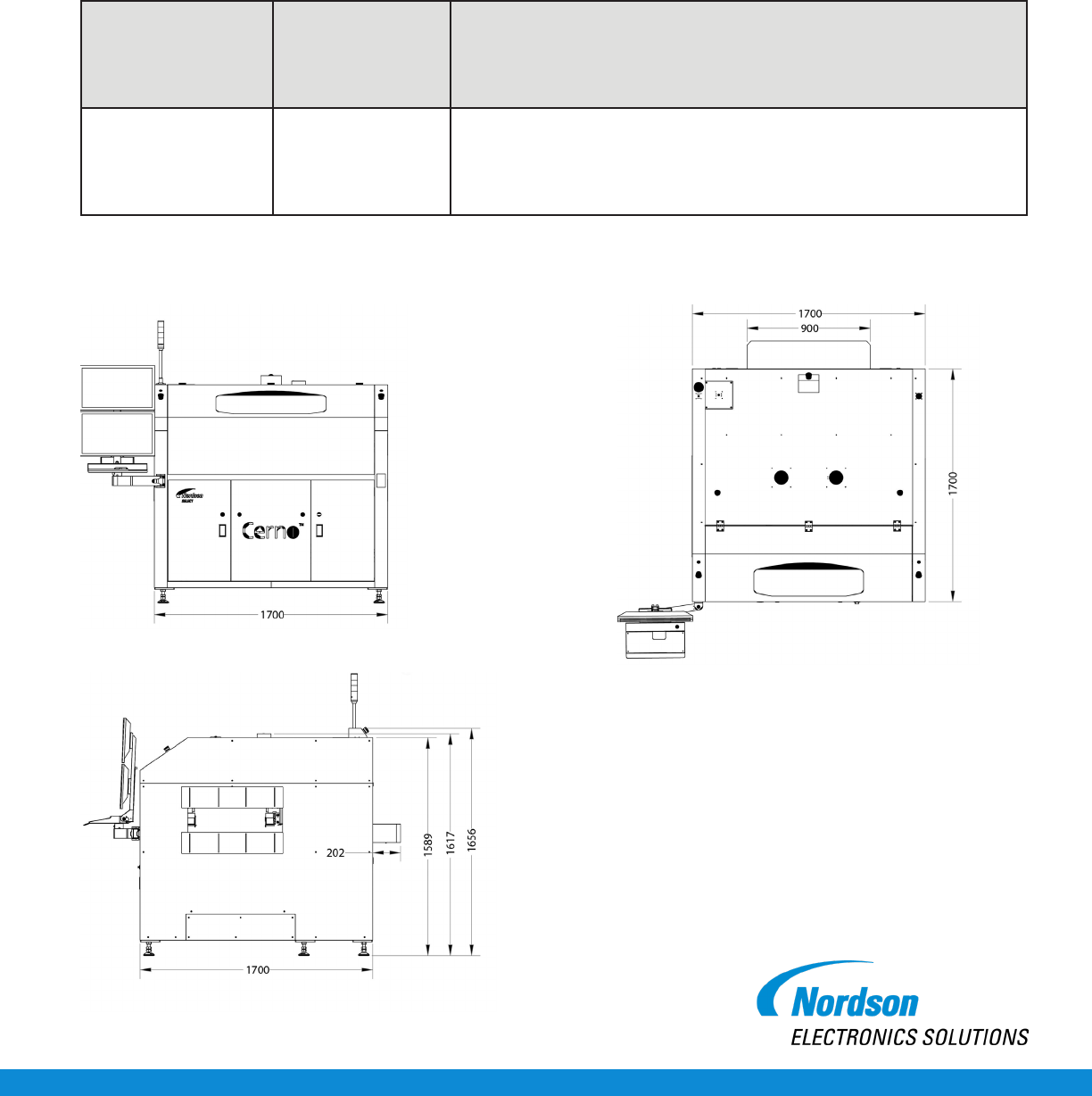

System Dimensions — Cerno 508.1 S
Front View Top View
Side View
Cerno 508.1
For more information, visit our
website to nd your local regional
oce or representative.
We have several global locations to
serve you.
North America
Asia Pacic
EMEA
www.nordson.com/electronics
info-electronics@nordson.com
Cerno 508.1 Two-Segment — two singulated boards in parallel mode.
Cerno 508.1 Two-Segment — soldering a board with small and large nozzles.
Cerno 508.1 Two-Segment — soldering a panelized board with dual nozzles.

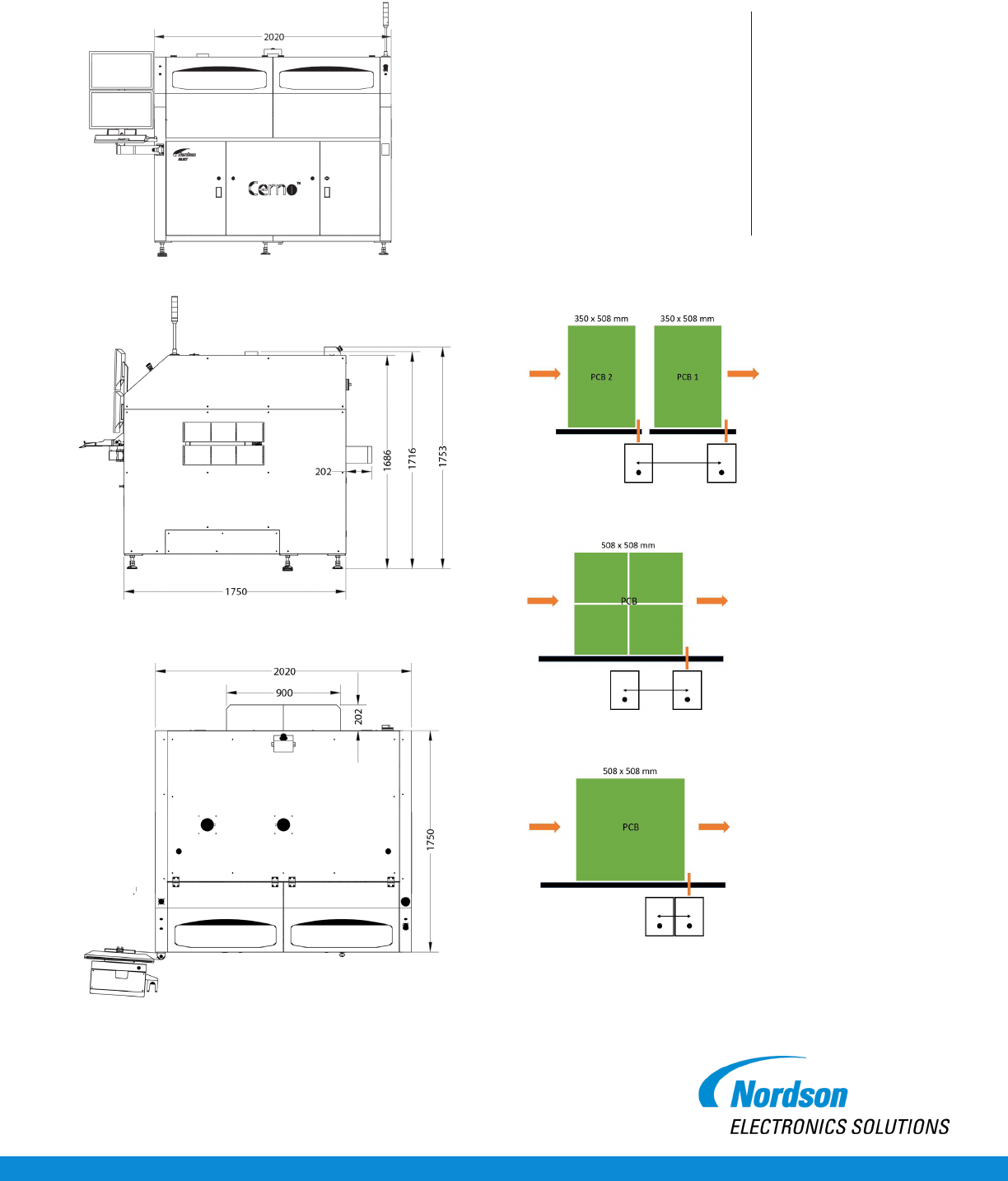

System Dimensions — Cerno 508.1 Two-Segment
