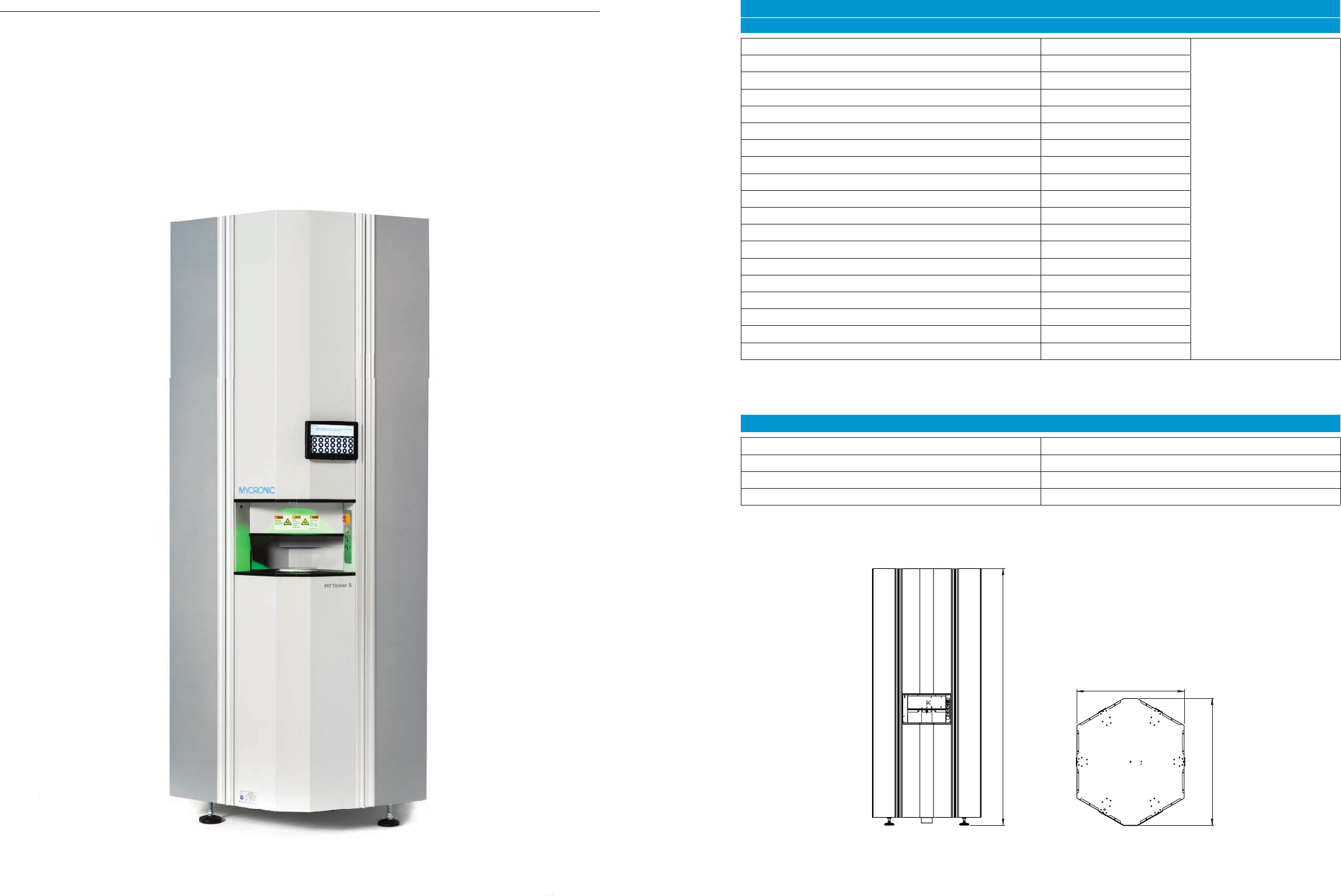

MYTower5
DIMENSIONS
CONFIGURATION
MISCELLANOUS
STANDARD CONFIGURATION
REEL SIZE NUMBER OF REELS TOTAL
8mm/4–7" 56
354
8mm/13" 56
8mm/15" 0
12mm/4–7" 48
12mm/13" 36
12mm/15" 24
16mm/4–7" 20
16mm/13" 30
16mm/15" 10
24mm/4–7" 0
24mm/13" 16
24mm/15" 16
32mm/4–7" 0
32mm/13" 14
32mm/15" 14
44mm/13" 5
44mm/15" 5
56mm/13" 0
56mm/15" 4
INSTALLATION REQUIREMENTS
Weight 270kg/600lbs
Power requirements Single phase AC 300VA
Voltage 115/230V, 50/60hz
Ambient temperature 18–35°C (65–95°F), <95% RH non condensing
2,260 (89.0")
1,102 (43.4")
1,303 (51.3")
The MYTower5 is Mycronic’s most compact component
storage system. Perfectly suited for customers with
limited fl oor space and height restrictions in their factory.
TheMYTower5 has a maximum capacity of 812 reels,
and is easily confi gurable to store 4–15"reels.
CONFIGURATION
MISCELLANOUS
STANDARD CONFIGURATION
REEL SIZE NUMBER OF REELS TOTAL
8mm/4–7" 56
418
8mm/13" 70
8mm/15" 0
12mm/4–7" 48
12mm/13" 36
12mm/15" 24
16mm/4–7" 40
16mm/13" 30
16mm/15" 10
24mm/4–7" 0
24mm/13" 24
24mm/15" 24
32mm/4–7" 0
32mm/13" 21
32mm/15" 21
44mm/13" 5
44mm/15" 5
56mm/13" 0
56mm/15" 4
INSTALLATION REQUIREMENTS
Weight 340kg/750lbs
Power requirements Single phase AC 300VA
Voltage 115/230V, 50/60hz
Ambient temperature 18–35°C (65–95°F), <95% RH non condensing
DIMENSIONS
MYTower6
2,637 (103.8")
1,303 (51.3")
1,102 (43.4")
The MYTower6 has a capacity of 980 reels, suited for
storing large quantity of 4–13" reels as well as 15" reels.
Coming in at under 1.5¡m
2
this component storage system
has the same footprint as the MYTower5, but has one
extra row of cassettes enabling a higher capacity.
CONFIGURATION
MISCELLANOUS
STANDARD CONFIGURATION
REEL SIZE NUMBER OF REELS TOTAL
8mm/4–7" 0
287
8mm/15" 0
12mm/4–7" 0
12mm/15" 72
16mm/4–7" 0
16mm/15" 80
24mm/4–7" 0
24mm/15" 56
32mm/4–7" 0
32mm/15" 42
44mm/15" 25
56mm/15" 12
INSTALLATION REQUIREMENTS
Weight 360kg/794lbs
Power requirements Single phase AC 300VA
Voltage 115/230V, 50/60hz
Ambient temperature 18–35°C (65–95°F), <95% RH non condensing
DIMENSIONS
MYTower6+
2,641 (104.0")
1,303 (43.4")
1,193 (46.9")
The MYTower6+ is the same height as the MYTower6,
withthe key di erence being the ability to store 15"
reels in all magazines within the storage system. This
model has a maximum capacity of 980 reels whilst
giving the customer fl exibility to store any size of reel.
