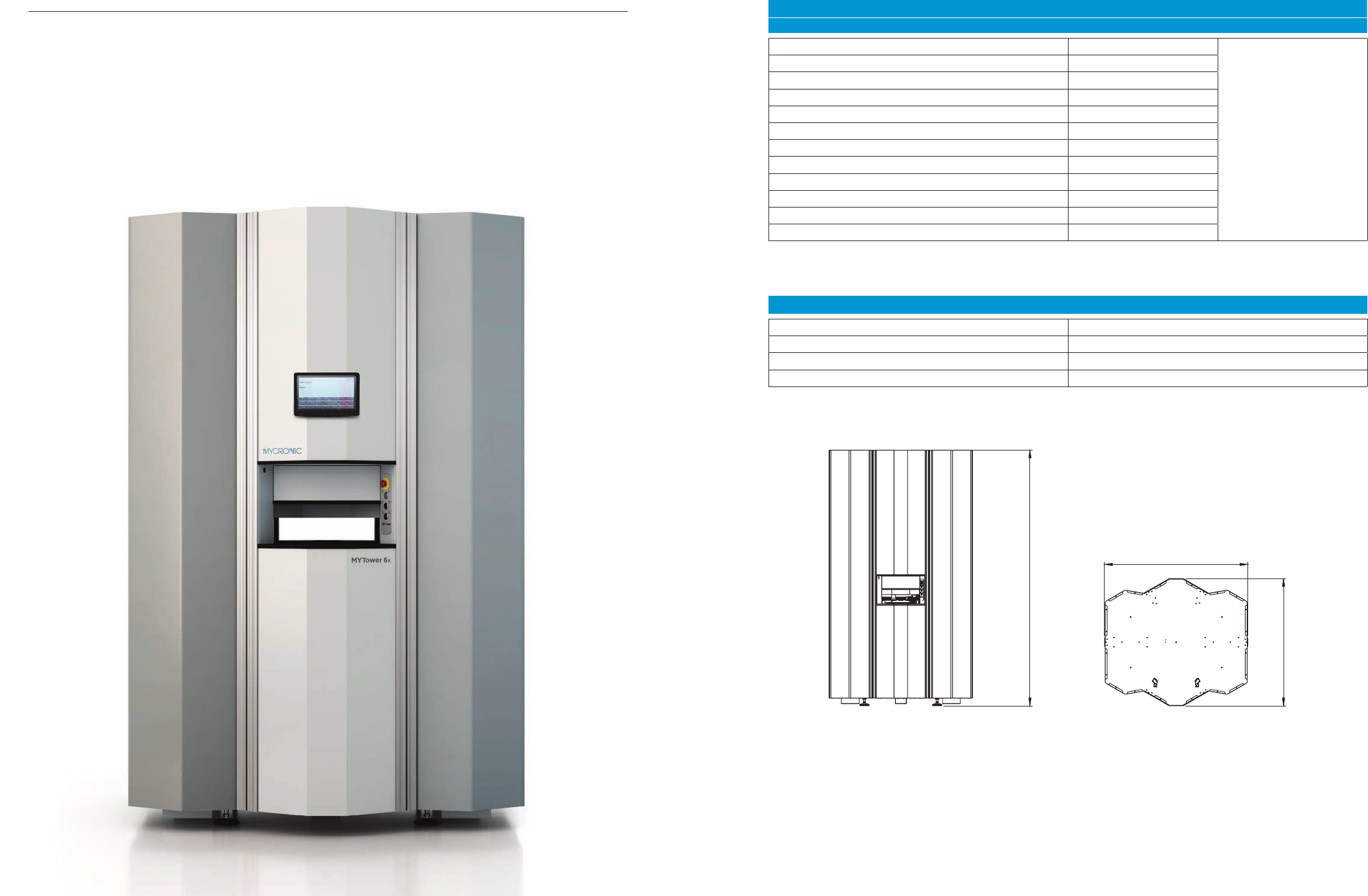

DIMENSIONS
CONFIGURATION
MISCELLANOUS
STANDARD CONFIGURATION
REEL SIZE NUMBER OF REELS TOTAL
8mm/4–7" 280
1,109
8mm/15" 28
12mm/4–7" 240
12mm/15" 36
16mm/4–7" 200
16mm/15" 0
24mm/4–7" 160
24mm/15" 16
32mm/4–7" 140
32mm/15" 0
44mm/15" 5
56mm/15" 4
INSTALLATION REQUIREMENTS
Weight 500kg/1,102lbs
Power requirements Single phase AC 300VA
Voltage 115/230V, 50/60hz
Ambient temperature 18–35°C (65–95°F), <95% RH non condensing
2,260 (89.0")
1,312 (51.6")
1,480 (58.3")
The MYTower5x is perfect for customers with height
restrictions, looking to store as many reels as possible,
whilst utilizing as little fl oorspace as possible. Perfect
for storing large quantities of 7" reels, with a maximum
capacity of 2,052 reels in a footprint less than 2¡m
2
. Can be
used both as a main warehouse or as bu er storage close
to your production line.
MYTower5x
MYTower6x
CONFIGURATION
MISCELLANOUS
STANDARD CONFIGURATION
REEL SIZE NUMBER OF REELS TOTAL
8mm/4–7" 280
1,371
8mm/15" 28
12mm/4–7" 480
12mm/15" 48
16mm/4–7" 200
16mm/15" 10
24mm/4–7" 160
24mm/15" 16
32mm/4–7" 140
32mm/15" 0
44mm/15" 5
56mm/15" 4
INSTALLATION REQUIREMENTS
Weight 580kg/1,278lbs
Power requirements Single phase AC 300VA
Voltage 115/230V, 50/60hz
Ambient temperature 18–35°C (65–95°F), <95% RH non condensing
DIMENSIONS
2,638 (104.0")
1,312 (51.6")
1,480 (58.3")
Mycronic’s largest component storage system capable of
storing 2,468 reels in less than 2¡m
2
. Thiscomponent storage
system is the same height as the MYTower6 and MYTower6+,
but with a new storage technology, is able to store large
quantities of reels. Can be used both as a main warehouse
oras bu er storage close to your production line.
