CONFIGURATION
MISCELLANOUS
STANDARD CONFIGURATION
REEL SIZE NUMBER OF REELS TOTAL
8mm/4–7" 0
287
8mm/15" 0
12mm/4–7" 0
12mm/15" 72
16mm/4–7" 0
16mm/15" 80
24mm/4–7" 0
24mm/15" 56
32mm/4–7" 0
32mm/15" 42
44mm/15" 25
56mm/15" 12
INSTALLATION REQUIREMENTS
Weight 360kg/794lbs
Power requirements Single phase AC 300VA
Voltage 115/230V, 50/60hz
Ambient temperature 18–35°C (65–95°F), <95% RH non condensing
DIMENSIONS

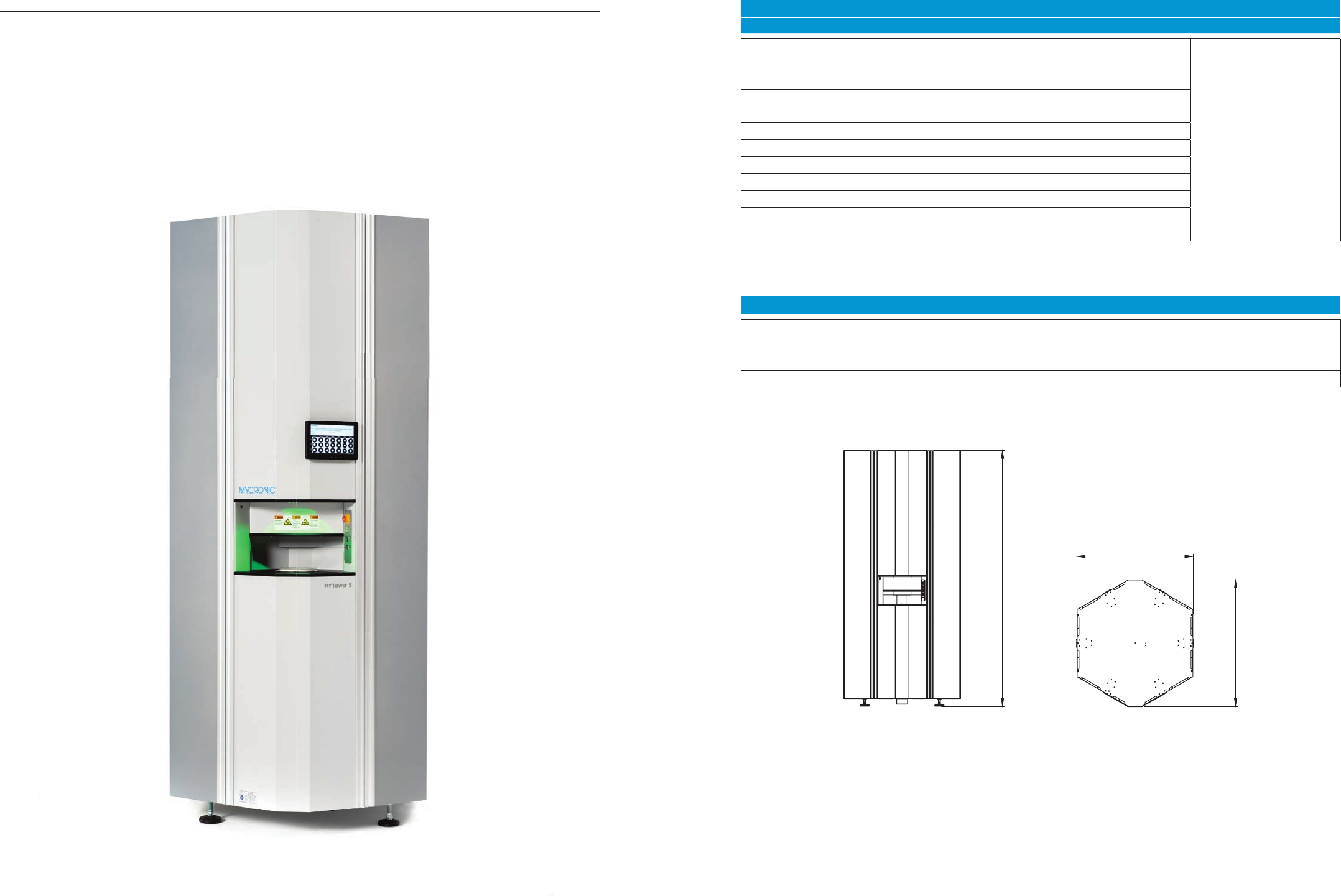

MYTower6+
2,641 (104.0")
1,303 (43.4")
1,193 (46.9")
The MYTower6+ is the same height as the MYTower6,
withthe key di erence being the ability to store 15"
reels in all magazines within the storage system. This
model has a maximum capacity of 980 reels whilst
giving the customer fl exibility to store any size of reel.
The MYTower7+ is our tallest component storage system,
measuring at 3.03m, with a capacity of 1,148 reels.
Thecomponent storage system has a footprint of
1.55m
2
, and is designed to store the large quantities
of reels right next to your SMT lines.
The MYTower7+ is our tallest component storage system,
measuring at 3.03m, with a capacity of 1,148 reels.
Thecomponent storage system has a footprint of
1.55m
2
, and is designed to store the large quantities
DIMENSIONS
CONFIGURATION
MISCELLANOUS
STANDARD CONFIGURATION
REEL SIZE NUMBER OF REELS TOTAL
8mm/4–7" 392
663
8mm/15" 28
12mm/4–7" 48
12mm/15" 48
16mm/4–7" 20
16mm/15" 40
24mm/4–7" 0
24mm/15" 32
32mm/4–7" 0
32mm/15" 28
44mm/15" 15
56mm/15" 12
INSTALLATION REQUIREMENTS
Weight 580kg/1,279lbs
Power requirements Single phase AC 300VA
Voltage 115/230V, 50/60hz
Ambient temperature 18–35°C (65–95°F), <95% RH non condensing

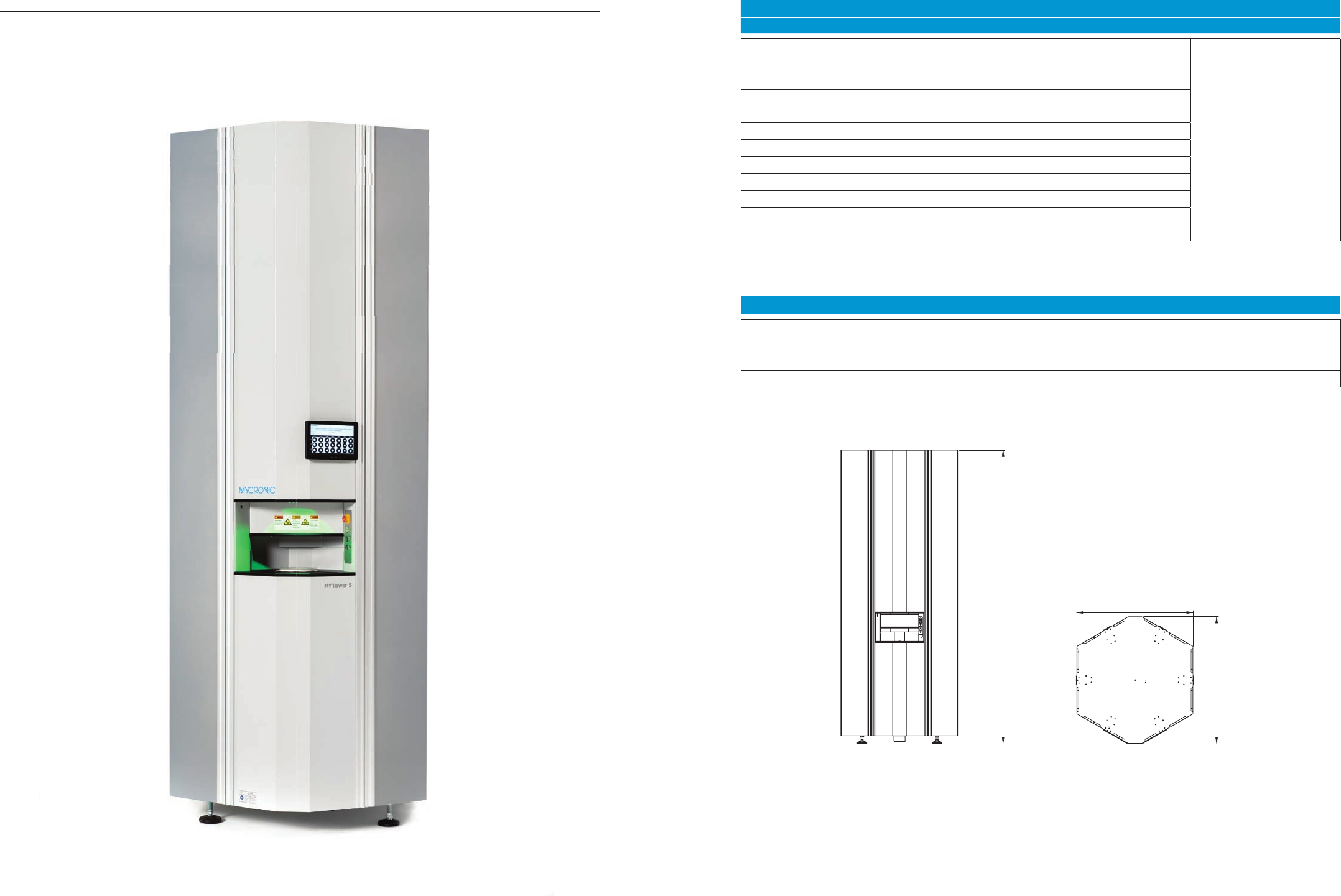

MYTower7+
3,014 (118.7")
1,303 (51.3")
1,193 (46.9")
The MYTower7+ is Mycronic’s tallest component storage system, measuring
at 3.03¡m, with a capacity of 1,148 reels. Thiscomponent storage system has a
footprint of 1.55¡m
2
, and is designed to store the large quantities of reels right
next to your SMT lines.
DIMENSIONS
CONFIGURATION
MISCELLANOUS
STANDARD CONFIGURATION
REEL SIZE NUMBER OF REELS TOTAL
8mm/4–7" 280
1,109
8mm/15" 28
12mm/4–7" 240
12mm/15" 36
16mm/4–7" 200
16mm/15" 0
24mm/4–7" 160
24mm/15" 16
32mm/4–7" 140
32mm/15" 0
44mm/15" 5
56mm/15" 4
INSTALLATION REQUIREMENTS
Weight 500kg/1,102lbs
Power requirements Single phase AC 300VA
Voltage 115/230V, 50/60hz
Ambient temperature 18–35°C (65–95°F), <95% RH non condensing

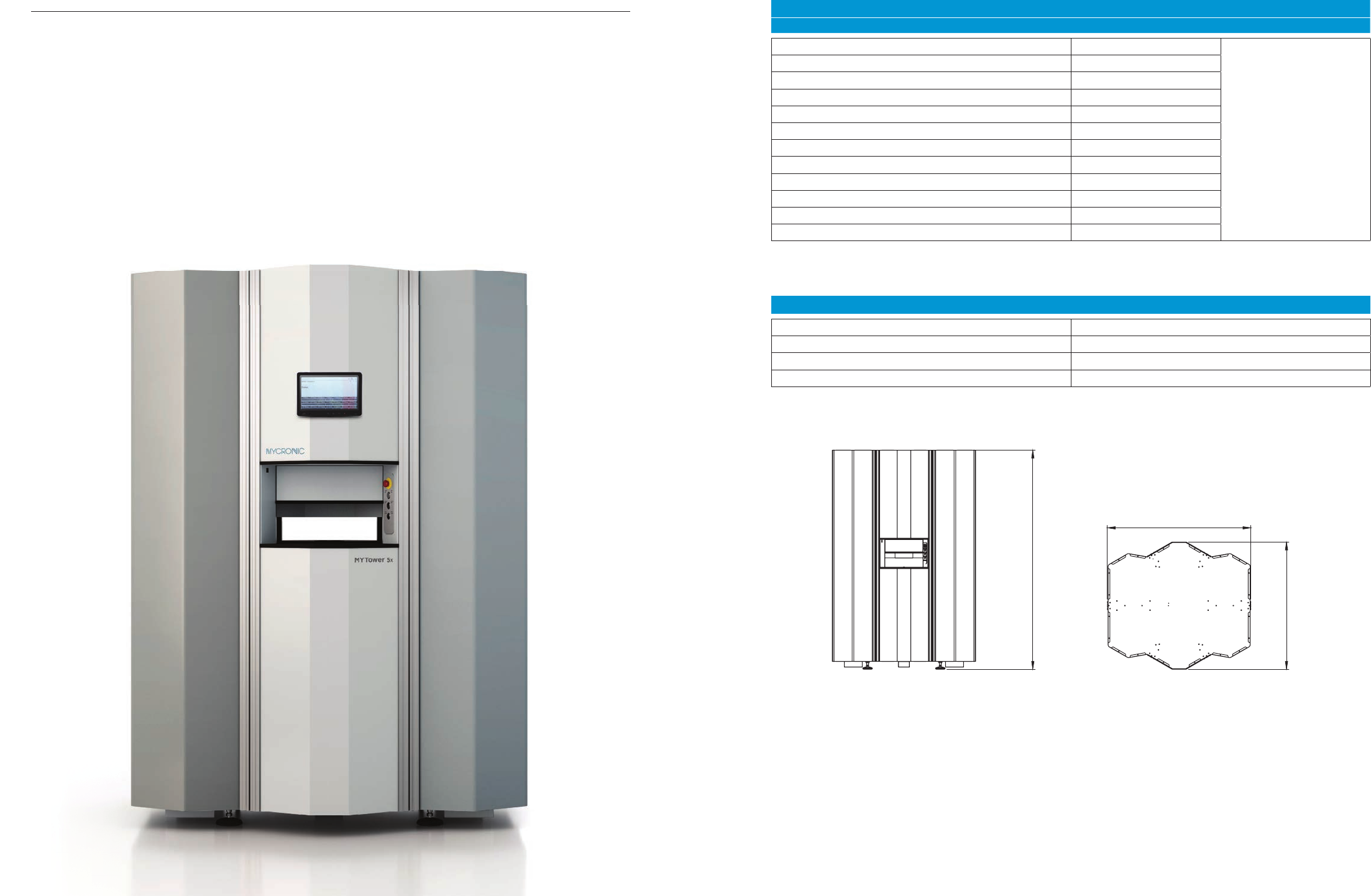

2,260 (89.0")
1,312 (51.6")
1,480 (58.3")
The MYTower5x is perfect for customers with height
restrictions, looking to store as many reels as possible,
whilst utilizing as little fl oorspace as possible. Perfect
for storing large quantities of 7" reels, with a maximum
capacity of 2,052 reels in a footprint less than 2¡m
2
. Can be
used both as a main warehouse or as bu er storage close
to your production line.
MYTower5x
